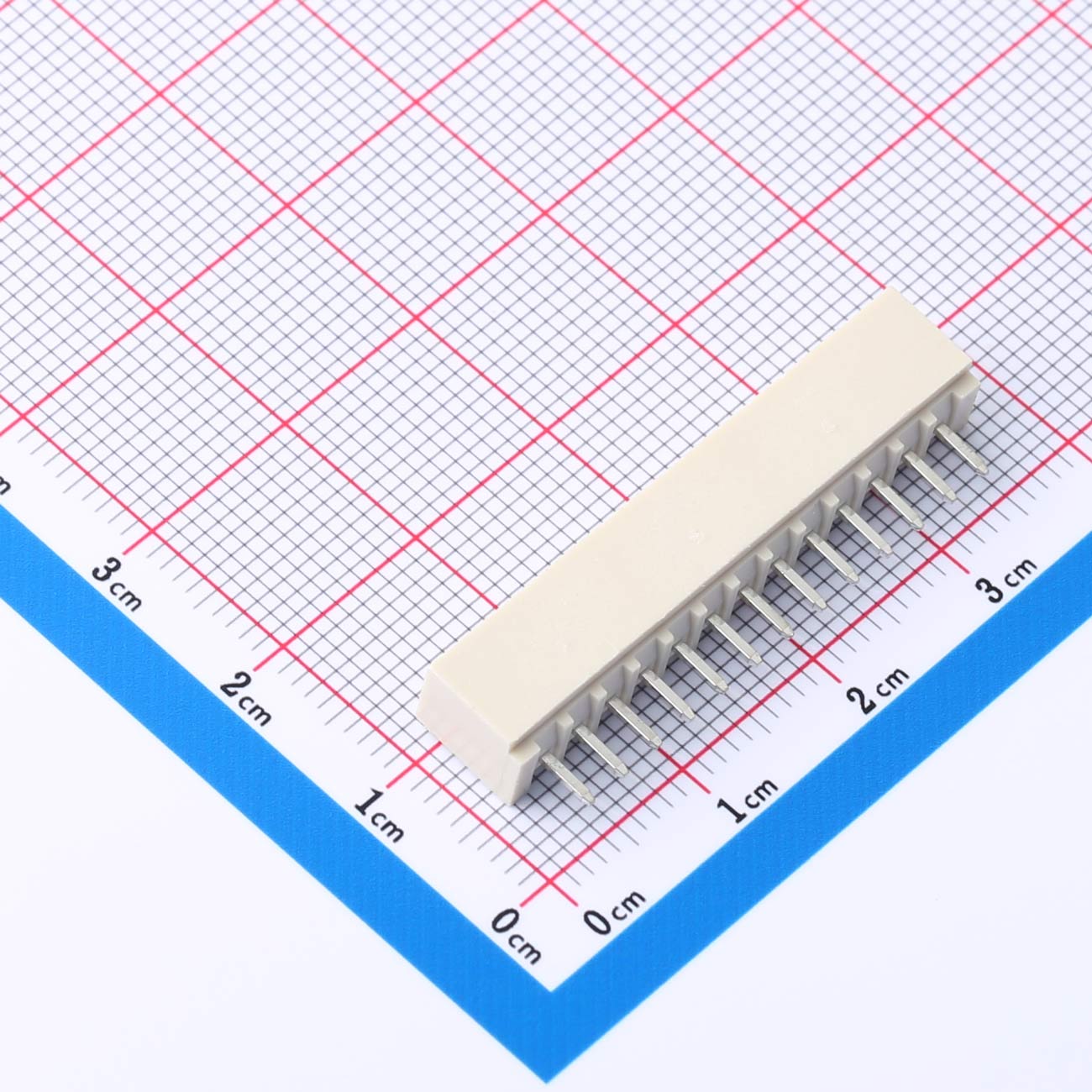

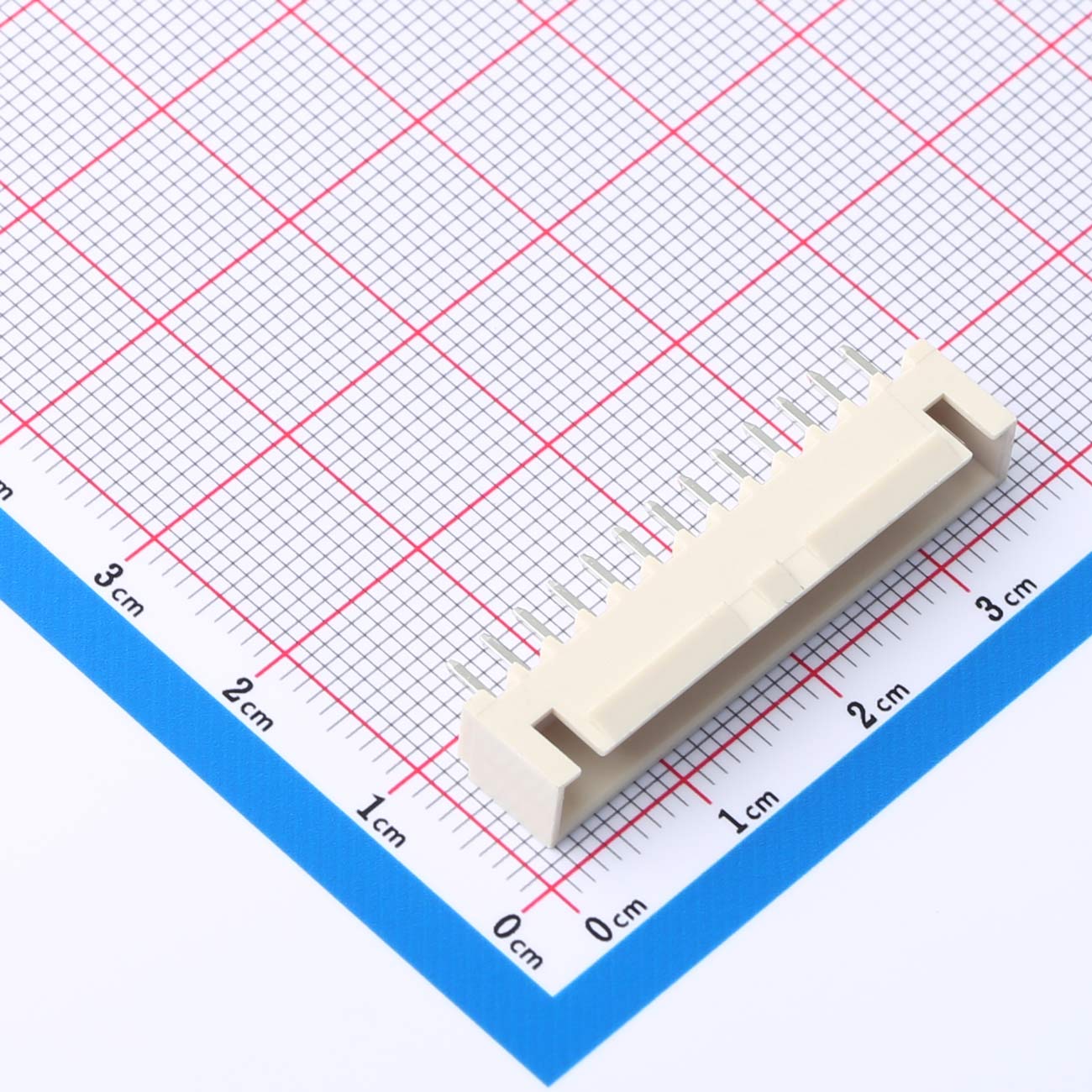

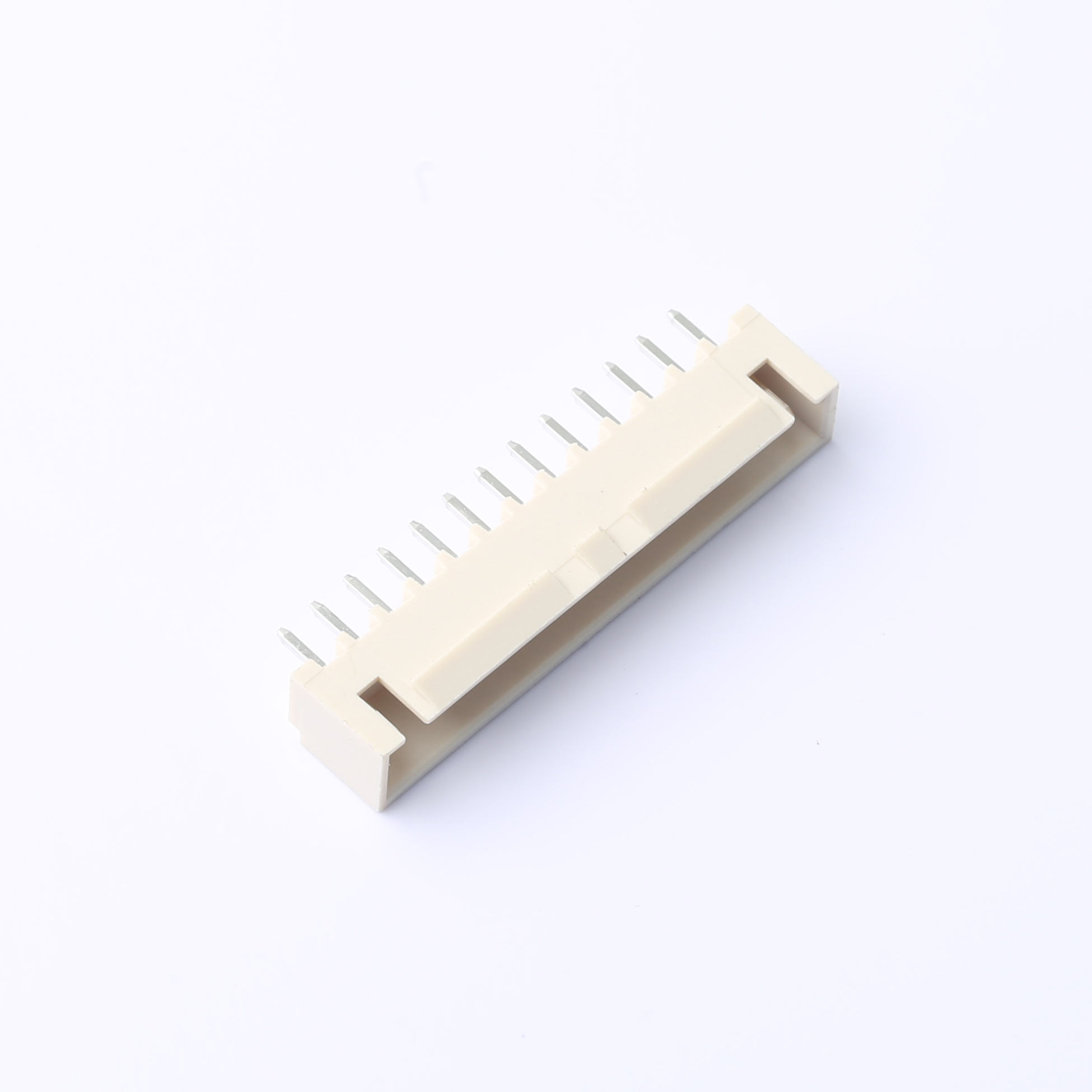

2.54mm Pitch Wire-to-Board Connector, 1x13P, KH-A2504-13A-M
Current Rating: 3A (AC/DC)
Voltage Rating: 250V (AC/DC)
Temperature Range: -25℃ to +85℃
Contact Resistance: 20mΩ Max
Insulation Resistance: 1000MΩ Min
Product Features
● Brand: Kinghelm
● Model: KH-A2504-13A-M
● Wire-to-board header, 1×13 pins
● Pitch: 2.54 mm
● Straight through-hole (HA straight pins with latch)
● Housing color: beige
● Package: bag
Product Benefits
● Efficient 13-pin connectivity for compact systems
● Strong contact integrity under repeated use
● Smooth insertion into standard PCB layouts
● Latch ensures secure locking during operation
● Saves board space with narrow profile
● Lightweight (1.4848 g), ideal for sensitive circuits
Product Applications
● Embedded control systems
● Audio and signal processing boards
● Instrumentation and testing tools
● Modular electronics and kits
● Home automation hardware
● DIY electronics and hobbyist projects
Name
Title
Description
Datasheet
Support
Support
If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.
Longevity
The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.
