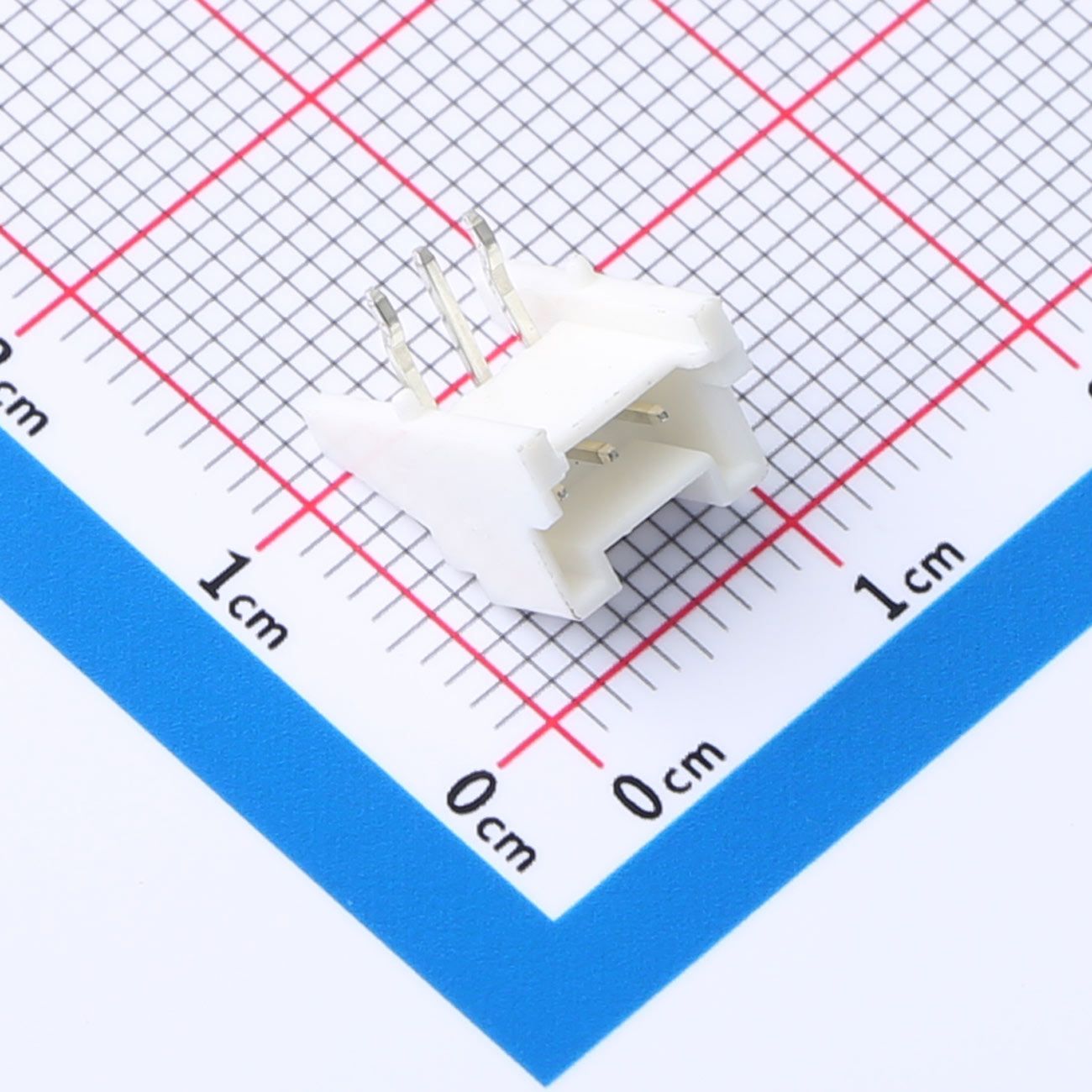

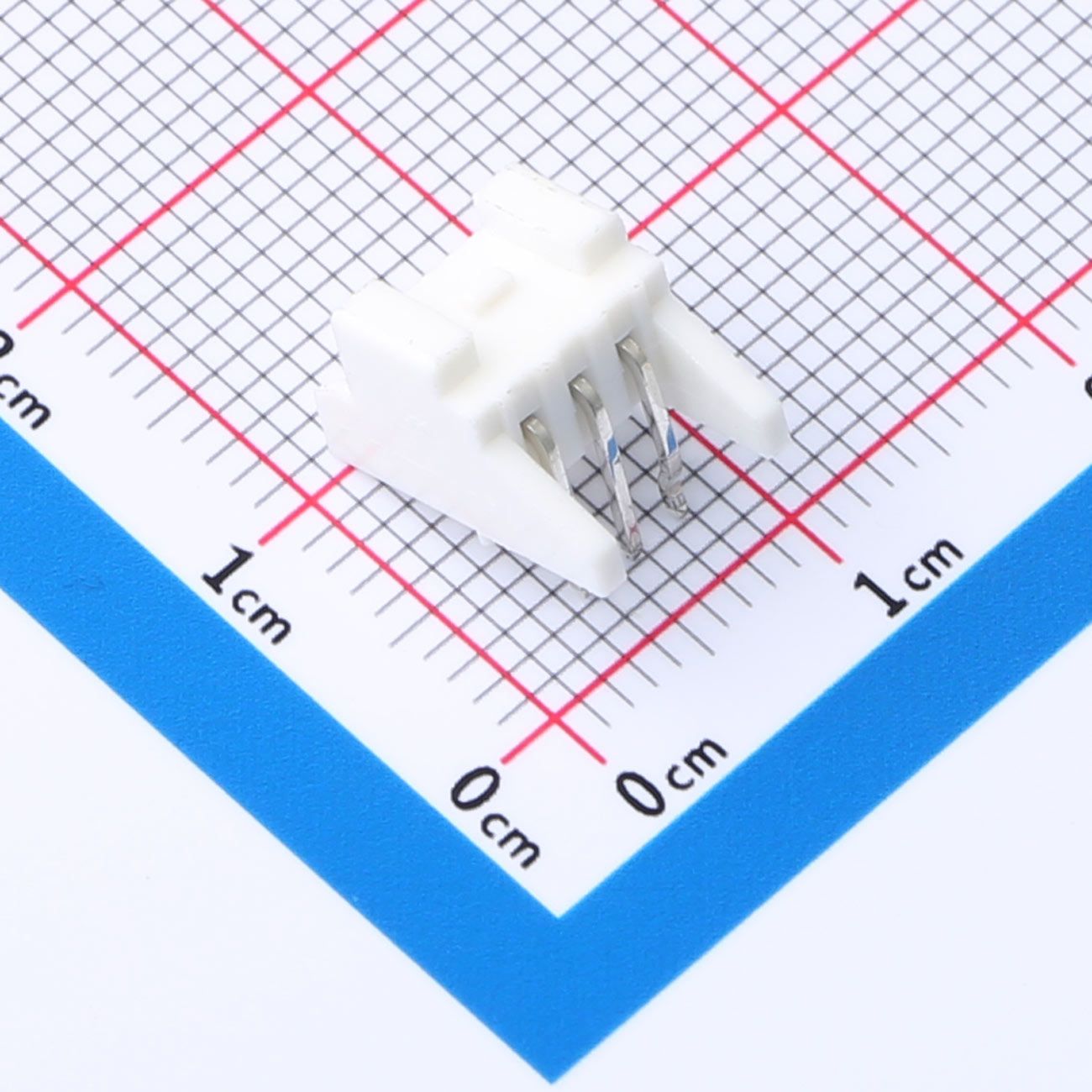

2mm Pitch Wire-to-Board Connector, 1x3P, Locating Angled Pin, KH-A2026-03AWD
Current Rating: 3A AC/DC
Voltage Rating: 250V AC/DC
Temperature Range: -25℃ to +85℃
Contact Resistance: 20mΩ Max
Insulation Resistance: 1000MΩ Min
Product Features
● 2.00mm pitch, 1x3P pin layout
● Bent pin for lateral alignment
● Plug-in through-hole mounting
● Tin-coated brass pins
● Flame-resistant housing
Product Benefits
● Simplified 3-line communication setup
● Stable contact with minimal stress
● Low profile for portable systems
● Quick assembly and replacement
● Good choice for mobile applications
Product Applications
● Signal trigger boards
● Minimalist control links
● Battery management signals
● Test/debug interface points
● DIY module jumpers
