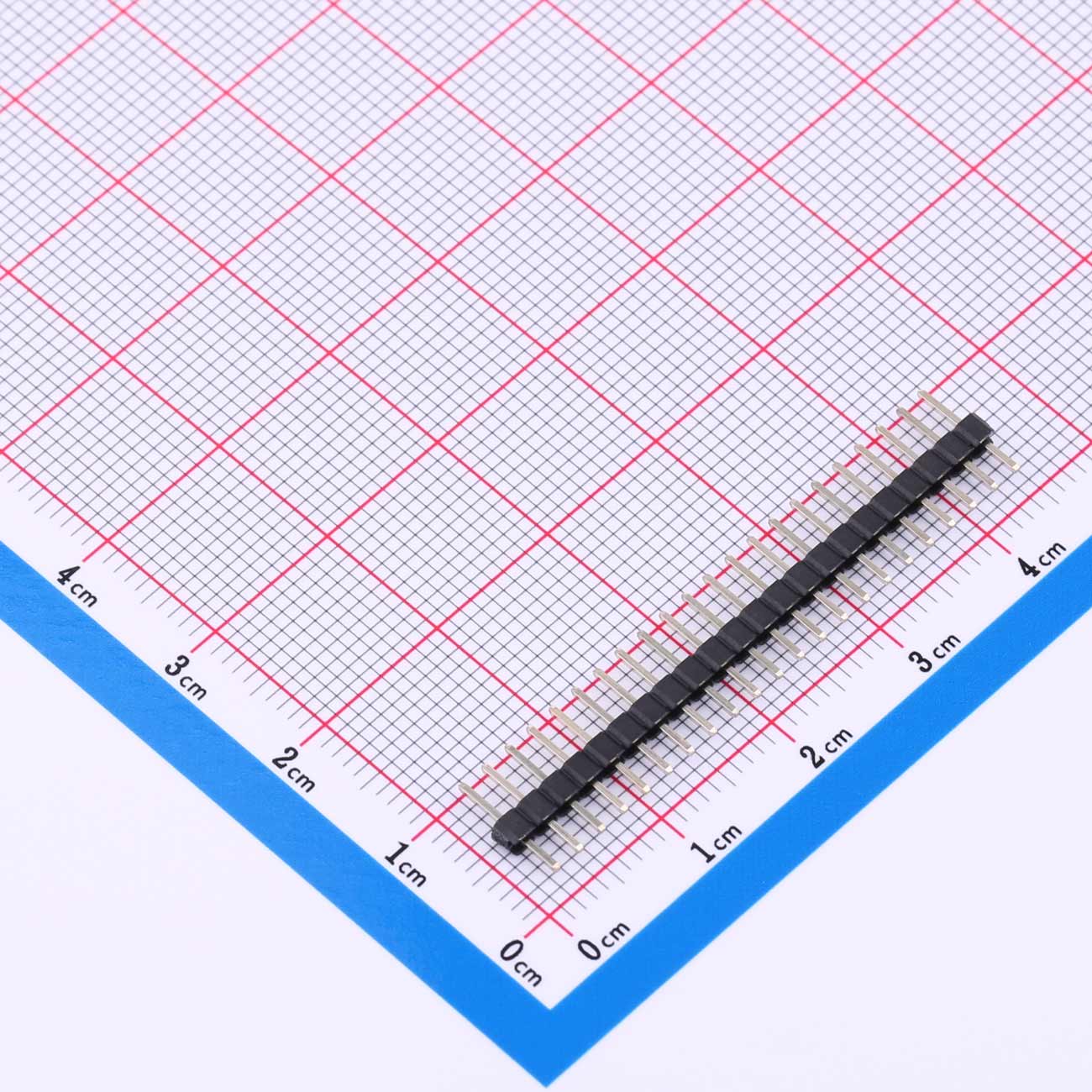

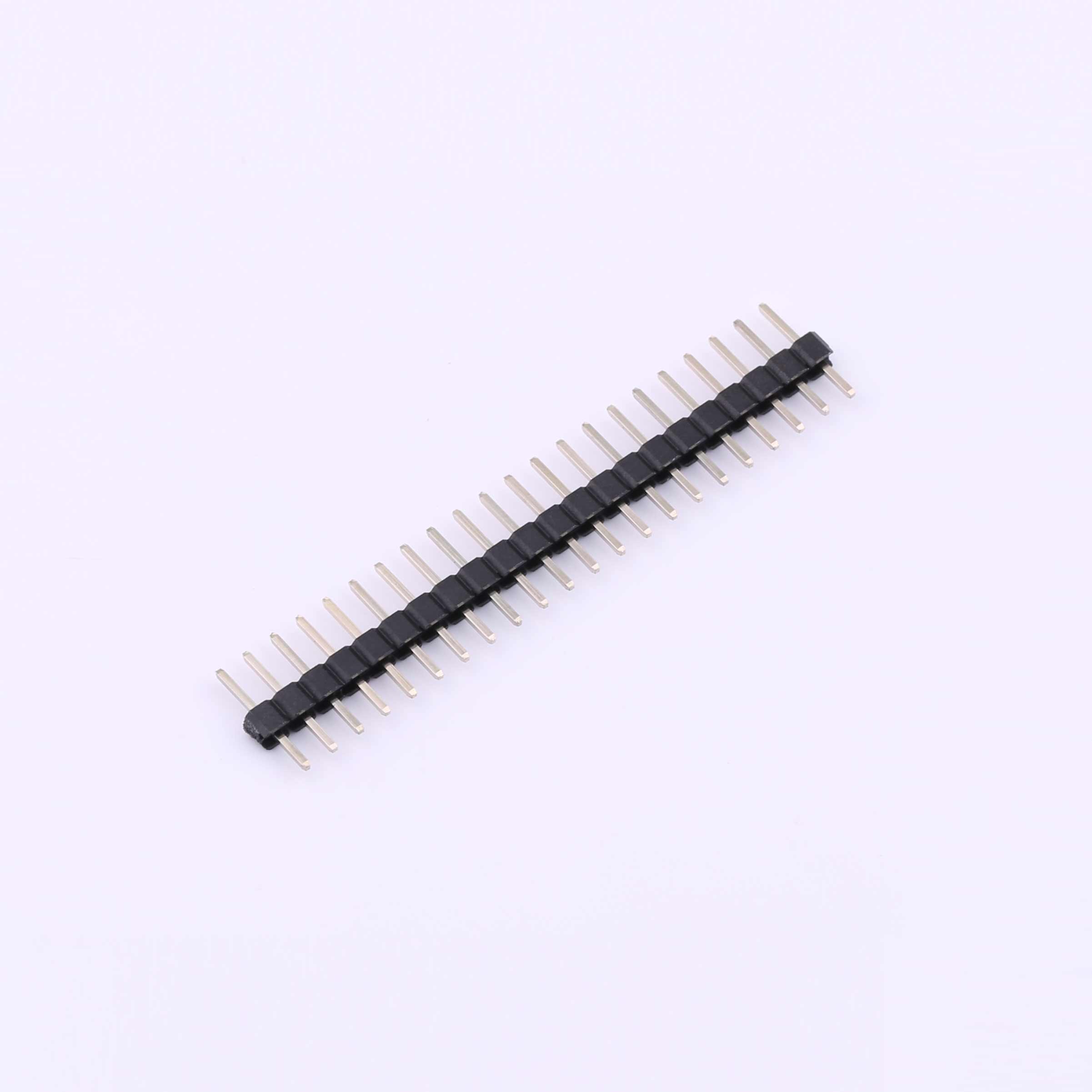

Pin Header Connector, 1x22P, 1.5A, KH-2PH180-1X22P-L8.7
Current Rating: 1.5 Amps
Insulation Resistance: 1000 MΩ Min
Contact Resistance: 20 MΩ Max
Withstanding Voltage: AC 500 V
Operation Temperature: -40℃ to +105℃
Product Features
●Connector Type Pin Header
●Configuration 1x22 Pins
●Current Rating 1.5 Amps
●Insulation Resistance Minimum 1000 MΩ
●Contact Resistance Maximum 20 MΩ
●Withstanding Voltage AC 500 V
●Operating Temperature Range -40°C to +105°C
Product Benefits
●Consistent Current Handling
●Excellent Insulation Resistance
●Efficient Connectivity
●High Voltage Durability
●Wide Temperature Range
