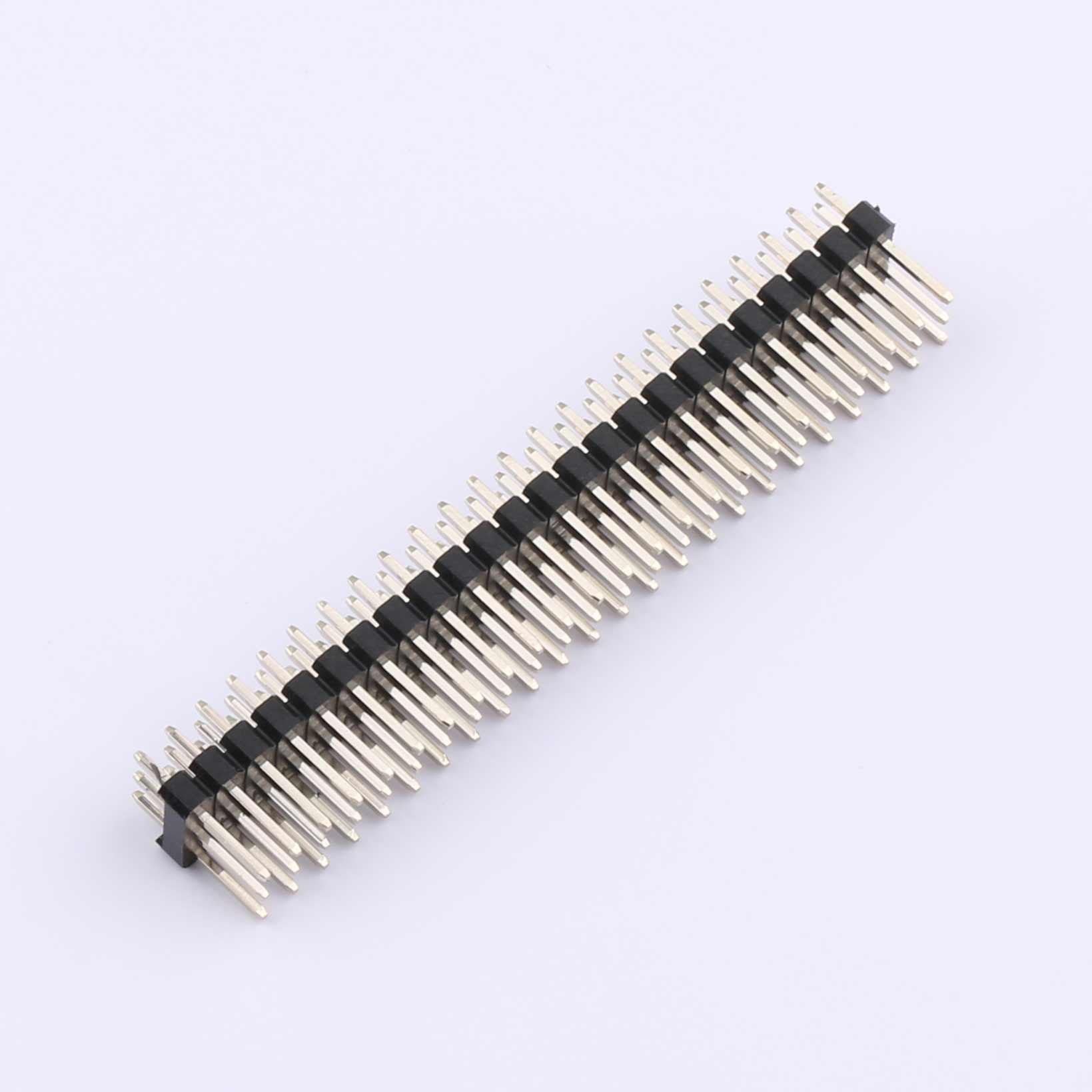

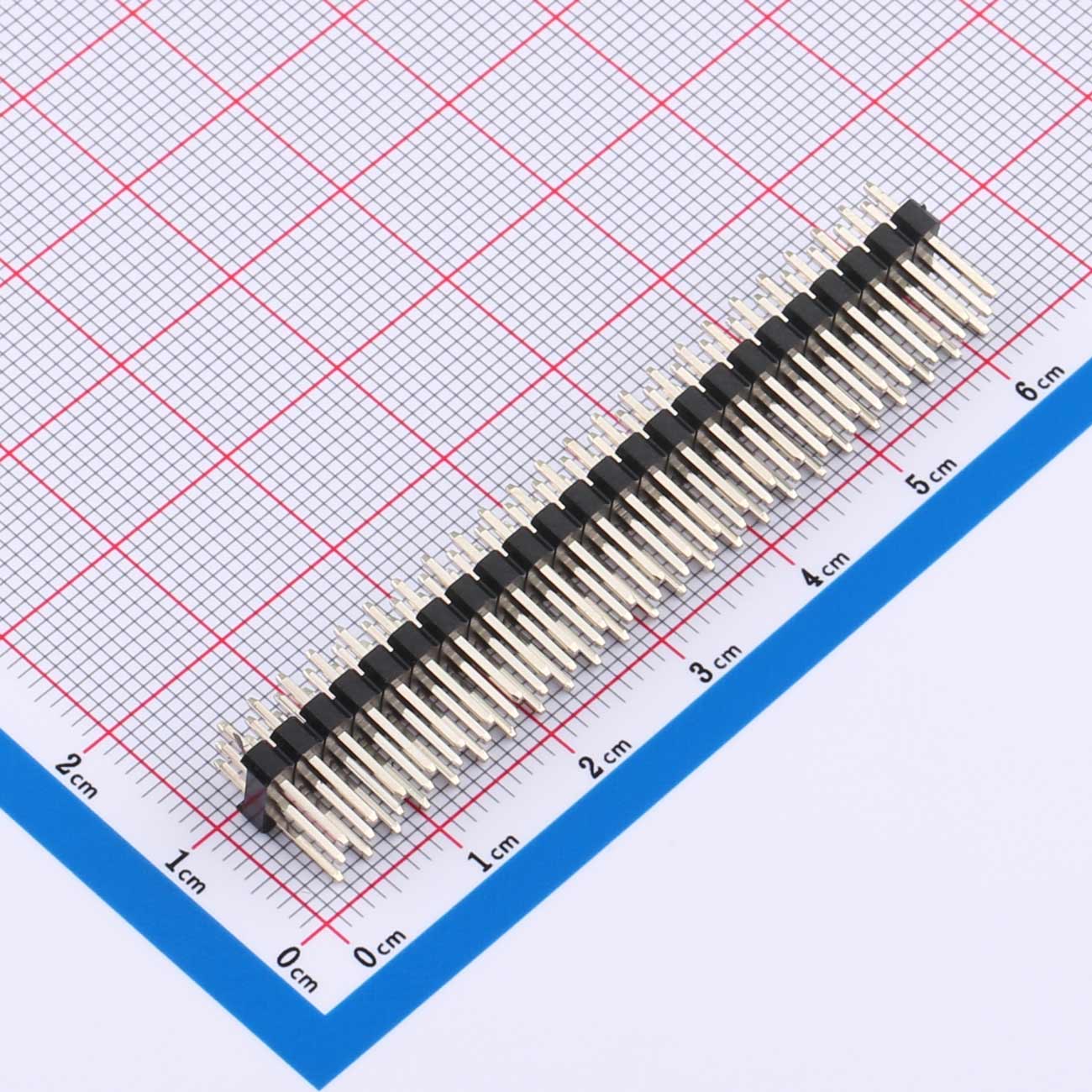

KH-2.54PH180-3X24P-L11.5 Pin Header Connector – 3A, 1000 MΩ Insulation, AC 1000 V
Current Rating: 3 Amps
Insulation Resistance: 1000 MΩ Min
Contact Resistance: 20 MΩ Max
Withstanding Voltage: AC 1000 V
Operation Temperature: -40℃ to +105℃
Product Features
●Pin Configuration 3x24 pins
●Current Rating 3 Amps
●Insulation Resistance 1000 MΩ Minimum
●Contact Resistance 20 MΩ Maximum
●Withstanding Voltage AC 1000 V
●Operating Temperature Range -40℃ to +105℃
Product Benefits
●High Current Rating
●Superior Insulation Resistance
●Low Contact Resistance
●High Voltage Tolerance
●Wide Temperature Range
Name
Title
Description
Datasheet
Support
Support
If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.
Longevity
The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.
