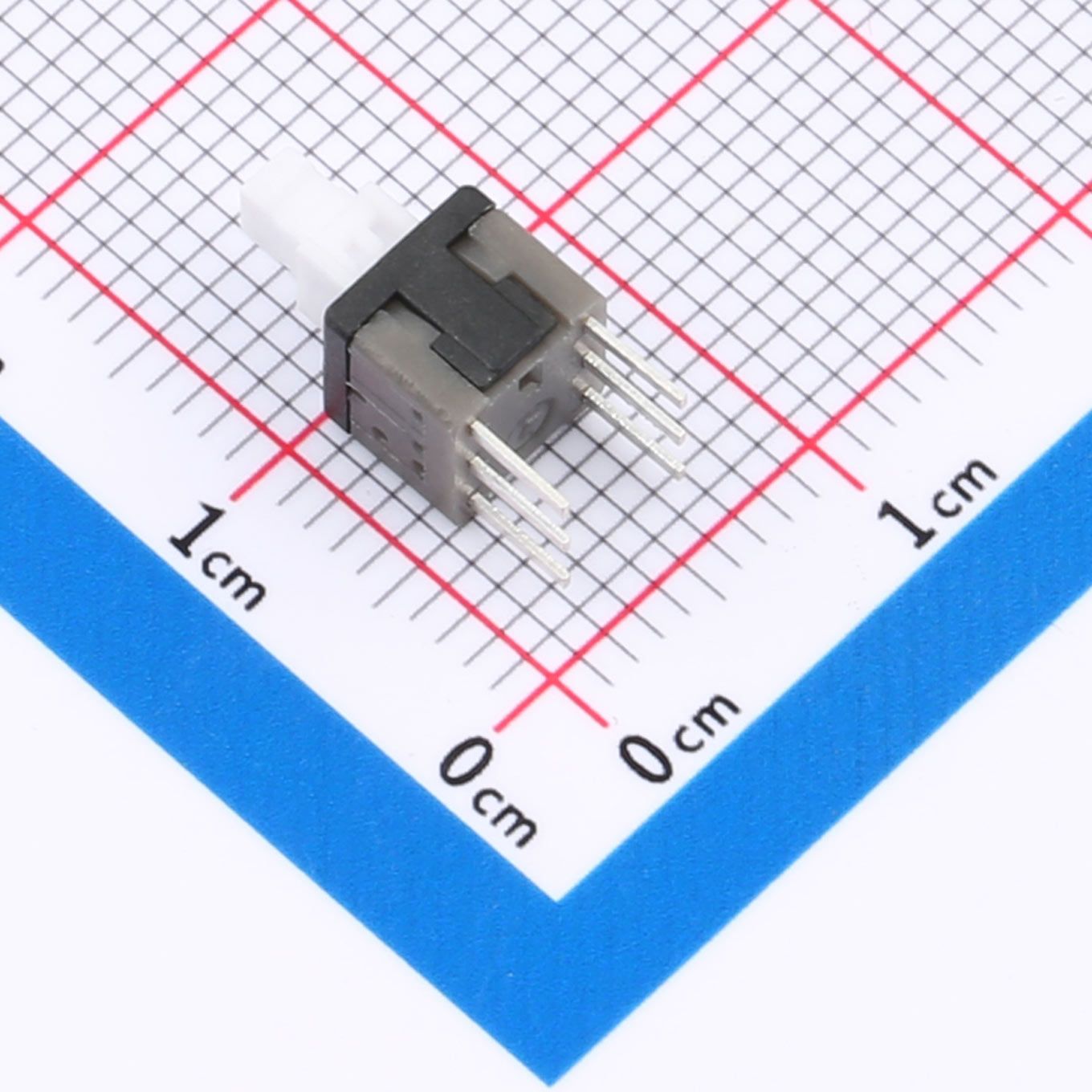

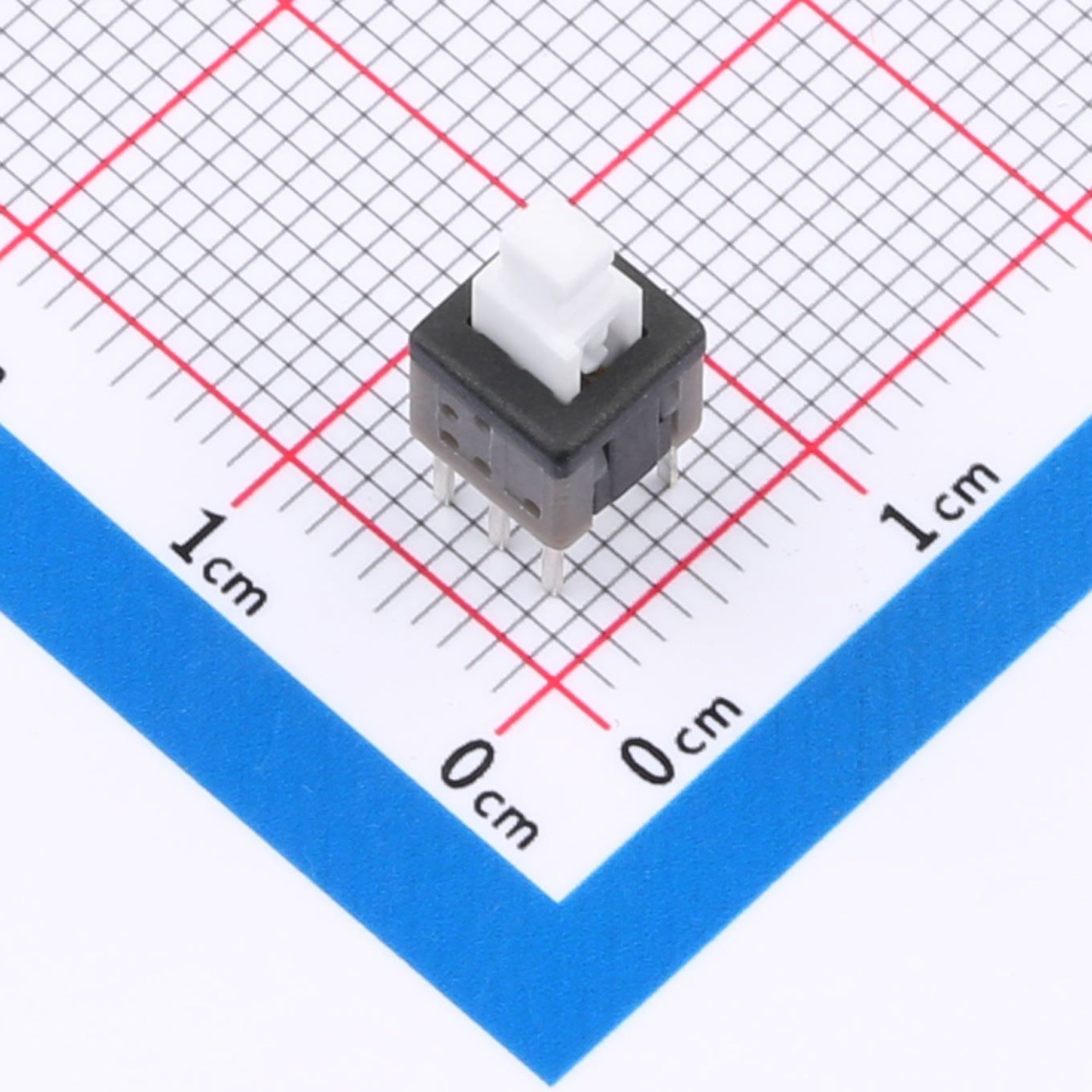

KH-PB-22E60
Circuit Configuration: Double Pole Double Throw (DPDT)
Actuator Shape: Rectangular Plunger
Mounting Type: Through-Hole
Illumination: Non-Illuminated
Terminal Style: PC Pins
Features
- Product Model: KH-PB-22E60
- Brand: Kinghelm
- Switch Type: 6-Pin DPDT Self-Locking Push Button Switch
- Dimensions: 5.8 × 5.8 × 13.5 mm
- Mounting Type: Through-Hole / PCB Mount
- Terminal Type: PC Pins
- Plunger Shape: Rectangular
- Illumination: Non-Illuminated
- Package: Bagged
- Contact Structure: Double Pole Double Throw (DPDT)
Advantages
- Self-Locking Design: Maintains the ON/OFF state after pressing, providing convenient and reliable operation.
- Compact Size: 5.8 × 5.8 mm footprint is suitable for space-constrained PCB designs.
- Stable Switching: Six-pin DPDT structure supports flexible circuit control and reliable electrical connection.
- Through-Hole Mounting: PC pins provide secure mechanical fixation and easy PCB soldering.
- Durable Construction: Designed for repeated push-button operation and long-term use.
Applications
- Consumer Electronics
- Control Panels
- Industrial Control Equipment
- Electronic Instruments
- Communication Devices
- Computer Peripherals
- Home Appliances
- PCB Control Circuits
