In today's rapidly evolving electronics industry, the reliability of even the smallest component can significantly impact the performance of an entire device. Among these components, slide switches play a crucial role in power control, mode selection, signal switching, and user interface operations. Whether used in industrial automation systems, communication equipment, measurement instruments, or consumer electronics, a high-quality slide switch ensures stable electrical performance, long service life, and dependable operation.

The Kinghelm KH-SS33E05-G5 Slide Switch is designed to meet these demanding requirements. Featuring a robust through-hole mounting structure, silver-plated contacts, and environmentally compliant materials, this switch provides a reliable solution for engineers and manufacturers seeking durability, conductivity, and consistent performance in a compact design.

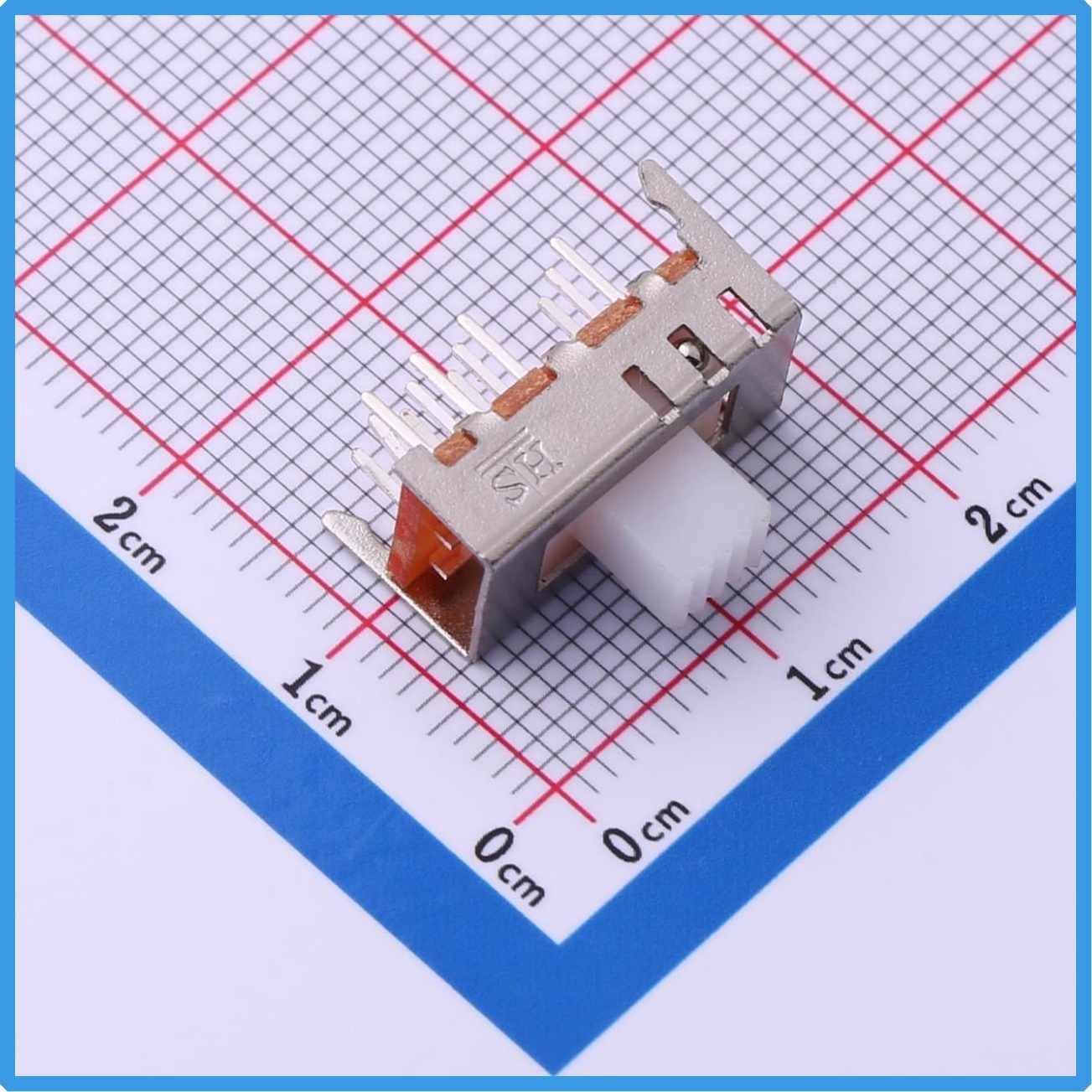

Kinghelm KH-SS33E05-G5 Product Image

Compact Structure Designed for Stable Installation

The KH-SS33E05-G5 adopts a through-hole (THT) package, allowing secure PCB mounting and strong mechanical retention. Compared with many surface-mount alternatives, through-hole switches provide enhanced durability in applications exposed to vibration, frequent operation, or harsh working environments.

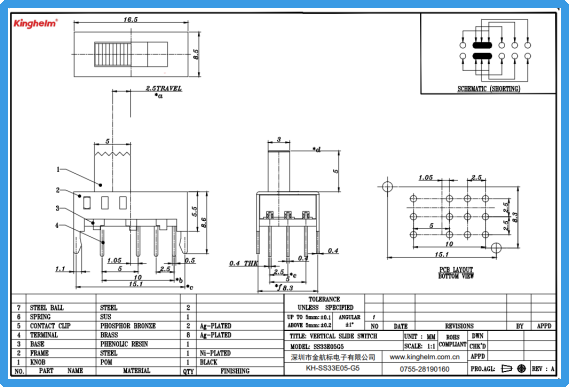

The switch features a top dimension of 16.5mm in length and 8.5mm in width, making it suitable for a wide range of electronic equipment while maintaining efficient space utilization. The actuator knob has a width of 3mm and an exposed height of 5mm, offering a comfortable operating experience and clear tactile feedback during switching.

The overall switch height is 8.6mm, with a base height of 5.5mm. Its total PCB pin span measures 15.1mm, providing secure board attachment and improved mechanical stability. The bottom layout incorporates a dual-row, three-column pin arrangement along with positioning holes, ensuring accurate installation and reducing the risk of movement after soldering.

This structural design makes the KH-SS33E05-G5 particularly suitable for industrial control systems, communication devices, power supplies, instrumentation, and other applications where long-term operational reliability is essential.

High-Quality Materials Ensure Excellent Electrical Performance

The performance of a slide switch largely depends on the quality of its materials and contact design. Kinghelm has carefully selected premium materials for the KH-SS33E05-G5 to maximize durability and electrical conductivity.

The actuator knob is manufactured from POM (Polyoxymethylene), commonly known as acetal engineering plastic. POM is widely recognized for its excellent wear resistance, dimensional stability, and mechanical strength. Even under frequent operation, it maintains smooth movement and reliable performance.

The switch terminals are made from H62 brass, a material known for its excellent conductivity, corrosion resistance, and mechanical durability. H62 brass is commonly used in high-quality electrical and electronic components because of its ability to maintain stable electrical connections over extended periods.

One of the most significant advantages of the KH-SS33E05-G5 is its fully silver-plated contacts and solder terminals. Silver possesses the highest electrical conductivity among all metals, helping reduce contact resistance and improve current transfer efficiency. The silver plating also enhances oxidation resistance, ensuring stable switching performance throughout the product's service life.

As a result, the switch is well suited for applications requiring dependable signal transmission and consistent electrical contact performance.

Wide Range of Applications Across Multiple Industries

Thanks to its reliable structure and superior electrical characteristics, the KH-SS33E05-G5 can be deployed in a wide variety of electronic and industrial systems.

In industrial automation equipment, slide switches are frequently used for mode selection, operational control, and configuration settings. Reliable contact performance helps prevent signal interruption and improves overall system stability.

In testing and measurement instruments, precise switching is essential for maintaining accuracy and user efficiency. The KH-SS33E05-G5 provides clear operational feedback and dependable switching action, supporting professional-grade equipment performance.

Communication and networking devices often operate continuously for extended periods. The silver-plated contact system of this switch helps maintain low resistance and reliable connectivity, contributing to long-term system reliability.

Additional applications include:

• Industrial control systems
• Power supply equipment
• Security and surveillance devices
• Communication terminals
• Smart home products
• Medical electronics
• Educational equipment
• Consumer electronic devices
• Instrumentation and testing equipment

As part of the broader Kinghelm product portfolio, the KH-SS33E05-G5 complements a comprehensive range of connectors, antennas, RF components, and electronic interconnect solutions designed for global customers.

Certified Quality and Environmental Compliance

As international markets continue to demand higher standards for product quality and environmental responsibility, compliance certifications have become increasingly important.

The KH-SS33E05-G5 is manufactured using materials that fully comply with RoHS environmental requirements and contain no restricted hazardous substances such as lead, cadmium, or mercury. This ensures compatibility with modern environmental regulations and supports sustainable product development.

Kinghelm has established a comprehensive quality management system to ensure consistent product performance and customer satisfaction. The company has successfully obtained ISO 9001 Quality Management System Certification and ISO 14001 Environmental Management System Certification. In addition, Kinghelm products comply with RoHS and REACH environmental standards, helping customers meet international market requirements.

Furthermore, Kinghelm has obtained the internationally recognized D-U-N-S® (Dun & Bradstreet) certification, demonstrating the company's credibility and reliability within the global supply chain ecosystem. These certifications reflect Kinghelm's commitment to quality assurance, environmental responsibility, and continuous improvement.

By combining advanced manufacturing processes, strict quality control procedures, and internationally recognized certifications, Kinghelm provides customers with dependable electronic components that support both domestic and international product development projects.

Kinghelm KH-SS33E05-G5 Specification

Conclusion

The Kinghelm KH-SS33E05-G5 Slide Switch is engineered to deliver reliable switching performance, excellent conductivity, and long-term durability. Featuring a robust through-hole design, POM actuator, H62 brass terminals, and fully silver-plated contacts, it provides an ideal solution for industrial control equipment, communication systems, instrumentation, power supplies, and various electronic applications.

Backed by Kinghelm's certified quality management systems, including ISO 9001, ISO 14001, RoHS, REACH, and D-U-N-S® certifications, the KH-SS33E05-G5 offers customers confidence in both product performance and supply reliability.

For engineers, purchasing managers, and product designers seeking a dependable slide switch solution, the Kinghelm KH-SS33E05-G5 represents a practical choice that combines quality materials, proven performance, and international compliance standards.
