As modern electronic devices continue to evolve toward greater intelligence and functionality, the demand for versatile control components has increased significantly. Traditional single-position or dual-position switches are often insufficient for systems requiring multiple operating modes. This is where multi-position slide switches play a crucial role.

The Kinghelm KH-SS24H20-G10 Vertical Slide Switch is specifically designed to provide stable and accurate multi-state control. Featuring a Double Pole Four Position (DP4T) configuration and a non-shorting switching mechanism, this switch offers dependable performance for industrial equipment, communication systems, test instruments, consumer electronics, and various intelligent control applications.

With its compact structure, reliable contact performance, and clear switching feedback, the KH-SS24H20-G10 has become an ideal choice for engineers seeking efficient mode selection and circuit control solutions.

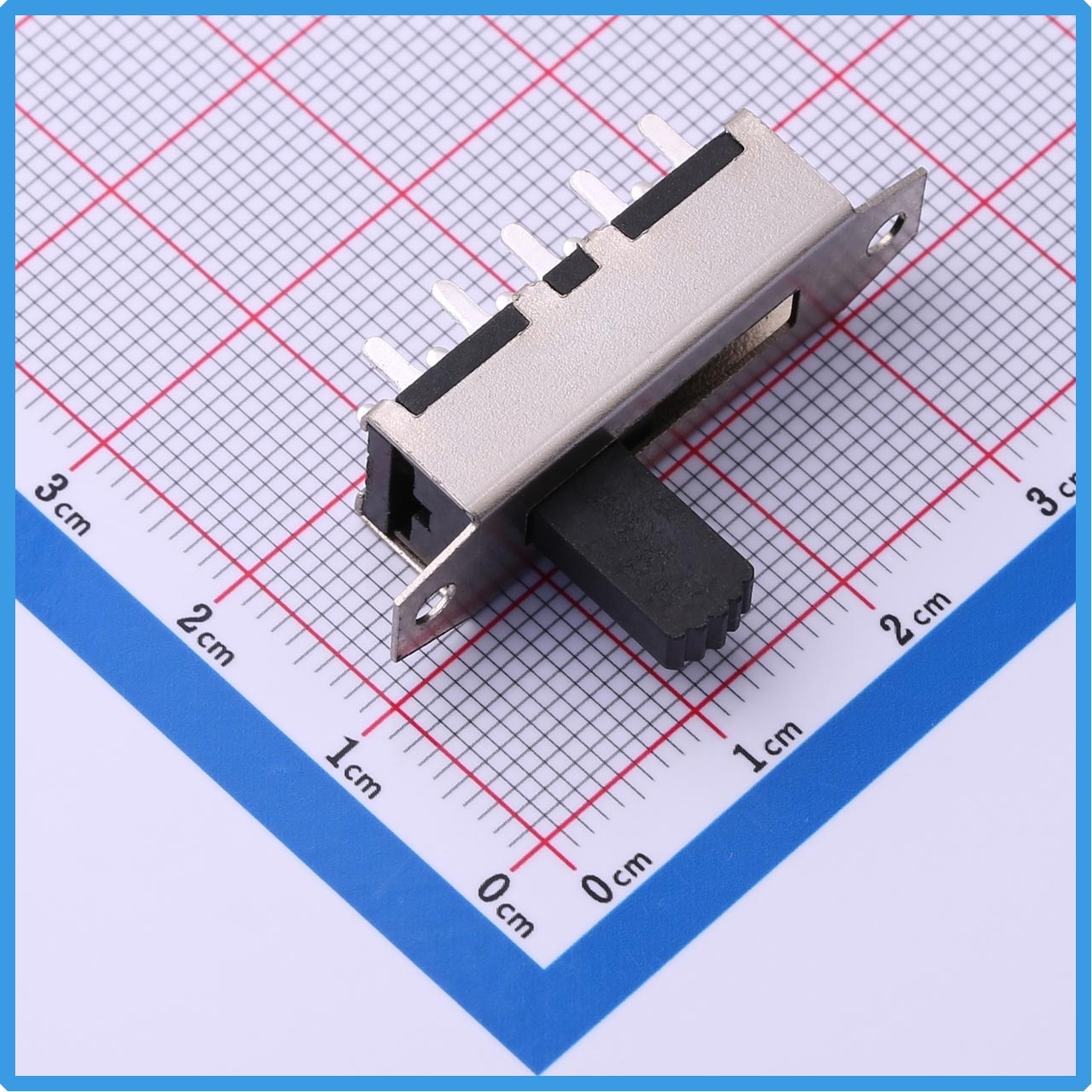

Kinghelm KH-SS24H20-G10 Product Image

Multi-Position Switching for Enhanced Functionality

Electronic products today often require multiple operating modes to accommodate different user requirements and application scenarios. The Kinghelm KH-SS24H20-G10 addresses this need through its DP4T (Double Pole Four Position) design, enabling four distinct switching states within a single component.

This configuration allows designers to implement multiple functions without increasing PCB complexity. Whether selecting operating modes, changing communication settings, configuring parameters, or switching signal paths, the switch provides precise and reliable control.

The 4mm actuator travel delivers clear tactile feedback during operation, allowing users to easily identify position changes. This enhances both usability and operational accuracy in professional equipment and consumer devices.

Unlike shorting-type switches, the KH-SS24H20-G10 utilizes a non-shorting contact structure. During transition between positions, electrical contacts remain isolated, preventing unintended circuit connections. This feature is particularly important in applications where accidental signal overlap or temporary short circuits could affect system performance.

As a result, the switch offers greater reliability in sensitive electronic systems and precision control applications.

Compact Design with Secure Through-Hole Installation

Space efficiency remains a critical factor in modern PCB design. The KH-SS24H20-G10 features a compact body measuring approximately 18.2mm × 10.5mm, with an overall length of 25mm. This allows designers to integrate advanced switching functionality while minimizing board space consumption.

The switch adopts a vertical through-hole mounting structure, providing strong mechanical stability after soldering. Compared with some surface-mounted alternatives, through-hole installation offers improved resistance to vibration and mechanical stress, making it suitable for demanding industrial environments.

Its dual-row pin layout enhances solder joint reliability and ensures stable electrical performance over long periods of operation. The standardized pin arrangement also supports efficient assembly processes, making the component suitable for both manual production and automated manufacturing lines.

Kinghelm places strong emphasis on product consistency and manufacturing quality, ensuring that each switch delivers dependable performance throughout its service life.

Ideal for Industrial, Communication, and Consumer Electronics

One of the key advantages of the KH-SS24H20-G10 is its broad application compatibility.

In industrial automation systems, the switch can be used for operating mode selection, parameter configuration, and control panel functions. Test and measurement equipment can utilize its four-position capability for range selection, signal routing, or operational settings.

Communication devices frequently require switching between different modes, channels, or configurations. The non-shorting design of the KH-SS24H20-G10 helps maintain signal integrity and system stability during these transitions.

In consumer electronics, the switch is suitable for audio devices, smart home controllers, portable instruments, gaming peripherals, and various electronic products requiring multi-level functionality.

As electronic products continue to integrate more features into compact designs, reliable multi-position switches like the KH-SS24H20-G10 are becoming increasingly valuable components for system designers worldwide.

Design Considerations for Optimal Performance

To maximize the performance and reliability of the KH-SS24H20-G10, several design considerations should be taken into account during PCB development.

The PCB footprint should match the switch dimensions and accommodate the approximately 18mm soldering area with a 6.5mm dual-row pin center spacing. Proper mechanical support should also be incorporated to ensure stable installation.

Adequate clearance around the actuator should be reserved to allow smooth user operation and prevent enclosure interference. This is especially important in compact electronic devices where external housing components may limit switch movement.

Engineers should also ensure that the switch is operated within its specified electrical ratings. Proper circuit design and load management will help extend operational life and maintain long-term performance consistency.

By following recommended installation practices, manufacturers can achieve optimal reliability and durability in their final products.

Why Choose Kinghelm KH-SS24H20-G10?

Kinghelm has established itself as a trusted supplier of electronic components, connectors, RF antennas, switches, and interconnection solutions. The company's commitment to quality, innovation, and manufacturing excellence has earned recognition across numerous industries.

The KH-SS24H20-G10 reflects these strengths through its:

• Double Pole Four Position (DP4T) switching capability

• Non-shorting contact design

• Clear 4mm actuator travel

• Vertical through-hole mounting structure

• Reliable dual-row pin configuration

• Compact dimensions for efficient PCB utilization

• Stable performance in demanding applications

These features make it an excellent choice for engineers seeking dependable multi-position switching solutions.

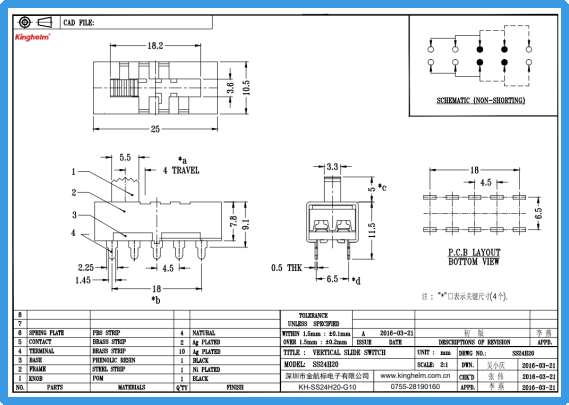

Kinghelm KH-SS24H20-G10 Specification

Conclusion

The Kinghelm KH-SS24H20-G10 Vertical Slide Switch combines flexible four-position control, reliable non-shorting operation, compact construction, and robust mechanical design into a single component. Whether used in industrial automation, communication equipment, testing instruments, or consumer electronics, it provides an effective solution for multi-mode selection and circuit control.

As modern electronic systems continue to demand greater functionality and reliability, the KH-SS24H20-G10 stands out as a practical and dependable switching solution. For engineers and manufacturers looking to improve control flexibility while maintaining system stability, this Kinghelm slide switch represents a smart and efficient choice.
