In the development and production of electronic devices, DIP switches are a type of basic component that may appear inconspicuous but play a crucial role. Whether it is address coding in industrial control equipment, function configuration in smart home systems, or parameter switching during PCB development and debugging, a stable and reliable DIP switch is indispensable.

With a wide variety of DIP switch products available on the market, how to select a 4-position slide DIP switch that combines stable performance, convenient operation, and high cost-effectiveness has become a key concern for many electronic engineers and procurement professionals.

Today, we will take an in-depth look at the KH-BM425404DZ-FZ DIP switch from Kinghelm and explore why this product has become a commonly selected solution for many manufacturers.

1. DIP Switch: The “Invisible Control Panel” of Electronic Devices

A DIP switch (Dual In-line Package Switch), also known as a piano switch or thumb switch, is a miniature switching component that controls circuit on/off states through manual operation. Essentially, it consists of multiple integrated single-pole single-throw (SPST) switches. Each switch independently controls one circuit path, and different combinations of switch positions can achieve various functions such as address coding, mode selection, and parameter configuration.

In practical applications, DIP switches provide value in three main aspects:

First, hardware-level configuration capability.
Without requiring software programming, basic device settings can be completed directly through hardware, making them especially suitable for factory presets, address assignment, and other applications.

Second, intuitive and reliable operation.
The physical switch positions are clearly visible, eliminating the risk of software configuration loss.

Third, significant cost advantages.
Compared with complex touch-control or digital configuration solutions, DIP switches feature a simple structure and low cost, making them an ideal choice for mass-produced electronic equipment.

Because of these advantages, the quality of a DIP switch directly affects the operational stability of the entire device. A DIP switch with poor contact reliability or unclear switching positions may cause address conflicts, functional failures, or even circuit issues, creating significant maintenance problems.

Therefore, choosing products from a reliable manufacturer such as Kinghelm is particularly important.

2. Product Overview of KH-BM425404DZ-FZ

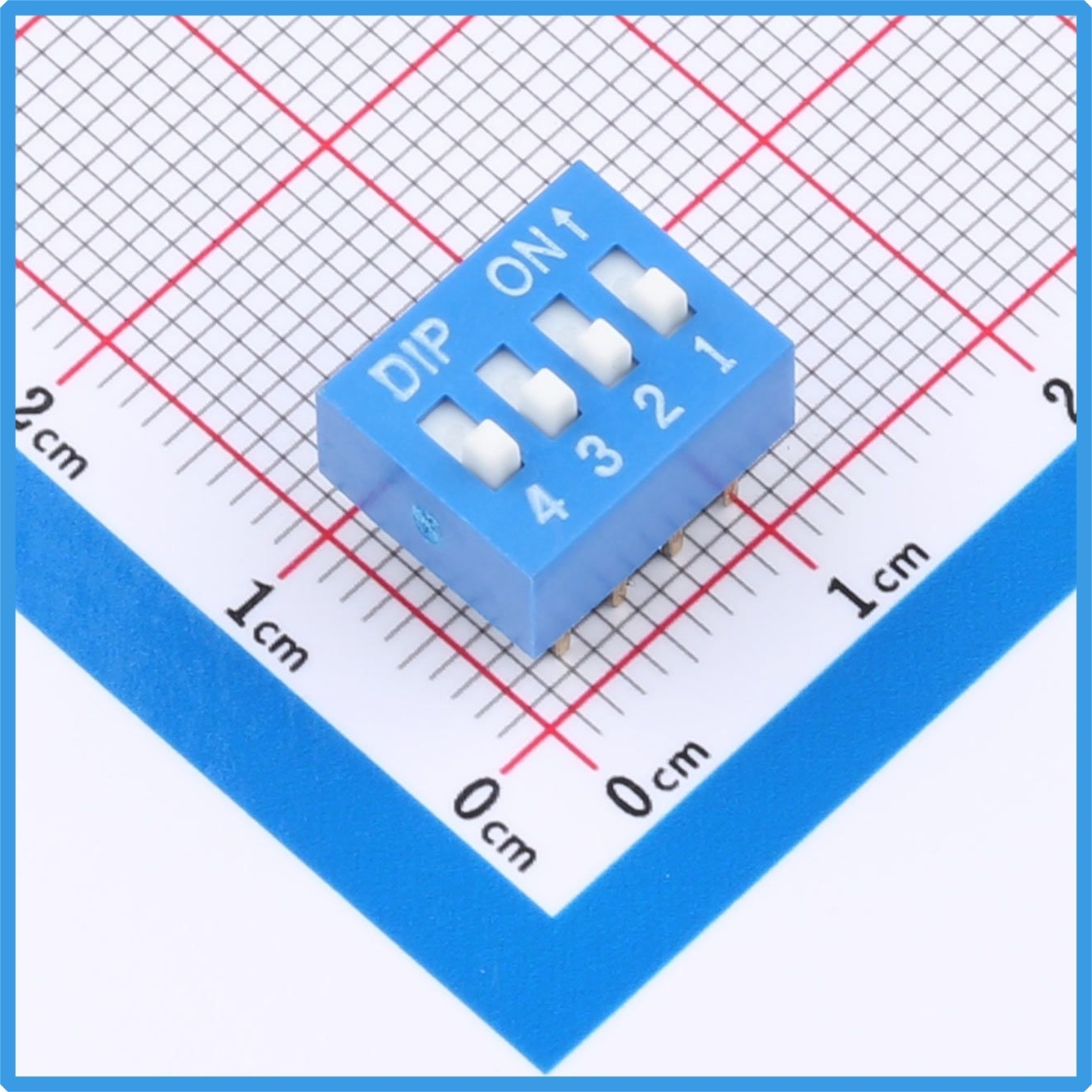

The KH-BM425404DZ-FZ is a 4-position slide-type DIP switch launched by Kinghelm. It belongs to the company’s standard pitch DIP switch series and is a classic model designed for general applications.

The product adopts a 2.54mm industry-standard pitch design, making it a universal through-hole DIP switch suitable for parameter adjustment and circuit switching requirements in most conventional electronic devices.

From the structural perspective, this switch features a vertical insertion, horizontal slide, raised actuator design. The blue housing combined with reverse-number marking provides excellent visual recognition.

The term “vertical insertion and horizontal slide” means that the switch pins are inserted vertically into the PCB, while the actuator moves horizontally left and right. This structure is one of the most widely used DIP switch designs in industrial applications due to its easy operation, clear switching positions, and suitability for both manual adjustment and automated assembly.

In terms of basic specifications, the KH-BM425404DZ-FZ features 4 independent switch positions, each using an SPST (Single Pole Single Throw) circuit structure. Its rated electrical specifications are 25mA / 24V, meeting the requirements of signal circuits and low-power control circuits.

The individual product weight is only 1.3125 grams, making it a lightweight component with minimal impact on the overall equipment weight.

The packaging method is tube packaging, where multiple switches are arranged neatly inside a protective tube. This not only prevents pin deformation but also facilitates storage management and production line feeding.

3. Five Core Features Delivering Reliable Performance

1. Standard Pitch Design for Excellent Compatibility

The 2.54mm (0.1-inch) pitch is a universally recognized standard spacing in the electronics industry. A large number of components, including pin headers, sockets, and integrated circuits, follow this spacing standard.

The Kinghelm KH-BM425404DZ-FZ strictly adopts the 2.54mm universal pitch design. The layout of the 4-position switch perfectly matches mainstream PCB mounting hole arrangements, allowing direct replacement of other brands with the same specifications without PCB redesign.

This greatly reduces component selection difficulty and replacement costs.

For companies developing multiple product platforms, using DIP switches with a unified 2.54mm standard pitch can also reduce the number of material types, simplify BOM management, and improve supply chain efficiency.

2. Vertical Insertion and Horizontal Slide Structure for Clear Operation Feel

Structural design is critical to the user experience of a DIP switch.

The KH-BM425404DZ-FZ adopts a vertical insertion, horizontal slide, raised actuator structure. The actuator extends slightly above the housing, providing sufficient contact area for finger operation and preventing slipping or difficulty during adjustment.

Each position provides a clear tactile feedback. During switching, users can feel a distinct “click” when the switch reaches the correct position, ensuring accurate switching without sticking.

The blue housing with reverse-number markings is also one of the product’s distinctive features. The reverse printing makes the relationship between numbering and switch positions easier to identify, especially inside equipment where lighting conditions may be limited.

This effectively reduces the possibility of incorrect adjustments.

3. SPST Circuit Structure for Stable and Reliable Switching

Circuit structure determines the electrical performance of a DIP switch.

Each position of the KH-BM425404DZ-FZ adopts a classic SPST (Single Pole Single Throw) structure. The internal contacts are precisely designed to provide low contact resistance and stable electrical conduction.

With a rated specification of 25mA / 24V, it covers the operating requirements of most digital circuits and control signal applications.

For DIP switches that may be operated repeatedly, contact durability is a key quality indicator.

During manufacturing, Kinghelm strictly controls contact materials and plating processes to ensure that the switch maintains excellent contact performance after repeated operation, avoiding problems such as poor contact or switch failure.

4. PC Through-Hole Pins for Convenient Installation

For installation, this switch is equipped with PC through-hole pins, making it a standard plug-in component.

The pins are strong and precisely spaced. After insertion into PCB through-holes, they are less likely to tilt or deform.

This makes the switch suitable for both manual soldering in small-batch prototypes and automated wave soldering processes in mass production.

For manufacturers, plug-in DIP switches offer advantages such as strong soldering reliability and excellent mechanical strength. Even in transportation or vibration environments, the switch is less likely to loosen or detach.

Compared with surface-mount DIP switches, through-hole versions provide stronger mechanical resistance and are more commonly used in industrial control systems and power equipment.

5. Tube Packaging for Better Component Protection

Packaging details often reflect a manufacturer’s quality control philosophy.

The KH-BM425404DZ-FZ uses tube packaging, with each switch arranged neatly inside a dedicated plastic tube. The pins receive comprehensive protection.

This packaging method prevents pin deformation during transportation, while also providing dust and moisture protection, ensuring that components arrive at production lines with clean and oxidation-free pins for better soldering quality.

Tube packaging also supports automated feeding systems, making it suitable for large-scale manufacturing environments and improving assembly efficiency.

4. Wide Compatibility for Multiple Application Scenarios

An excellent DIP switch should be adaptable to various industries and applications.

Thanks to its stable performance and universal specifications, the Kinghelm KH-BM425404DZ-FZ is widely used in multiple fields:

Industrial Control Equipment

PLC expansion modules, industrial controllers, and data acquisition modules often require DIP switches for device address setting, communication baud rate configuration, or operation mode selection.

The 4-position switch provides 16 combination states, meeting the coding requirements of most small and medium-sized devices.

Smart Home Applications

Smart lighting control modules, curtain motor controllers, and security alarm systems often use DIP switches for zone settings and pairing mode selection.

Installation and field adjustment are simple and convenient.

Instrumentation Equipment

Various measuring instruments and testing devices frequently use slide DIP switches for range selection and function mode configuration due to their intuitive operation and clear status indication.

Communication Equipment

Network communication devices such as switches, routers, and serial servers also commonly use DIP switches for address configuration and function settings.

PCB Development and Debugging

During product development, DIP switches are valuable tools for engineers. They allow quick switching between circuit configurations and parameter combinations through hardware settings, significantly improving development efficiency.

5. Usage Guidelines to Extend Product Life

To ensure optimal performance and extend the service life of the DIP switch, the following points should be considered during installation and operation:

First, ensure accurate alignment during installation.
When inserting the switch into the PCB, make sure that all pins align correctly with the corresponding holes. Avoid forcibly bending pins or applying excessive pressure, as this may damage the pins or internal structure.

If pins are slightly misaligned, carefully correct them with tweezers before installation.

Second, strictly follow the rated electrical specifications.
The rated value of this switch is 25mA / 24V, meaning it is designed for signal-level applications. It must not be directly used in high-current or high-voltage power circuits, as this may burn the contacts, damage the switch, or create safety risks.

Third, control soldering temperature and duration.
During wave soldering or manual soldering, maintain proper soldering temperature and time. Excessive heat exposure may cause plastic housing deformation or damage internal contacts, affecting electrical performance.

Fourth, maintain a dry and clean operating environment.
The internal structure of DIP switches is precise. Dust or moisture entering the switch may cause poor contact or reduced insulation performance.

Equipment design should include appropriate dust-proof and moisture-resistant measures.

Finally, operate the switch gently.
Although Kinghelm DIP switches provide reliable mechanical durability, gentle operation and avoiding excessive force remain important practices for extending product life.

6. Why Choose Kinghelm?

In electronic component selection, brand reputation represents quality assurance.

Kinghelm is a professional domestic electronic component brand with years of experience in connectors, switches, RF components, and related products. The company has established a comprehensive R&D, manufacturing, and quality control system.

Kinghelm’s DIP switch product line covers various specifications, including different numbers of positions and installation methods, meeting diverse customer requirements.

Choosing Kinghelm DIP switches means choosing three levels of assurance:

1. Stable Quality
All products undergo strict outgoing inspections to ensure compliance with industry standards for electrical and mechanical performance.

2. Reliable Supply Capability
With sufficient production capacity and regular inventory of standard models, Kinghelm ensures continuous supply and avoids production delays.

3. Professional Technical Support
The technical support team provides product selection guidance, sample testing, and related services to help engineers quickly identify suitable solutions.

For customers requiring bulk purchasing, Kinghelm can also provide customized services, including adjustments to switch parameters, housing colors, or packaging methods according to specific application requirements.

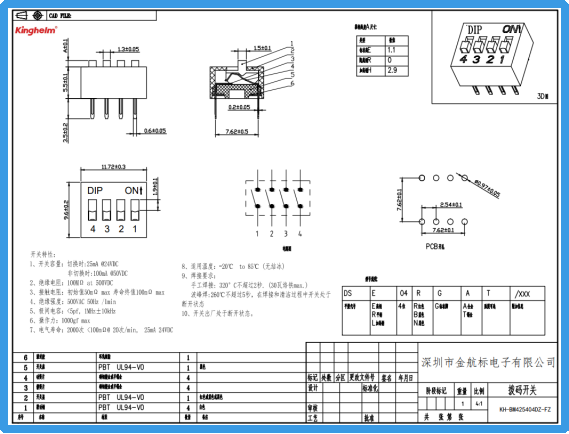

Kinghelm KH-BM425404DZ-FZ Specification

7. Conclusion

Overall, the KH-BM425404DZ-FZ is a highly balanced 4-position slide DIP switch offering excellent overall performance.

The 2.54mm standard pitch provides broad compatibility.
The vertical insertion and horizontal slide raised actuator design ensures clear and smooth operation.
The SPST circuit structure delivers stable and reliable switching performance.
The PC through-hole pins support conventional plug-in assembly processes.
Combined with protective tube packaging and Kinghelm’s brand reputation, this product becomes a cost-effective and dependable universal DIP switch solution.

Whether you are selecting components for new product development or searching for a reliable supply chain solution for mass-produced equipment, Kinghelm’s 4-position blue vertical insertion slide DIP switch with reverse markings is worthy of consideration.

It may not be the most flashy electronic component, but it is certainly a component you can trust, install easily, and use confidently.

After all, for basic components like DIP switches, stability and reliability are the greatest advantages.
