KH-A12501-03AWB Wire-to-Board Connector: Detailed Introduction to the 1.25 mm Ultra-Low-Profile Horizontal SMT Wafer Header

As consumer electronics, smart sensors, and compact IoT devices continue to move toward thinner, lighter, and more miniaturized designs, the available space on PCBs is becoming increasingly limited. Fine-pitch SMT wire-to-board connectors have therefore become critical components in mechanical and electrical design.

The Kinghelm KH-A12501-03AWB is a 1.25 mm-pitch, 3-pin, horizontal SMT wafer header. Featuring an ultra-low profile above the PCB, stable electrical performance, and a design suitable for automated SMT production lines, it provides a reliable domestic alternative for wire-to-board signal connections in space-constrained applications.

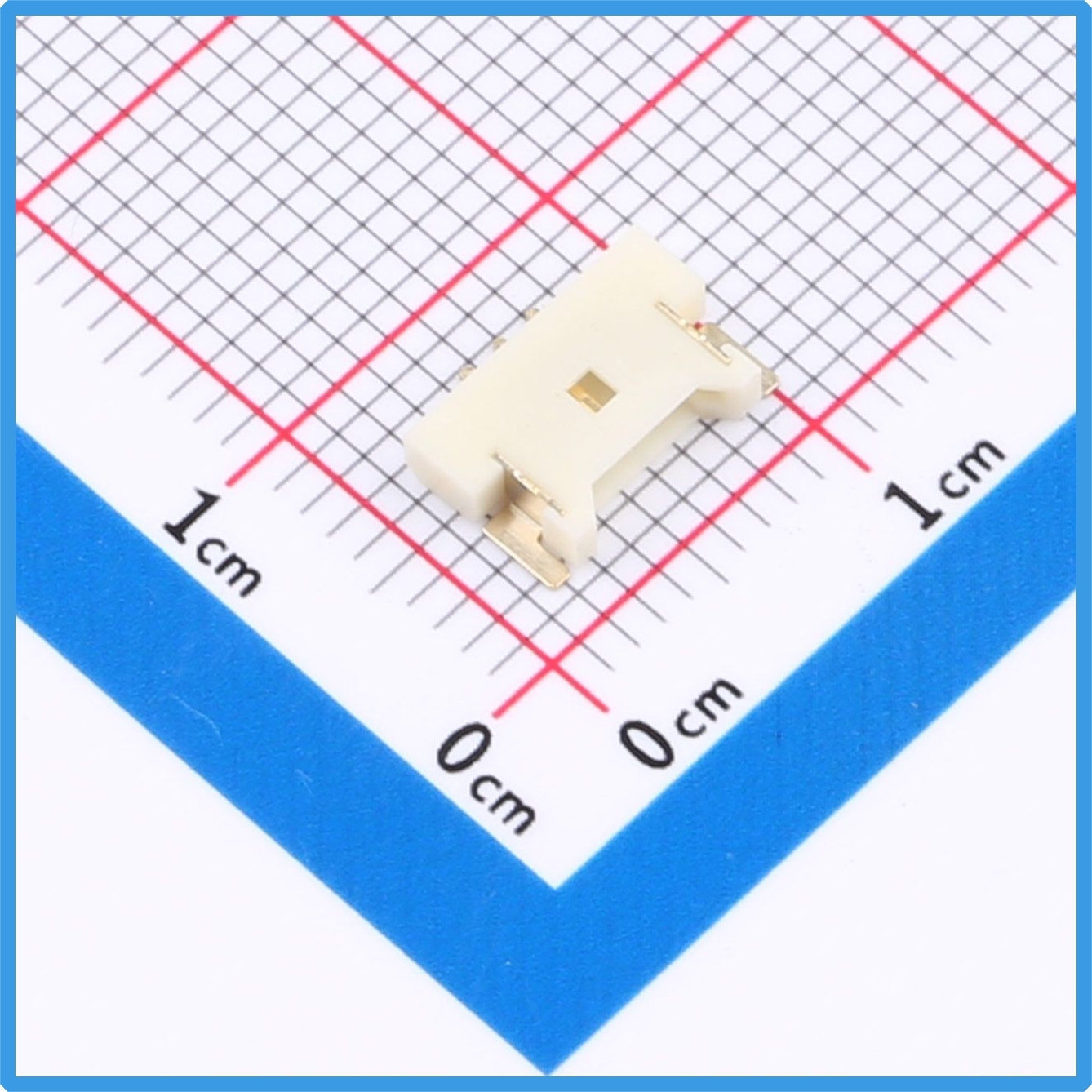

Kinghelm KH-A12501-03AWB Product Image

Key Product Specifications

Ultra-Low-Profile Horizontal Design for Space-Constrained Applications

The key feature of this connector is its ultra-low-profile horizontal design, with a height above the PCB of just 1.95 mm. Compared with vertical headers of the same pitch, this configuration can significantly reduce the overall assembly height, making it particularly suitable for products with strict thickness limitations, such as wearable devices, smart sensors, compact home appliances, camera modules, and Bluetooth or Wi-Fi modules.

With a precision 1.25 mm pitch and a single-row, 3-pin layout, the connector supports power and low-speed signal transmission while helping conserve PCB layout space. Its horizontal, side-entry connection configuration also helps avoid mechanical interference associated with vertical connections, giving mechanical engineers greater flexibility when designing compact assemblies.

In addition, the product features controlled dimensional tolerances and clearly defined PCB footprint requirements, helping hardware engineers integrate the connector into PCB layouts and shorten development cycles.

Carefully Selected Materials for Electrical and Environmental Reliability

The KH-A12501-03AWB combines heat resistance, flame retardancy, and stable electrical performance through its material selection and structural design.

The insulating housing is made of PA9T engineering plastic, which offers good resistance to reflow soldering temperatures, low moisture absorption, and dimensional stability. Its UL 94 V-0 flame-retardant rating supports the requirements of many general-purpose consumer electronics applications. These properties help reduce the risk of melting, warping, or deformation during high-temperature SMT soldering.

The conductive terminals are made of C5191 phosphor bronze, a material known for its elasticity and fatigue resistance. These properties help maintain contact force through repeated mating cycles. Gold plating on the contact surfaces helps resist oxidation and maintain reliable electrical contact.

According to the supplied product specifications, the connector offers the following electrical performance:

• Contact resistance: ≤20 mΩ

• Insulation resistance: ≥100 MΩ

• Withstand voltage: 500 V AC for 1 minute

• Operating temperature: -25°C to +85°C

These characteristics support reliable operation across a wide temperature range encountered in many indoor and outdoor electronic devices, helping reduce the risk of signal interruptions and intermittent connections.

Note: The electrical performance figures above are based on the supplied product information and should be confirmed against the manufacturer's official datasheet before final design qualification.

Tape-and-Reel Packaging for Automated SMT Production

Compatibility with automated manufacturing is another important advantage of the KH-A12501-03AWB.

The connector uses standard tape-and-reel packaging and is designed for automated SMT assembly. It can be automatically fed, picked up, and placed by suitable high-speed pick-and-place equipment, eliminating the need for manual through-hole insertion and helping improve production efficiency. Automated placement can also reduce alignment errors and certain defects associated with manual assembly, lowering manufacturing costs.

Positioning solder tabs on both sides of the connector help secure it to the PCB during reflow soldering. Once properly soldered, these tabs can improve mechanical retention and resistance to displacement, supporting applications exposed to moderate vibration, such as portable test instruments and small UAV control modules.

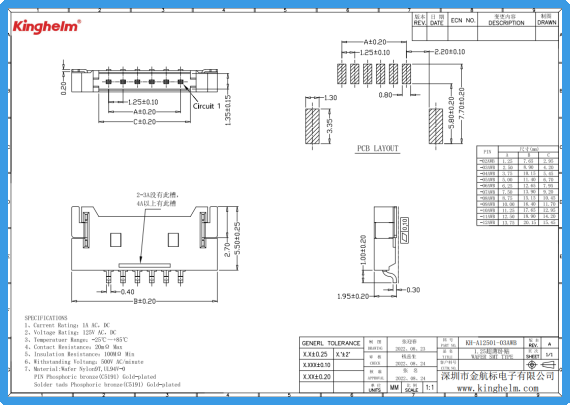

Kinghelm KH-A12501-03AWB Specification

For PCB footprint design, mechanical integration, and electrical verification, engineers should consult the official KH-A12501-03AWB datasheet for detailed dimensional drawings, recommended PCB land patterns, tolerances, and electrical specifications.

Versatile Applications: A Domestic Alternative for 1.25 mm Horizontal Connectors

The Kinghelm KH-A12501-03AWB 1.25 mm ultra-low-profile, horizontal 3-pin wire-to-board connector is suitable for a broad range of electronic applications.

• Smart home devices: Connects mainboards to wiring harnesses in passive infrared sensors, door and window sensors, and temperature and humidity sensing modules.

• Wearable consumer electronics: Supports connections between internal PCBs and batteries or sensors in smart bands, earphones, and similar compact devices.

• Industrial electronics: Provides low-current power and signal connections for compact data acquisition modules and control boards.

• Security and imaging equipment: Can be used in security cameras, compact camera modules, and related electronic assemblies.

• Wireless communication modules: Supports board-to-wire connections in Bluetooth and Wi-Fi modules.

• Small home appliances: Provides compact interconnections for control boards and internal wiring harnesses.

For engineers evaluating alternatives to imported connectors with comparable specifications, Kinghelm's product offers a domestic sourcing option. Local technical support, supply-chain coordination, and competitive pricing may help simplify procurement and reduce material delivery risks.

Final component selection should take into account mating connector compatibility, wire specifications, insertion and withdrawal requirements, soldering conditions, mechanical clearances, and the application's electrical and environmental requirements.

Precision Connectors from Kinghelm

As a Chinese electronic component manufacturer, Kinghelm continues to develop products in RF connectors, antennas, and precision wire-to-board interconnection solutions. Its product development and manufacturing capabilities encompass material selection, mold development, metal stamping, plastic injection molding, and product inspection.

According to the supplied company information, its wafer headers undergo reliability evaluations covering electrical performance, mating cycles, high- and low-temperature exposure, and humidity resistance.

The KH-A12501-03AWB 3-pin, 1.25 mm ultra-low-profile horizontal SMT wafer header balances miniaturization, electrical performance, and suitability for mass production. It offers hardware engineers a practical interconnection option for compact, low-voltage signal and power applications where PCB space and assembly height are limited.

For applications requiring a compact SMT wire-to-board interface, the KH-A12501-03AWB is a candidate worth evaluating as part of a domestic component sourcing strategy.
