KH-A12501-04AWB Wire-to-Board Connector: A Compact Connection Solution for Precision Electronic Devices

As consumer electronics, smart home products, and compact industrial control equipment continue to evolve toward slimmer and smaller designs, the available space for internal components is becoming increasingly limited. As a fundamental component for signal and power transmission, connectors are now expected to deliver lower profiles, higher density, and greater reliability.

Kinghelm has introduced the KH-A12501-04AWB, a 1.25mm-pitch, 4-pin, horizontal SMT wire-to-board connector. Featuring an ultra-low-profile horizontal mounting design, stable electrical performance, and standardized tape-and-reel packaging, it offers a competitive connection solution for compact and precision electronic devices.

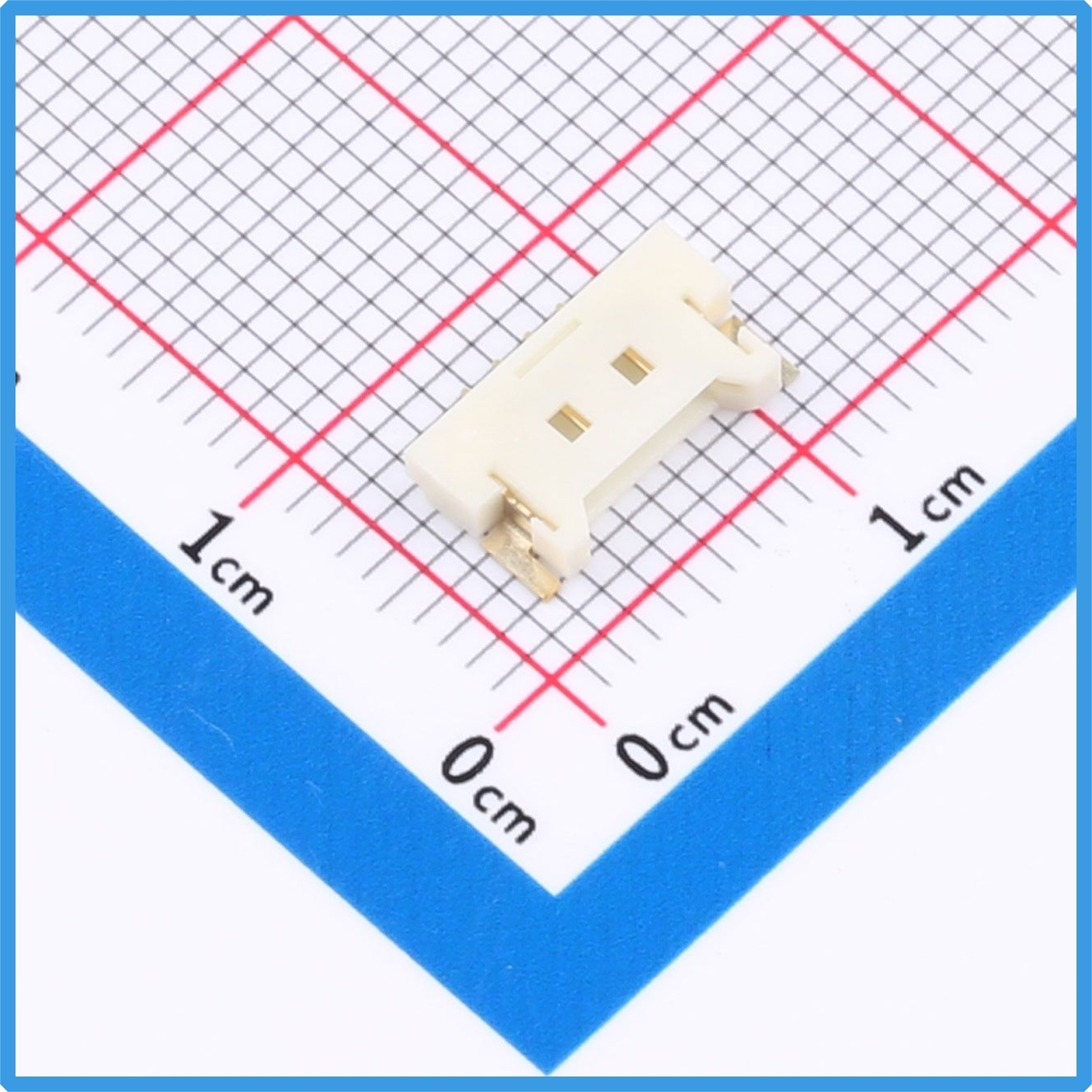

Kinghelm KH-A12501-04AWB Product Image

1. Ultra-Low-Profile Horizontal Design for Compact PCB Layouts

The KH-A12501-04AWB features a single-row, 1×4-pin configuration with a 1.25mm pitch and a horizontal surface-mount (SMT) design. Unlike vertical through-hole or upright connectors, its horizontal mounting structure effectively reduces the component's vertical height above the PCB.

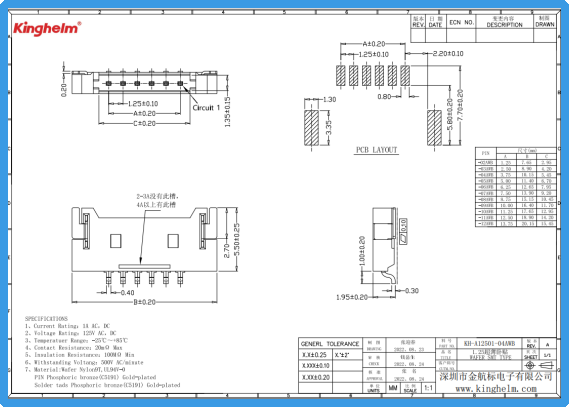

According to the product specification drawing, the connector has a board-mounted height (Z-axis) of just 1.95mm and a bottom width (Y-axis) of 5.5mm. Its ultra-low-profile structure makes it ideal for products with limited internal space, such as Bluetooth earbud charging cases, compact sensor modules, portable medical devices, wearable accessories, and small household appliances. By reducing vertical space requirements inside the enclosure, it provides greater flexibility for product structural design and helps address space constraints in slim electronic devices.

The specification drawing also highlights a distinctive structural feature: 2-pin and 3-pin versions do not have a central positioning slot, while versions with 4 pins or more incorporate one. As a 4-pin model, the KH-A12501-04AWB features this positioning slot. When used with the matching wire housing, the structure provides a locking mechanism that helps prevent accidental disconnection caused by cable pulling or vibration. This improves vibration resistance and makes the connector suitable for applications such as automotive auxiliary modules and sports-oriented smart devices that may experience continuous vibration and mechanical shock.

2. High-Quality Terminal Materials for Reliable Electrical Transmission

In terms of electrical performance, the KH-A12501-04AWB has a rated current of 1A and a rated voltage of 125V AC/DC, making it suitable for most low-power signal circuits and low-voltage power supply applications.

The contact terminals are made of phosphor bronze (C5191) with gold plating. Phosphor bronze offers excellent elasticity and fatigue resistance, helping maintain stable contact pressure even after repeated mating and unmating cycles. The gold-plated surface helps prevent oxidation and resist corrosion in humid environments.

The maximum contact resistance is controlled within 20mΩ, ensuring reliable signal transmission and reducing the risk of intermittent connections or signal fluctuations caused by poor contact.

In addition, the connector provides a minimum insulation resistance of 100MΩ and a dielectric withstand voltage of 500V AC for one minute, offering reliable electrical insulation and helping prevent short circuits.

3. High-Temperature-Resistant and Flame-Retardant Housing for Reliable Operation Across a Wide Temperature Range

For thermal resistance and fire safety, the connector housing is made of PA9T material, with a UL94 V-0 flame-retardant rating. PA9T is a high-performance engineering plastic widely used in the electronics industry for applications requiring heat resistance and flame retardancy.

The operating temperature range is -25°C to +85°C. This enables the connector to operate in cold environments, including low-temperature start-up conditions in northern regions, while also withstanding heat buildup during prolonged operation inside enclosed electronic devices.

These characteristics make the connector suitable for electronic products requiring long-term, continuous operation. Its material properties help reduce the risk of housing softening or deformation under temperature fluctuations, while providing an additional level of fire safety for consumer electronics and compact industrial equipment.

Kinghelm KH-A12501-04AWB Product Specification Sheet

4. Tape-and-Reel Packaging for Automated SMT Production

Production compatibility is another key advantage of the KH-A12501-04AWB.

The product is supplied in tape-and-reel packaging, making it compatible with standard SMT pick-and-place equipment. It can be directly loaded onto automated production lines for high-speed placement, eliminating manual insertion processes, reducing labor costs, and improving placement consistency.

Automated mounting also helps minimize assembly errors and soldering defects.

The PCB footprint and recommended solder pad dimensions are clearly defined in the product specification drawing. PCB layout engineers can refer to these specifications when designing the corresponding PCB pads, helping improve design accuracy and shorten the preliminary verification cycle.

With a total product weight of only 0.51g, the connector also supports lightweight design requirements in modern electronic products.

5. Application Scenarios and Overall Product Advantages

Although wire-to-board connectors are small components, they play an essential role in the reliable operation of electronic devices. As critical connection points for power and signal transmission, connector failures can lead to power interruptions, signal loss, and even complete equipment malfunction.

The Kinghelm KH-A12501-04AWB is designed for the widely used 1.25mm-pitch connector market, with particular emphasis on the ultra-low-profile horizontal mounting configuration. It achieves a practical balance between compact dimensions, electrical performance, mechanical reliability, and manufacturing convenience.

More than just a basic connection between wires and circuit boards, it provides structural designers and hardware engineers with a standardized and mature interconnection solution for compact electronic products.

As smart hardware continues to become increasingly miniaturized, demand for ultra-low-profile, 1.25mm-pitch horizontal connectors is expected to grow. Backed by Kinghelm's established connector development and manufacturing capabilities, the KH-A12501-04AWB incorporates carefully selected materials, optimized structural design, and packaging suitable for automated manufacturing.

It can provide stable and reliable connection support for applications in smart home systems, IoT sensors, portable electronics, and other compact electronic devices, making it a connector worth considering for space-constrained wire-to-board applications.
