『Product Highlight』Kinghelm SAW Duplexer KH-SAWD8388A: Application Analysis in Band V Communication Systems

In modern wireless communication systems, the performance of RF front-end components plays a critical role in overall signal transmission quality. As LTE and WCDMA technologies continue to be widely used across various devices, components operating in Band V frequency ranges require a balance between low insertion loss, reliable isolation, and stable operation. The Kinghelm KH-SAWD8388A low loss SAW duplexer is developed to address these practical design considerations, offering consistent RF characteristics for communication systems.

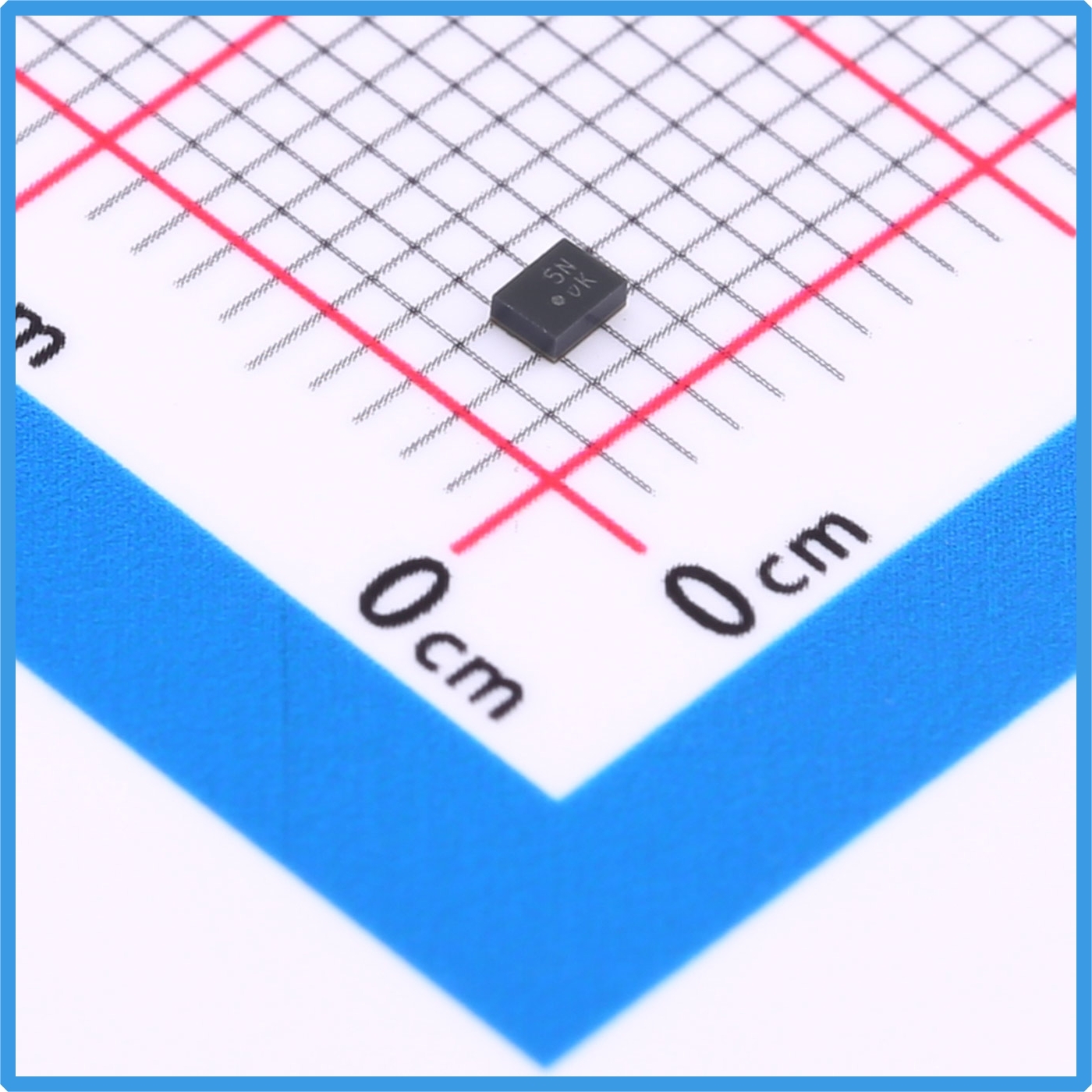

Kinghelm KH-SAWD8388A Product Image

From a technical perspective, Surface Acoustic Wave (SAW) devices utilize acoustic waves propagating along the surface of piezoelectric materials to achieve frequency filtering. A duplexer built on SAW technology enables simultaneous transmission (TX) and reception (RX) through a shared antenna by separating frequency bands effectively. The KH-SAWD8388A adopts this approach, allowing clear distinction between uplink and downlink signals within the Band V spectrum.

The operating frequency range of the KH-SAWD8388A covers 824–849 MHz for the low band and 869–894 MHz for the high band. This configuration aligns with standard Band V requirements, making it suitable for LTE and WCDMA applications. Proper separation between these two bands helps reduce interference between transmission and reception paths, contributing to more stable communication performance in practical use.

Insertion loss is a key factor in evaluating RF components. The KH-SAWD8388A maintains a maximum insertion loss of 1.8 dB in the low band and 2.4 dB in the high band. Lower insertion loss helps preserve signal strength as it passes through the duplexer, which supports improved link efficiency and reduces unnecessary power consumption within the RF chain.

Isolation performance is equally important in duplexer design. The device provides a minimum attenuation of 35 dB in the low band and 45 dB in the high band, supporting effective separation between TX and RX signals. This level of isolation helps limit signal leakage and minimizes interference, which is particularly beneficial in compact RF module layouts where multiple components operate in close proximity.

In terms of environmental adaptability, the KH-SAWD8388A operates within a temperature range of -30°C to +85°C. This range allows the component to function reliably under typical environmental conditions encountered in consumer electronics and certain industrial applications. Stable performance across varying temperatures contributes to consistent system behavior over time.

The device is designed with an SMD package and supplied in tape-and-reel format, making it compatible with automated assembly processes. This packaging approach supports efficient mass production and helps maintain placement accuracy during PCB assembly. For optimal performance, careful attention should be given to impedance matching, grounding design, and RF trace layout during circuit integration.

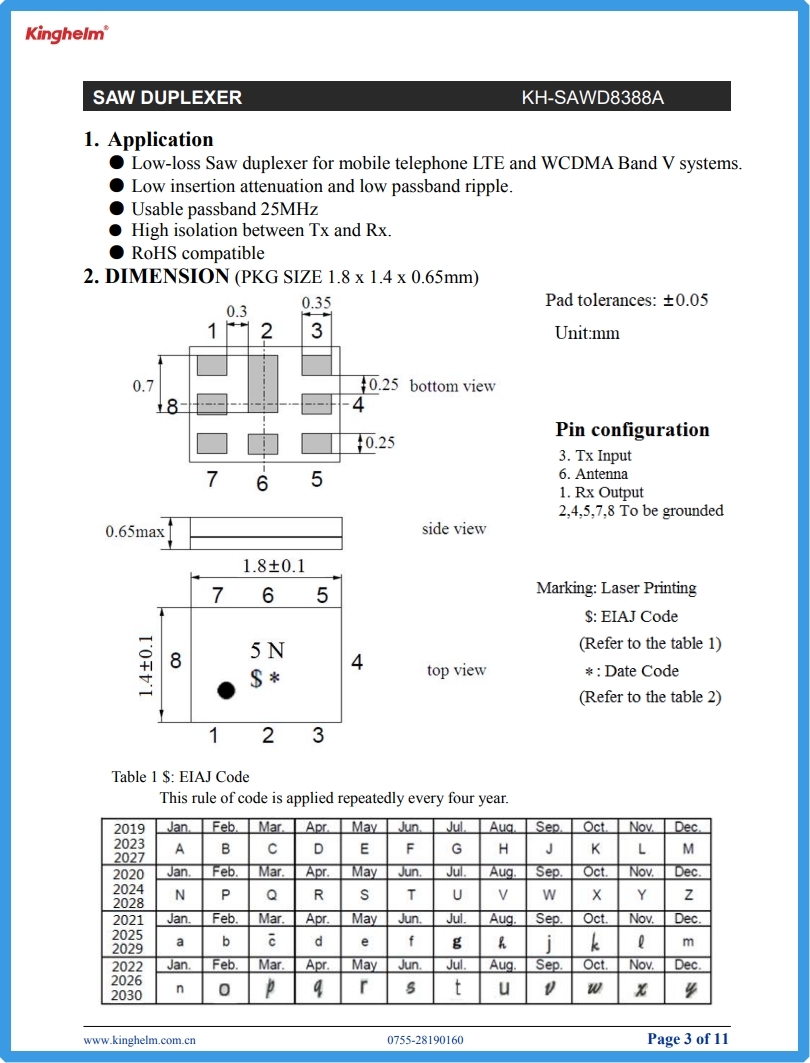

Kinghelm KH-SAWD8388A Specification

Application-wise, the KH-SAWD8388A is suitable for LTE and WCDMA Band V RF front-end modules, mobile communication devices, wireless signal amplifiers, and related infrastructure equipment. In these applications, duplexers serve not only as signal separators but also as contributors to overall system efficiency, influencing both transmission performance and reception sensitivity.

During implementation, it is important to follow recommended soldering profiles and avoid excessive thermal exposure. Additionally, maintaining proper RF design practices—such as controlled impedance routing and minimizing signal reflection—can help ensure that the duplexer performs as intended within the system.

In summary, the Kinghelm KH-SAWD8388A offers a practical combination of low insertion loss, reliable isolation, and stable operating characteristics within the Band V frequency range. Its design supports the needs of modern RF front-end systems, providing a dependable solution for applications requiring efficient signal management in mobile and wireless communication environments.
