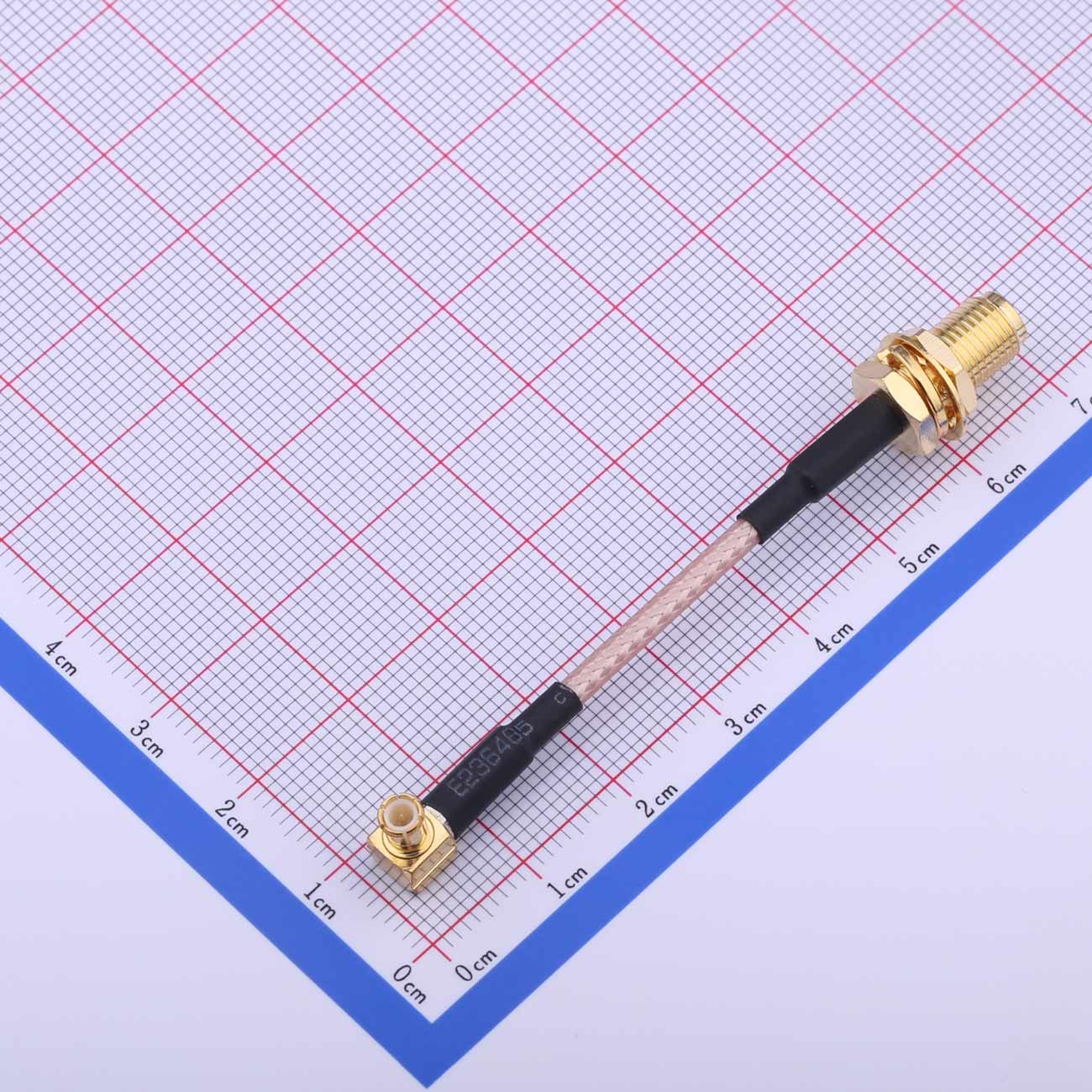

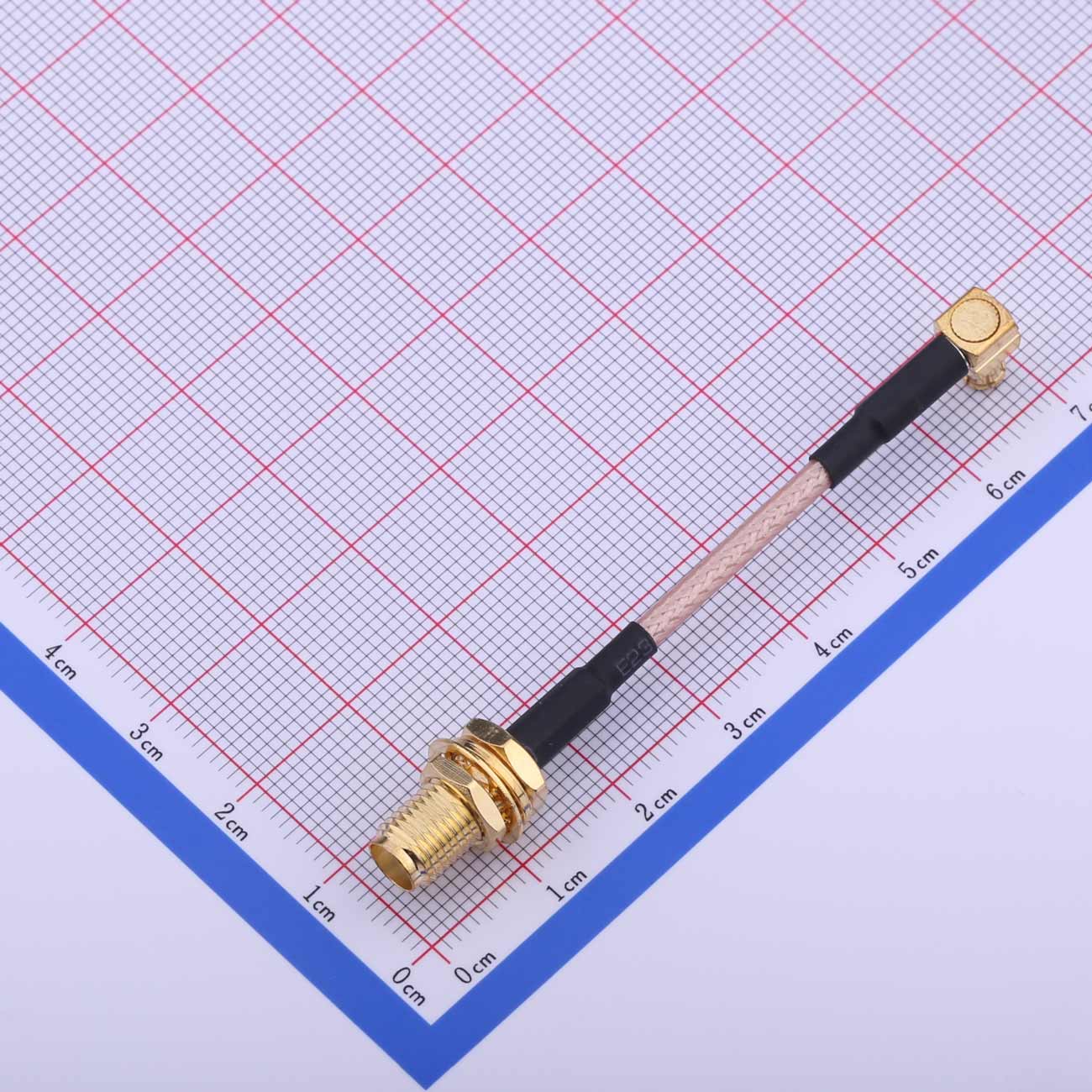

KHB(RG316)-MCX-50-28, RF Cable Assembly, MCX to SMA, RG316, 50mm
Input/Output：MCX to SMA
Connector: SMA 11-thread female jack with female pin, gold-plated
Sleeve: OD 2.0mm, Length 15mm, thin sleeve
Connector: MCX right-angle male plug, male pin, gold-plated
Coaxial Cable: RG-316 Brown Cable, OD: 2.5mm
Product Description:
●Connectors:
●Type: SMA connectors with 11 teeth, featuring female and male parts, gold-plated, designed to connect to RG-316 coaxial cable.
●Insulation Sleeve:
●Specifications: Thin insulation sleeve with an outer diameter of 2.0mm and a length of 15mm.
●MCX Connector:
●Type: MCX bent male connector with a male pin, gold-plated, intended for connection to RG-316 coaxial cable.
●Coaxial Cable:
●Type: RG-316 coaxial cable in brown color with an outer diameter of 2.5mm.
