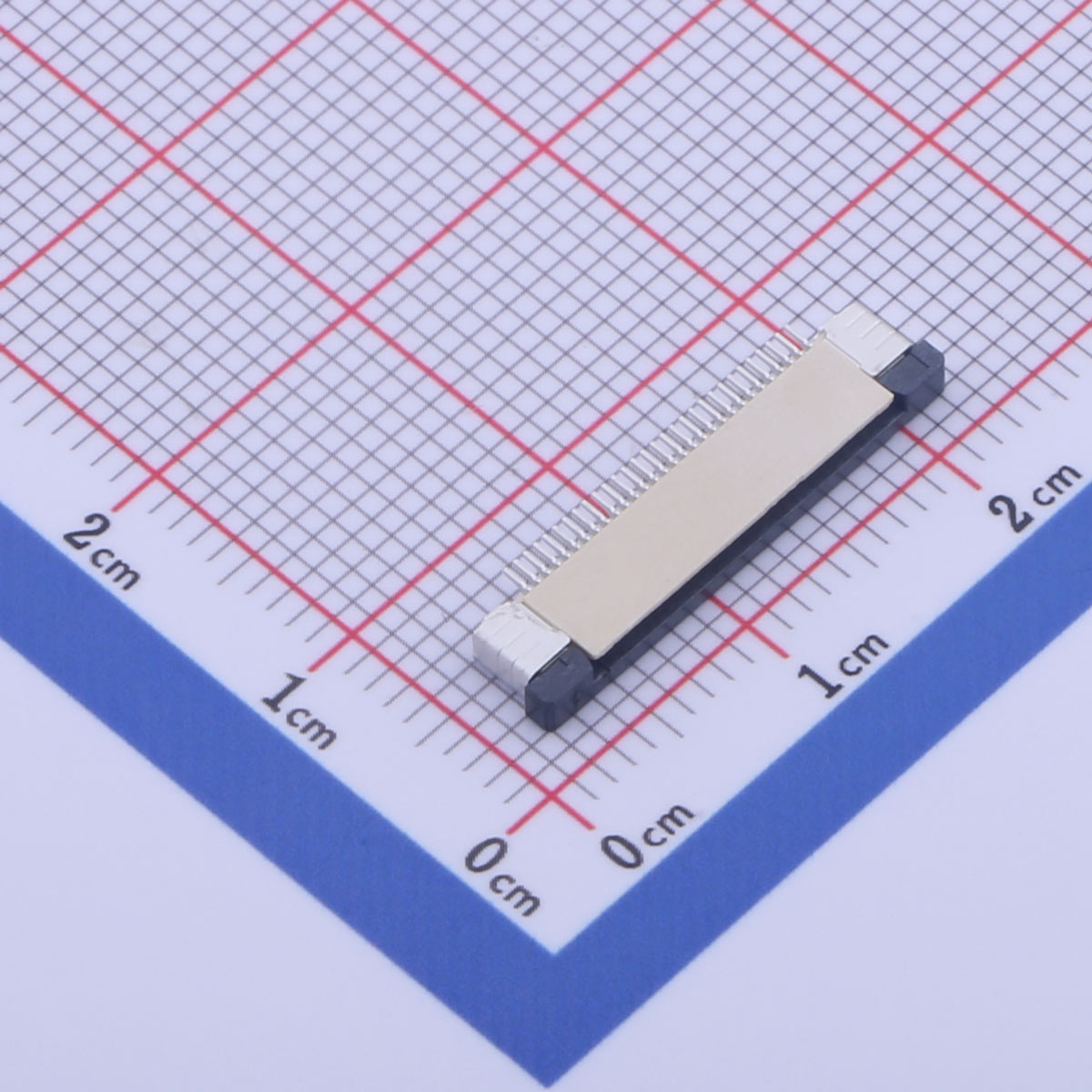

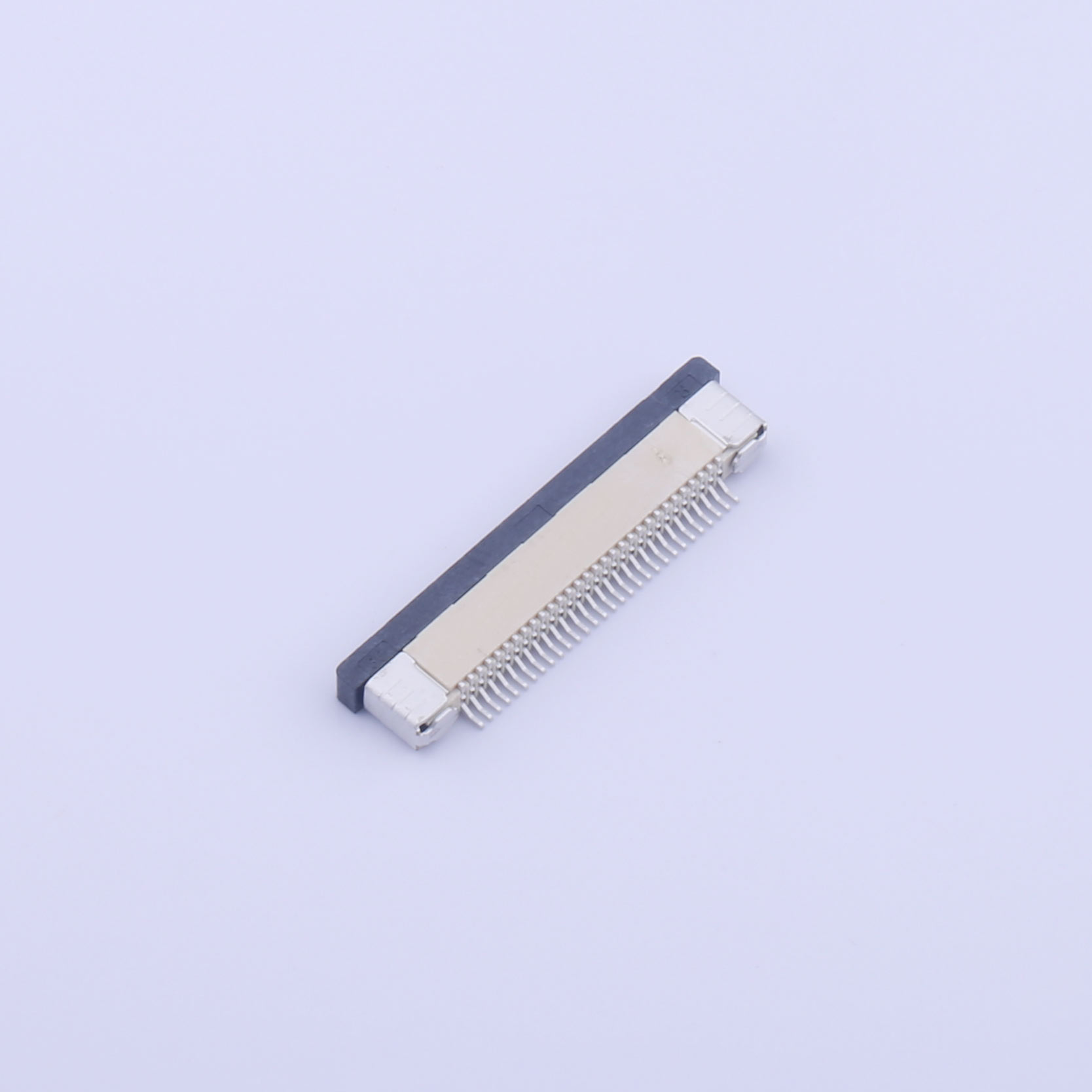

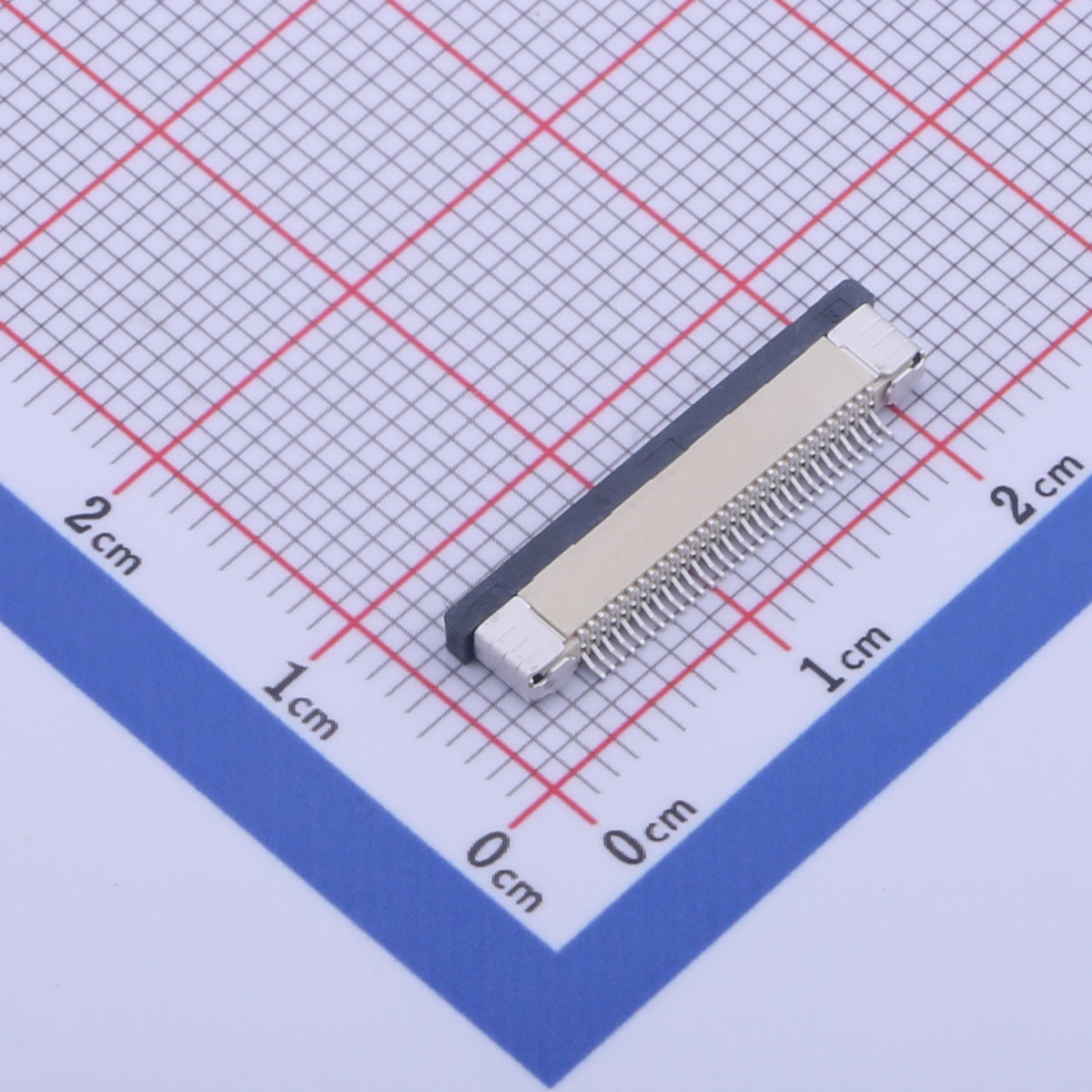

FFC/FPC Connector, 0.5mm Pitch, 30p, KH-CL0.5-H2.0-30pin
Temperature Range: -25°C ~ +85°C
Rated Voltage: 50V, AC/DC (Equivalent)
Contact Resistance: ≤0.03Ω
Insulation Resistance: ≥500MΩ
Product Features
● 30 Pins: Provides multiple connection points within a limited space
● 0.5mm Pitch: Allows for high-density layouts on PCBs
● SMD Packaging: Facilitates automated assembly and ensures a secure fit on PCBs
● Tube Packaging: Protects the connector during transportation and storage
Product Benefits
● Space-Saving: The compact design maximizes PCB space utilization
● Reliability: Offers secure and stable connections for FFC/FPC cables
● Ease of Installation: The SMD packaging and tube packaging
● Versatility: Suitable for a wide range of electronic applications
Product Application
● Utilized in smartphones, tablets, and other portable electronics
● Ideal for automotive infotainment systems and dashboards
● Suitable for industrial automation and control panels
● Applied in medical devices for precise and reliable connections
Name
Title
Description
Datasheet
Support
Support
If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.
Longevity
The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.
