1. Product Description

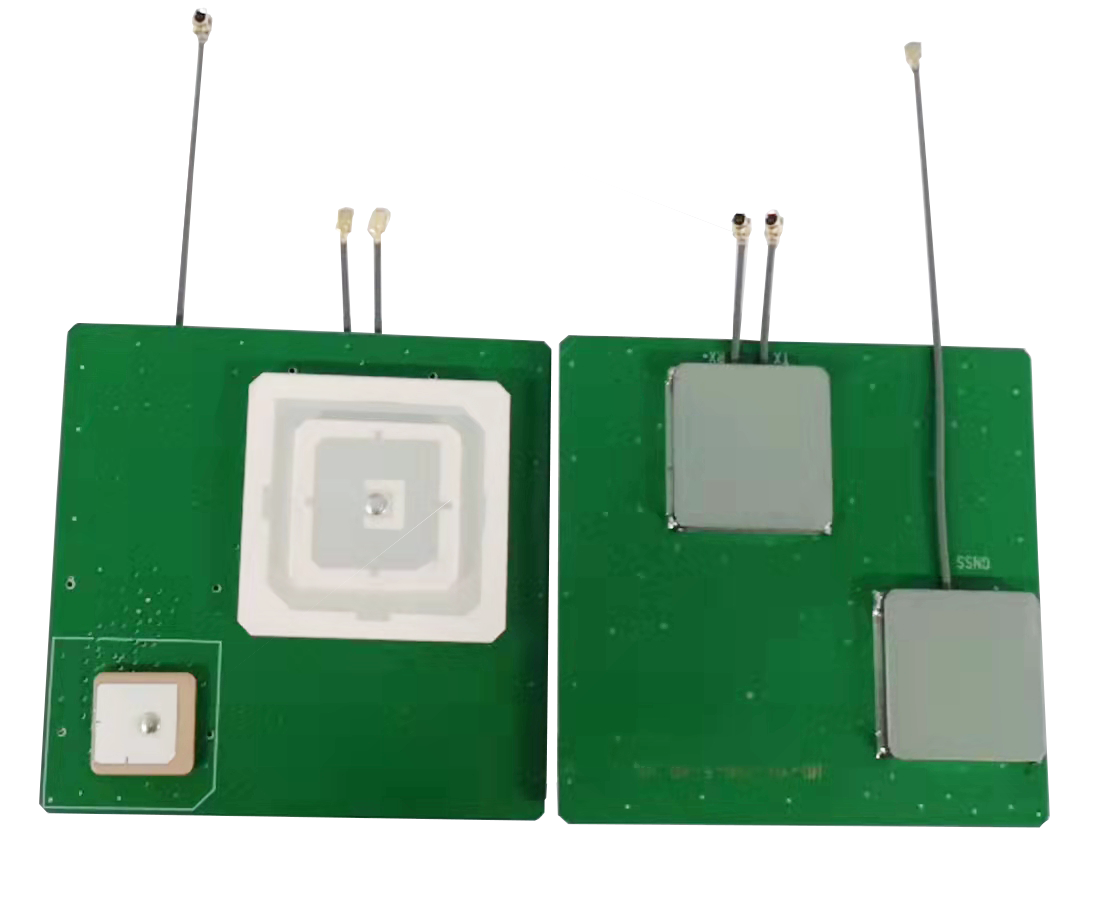

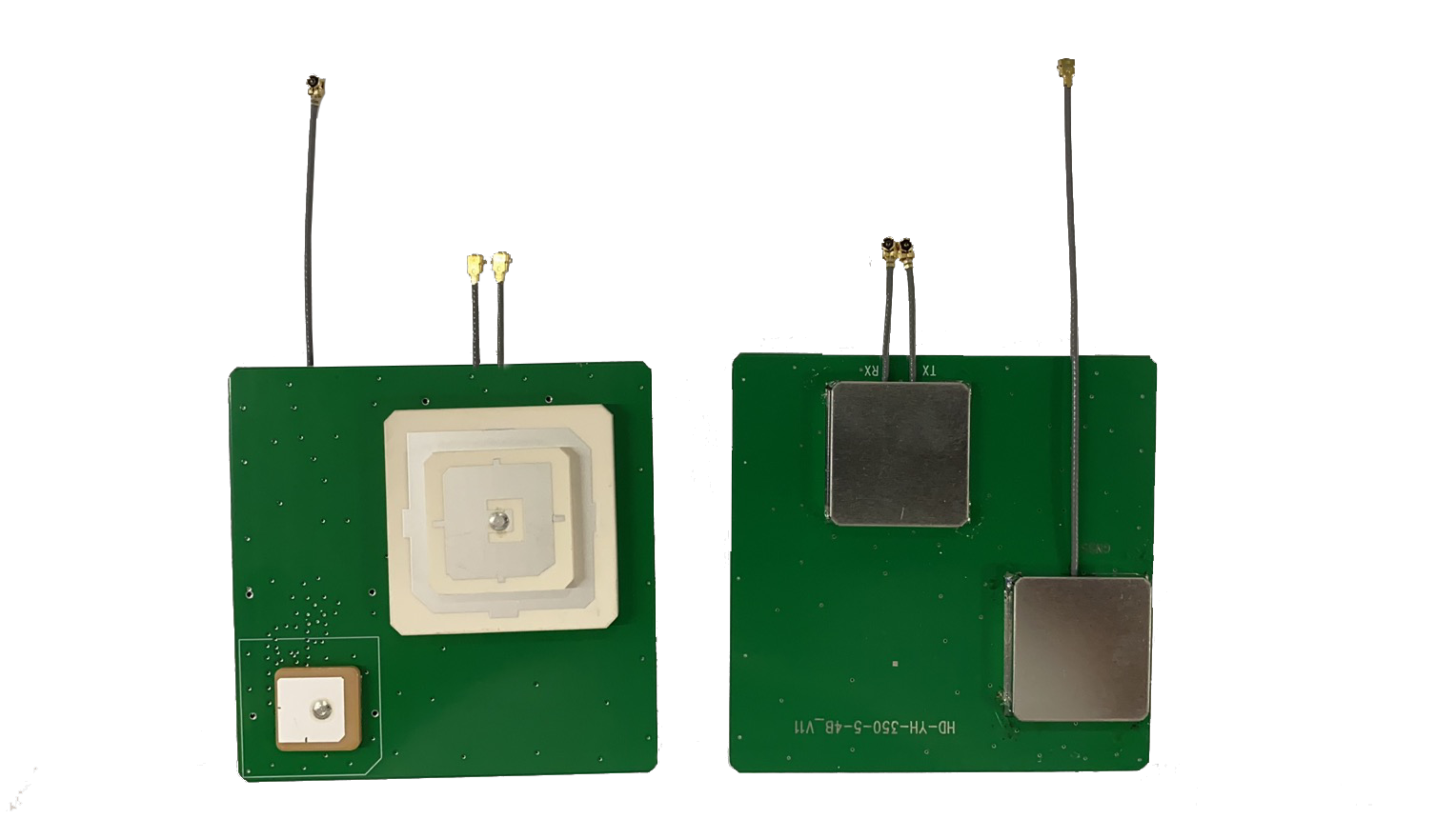

KH858 is an integrated antenna designed for receiving BeiDou B1 frequency and S-band satellite signals, as well as transmitting BeiDou L-band signals. The antenna features high unit gain and a wide radiation beam pattern, providing strong performance at both high and low elevation angles.
With a ceramic-based antenna material, it offers excellent resistance to high and low temperature shock, as well as corrosion, ensuring reliable long-term outdoor operation. It is widely used in marine, shipborne, vehicle-mounted, and handheld device applications.
2. Technical Features
- The antenna adopts a semi-separate design, enhancing isolation between antenna units, reducing the impact of accuracy errors, and ensuring a stable phase center.
- Offset-fed technology is used in the antenna unit, delivering high gain and a wide beam pattern, with improved low-elevation signal reception to ensure stable satellite tracking even in obstructed environments.
- Excellent circular polarization axial ratio and gain bandwidth performance.
- Compact size, easy for system integration.
- Flexible customization available based on customer requirements.
