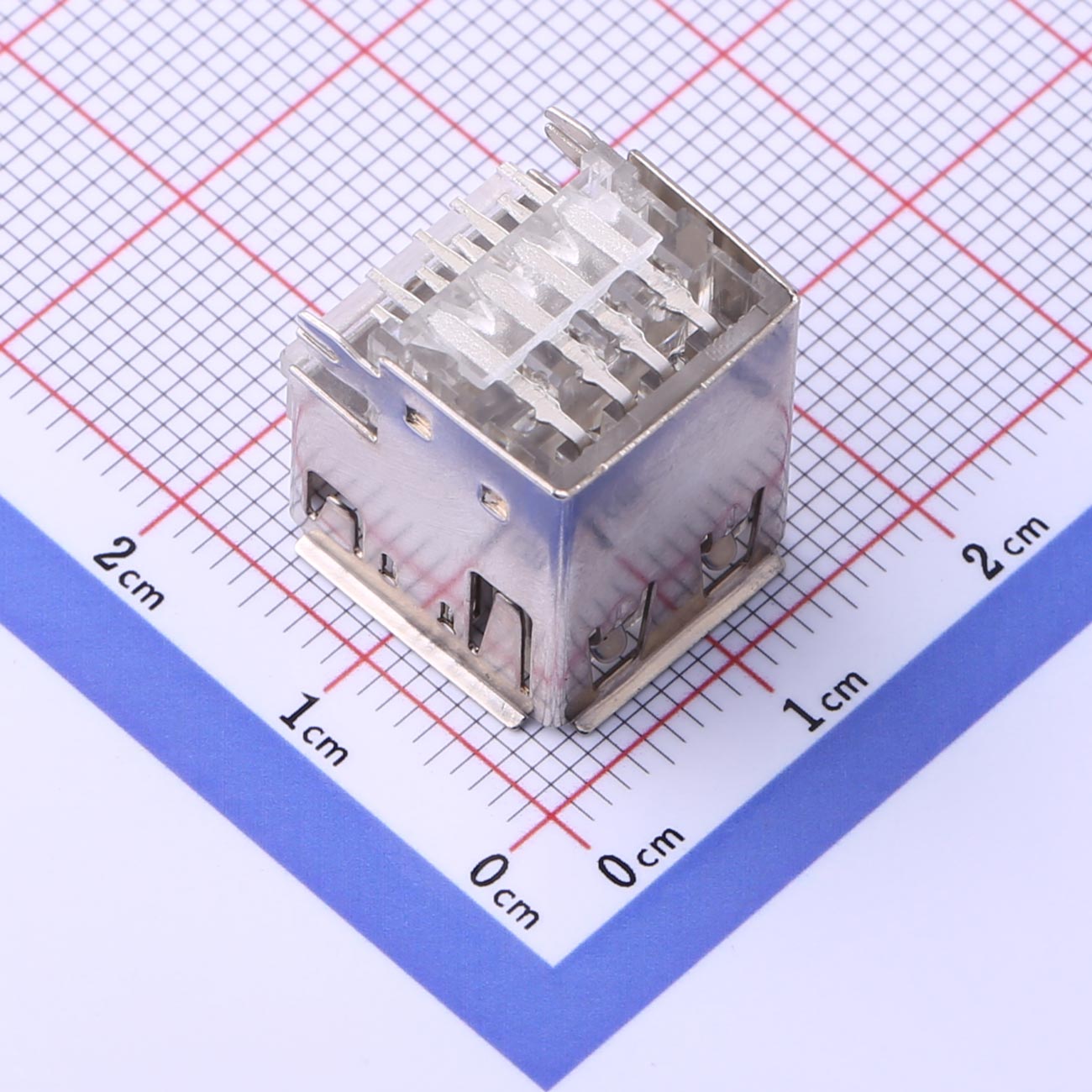

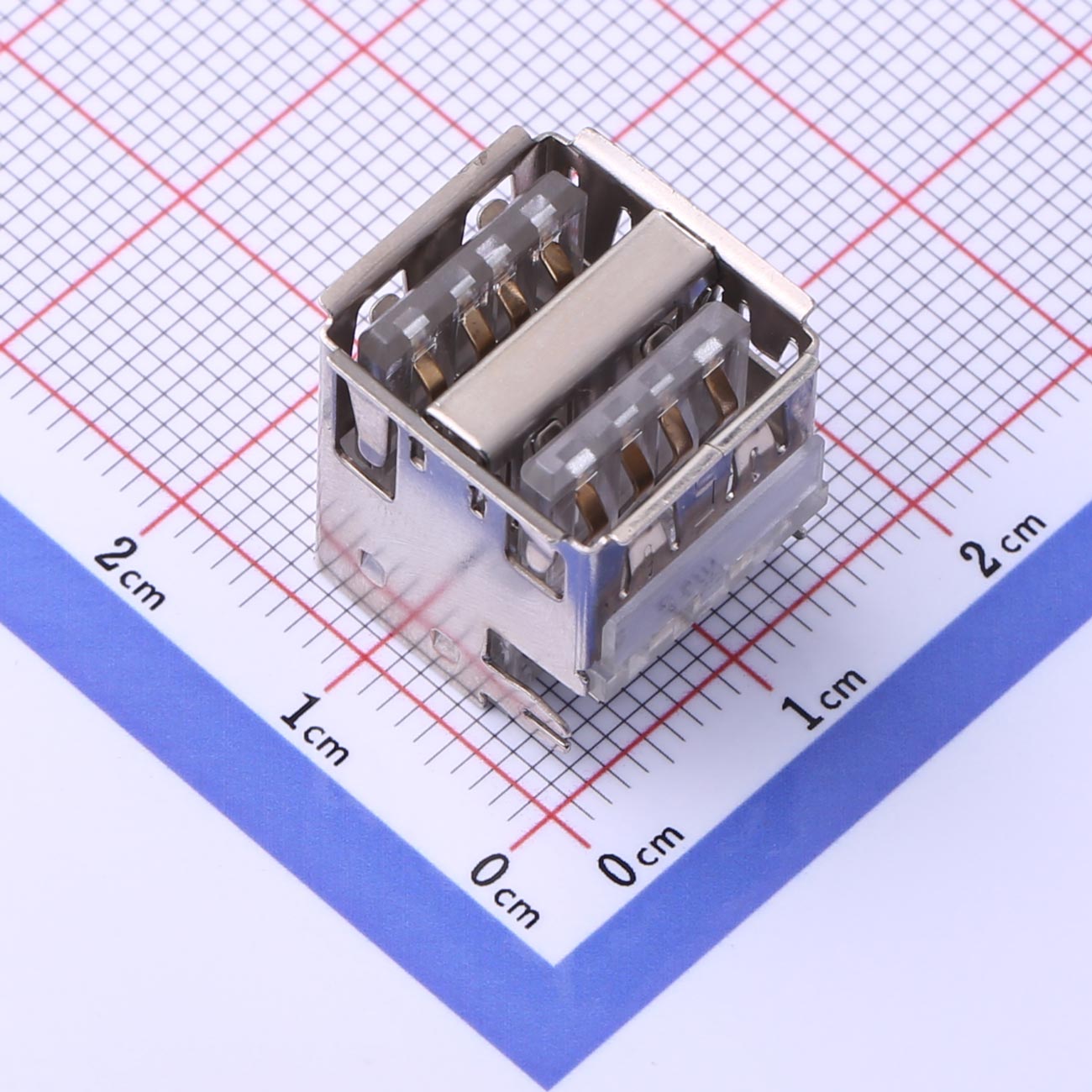

USB Type-A Connector, Female, KH-2AF90CB-17JB

Rated Current: 1.5 AMP at 250VAC

Rated Voltage: 30V

Insulation Resistance: Minimum 1000MΩ

Contact Resistance: Maximum 30mΩ

Temperature Range: -20℃ ~ 60℃

Download Datasheet Online Consultation

Product Details Product Documents Technical Support

Product Features

● USB Type-A standard interface, widely compatible with mainstream USB devices

● SMD design saves installation space and improves connection stability

● Optimized pin layout ensures reliable contact with the PCB, reducing signal attenuation

● Supports USB 2.0 or higher data transfer speeds for fast data transmission

● Made from high-quality materials for excellent heat, cold, and corrosion resistance

● Optimized electrical and mechanical performance for long-term stability and reliability

Product Benefits

● Compact SMD design suits space-constrained applications

● Stable connection reduces loosening caused by vibration or shock

● Efficient data transmission ensures accuracy and speed

● Wide compatibility makes it easy to connect various USB Type-A devices

● Durable construction enhances product longevity and reliability

Product Application

● Consumer electronics: smartphones, tablets, portable audio devices, and more

● Industrial automation: robots, sensors, data acquisition systems, etc.

● Automotive electronics: in-car entertainment systems, dash cameras, chargers

● Medical devices: portable monitoring and treatment devices
