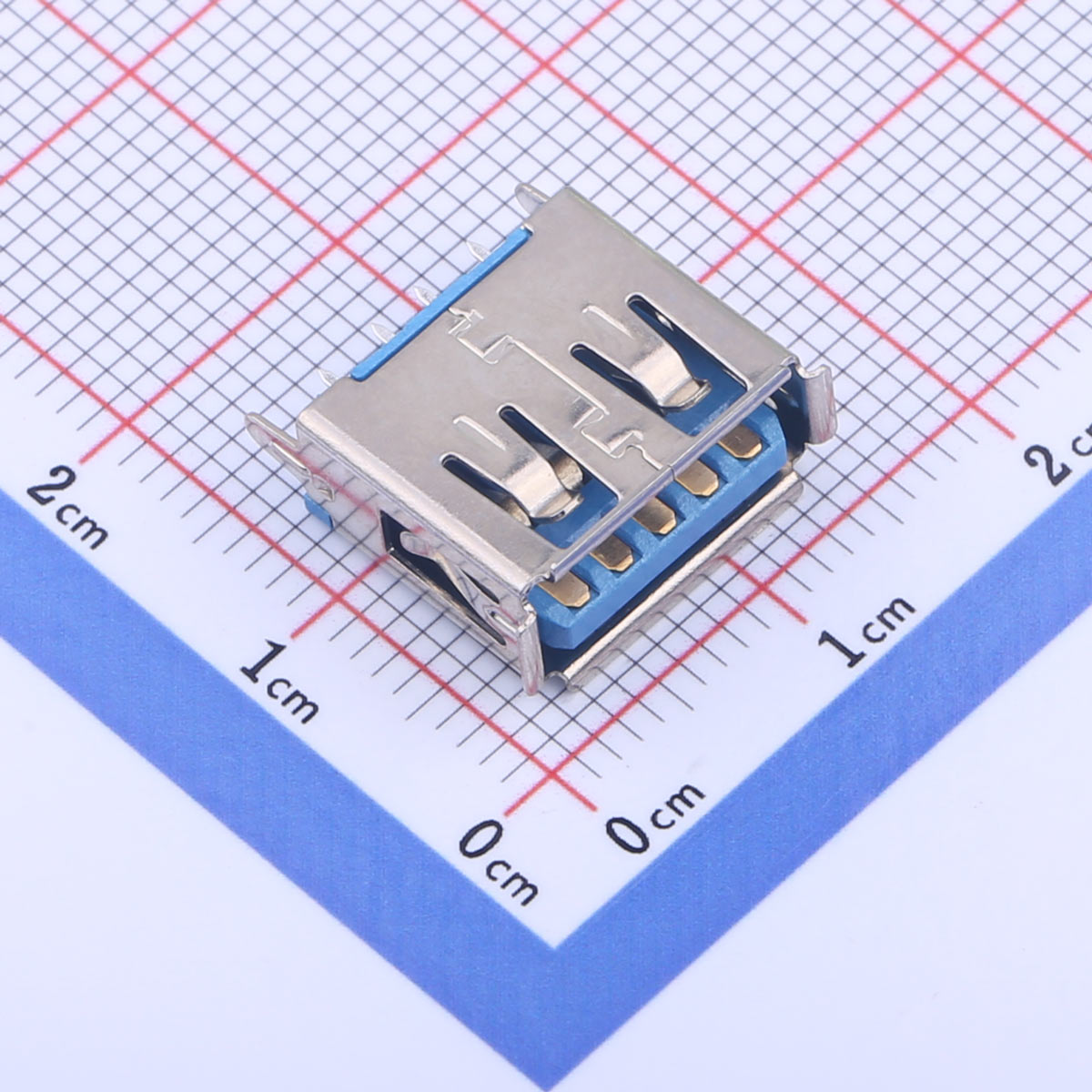

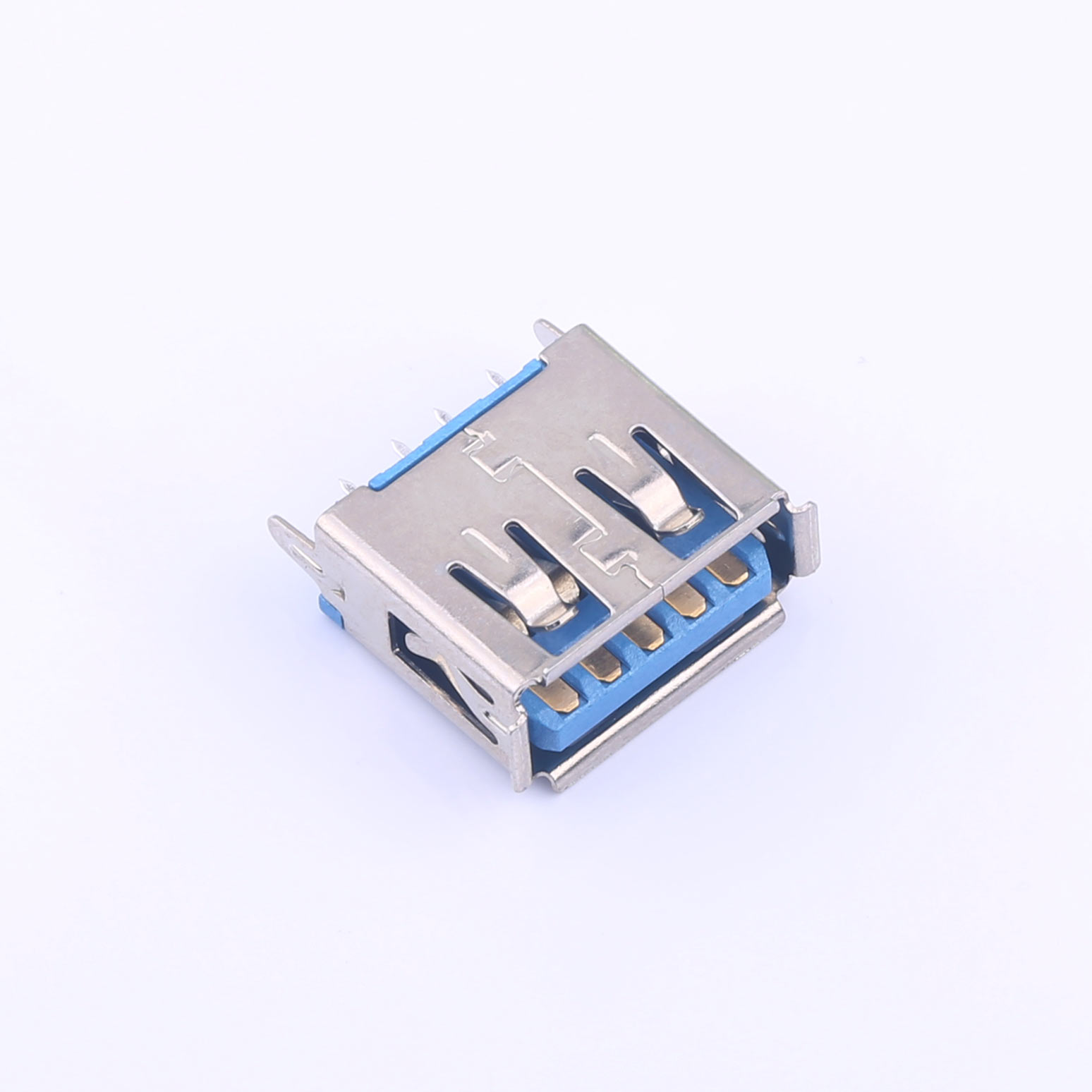

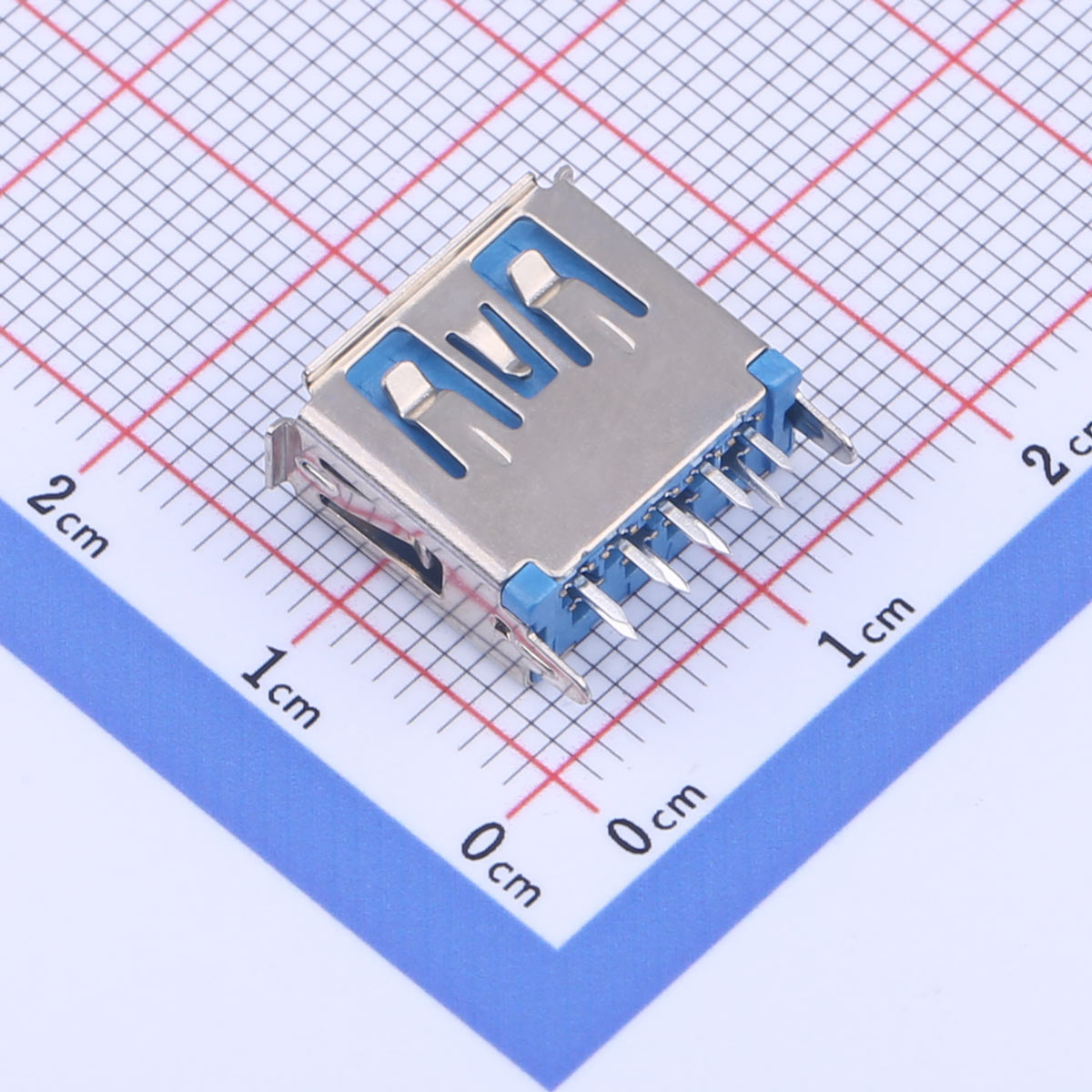

USB Type-A Connector, Female, KH-3.0AF180ZJ-11.5JB
Rated Voltage & Current: DC 30V / 1.0A
Contact Resistance: 30mΩ Max
Insulation Resistance: 100MΩ Min
Withstand Voltage Test: DC 500V
Insertion/Withdrawal Force: 5~35N
Product Advantages
- High Electrical Performance:
- Rated Voltage & Current: Supports DC 30V/1.0A, ensuring stable power transmission for low-voltage devices.
- Low Contact Resistance: ≤30mΩ (Max), minimizing energy loss and improving efficiency.
- High Insulation Resistance: ≥100MΩ (Min), ensuring safety and preventing short circuits.
- High Withstand Voltage: DC 500V test passed, guaranteeing durability under extreme conditions.
- Reliable Mechanical Design:
- Insertion/Withdrawal Force: 5~35N, ensuring secure connections while allowing easy plugging/unplugging.
- Long Lifespan: 1,500 mating cycles, reducing replacement frequency and maintenance costs.
- Lightweight & Compact:
- Gross Weight: Only 1.8g, ideal for portable and space-constrained applications.
- Tray Packaging: Ensures safe transportation and easy inventory management.
- Brand Assurance:
- Manufactured by Kinghelm, a trusted brand known for high-quality connectors.
Applications
- Consumer Electronics: Smartphones, tablets, power banks, and other portable devices.
- Industrial Equipment: Low-power machinery, sensors, and control systems.
- Automotive: In-car chargers, dashcams, and other DC-powered accessories.
- IoT Devices: Smart home products, wearables, and wireless communication modules.
- Power Adapters & Chargers: Reliable connection for DC power delivery.
