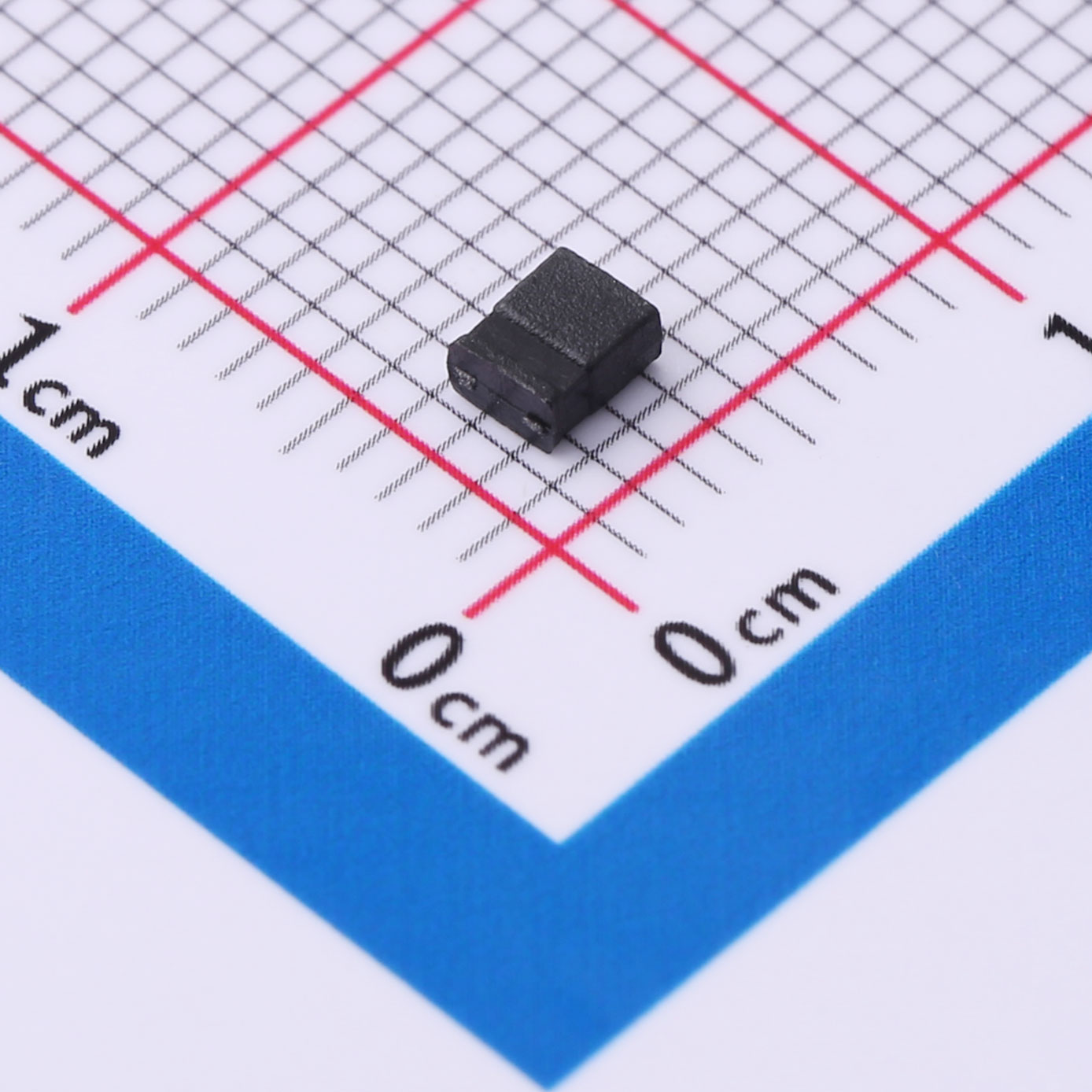

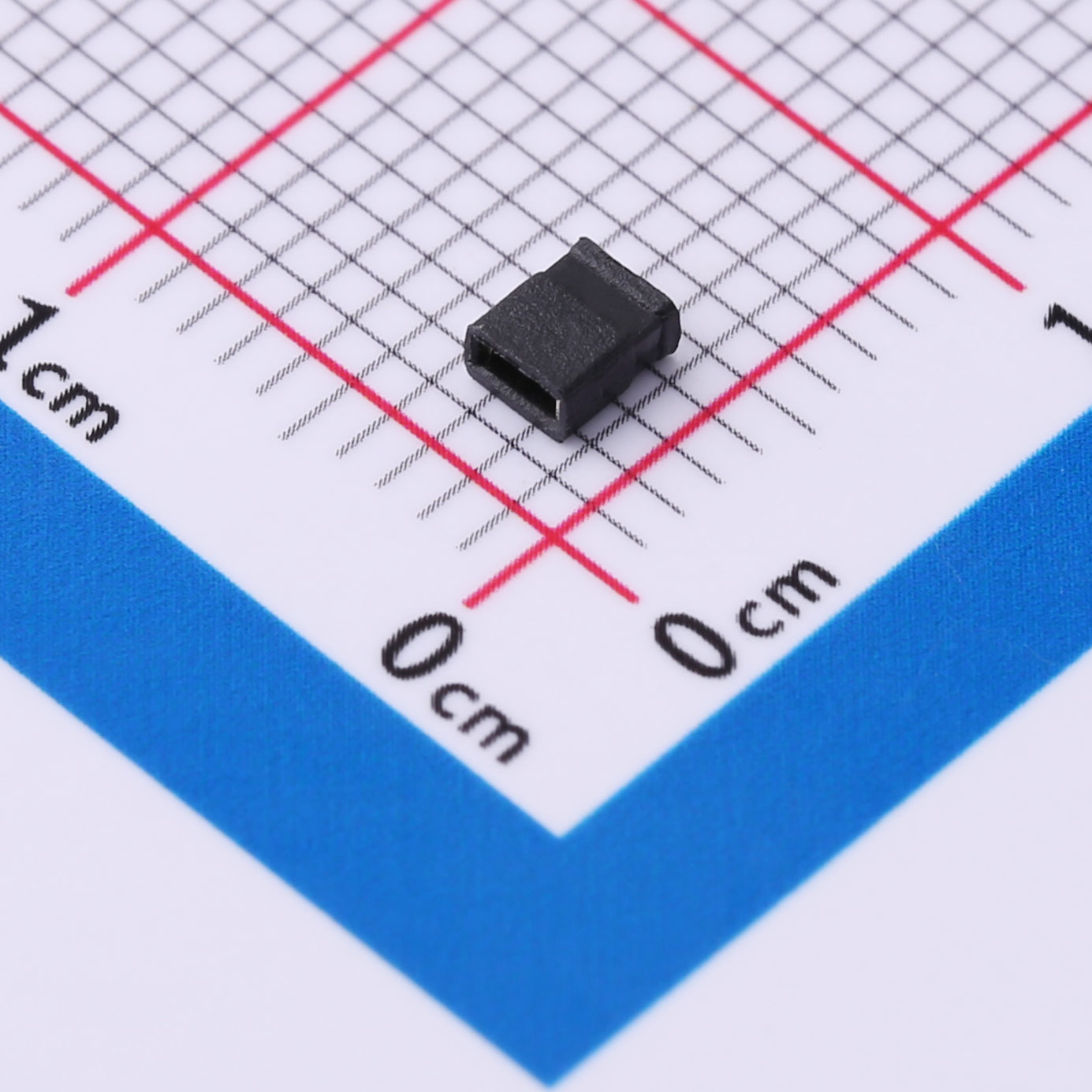

1.27mm Short Circuit Cap/Jumper Cap, Closed Top, KH-1.27TXM-BK-H3.0

Insulation Resistance: 1000MΩ Min

Dielectric Withstanding Voltage: AC 500V

Operating Temperature: -40℃ to +105℃

Insulator Material: PBT

Gross weight: 0.018g

Download Datasheet Online Consultation

Features and Benefits
● 1.27mm pitch for compact layout
● Closed top for secure connection
● 1000MΩ insulation for safety
● AC 500V withstand voltage
● -40℃ to +105℃ temperature range
● Durable PBT material
● Ultra-lightweight 0.018g

Product Application
● PCB shorting
● Jumper settings
● Circuit testing
● Communication devices
● Industrial controls
● Consumer electronics
