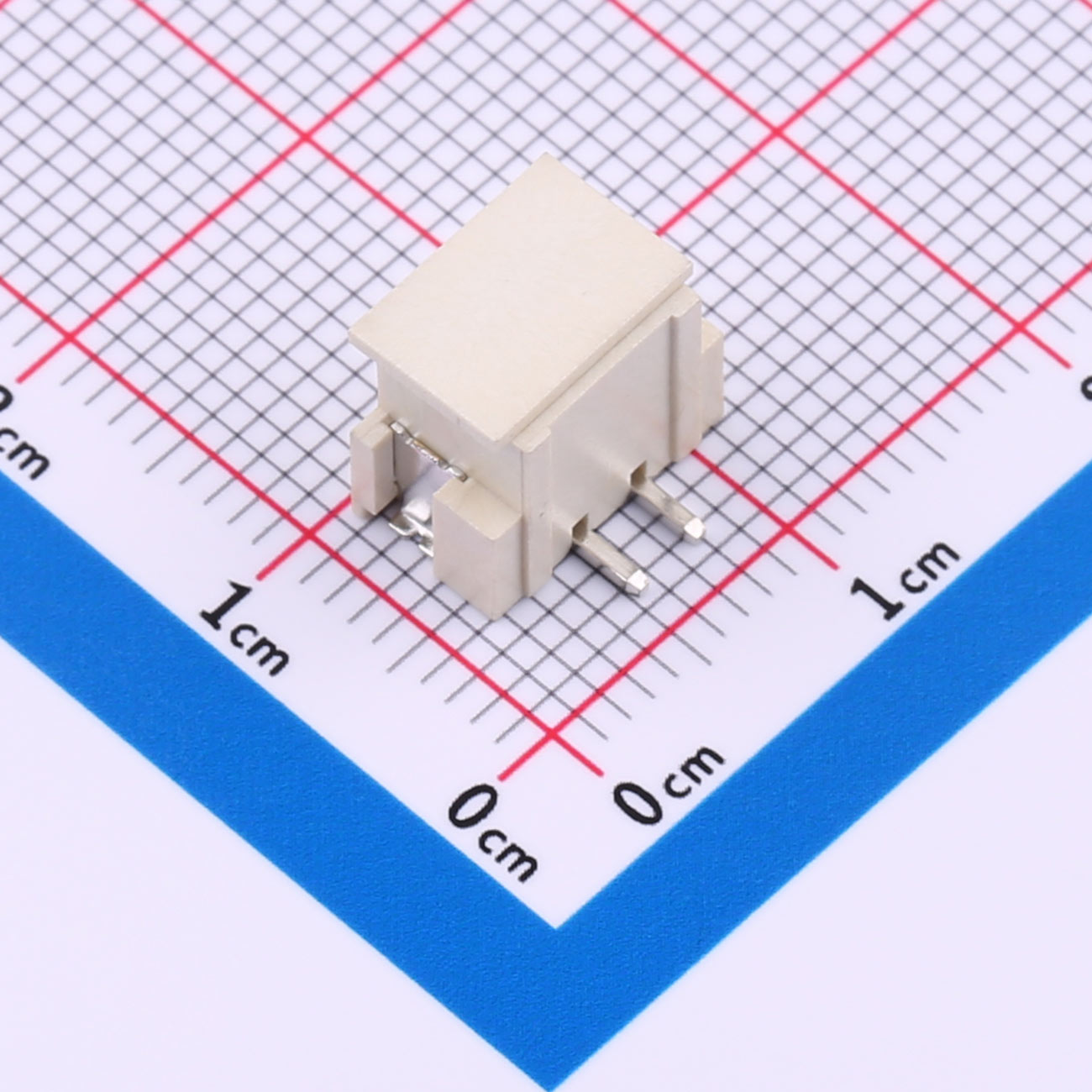

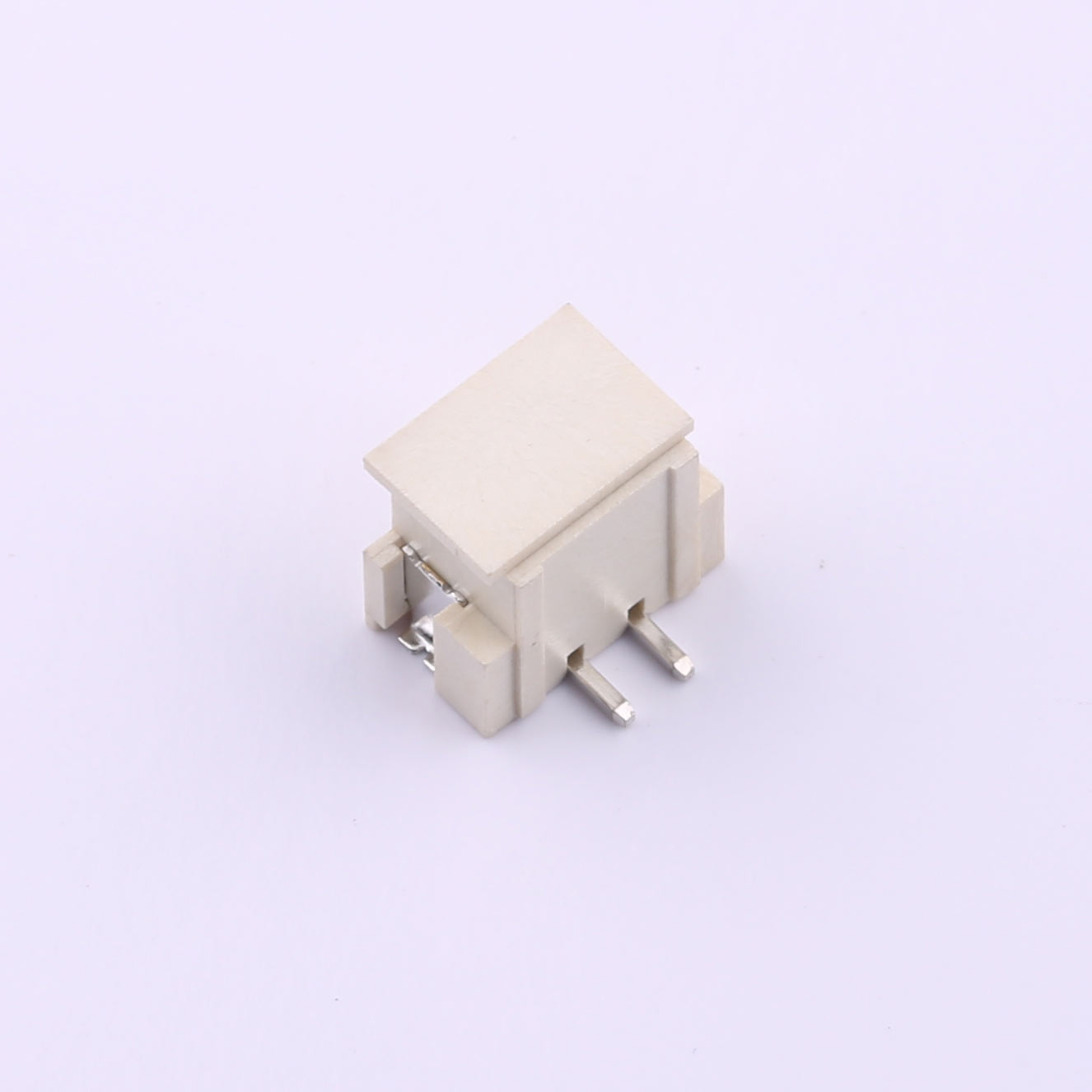

Wire-to-Board Connector, 2.54mm Pitch, 1x2P, Vertical SMT, KH-A2504-02AB
Current Rating: 3A AC, DC
Voltage Rating: 250V AC, DC
Temperature Range: -25℃ to +85℃
Contact Resistance: 20mΩ Max
Insulation Resistance: 1000MΩ Min
Product Features
● Standard 2.54mm pitch spacing
● Single row 2 pin structure
● Vertical SMT mounting type
● SMD package for surface mounting
● Reliable solder joint
● Minimal space design
Product Benefits
● Stable electrical connection
● Easy PCB assembly
● Saves space on PCB
● Strong mechanical stability
● Compatible with wire to board cables
● Improves signal integrity
Product Applications
● Small electronic devices
● Industrial equipment
● Communication systems
● LED assemblies
● Computer accessories
● Home automation
