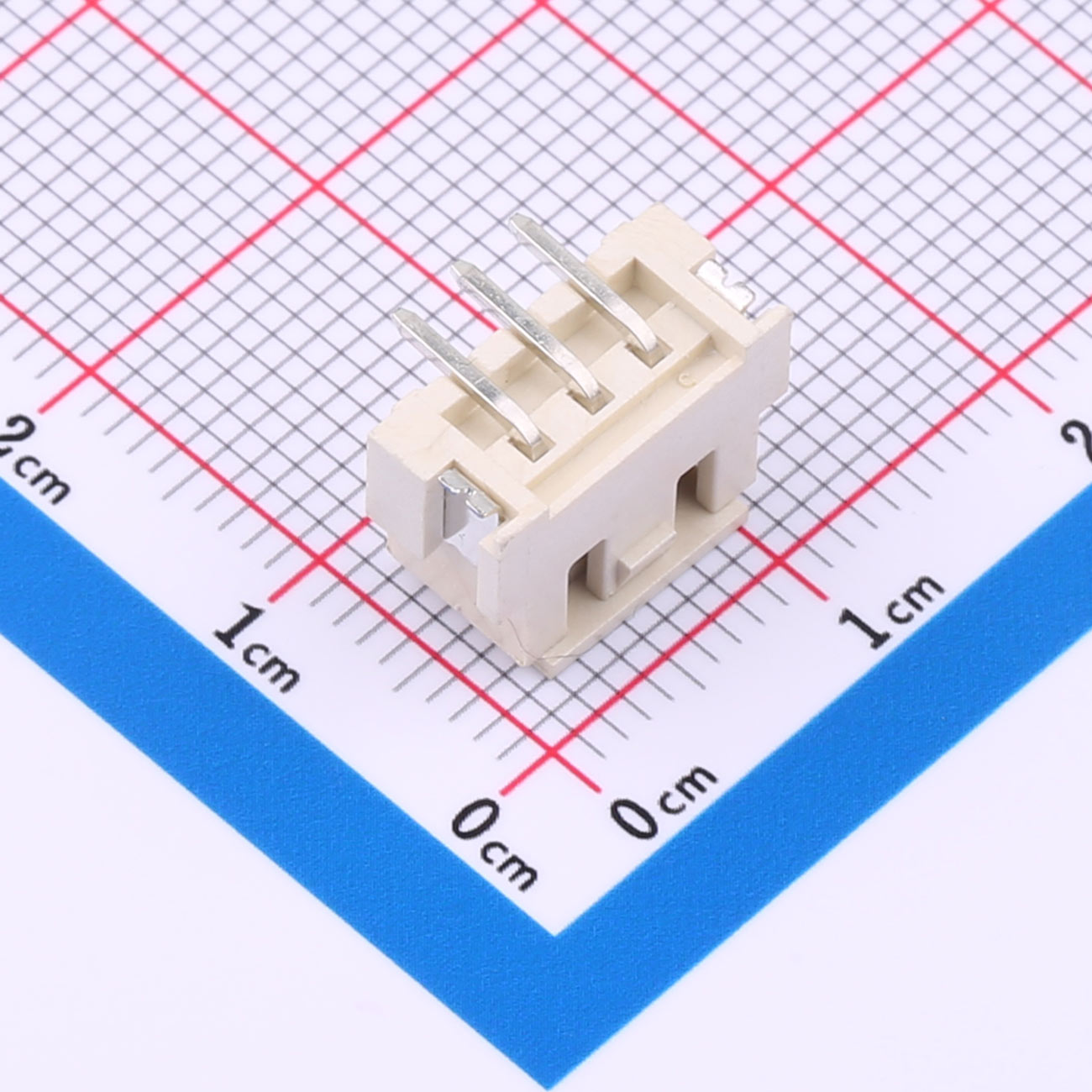

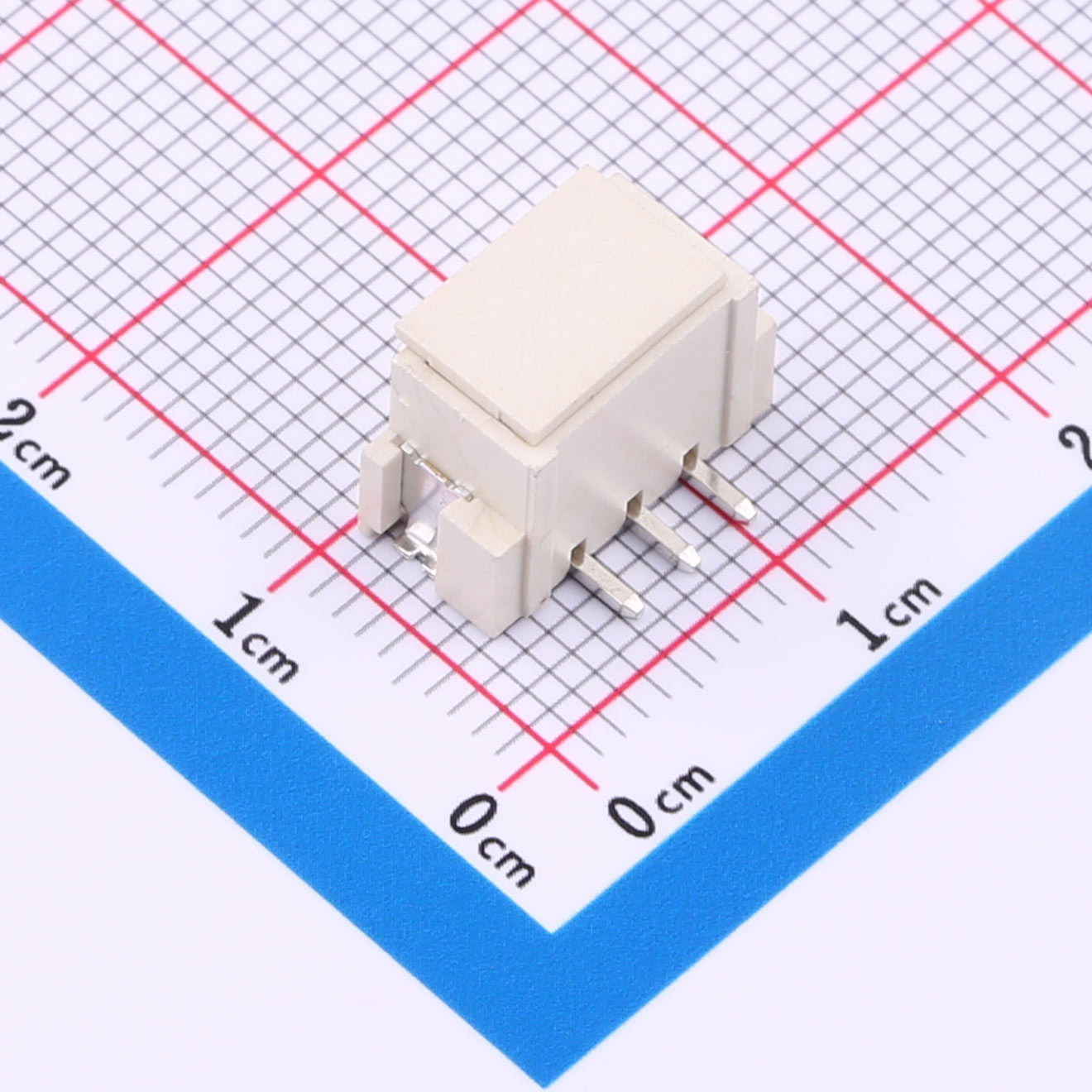

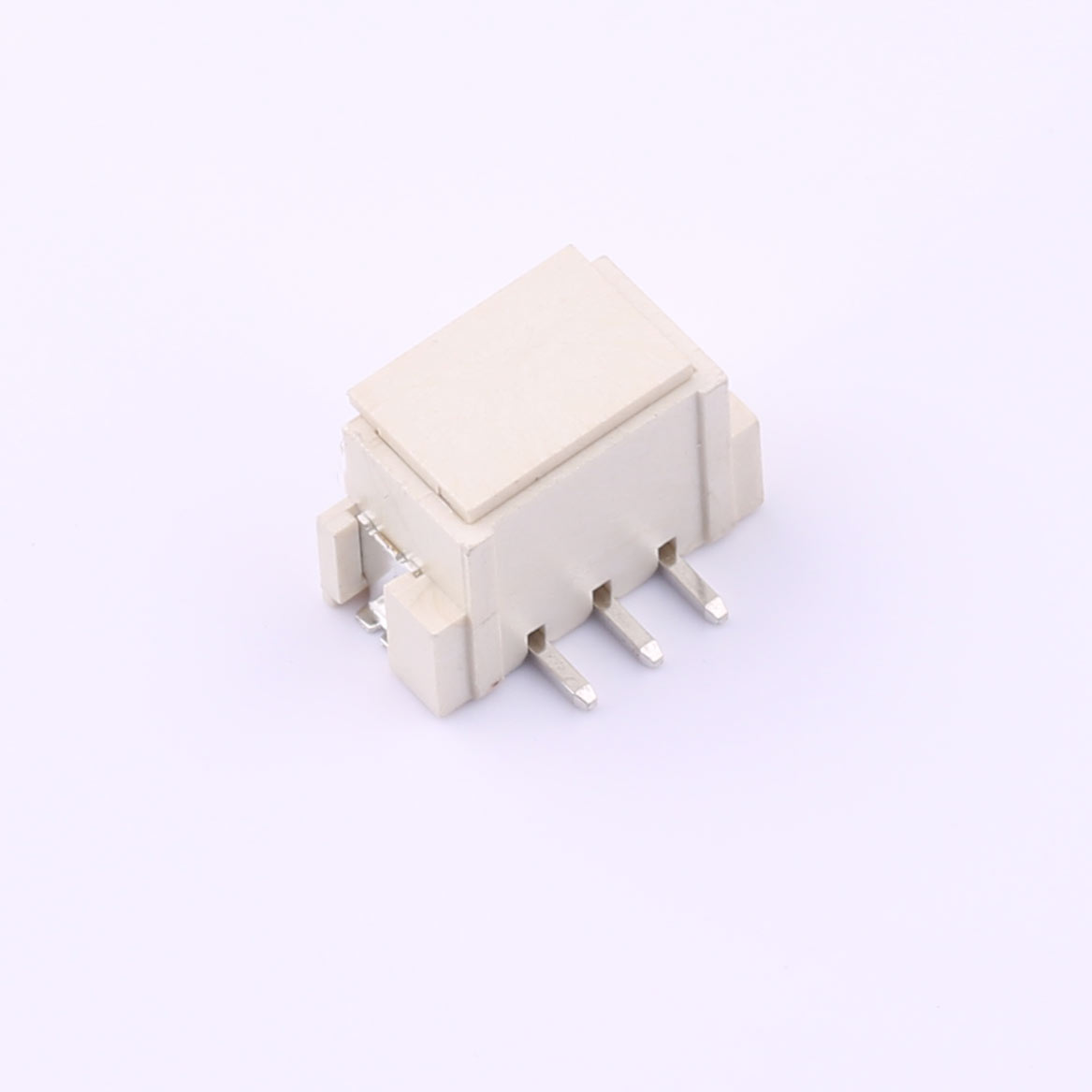

Wire-to-Board Connector, 2.54mm Pitch, 1x3P, Vertical SMT, KH-A2504-03AB
Current Rating: 3A AC, DC
Voltage Rating: 250V AC, DC
Temperature Range: -25℃ to +85℃
Contact Resistance: 20mΩ Max
Insulation Resistance: 1000MΩ Min
Product Features
● Standard 2.54mm pitch spacing
● Single row 3 pin structure
● Vertical SMT mounting type
● SMD package for surface mounting
● Reliable solder connection
● Compact footprint design
Product Benefits
● Stable and reliable electrical contact
● Simplifies assembly process
● Saves PCB space with vertical orientation
● Good mechanical strength
● Compatible with wire to board cables
● Enhances transmission stability
Product Applications
● Small consumer electronics
● Industrial controls
● Communication terminals
● LED lighting
● Computer peripherals
● Smart devices
