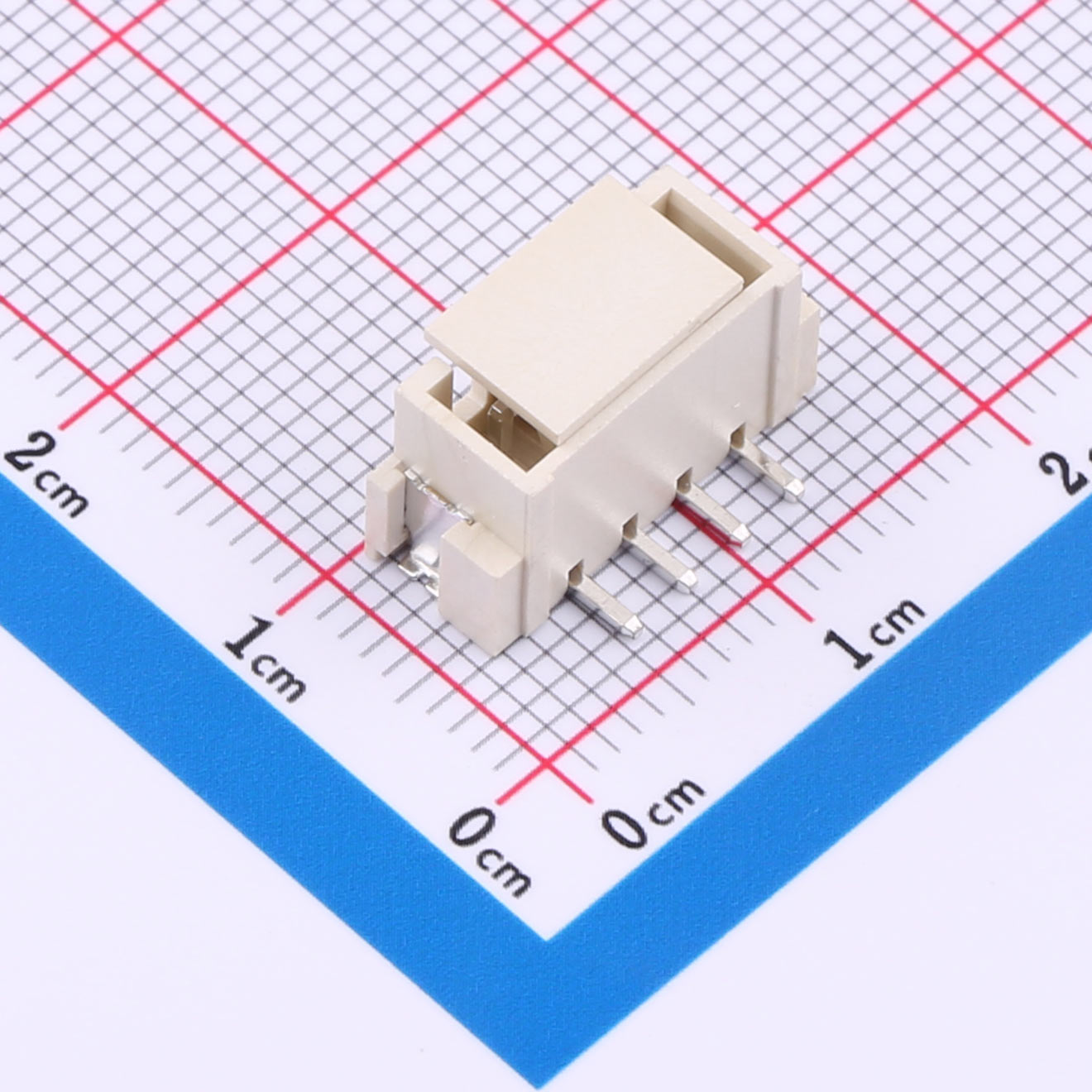

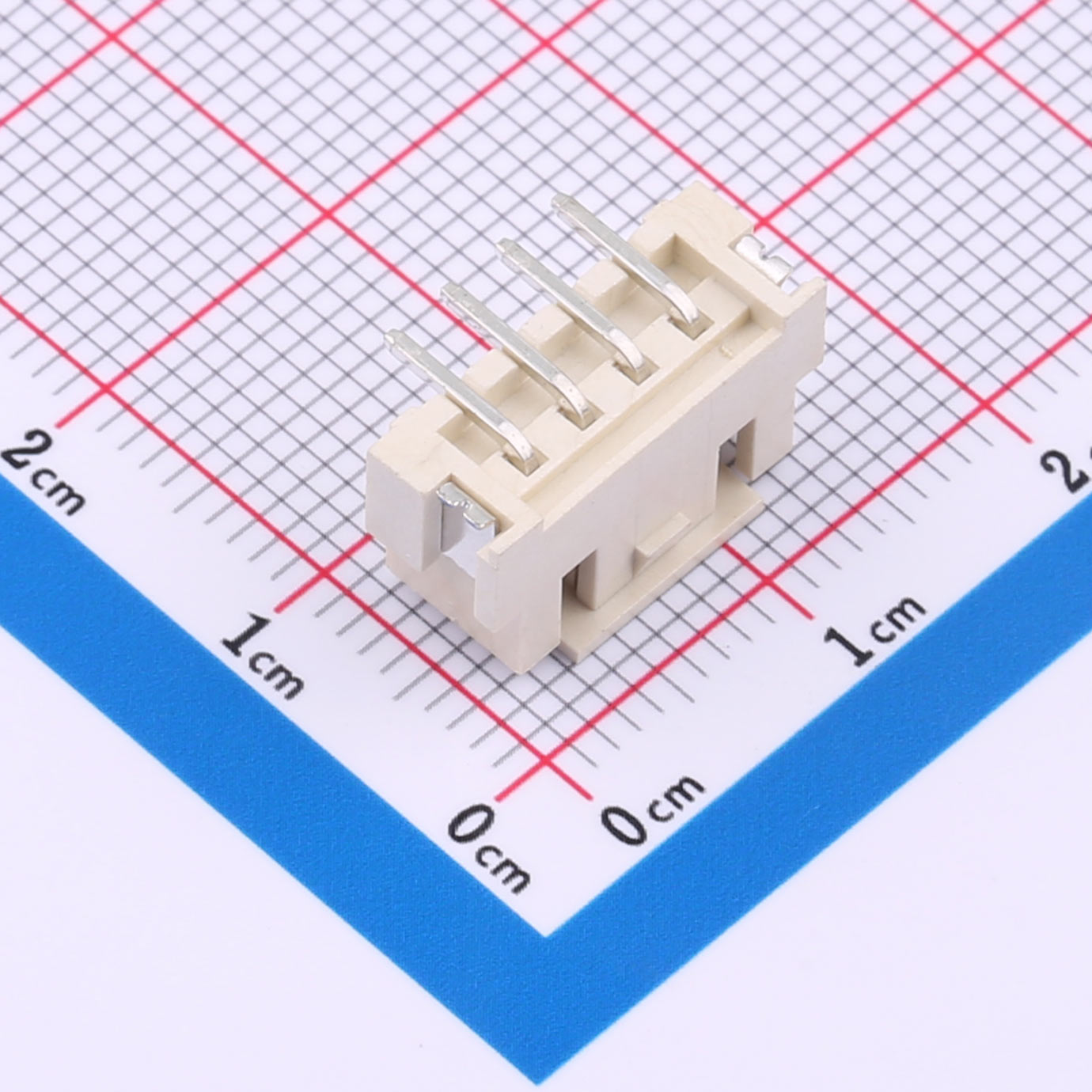

Wire-to-Board Connector, 2.54mm Pitch, 1x4P, Vertical SMT, KH-A2504-04AB
Current Rating: 3A AC, DC
Voltage Rating: 250V AC, DC
Temperature Range: -25℃ to +85℃
Contact Resistance: 20mΩ Max
Insulation Resistance: 1000MΩ Min
Product Features
● Standard 2.54mm pitch spacing
● Single row 4 pin structure
● Vertical SMT mounting type
● SMD package for surface mounting
● Reliable solder joint
● Compact and efficient design
Product Benefits
● Stable electrical performance
● Easy PCB assembly
● Saves PCB space with vertical layout
● Strong mechanical connection
● Compatible with standard wire to board cables
● Improves signal quality
Product Applications
● Portable devices
● Industrial machinery
● Communication equipment
● LED modules
● Computer accessories
● Home electronics
