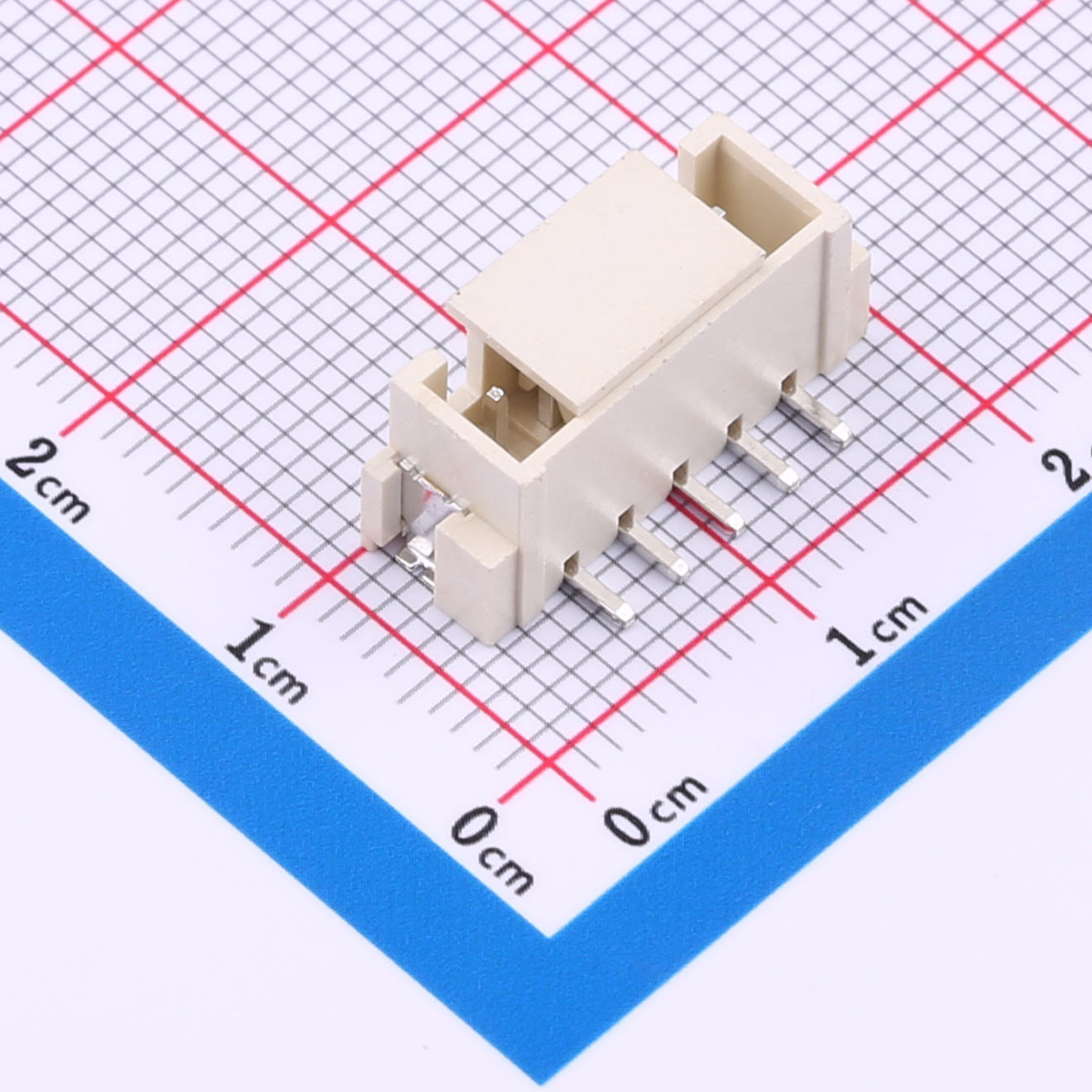

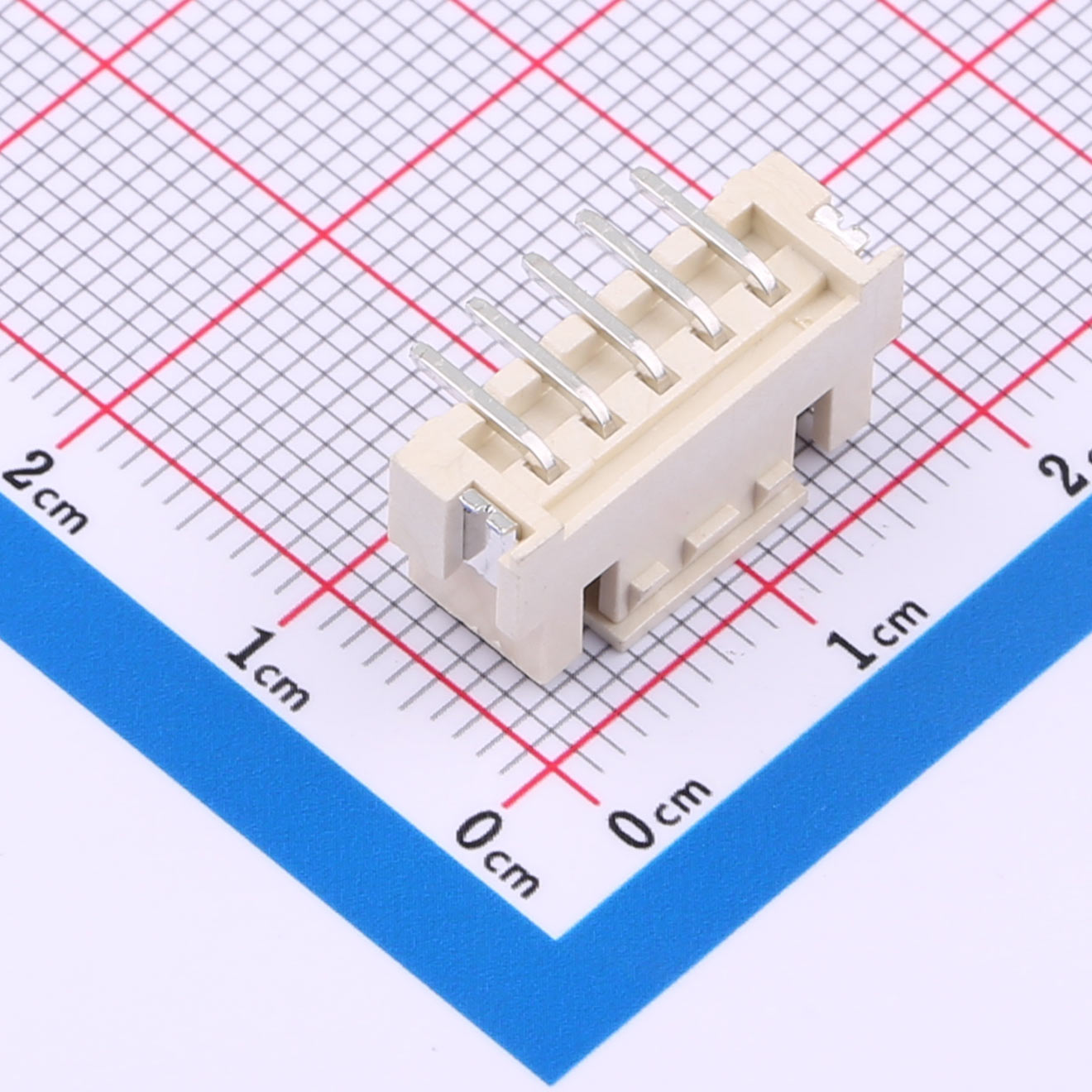

Wire-to-Board Connector, 2.54mm Pitch, 1x5P, Vertical SMT, KH-A2504-05AB
Current Rating: 3A AC, DC
Voltage Rating: 250V AC, DC
Temperature Range: -25℃ to +85℃
Contact Resistance: 20mΩ Max
Insulation Resistance: 1000MΩ Min
Product Features
● Standard 2.54mm pitch spacing
● Single row 5 pin structure
● Vertical SMT mounting type
● SMD package for surface mounting
● Reliable solder joint
● Compact space saving design
Product Benefits
● Stable electrical connection
● Simplifies PCB assembly
● Saves PCB space with vertical design
● Strong mechanical stability
● Compatible with wire to board cables
● Enhances signal integrity
Product Applications
● Consumer electronics
● Industrial control systems
● Communication devices
● LED lighting
● Computer peripherals
● Home appliances
