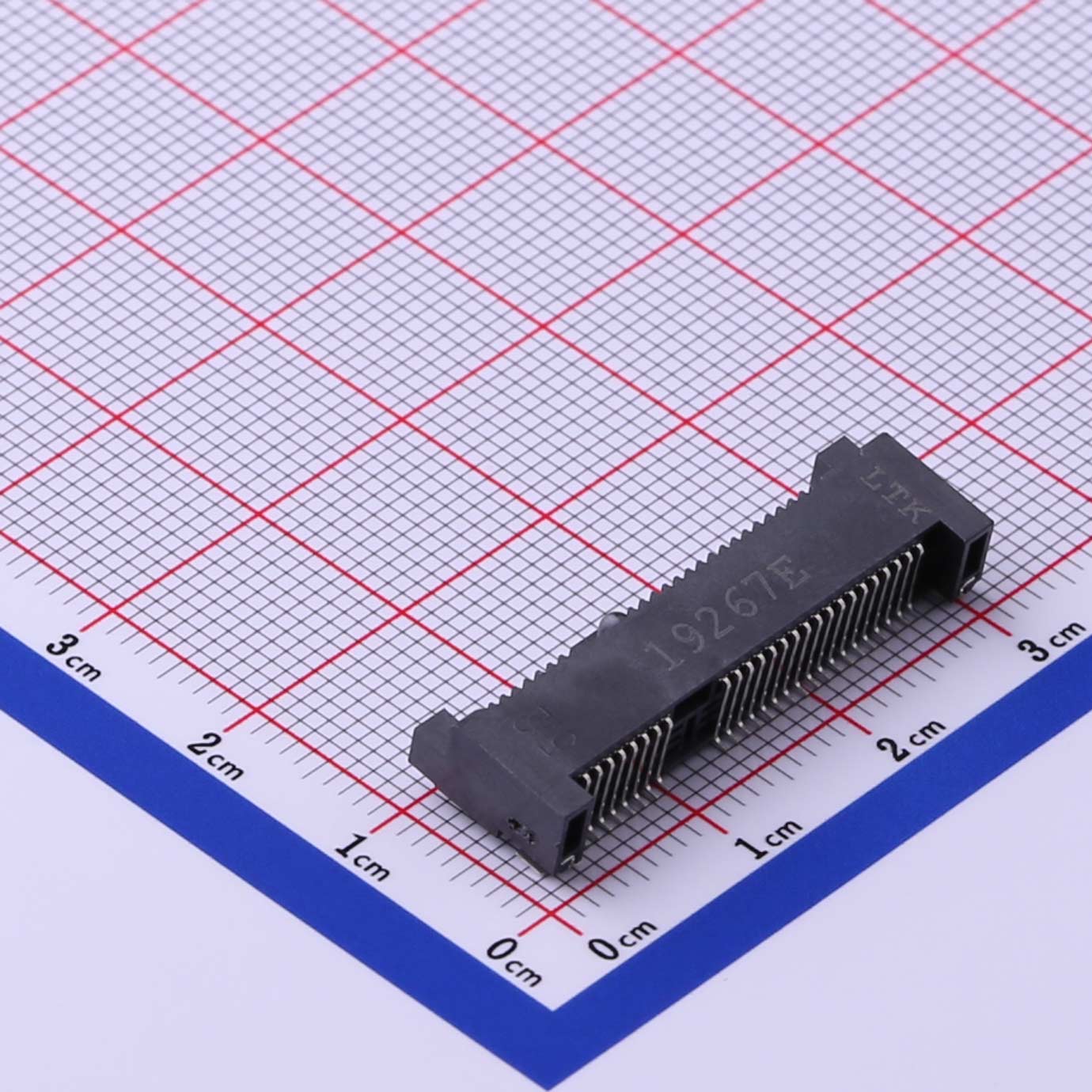

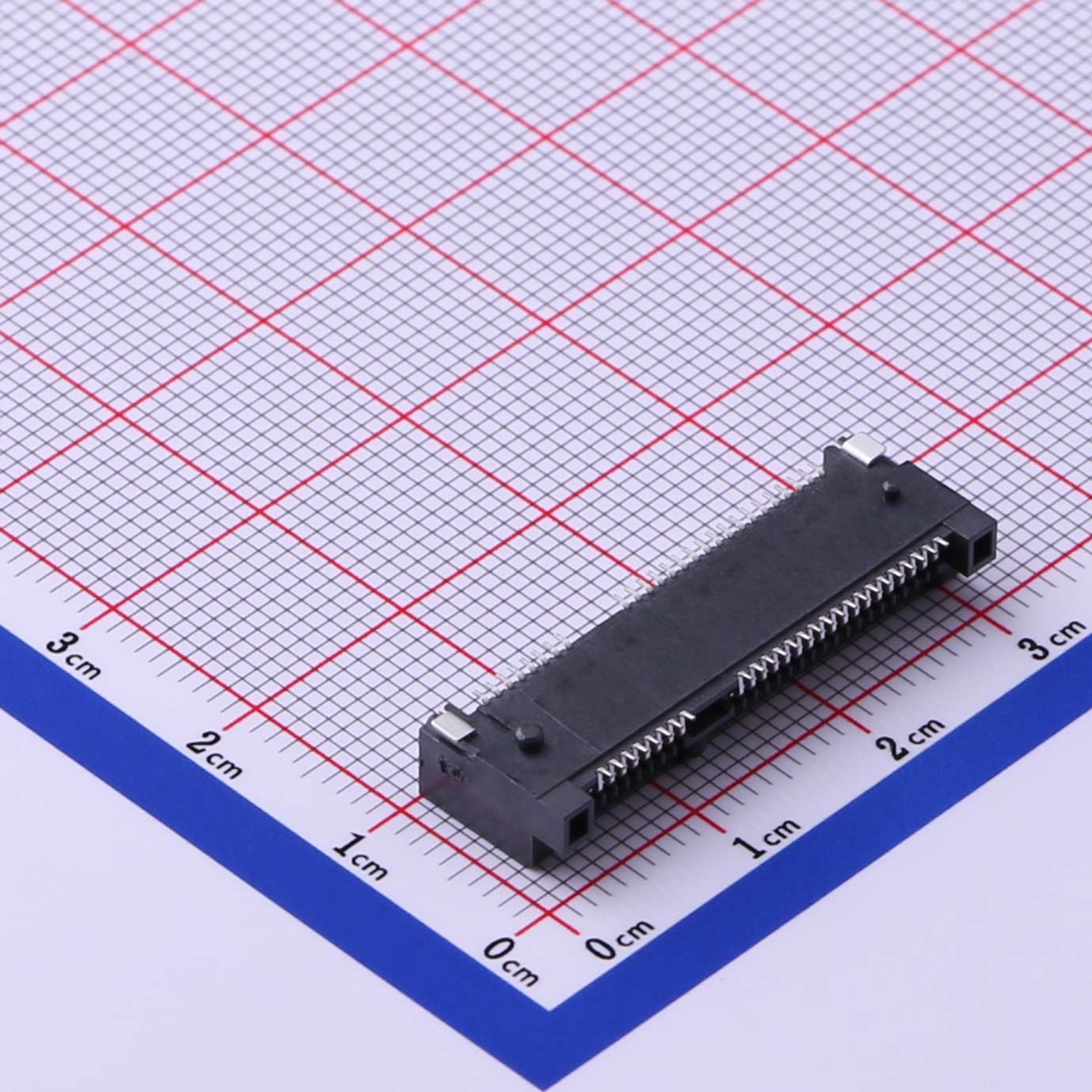

mPCI-E Connector, 52-Pin, 36 Data Pins, KH-PCIE5.2H-52P
Connector Type: mPCI-E
Total Pin Count: 52 Pins
Data Pin Count: 36 Pins
Mounting Type: Right Angle (SMT)
Attribute: Parameter Value
Board Height: 5.2mm
Additional Features: With Pegs
Product Advantages
●Compact mPCI-E connector with 52 pins
●36 data pins for high-speed signal transmission
●Right angle mounting for space efficiency
●Board height of 5.2mm ideal for compact designs
●Equipped with pegs for secure mounting
Applications
●Used in compact devices like laptops and tablets
●Ideal for embedded systems and IoT devices
●Widely used in networking and telecommunications
●Suitable for automotive and industrial applications
