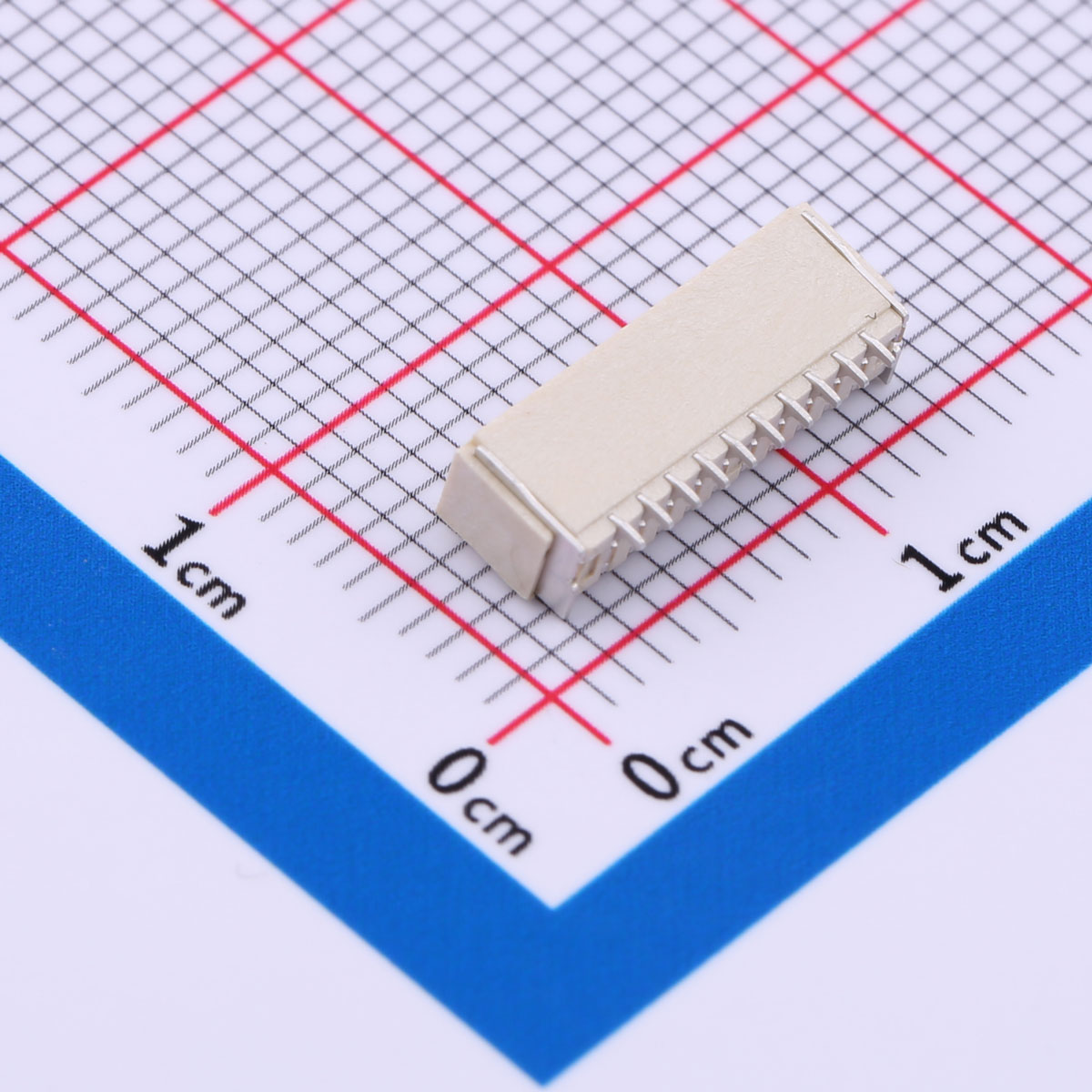

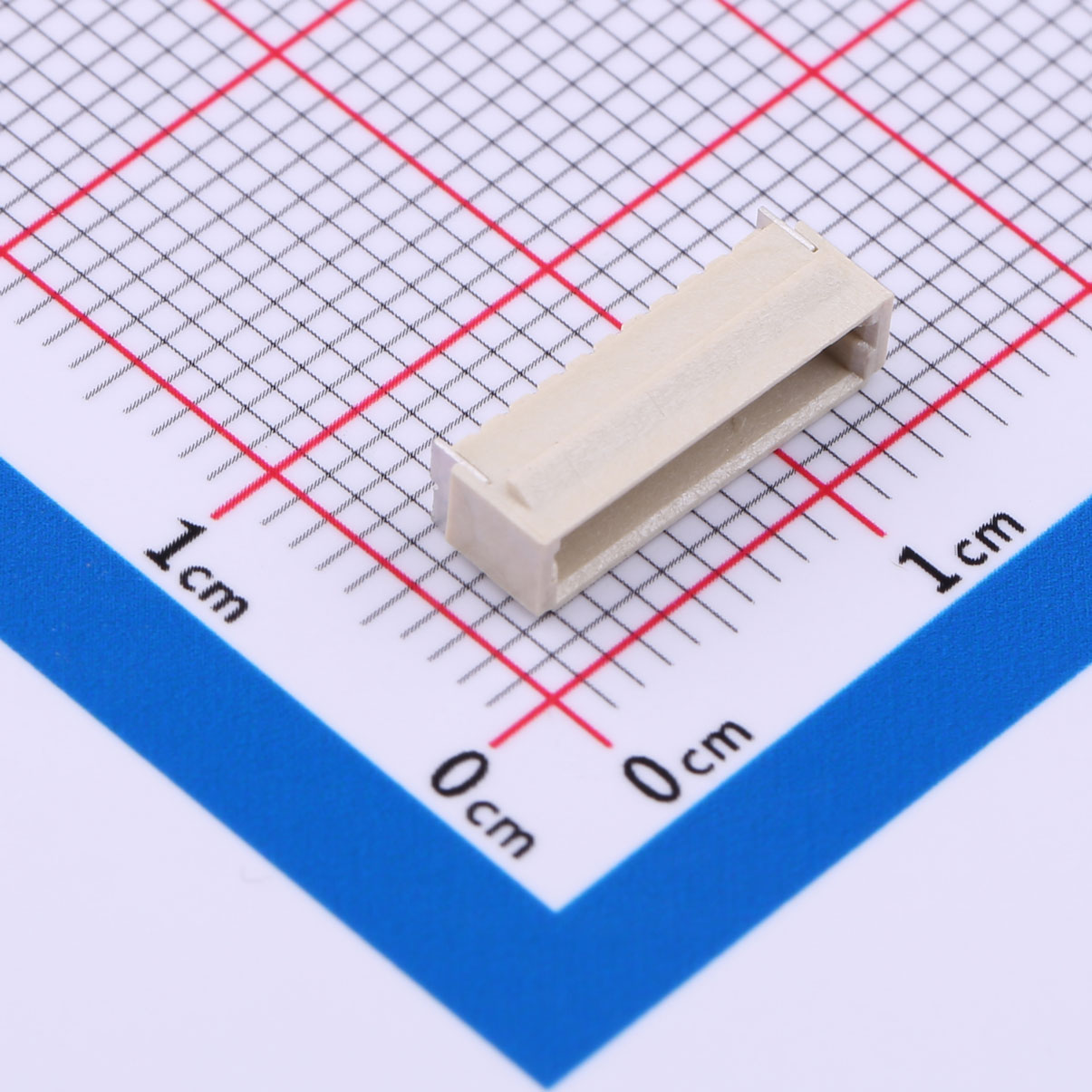

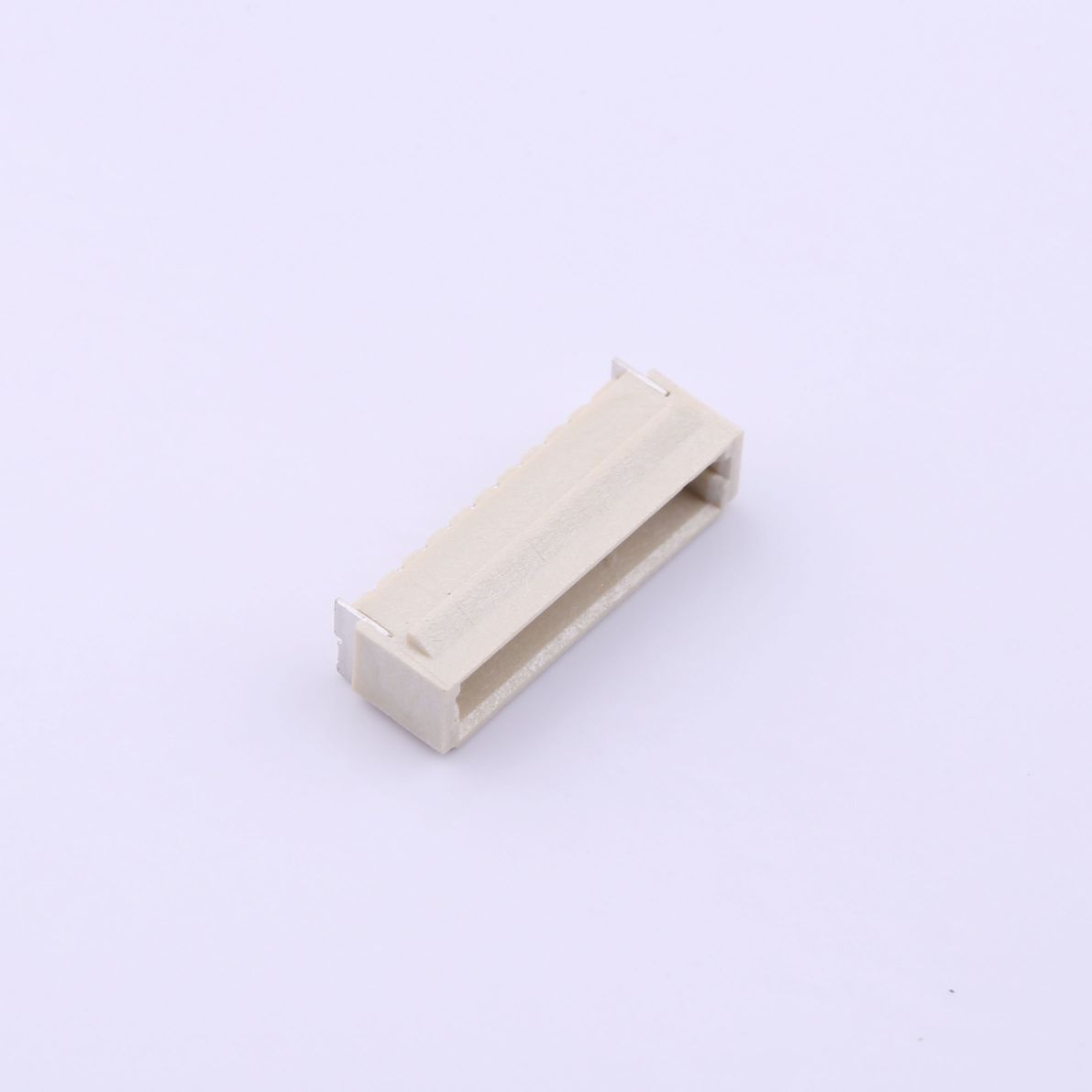

Wire-to-Board Connector, 1mm Pitch, 1x10P, SMD, KH-A1000RSL-10P
Current Rating: 1A AC/DC
Voltage Rating: 50V AC/DC
Temperature Range: -25°C to +85°C
Contact Resistance: ≤ 20mΩ
Insulation Resistance: ≥ 100MΩ
Product Features
● 1.00mm pitch, 1x10 positions
● Horizontal mount (right-angle) SMD design
● Low-profile, space-efficient construction
● Current rating: 1A AC/DC
● Voltage rating: 50V AC/DC
● Operating temperature range: -25°C to +85°C
● Contact resistance ≤ 20mΩ
● Insulation resistance ≥ 100MΩ
● RoHS and lead-free compliant
Product Benefits
● Compact size for space-constrained PCB layouts
● Ideal for slim and lightweight devices
● Provides stable and secure electrical contact
● Perfect for surface mount technology (SMT) processes
● Reliable power and signal transmission
● Reduces height in end-product designs
● Cost-effective for low-to-mid pin count applications
Product Applications
● Consumer electronics
● Wearable technology
● Small form-factor devices
● Smart home appliances
● Communication and networking systems
● Embedded and portable devices
● Industrial IoT applications
