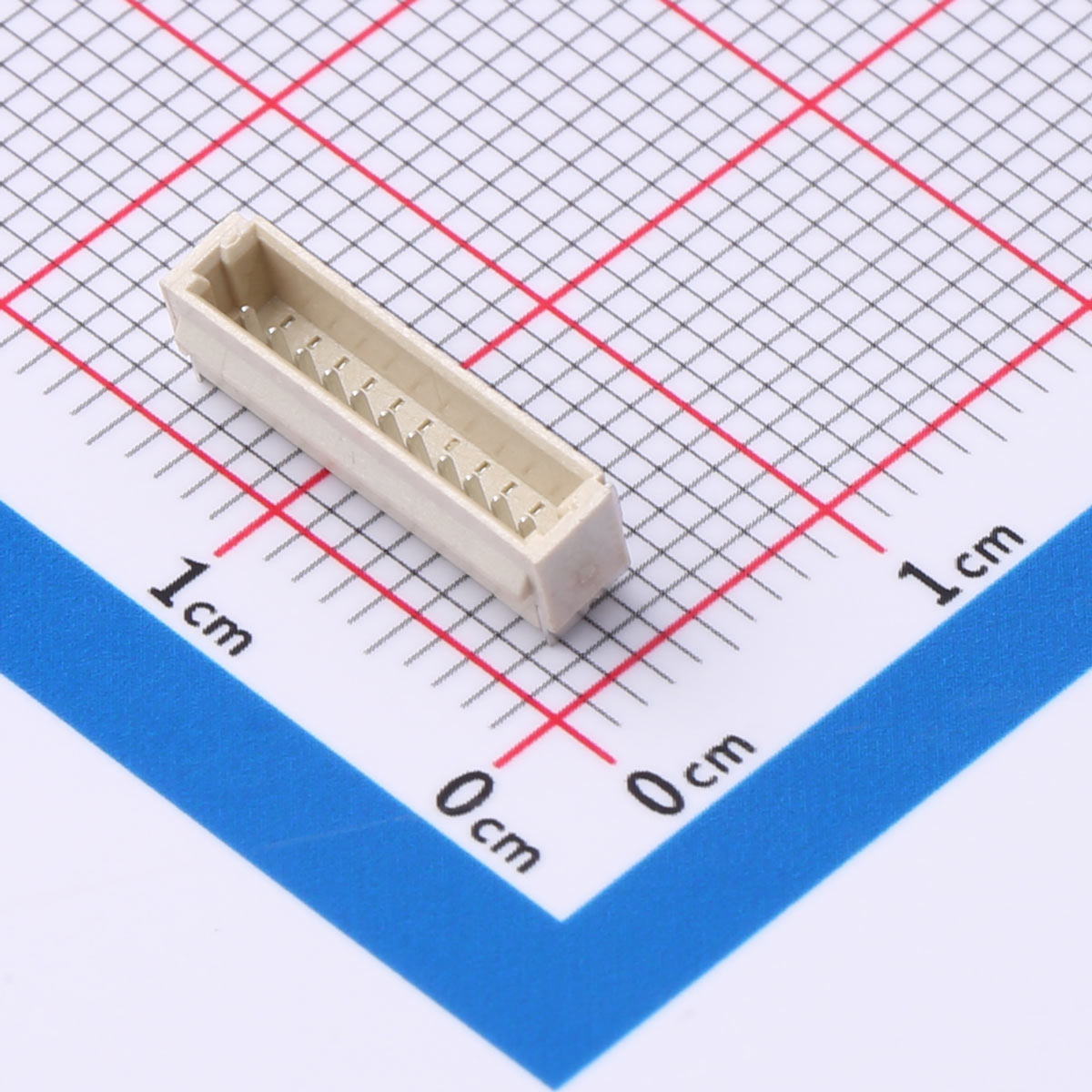

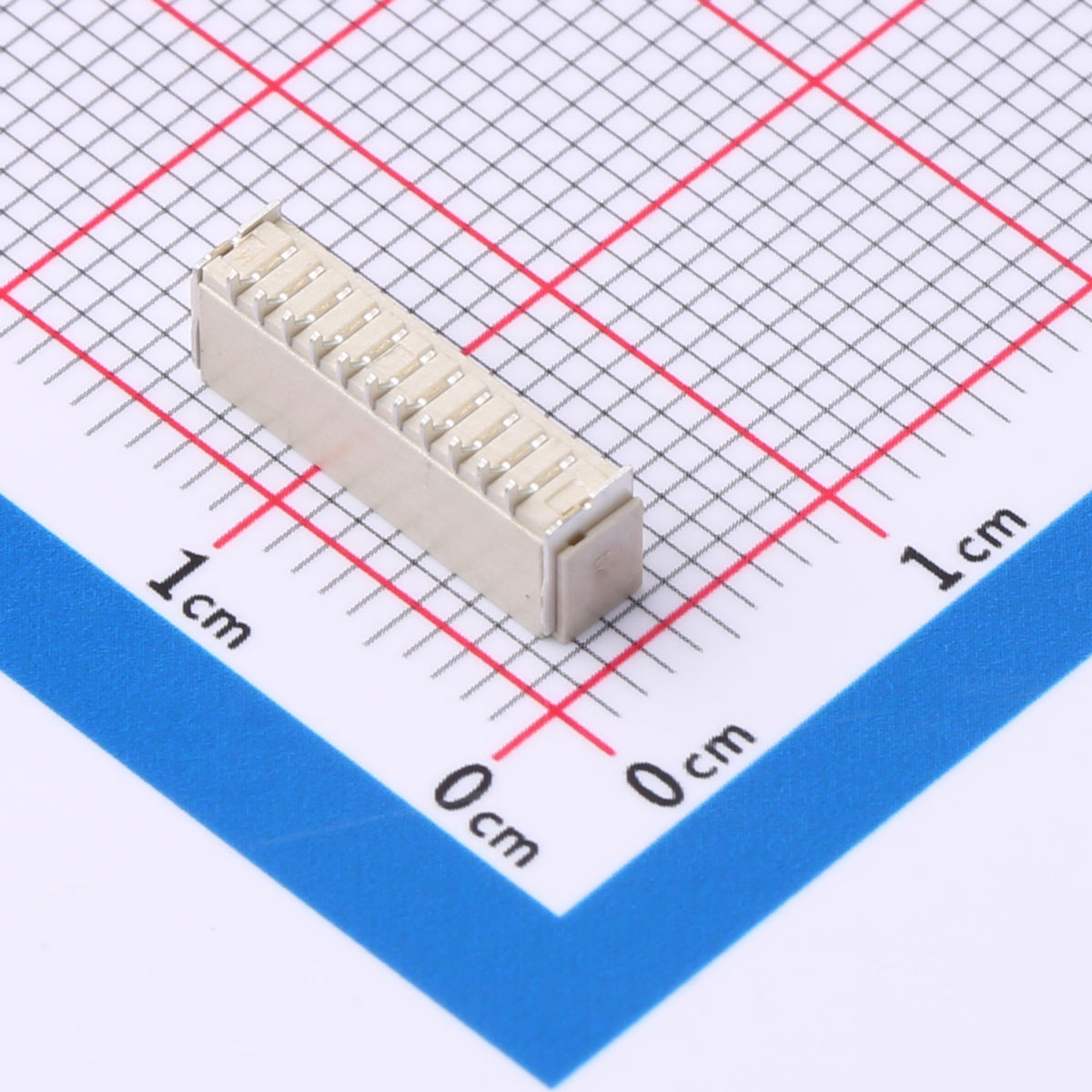

Wire-to-Board Connector, 1mm Pitch, 1x11P, SMD, KH-A1000RSL-11P
Current Rating: 1A AC/DC
Voltage Rating: 50V AC/DC
Temperature Range: -25°C to +85°C
Contact Resistance: ≤ 20mΩ
Insulation Resistance: ≥ 100MΩ
Product Features
● 1.00mm pitch, 1x11 positions
● Horizontal mount (right-angle) SMD design
● Compact, low-profile structure
● Current rating: 1A AC/DC
● Voltage rating: 50V AC/DC
● Operating temperature: -25°C to +85°C
● Contact resistance ≤ 20mΩ
● Insulation resistance ≥ 100MΩ
● RoHS and lead-free compliant
Product Benefits
● Space-saving for dense PCB layouts
● Perfect for compact and slim devices
● Reliable and stable electrical connection
● Ideal for automated surface mount assembly
● Efficient in power and signal transmission
● Low-profile design for height-sensitive applications
● Cost-efficient for medium-pin count connector needs
Product Applications
● Consumer electronics
● Wearable gadgets
● Portable medical devices
● Smart home products
● Communication modules
● Embedded control systems
● Low-voltage electronic circuits
