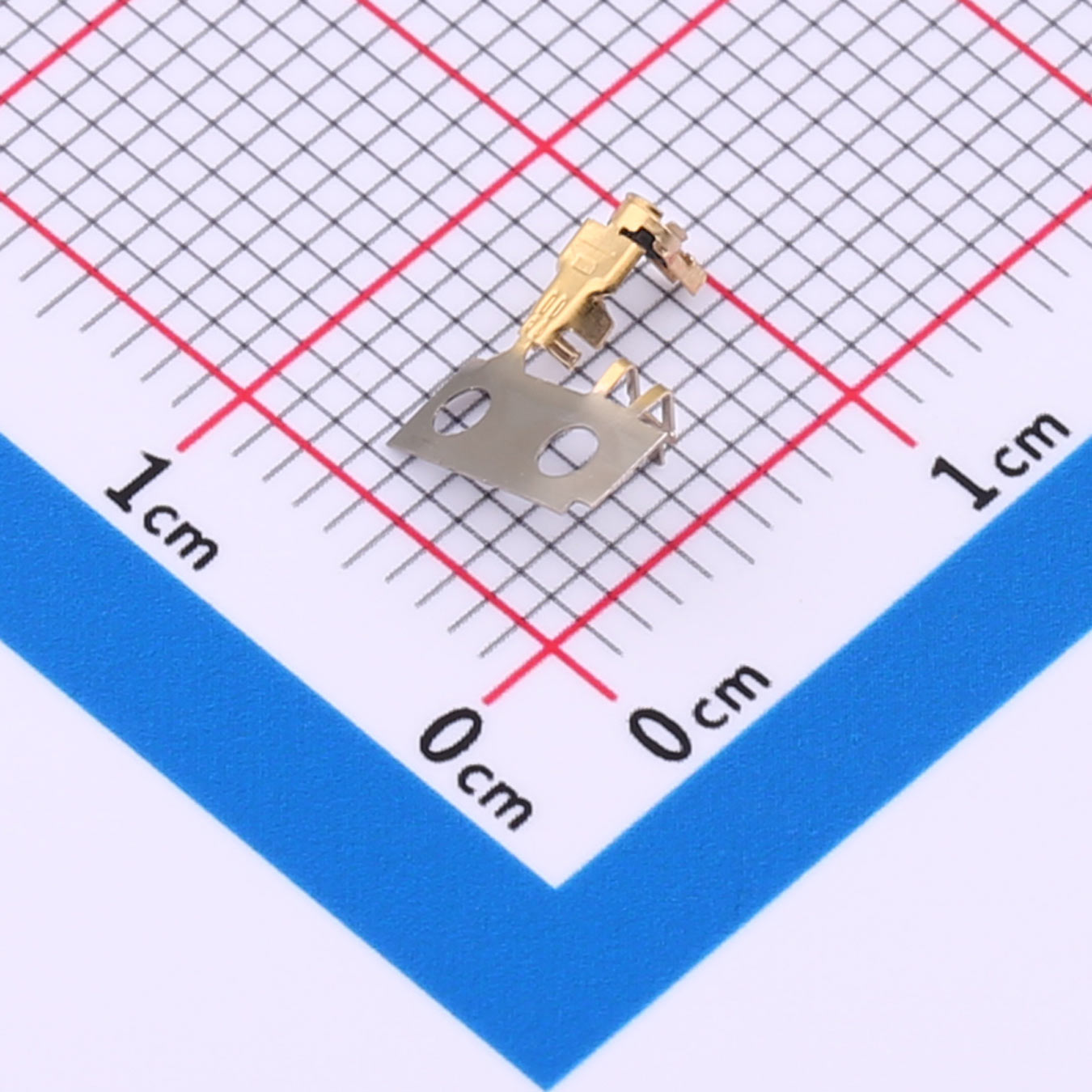

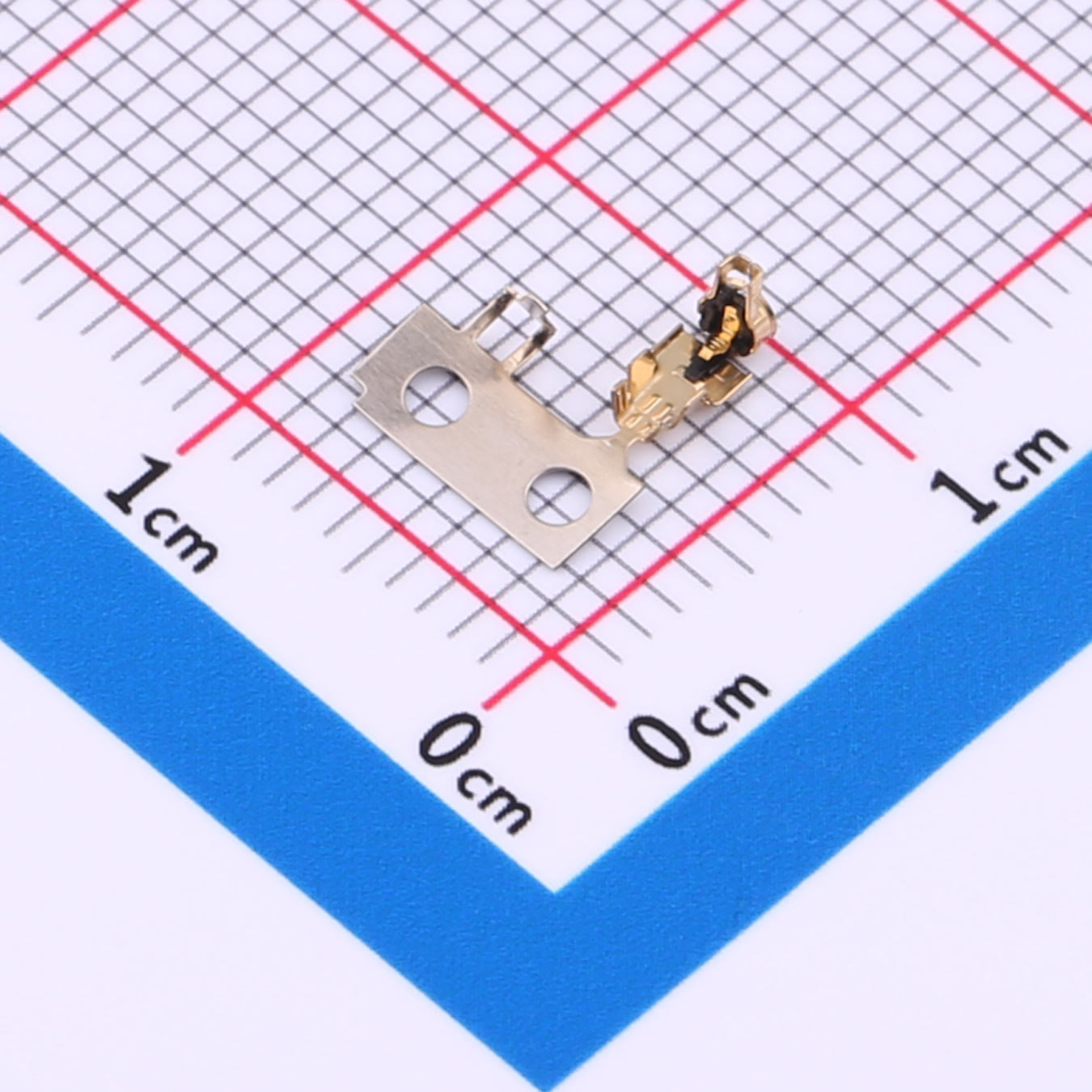

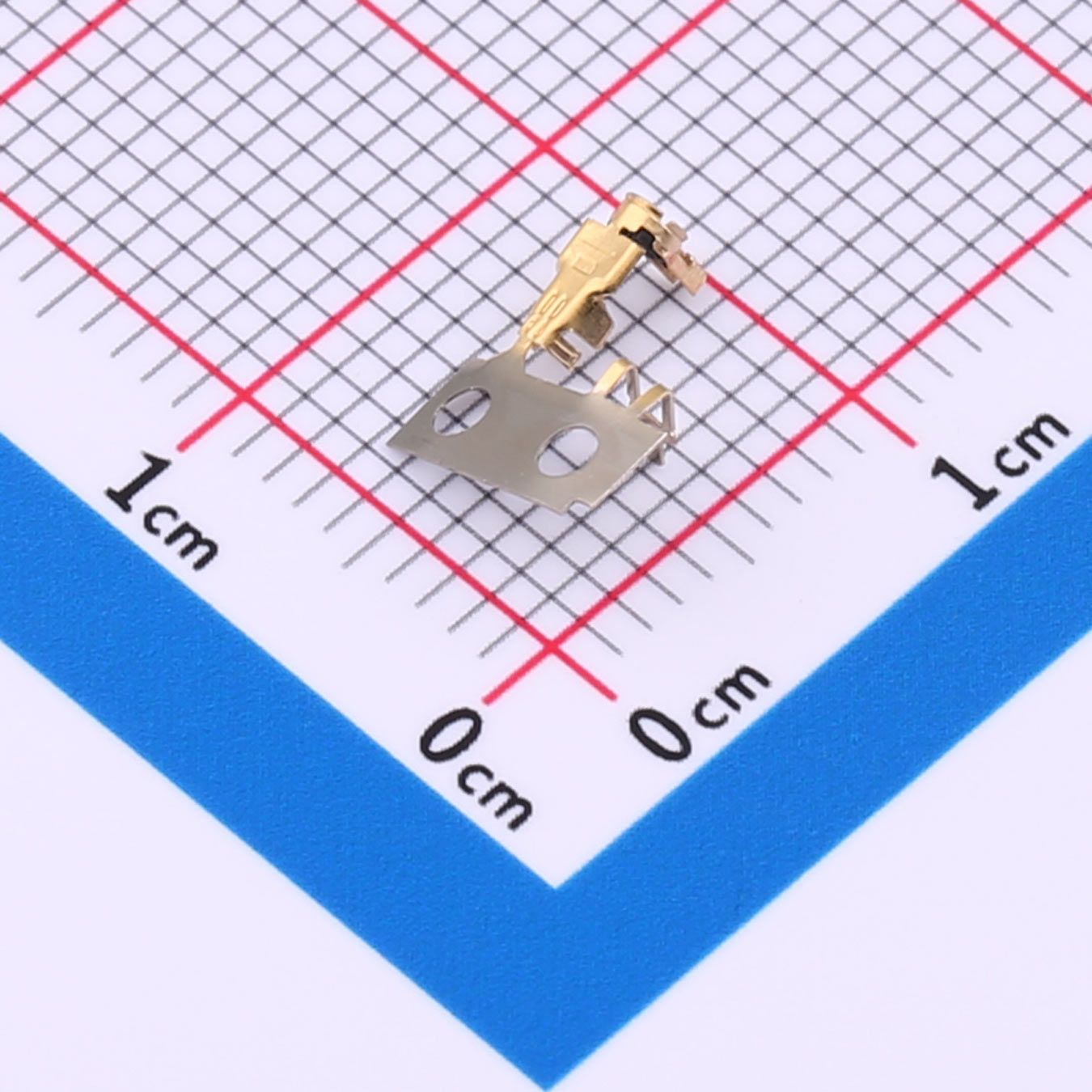

KH-IPEX4-0.81, IPEX Female RF Connector, 4th Generation, IPEX Cable Terminal
Termination Resistance: 20mΩ Max
Dielectric Withstanding Voltage: 200V AC,1 Minute
Insulation Resistance: 500MΩ Min
Durability: 30 cycles Min
Product Overview:
1，MATERIAL:
1.1. Housing: PBT，Color: black，UL 94V-0;
1.2. Contact: Copper alloy，0.127~0.20um gold plating on contact area over nickel plated;
1.3. Shell: Copper lloy, 0.0254~0.0762um gold plating on contact area over nickel plated.
2.PRODUCT PERFORMANCE:
2.1.Termination Resistance: 20mΩ Max;
2.2. Dielectric Withstanding Voltage: 200V AC，1 Minute;
2.3.Insulation Resistance: 500MΩ Min;
2.4.Durability: 30 cycles Min.
