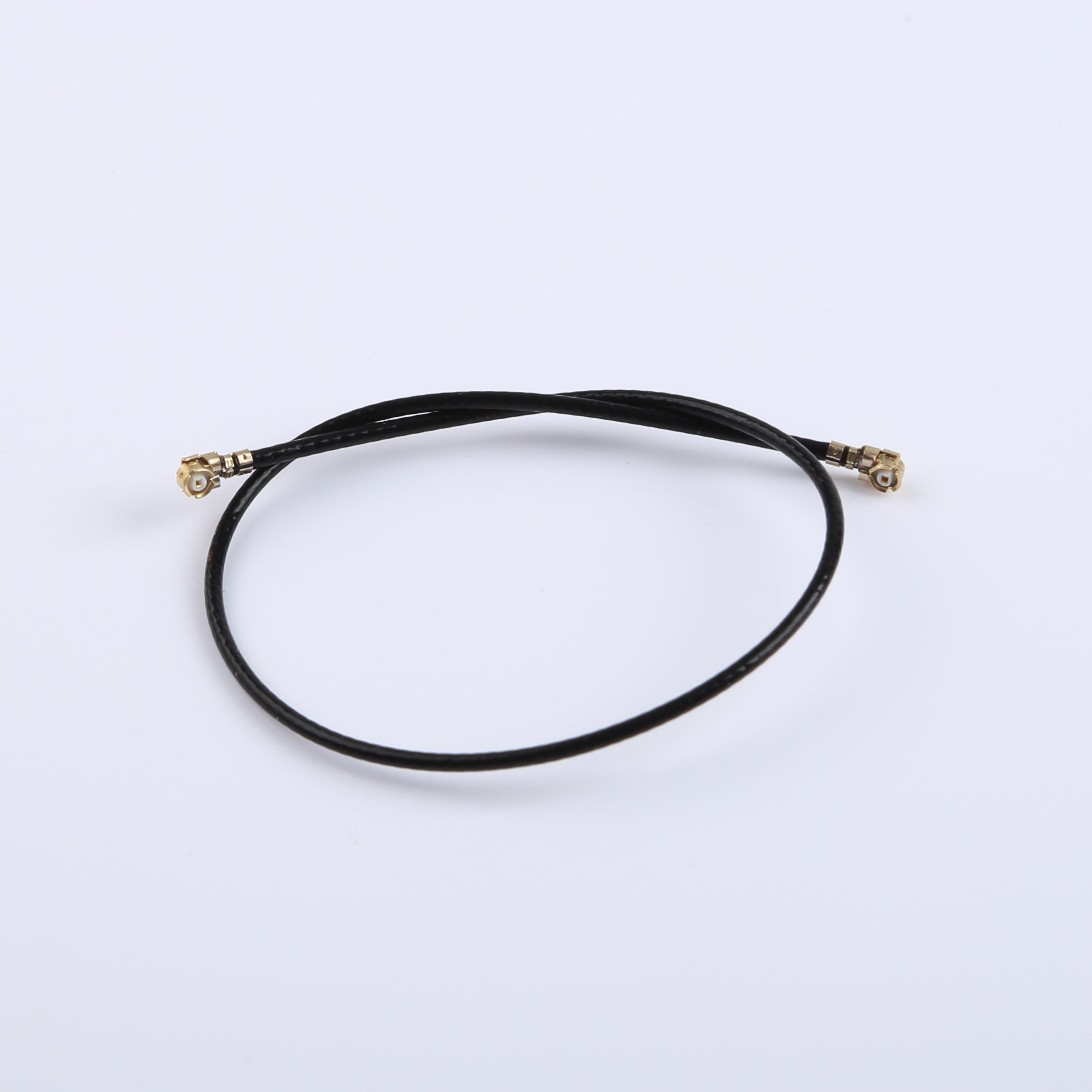

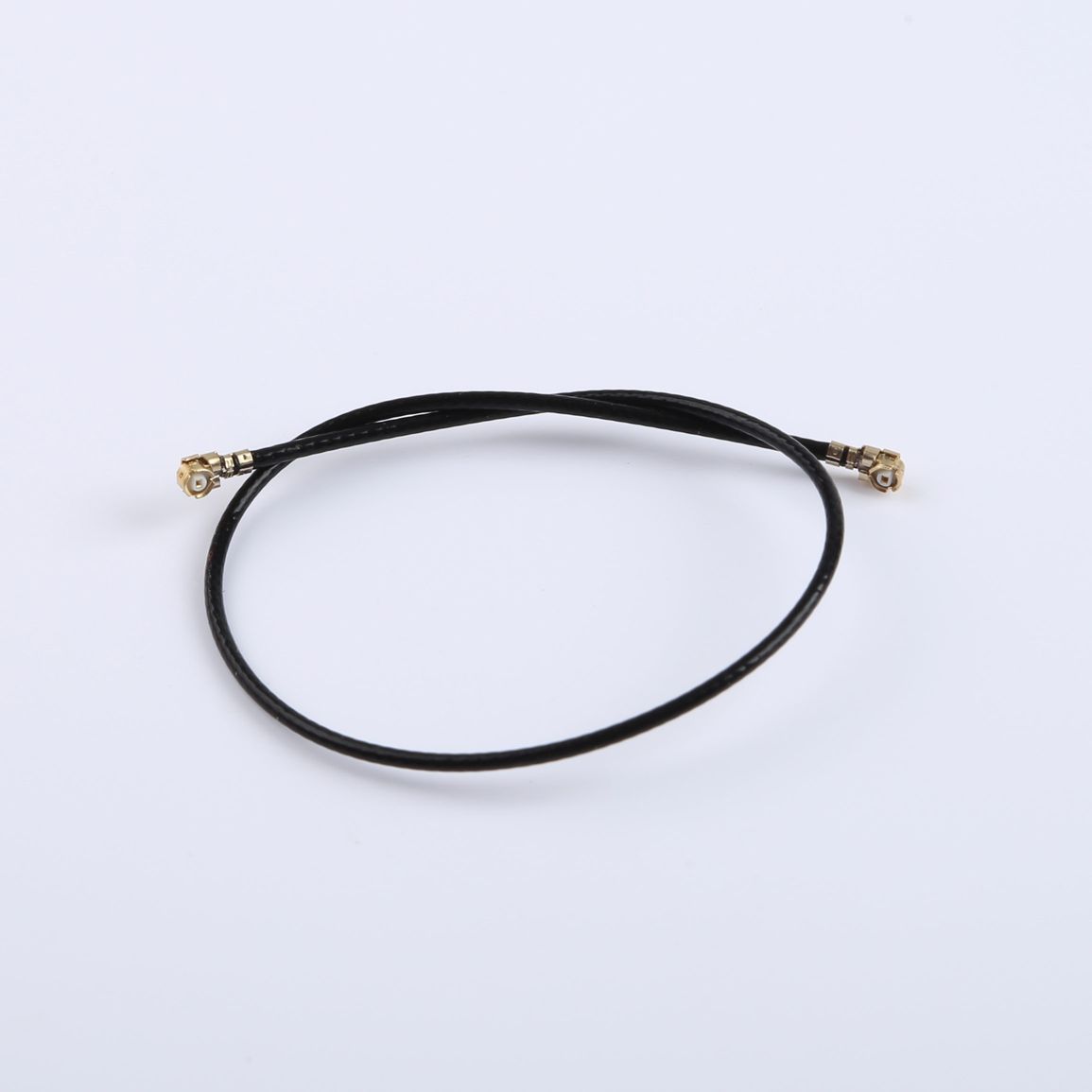

Generation IPEX (Dual Head) Patch Cable RG1.37 Jumper Wire 180mm KHA(RG1.37)-TX180B-IPEX
Rated Voltage: 60V AC RMS
Frequency Range: DC 3GHz
Characteristic Impedance: 50 Ohms
VSWR: 1.3 Max
Product Description:
Electrical Specifications:
●Voltage Rating: The product is designed to operate within a safe voltage limit of 60V AC RMS, ensuring optimal performance and reliability under specified voltage conditions.
●Frequency Range: From Direct Current (DC) up to 3GHz, this product offers versatility in operation across a wide range of frequencies, catering to diverse application requirements and providing flexibility in usage.
●VSWR (Voltage Standing Wave Ratio): With a maximum VSWR of 1.3, the product ensures efficient signal transmission by minimizing signal reflections and enhancing signal quality, resulting in improved overall performance.
●Characteristic Impedance: Maintaining a consistent characteristic impedance of 50 ohms, the product facilitates proper signal transmission and impedance matching, crucial for effective signal transfer and communication.
Material Composition:
For a detailed breakdown of the materials used in the product, please refer to the provided table. Understanding the materials employed in its construction is essential for assessing quality, durability, and performance characteristics.
Compliance:
All components within this product adhere to RoHS standards, demonstrating our commitment to environmental sustainability and regulatory compliance. RoHS compliance ensures that the product is free from hazardous substances, promoting eco-friendly practices and safe use.
