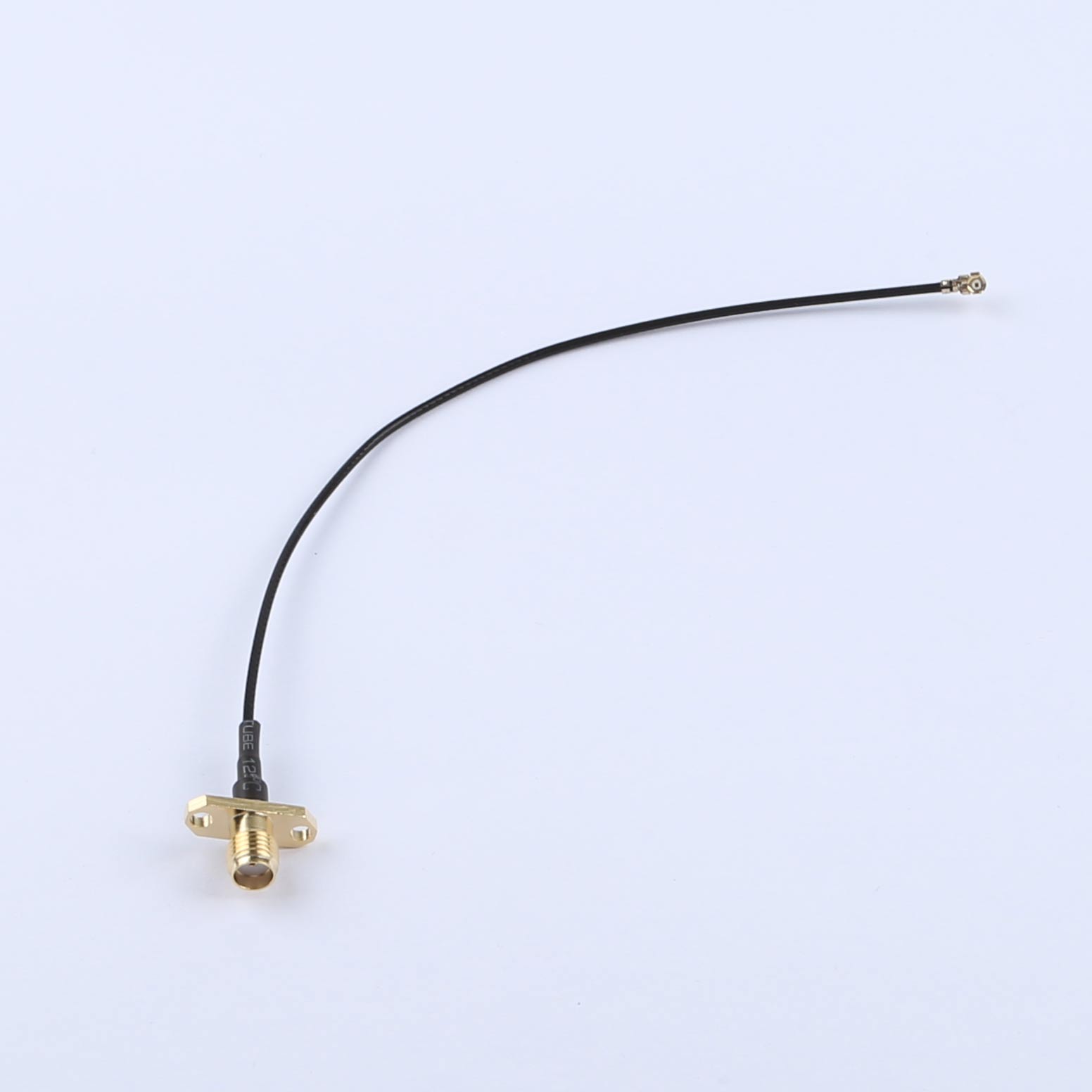

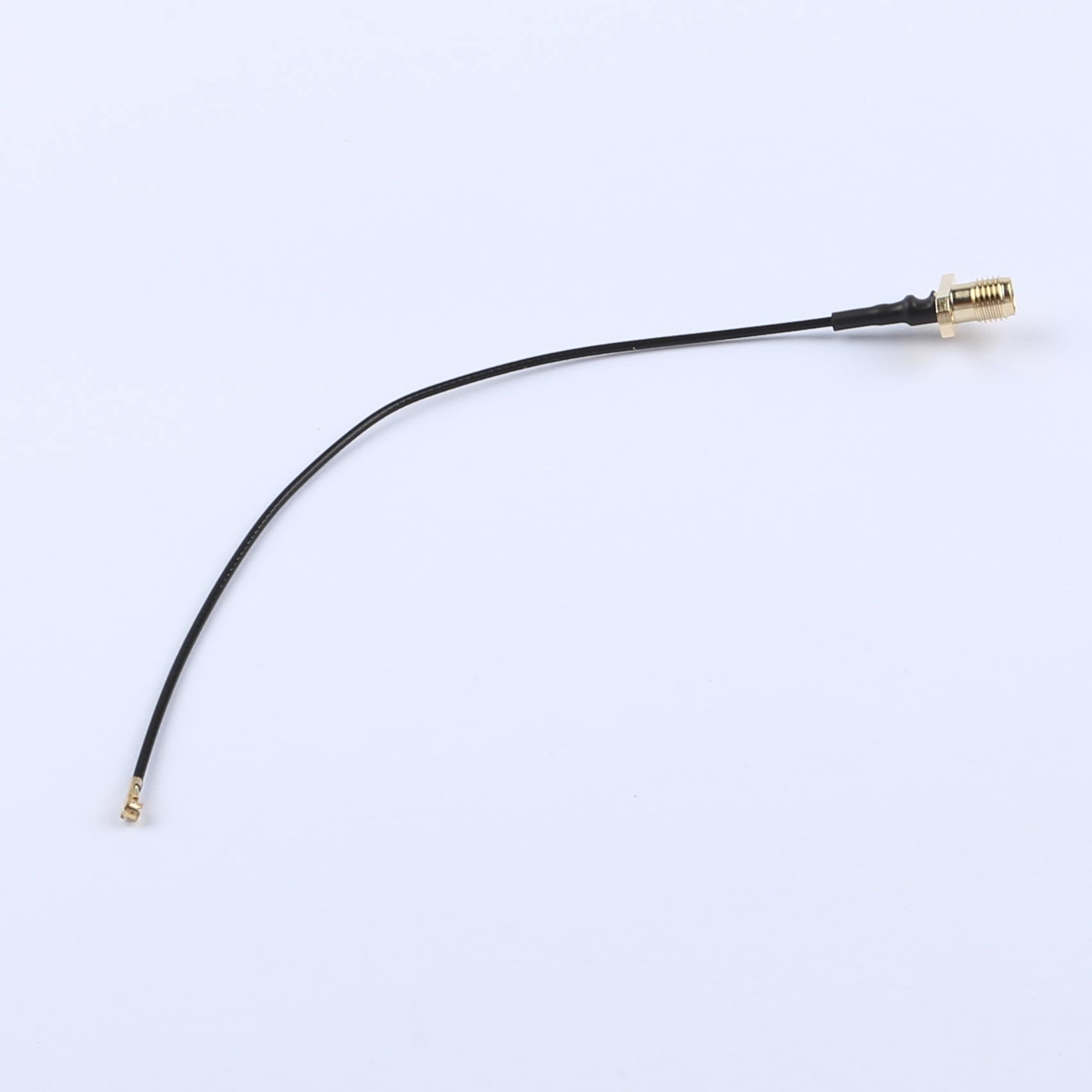

KH-FL2SMAK-IPEX-RG1.37-B160, RF Cable Assembly, SMA Female to IPEX, 160mm
Voltage Rating: DC 300 V (10 ms)
Contact Resistance: 3.0 Ω (Max)
Insulation Resistance: 5.0 MΩ (Min)
Coaxial Cable: RF 1.37, Black, OD: 1.37 mm
RoHS Compliance: All components compliant
Product Description:
Electrical Specifications:
●Voltage Rating: The cable is designed to operate at a maximum DC voltage of 300V for 10ms, ensuring safe and reliable performance within the specified voltage range.
●Conductance Resistance: The cable assembly has a maximum conductance resistance of 3.0 Ohms, facilitating efficient electrical conductivity for optimal signal transmission.
●Insulation Resistance: The cable exhibits a minimum insulation resistance of 5.0 MOhms, providing excellent insulation properties to prevent leakage and maintain electrical integrity.
●Electrical Testing: Each cable undergoes thorough 100% electrical testing to validate its performance, reliability, and adherence to quality standards.
●Quality Assurance: The cable assembly is meticulously inspected to ensure there are no open circuits, short circuits, miswiring, or intermittent failures, guaranteeing reliable and uninterrupted functionality.
Material Composition:
●The materials used in the cable assembly align with the specifications provided in the accompanying table, chosen for their durability, conductivity, and suitability for the intended application.
Compliance and Standards:
● All components integrated into the cable assembly comply with RoHS regulations, demonstrating a commitment to environmental sustainability and adherence to safety standards throughout the manufacturing process.
