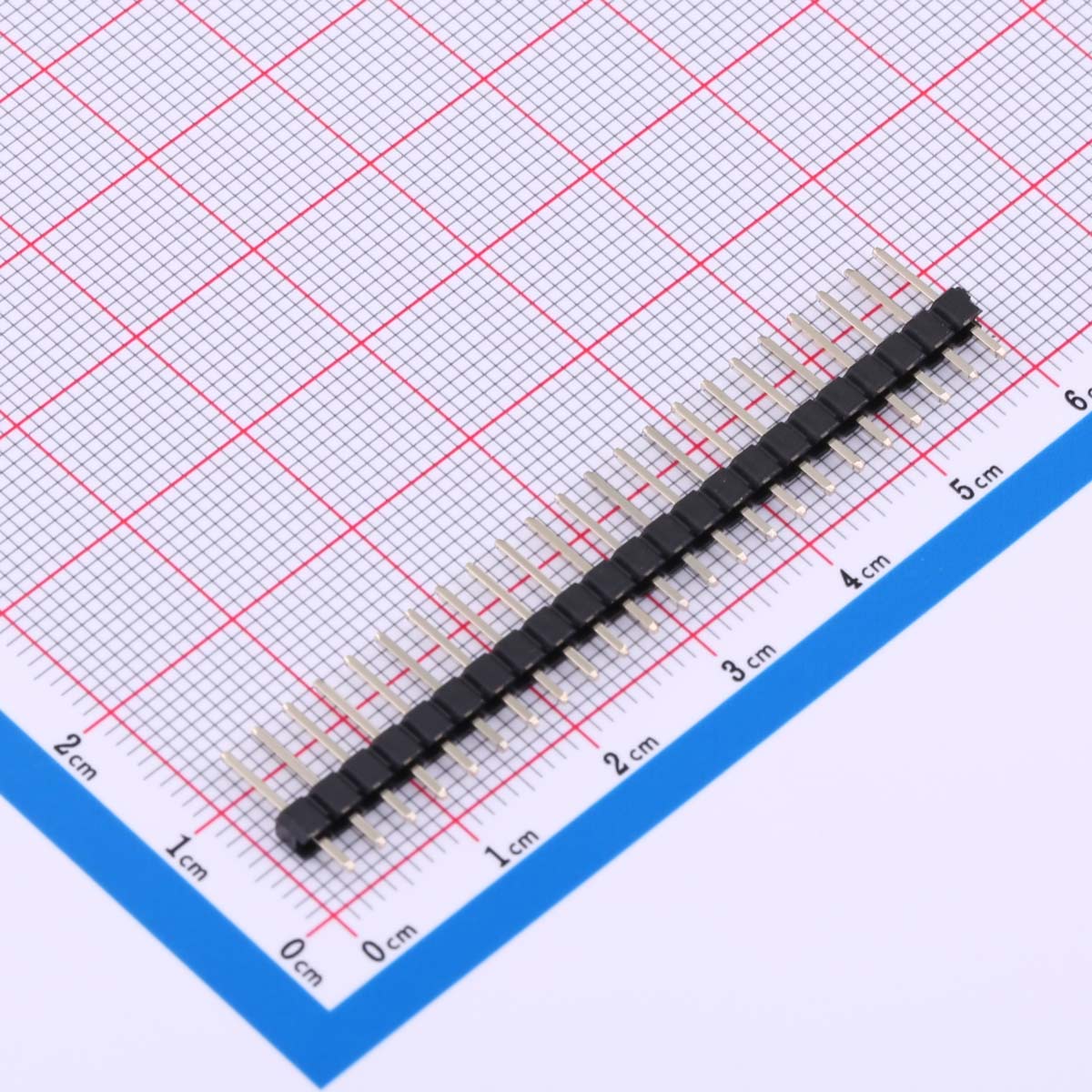

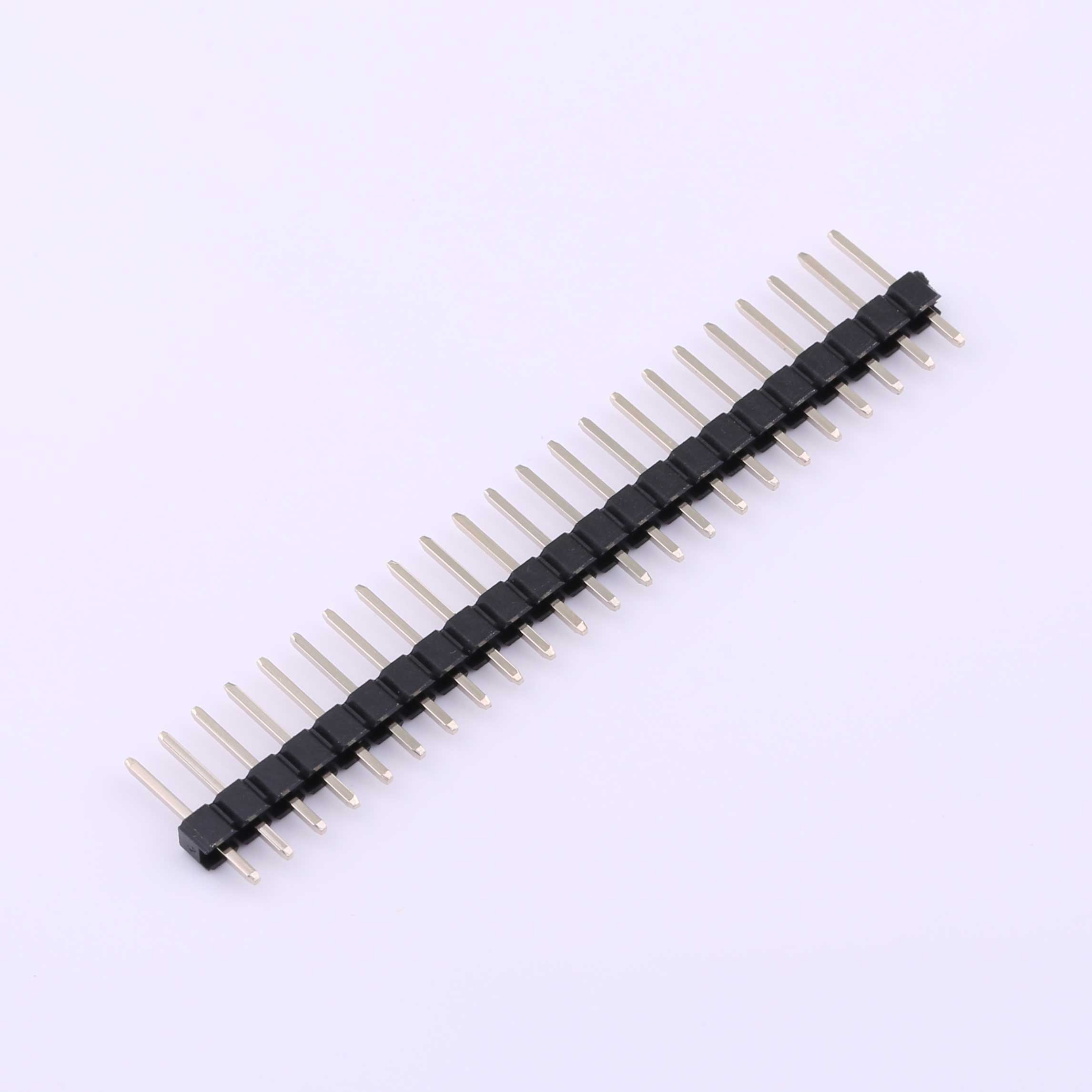

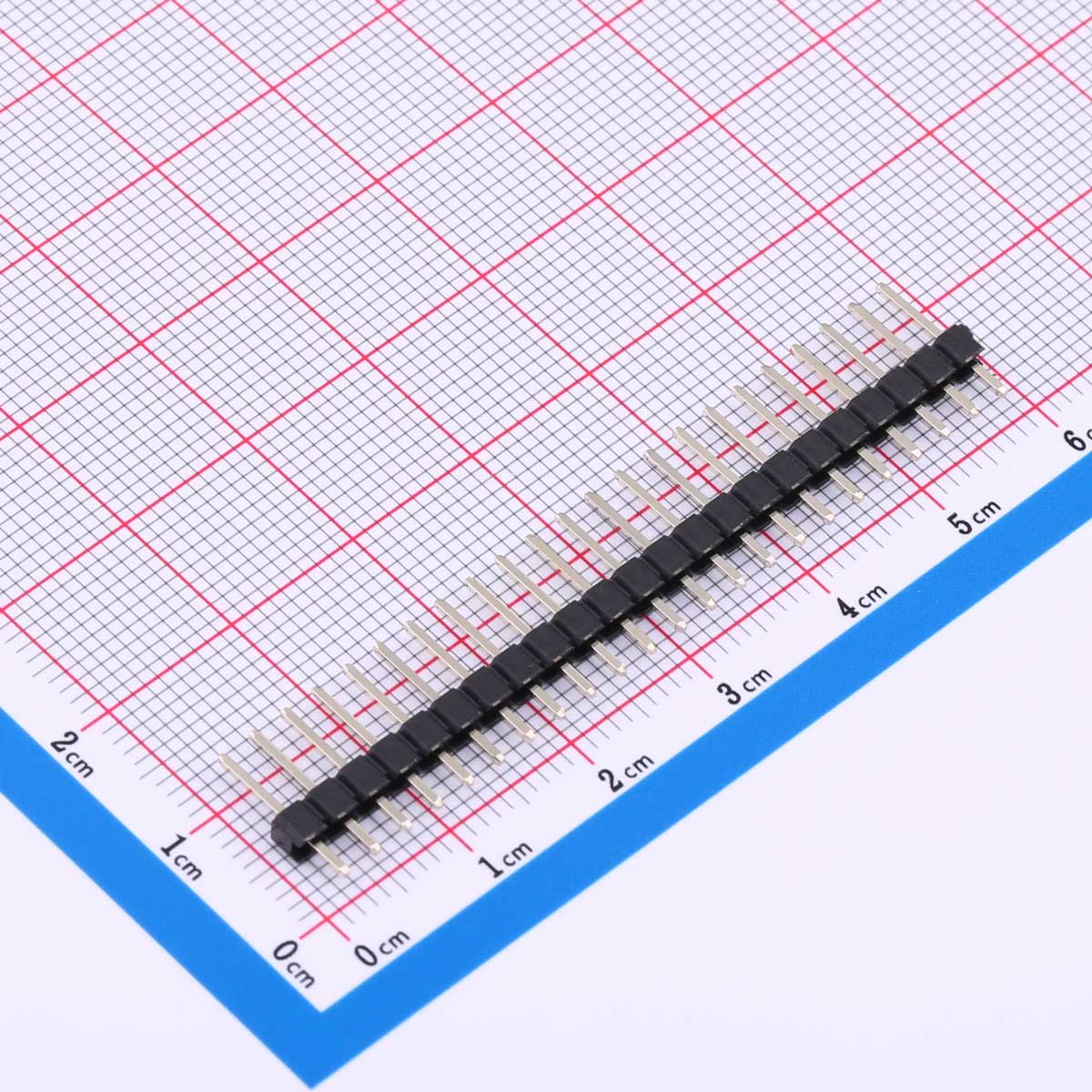

Pin Header Connector, 1x23P, 3A, KH-2.54PH180-1X23P-L11.5
Current Rating: 3 Amps
Insulation Resistance: 1000 MΩ Min
Contact Resistance: 20 MΩ Max
Withstanding Voltage: AC 1000 V
Operation Temperature: -40℃ to +105℃
Product Features
●Pin Header Connector 1x23 Pin configuration
●Current Rating 3 Amps
●Insulation Resistance Minimum 1000 MΩ
●Contact Resistance Maximum 20 MΩ
●Withstanding Voltage AC 1000 V
●Operating Temperature Range -40°C to +105°C
Product Benefits
●Supports up to 3 Amps
●Offers a minimum insulation resistance of 1000 MΩ for enhanced safety
●Maintains a maximum contact resistance of 20 MΩ for stable connections
●Can handle up to 1000 V AC
●Functions effectively in temperatures ranging from -40°C to +105°C
