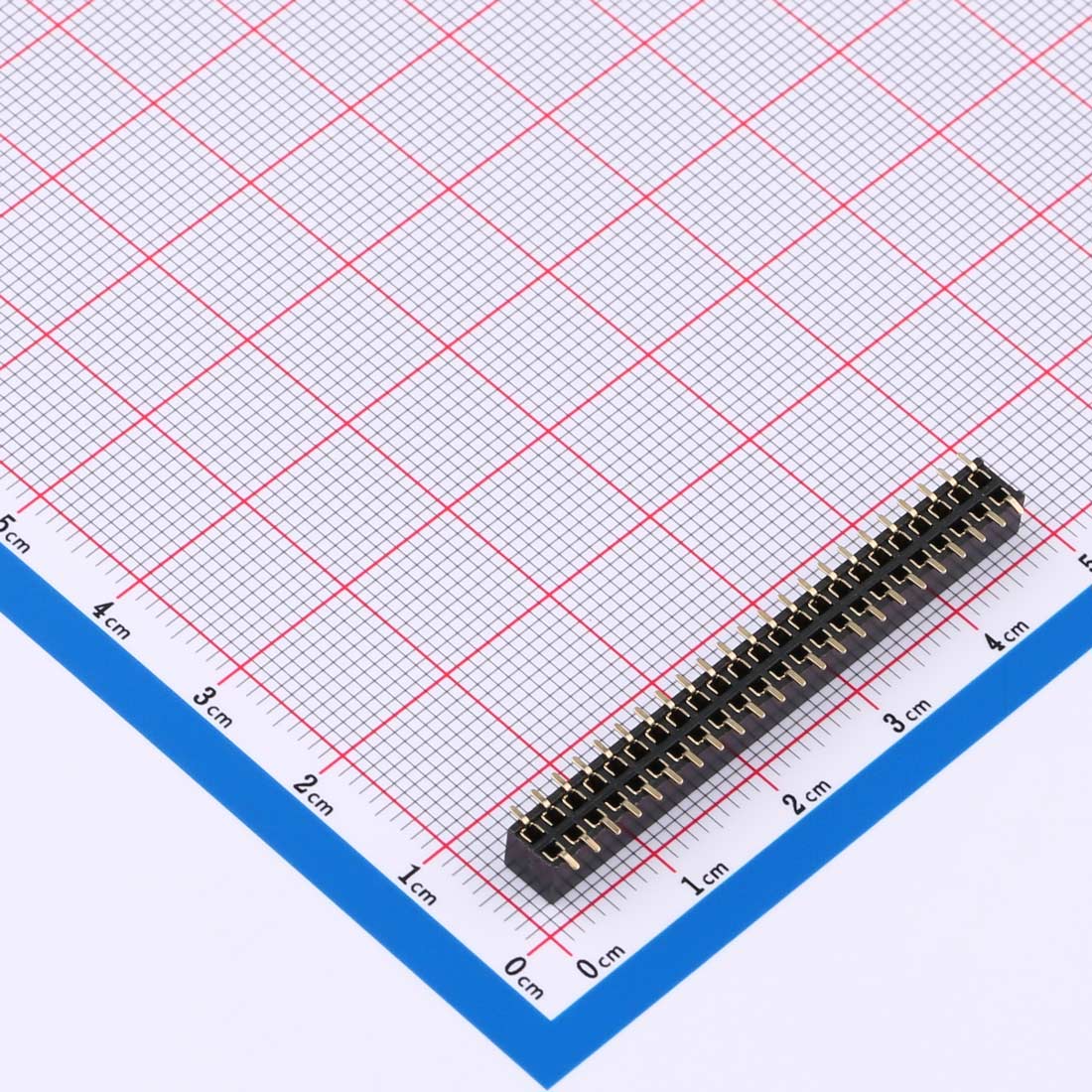

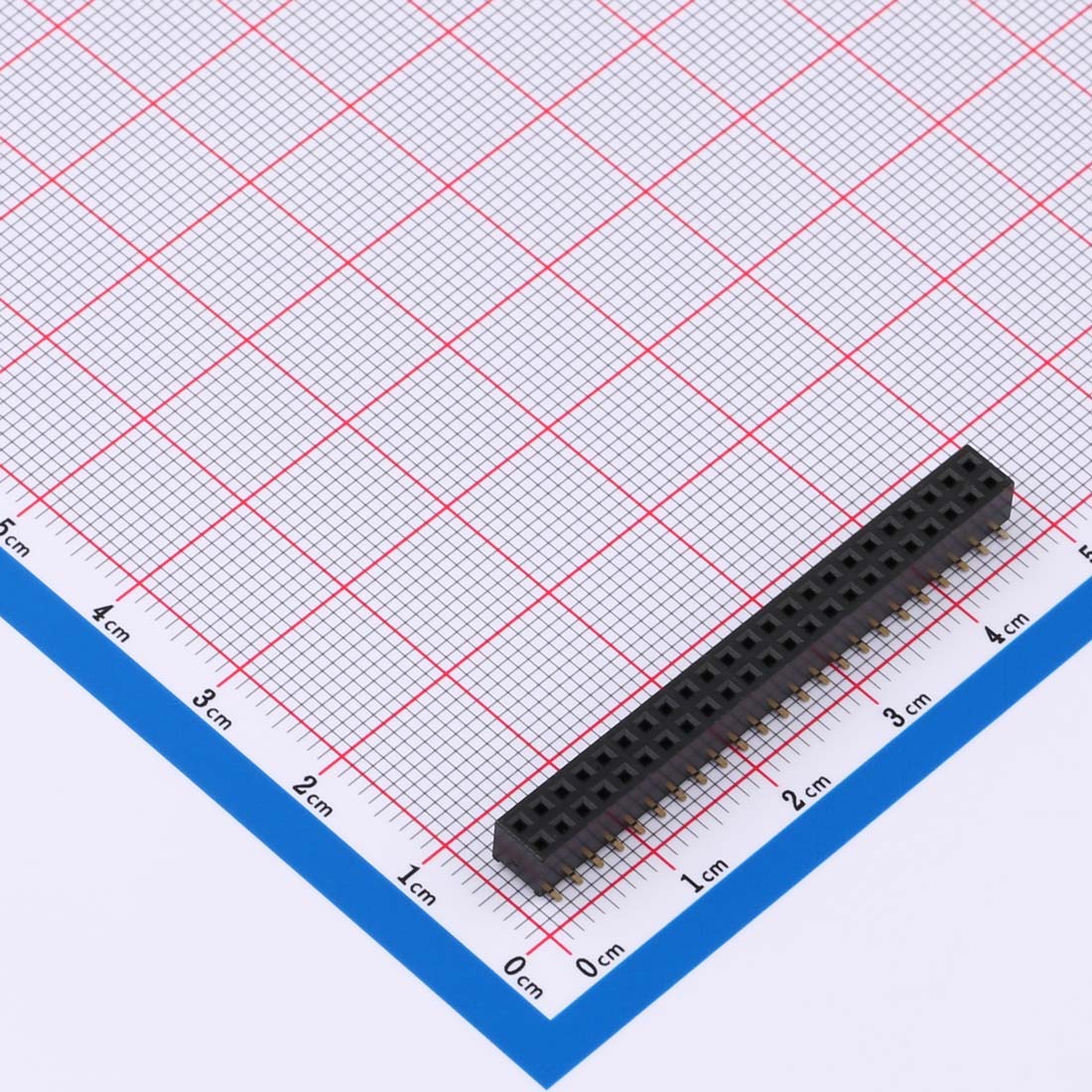

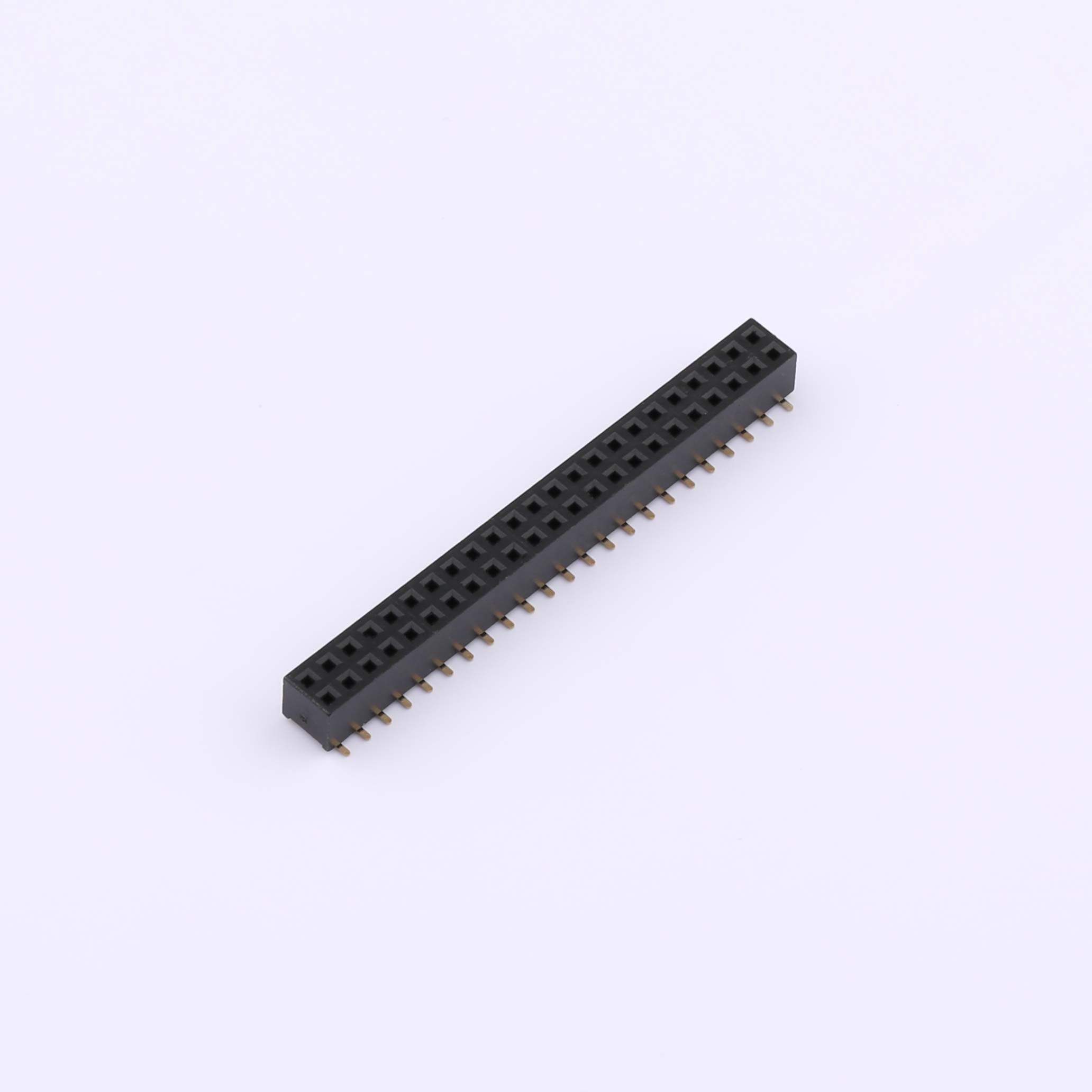

Female Header, 2mm Pitch, 2X23P, KH-2FH-2X23P-H4.3-SMT
Current Rating: 1.5A
Insulation Resistance: 1000MΩ Min
Contact Resistance: 20mΩ max
Withstanding Voltage: AC 500V
Operating Temperature: -40°C to +105°C
Product Name:
Connector Female Header 2mm 2x23P KH-2FH-2X23P-H4.3-SMT
Product Overview:
The KH-2FH-2X23P-H4.3-SMT is a high-performance SMD female header with a 2x23 pin configuration and a pitch of 2mm. This product is designed for high-density circuit board connections and is widely used in electronic devices for signal transmission and power connections.
Key Features:
Pin Configuration: 2x23P Pitch: 2mm Package Type: Surface Mount Device (SMD) Packaging: Tube Weight: 1.25 grams (g)
Product Advantages:
High Reliability: Made from quality materials to ensure long-term stability. Compact Design: Miniature structure suitable for space-constrained circuit board designs. Easy to Solder: SMD design facilitates automated soldering, improving production efficiency. Good Electrical Performance: Suitable for high-speed signal transmission, reducing signal loss.
Application Areas:
Consumer Electronics Communication Equipment Automation Control Systems Industrial Equipment Medical Devices
Precautions:
During soldering, ensure the temperature is maintained within the recommended range to avoid damaging the components.Follow standard Electrostatic Discharge (ESD) protection measures.Store in a dry environment to prevent moisture from affecting product performance.
Product Summary:
The KH-2FH-2X23P-H4.3-SMT is an efficient and reliable SMD female header, suitable for various electronic device connectivity needs. Its superior design and features make it an indispensable component in modern electronic products. Whether on the production line or in practical applications, it provides users with excellent performance and convenience
Name
Title
Description
Datasheet
Support
Support
If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.
Longevity
The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.
