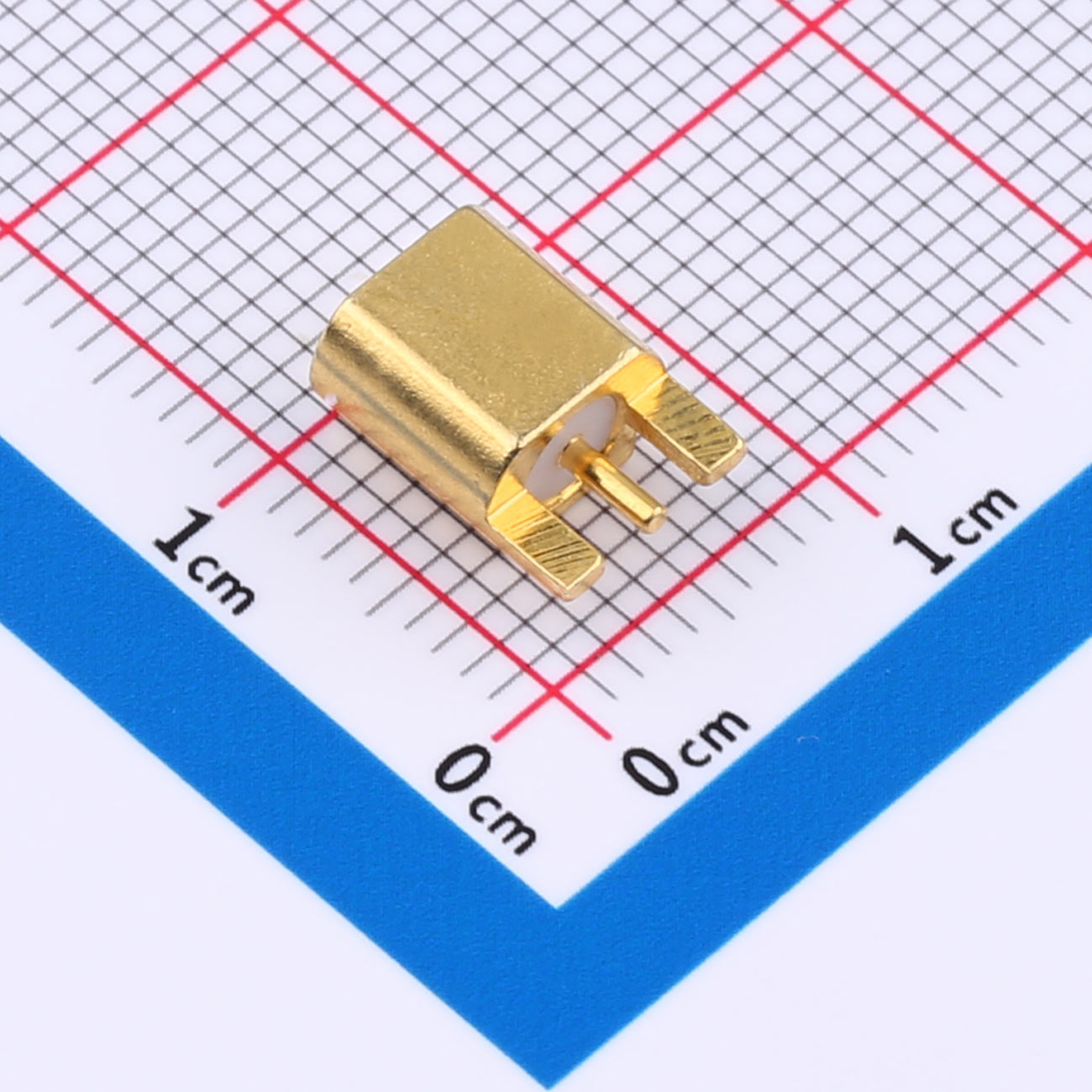

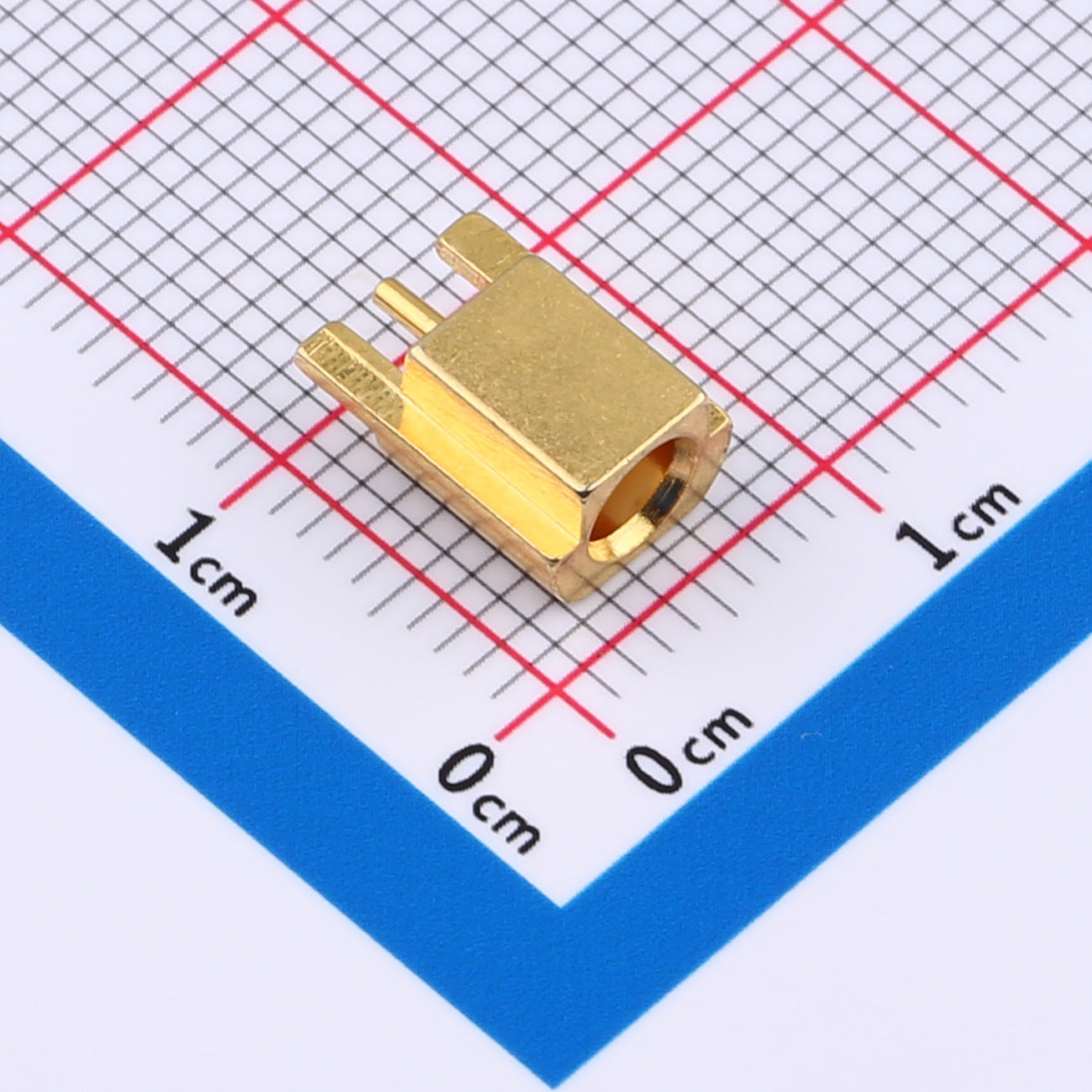

KH-MCX-PBS, MCX Female Connector, PCB Mount, Breakaway Type, DC~3GHz
Impedance: 50Ω
Frequency Range: DC to 3GHz
Dielectric Withstanding Voltage: 500V
Insulation Resistance: ≥1,000MΩ
VSWR: 0-3GHz < 1.45
Product Features
● RF connector, MCX female broken board type
● PCB mount design
● Impedance: 50Ω
● Frequency range: DC to 3GHz
Product Benefits
● Compact size for space - constrained PCBs
● Good signal integrity in DC - 3GHz range
● High insulation resistance for reliable operation
● Low VSWR reduces signal reflection
● Withstands 500V for enhanced durability
Product Applications
● Wireless communication devices
● RF test equipment
● Mobile and portable electronics
● GPS and navigation systems
● Radar and sensor applications
Name
Title
Description
Datasheet
Support
Support
If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.
Longevity
The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.
