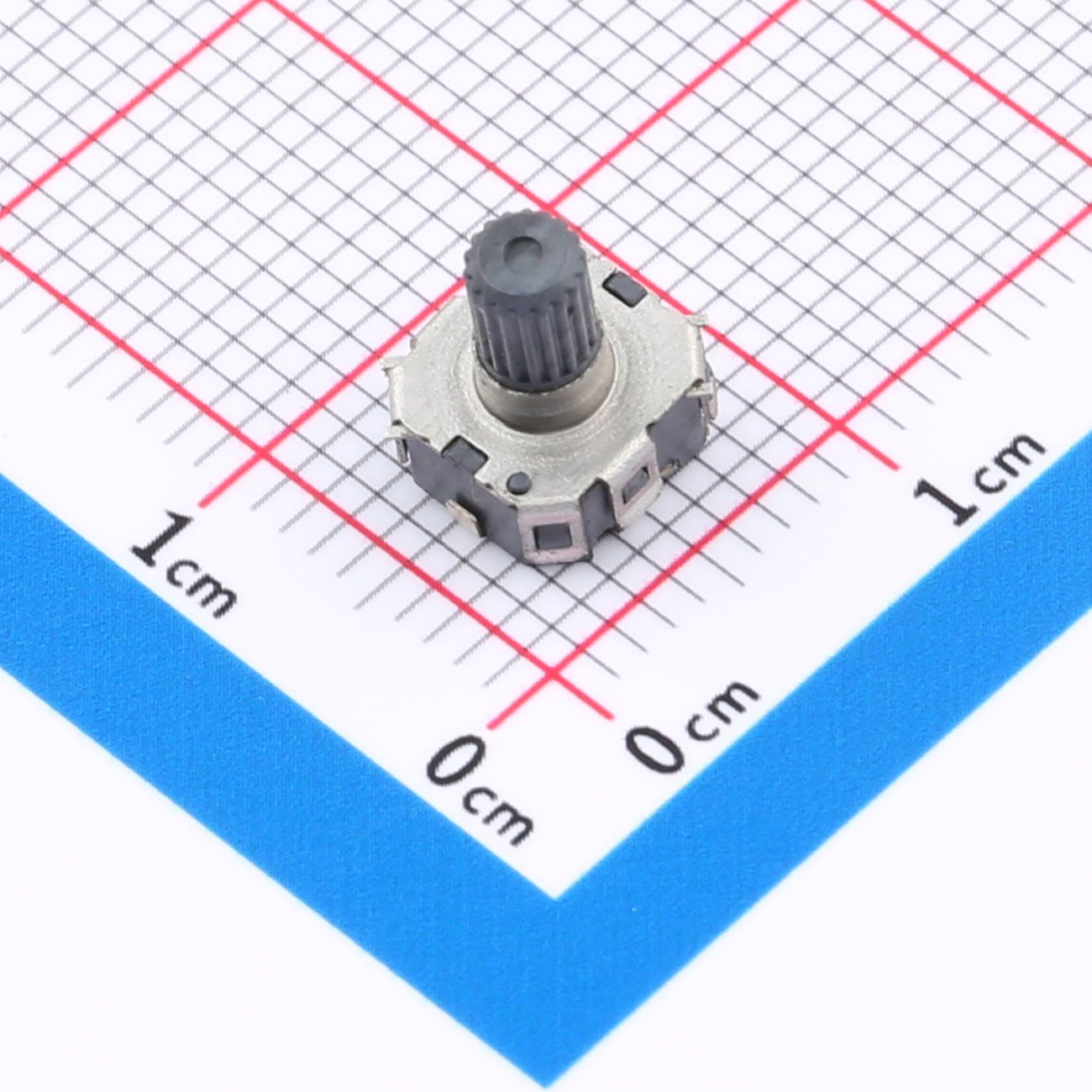

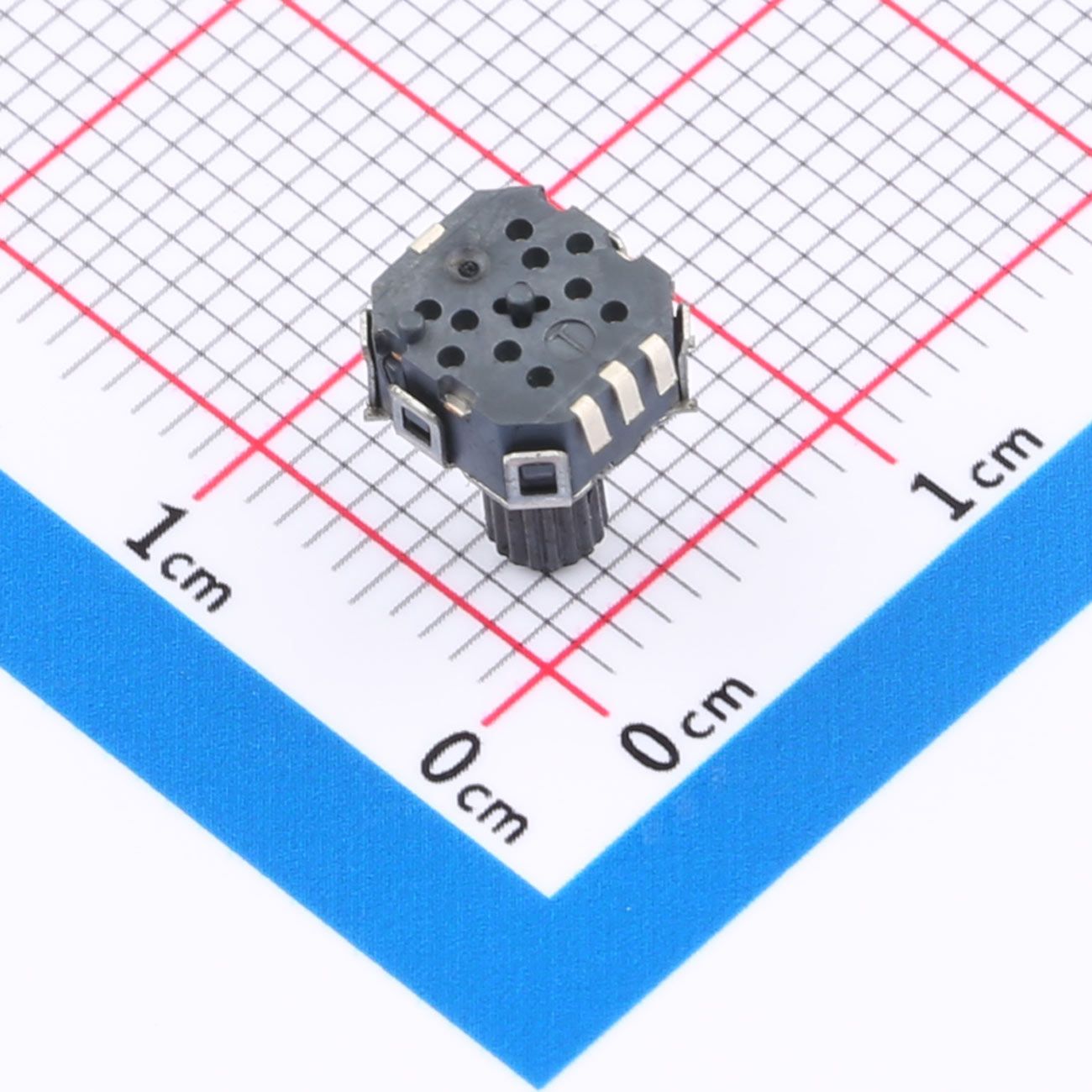

KH-EC063T122000
Product Package: SMD, 6.5 × 6.2 mm
Packaging Method: Tape and Reel
Operating Temperature: -30°C to +80°C
Rated Load: 5VDC / 0.5mA
Insulation Resistance: ≥ 50 MΩ
Mounting Type: Vertical Surface Mount (SMD)
Features
-
Compact 6.5 × 6.2 mm SMD package with a vertical surface-mount design, helping save valuable PCB layout space.
-
Rated load of 5 VDC / 0.5 mA, suitable for low-power compact electronic devices.
-
Insulation resistance of ≥50 MΩ, providing reliable electrical isolation and helping reduce signal interference between circuits.
-
Operating temperature range of -30°C to +80°C, enabling stable operation across a wide range of consumer and light industrial environments.
-
Tape-and-reel packaging compatible with automated SMT assembly lines, supporting efficient high-volume production.
-
Compact and lightweight construction with a gross weight of only 1.48 g per unit.
Advantages
-
Ultra-compact vertical mounting design makes it ideal for space-constrained devices such as wearable electronics and portable digital products.
-
Low rated load is well suited for battery-powered and low-power electronic applications.
-
High insulation resistance helps provide strong electrical isolation and stable, reliable pulse signal output.
-
Wide operating temperature range provides good environmental adaptability and reliable performance under varying temperature conditions.
-
Tape-and-reel packaging supports automated SMT production without manual through-hole insertion, improving assembly efficiency and reducing labor costs.
-
Designed for consistent performance, delivering reliable operating feel and stable signal output during long-term use.
Applications
-
Consumer Electronics: Volume adjustment and function selection in Bluetooth headsets, smart speakers, and portable media players.
-
Wearable Devices: Control knobs and function selection for smartwatches and fitness trackers.
-
Small Home Appliances: Parameter adjustment and mode switching in desktop humidifiers, mini fans, and portable coffee machines.
-
Light Industrial Equipment: Parameter setting and value adjustment in handheld test instruments and portable debugging terminals.
