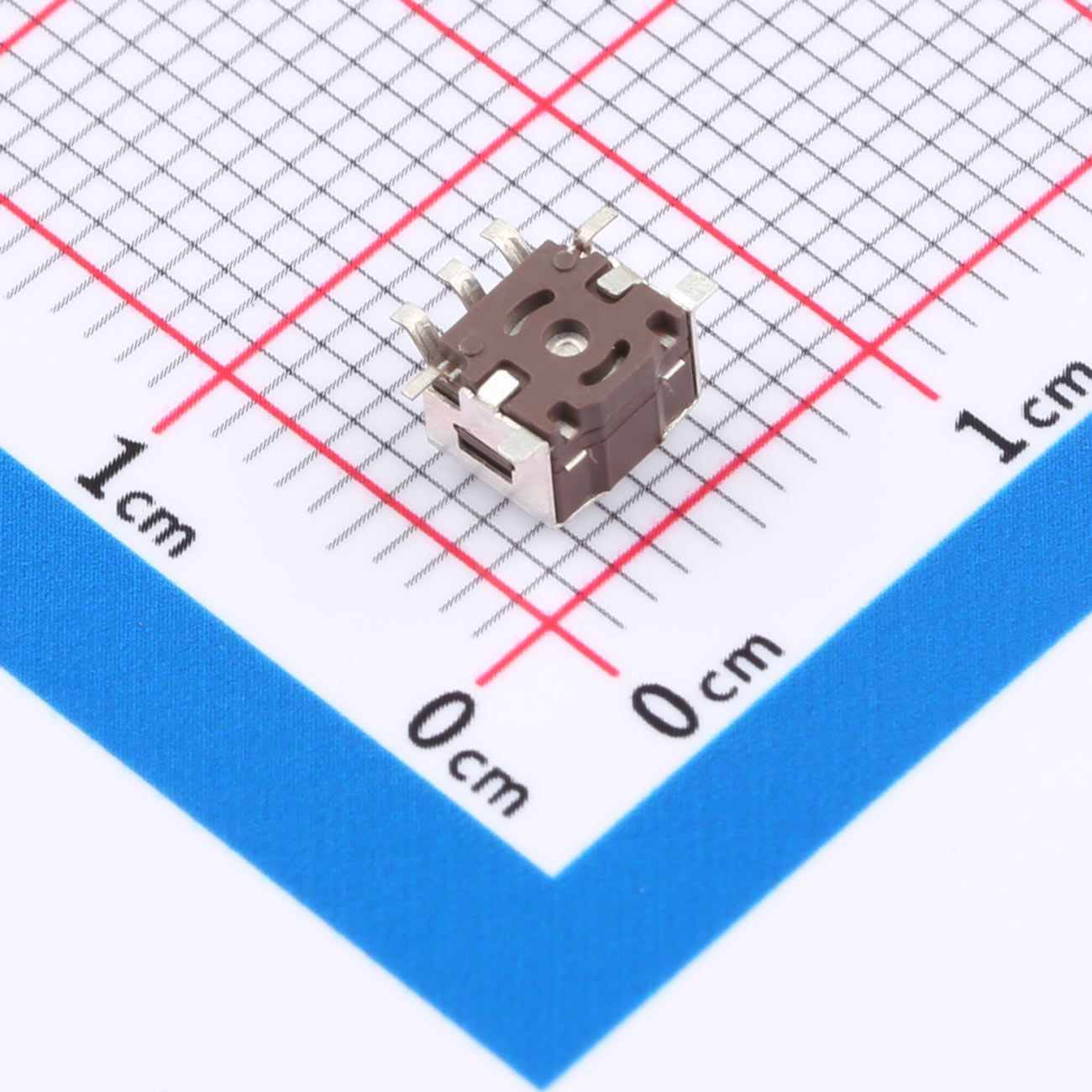

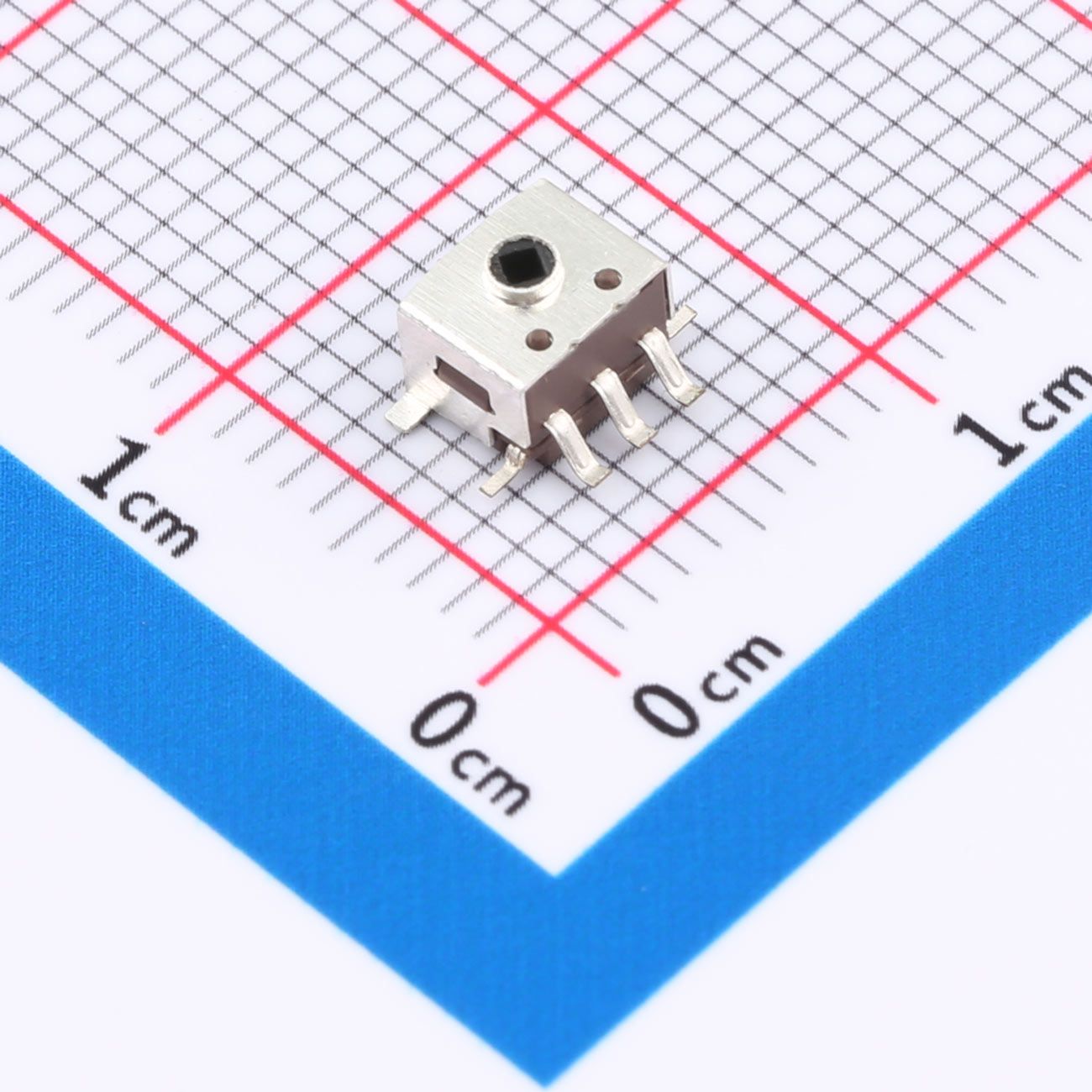

KH-EC04S3T122000
Brand: Kinghelm
Model: KH-EC04S3T122000
Package Type: SMD
Packaging: Bag
Features
• SMD Rotary Encoder
• Side-Mount Installation Design
• Ultra-Compact Size (0.16g)
• Rated Load: 5VDC / 0.5mA
• Contact Resistance: ≤200mΩ
• Insulation Resistance: ≥50MΩ
• Operating Temperature: -40°C to +85°C
Advantages
• Excellent Electrical and Mechanical Performance
• Compact Space-Saving Design
• Stable Parameters and Reliable Operation
• High Durability and Weather Resistance
• Suitable for Low-Voltage Micro-Current Applications
Applications
• Consumer Electronics
• Portable Devices
• Control Interfaces
• Parameter Adjustment Equipment
• Electronic Appliances
• Compact Circuit Applications
