Kinghelm FPC Connector KH-FPC0.5-H5.0-16P-LTQB: The Hidden Core of Compact Devices

Small Form, Strong Connection

Modern devices are shrinking, but their connectivity demands are only growing. Inside every slim display, every handheld gadget, and every IoT module lies a network of flexible connections.
The Kinghelm KH-FPC0.5-H5.0-16P-LTQB FPC connector represents the fine balance between compact size and dependable signal flow—an invisible yet vital component in next-generation electronics.

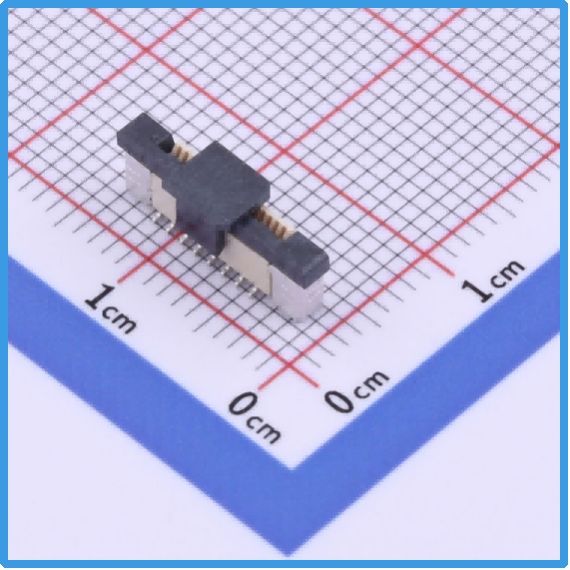

Kinghelm KH-FPC0.5-H5.0-16P-LTQB Product Image

1. Thoughtful Structure: Drawer-Type Locking Design

This connector features a drawer-style latch mechanism, offering smooth insertion and secure engagement.
Instead of relying on friction-based locking, the sliding latch distributes mechanical pressure evenly across terminals.
The result is a connection that feels soft during operation but remains solid during use.

Design advantages:

Gentle insertion protects the FPC contacts.

The lock provides stable retention against vibration.

With 5.0mm height, it fits perfectly in compact assemblies.

Suitable for both top-entry and bottom-contact configurations.

This structure is especially beneficial for small systems that undergo frequent maintenance or require vibration resistance.

2. Electrical Characteristics: Stable Transmission at 0.5mm Pitch

Compact doesn’t mean compromised.
The KH-FPC0.5-H5.0-16P-LTQB delivers strong electrical performance despite its 0.5mm pitch and 16-pin layout.

Electrical parameters:

Rated voltage: 50V AC/DC

Contact resistance: ≤0.03Ω

Insulation resistance: ≥500MΩ

Operating temperature: -25°C ~ +85°C

Such parameters ensure consistent signal integrity in both low-power and data-transmission lines.
Its plated terminals offer corrosion resistance and low resistance variation over time, ensuring endurance through repeated insertion cycles.

3. Manufacturing and Packaging: Built for Efficiency

Kinghelm engineers this connector with attention to production convenience and reliability:

SMD surface-mount type (0.5mm pitch) – supports reflow soldering.

Tape-and-reel packaging – optimized for automated pick-and-place systems.

Heat-resistant insulation body – ensures dimensional stability under thermal stress.

Accurate terminal alignment – minimizes solder misalignment and improves yield rate.

The KH-FPC0.5-H5.0-16P-LTQB is designed not only to perform but to integrate seamlessly into automated manufacturing lines—helping reduce time and labor costs.

4. Application Fields: Versatile and Compact

This connector’s compact dimensions and reliable locking mechanism make it suitable for a wide range of devices:

Camera modules and displays – stable image signal connection.

Tablets and handheld terminals – flexible PCB routing in limited space.

Industrial measurement units – resistant to vibration and temperature fluctuation.

IoT and communication modules – connects sensors, antennas, and control boards.

Automotive infotainment systems – fits within dashboard and display assemblies.

Wherever designers need to save space without sacrificing reliability, this connector provides the balance.

5. Handling Recommendations

To achieve the best connection performance:

insert the FPC evenly—avoid tilted angles.

Observe proper soldering temperature profiles.

Prevent mechanical stress or cable pulling after installation.

Keep contact surfaces clean and dry.

Handle under ESD-safe conditions during assembly.

Following these steps extends product lifespan and maintains signal consistency throughout operation.

6. Kinghelm’s Engineering Spirit

For Kinghelm, every connector is a small piece of engineering philosophy.
The KH-FPC0.5-H5.0-16P-LTQB demonstrates that functionality and manufacturability can coexist beautifully.
By optimizing every structural detail—from latch design to terminal coating—Kinghelm enables manufacturers to build smaller, more reliable, and more efficient products.

As part of Kinghelm’s wide connector portfolio, this model showcases the brand’s commitment to connectivity innovation that supports industries from consumer electronics to industrial control and automotive systems.

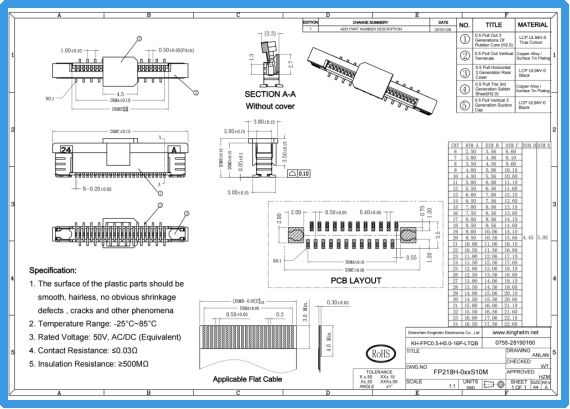

Kinghelm KH-FPC0.5-H5.0-16P-LTQB Specification

7. Conclusion: Compact Engineering, Continuous Reliability

Behind every display, every flexible cable, and every compact board-to-board connection lies a component like the Kinghelm KH-FPC0.5-H5.0-16P-LTQB.
It doesn’t draw attention—but without it, modern devices would not function as smoothly.
Combining drawer-type mechanical design, stable 0.5mm pitch transmission, and SMD-compatible structure, it represents a small yet essential link in the evolving chain of electronic connectivity.
