Kinghelm IDC Connector KH-2.54PH180-2X16P-L8.9: The Philosophy of Structural Balance and Efficiency Within 8.9mm of Height

Inside every compact gadget, a silent battle rages for every cubic millimeter. One misplaced bend in a ribbon cable or an interface that sticks out too far can doom an entire layout. Today, in the “Component of the Day” tech column, we slip under the hood of a stealth performer—the Kinghelm KH-2.54PH180-2X16P-L8.9 IDC connector. Standing just 8.9 mm tall, it commands 32 contacts like a ribbon whisperer, turning chaotic bundles into orderly pathways without a single solder joint.

IDC—Insulation Displacement Contact—has long been the go-to for weld-free wiring. This 2.54 mm pitch, dual-row 16P horn socket pushes that convenience into ultra-tight spaces. A straight 180° plug-in profile lets it drop into a PCB like a puzzle piece. Let’s walk through its specs, real-world deployments, and the subtle tricks that make it a layout lifesaver.

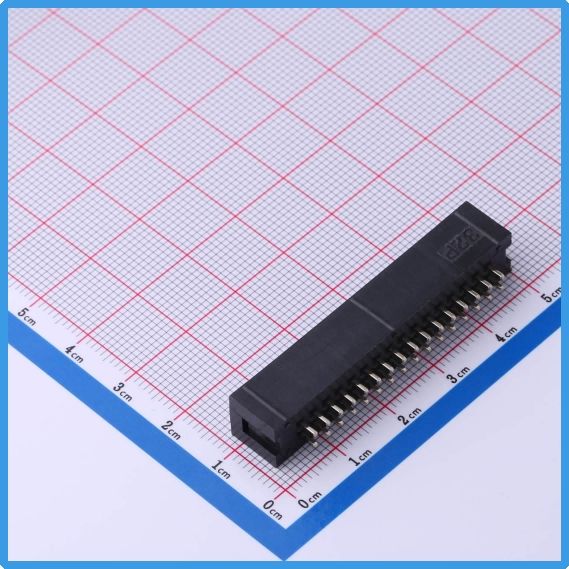

Kinghelm KH-2.54PH180-2X16P-L8.9 Product Image

Spec Sheet Decoded: The Hidden Logic Behind 32 Pins

The part number is a cheat sheet in itself. “2.54” locks in the universal pitch that mates with nearly every flat cable on the market. “2X16P” spells out 16 pins per row, 32 total. “L8.9” flags the plastic height—8.9 mm of deliberate restraint in a world where every millimeter counts.

Operating range spans –40 ° to +105 °C, ready for arctic field nodes or toasty server racks. Rated current hits 3 A—plenty for sensor arrays or low-power relays. Insulation resistance ≥ 5,000 MΩ keeps crosstalk at bay between rows. Withstand voltage reaches AC 500 V, a safety net against spikes. A Gold flash finish coats every contact, forming a micro-shield against oxidation so the first plug feels as crisp as the thousandth.

Assembly in Three Beats: From Cable to Board in Under a Minute

Newcomers often blink twice at how little ceremony this connector demands.

Step 1: Line up a 2.54 mm rainbow or gray ribbon with the dual-row slots.

Step 2: One firm squeeze with an IDC press tool—blades slice insulation, bite conductor, done. No stripping, no flux.

Step 3: Push the assembly straight into through-holes. The 180° stance distributes force evenly; 8.9 mm clearance leaves neighboring parts untouched.

Field Notes: Where the Connector Disappears in Plain Sight

Field Note 1: Pocket-Sized Environmental Logger
A 15 mm thick handheld needed baro, temp/humidity, and PM2.5 inputs. Single-row headers would have demanded three separate ports, eating edge real estate. One KH-2.54PH180-2X16P-L8.9 swallowed all 32 channels, letting the enclosure shrink 2 mm. It survived –38 °C dawn patrols in the mountains without a hiccup.

Field Note 2: Edge Gateway in a Switchgear Cabinet
Eight digital inputs, eight outputs—perfect split across two rows. 3 A per pin drove miniature relays without breaking a sweat. After six months in 85 % RH, contact resistance stayed within spec, thanks to the gold flash armor.

Field Note 3: Open-Source Drone Flight Controller
A community builder linked GPS, baro, and telemetry modules. The 1.2 g connector shaved 4 % off total airframe mass. Straight plug-in meant swapping a failed sensor in the field took seconds, not a soldering iron.

Quiet Rivalry: How It Stacks Against the Usual Suspects

Versus FPC adapters: no extra pads, lower cost.
Versus DuPont jumpers: far better vibration resistance.
Versus internal USB or SATA: a fraction of the footprint.
The 8.9 mm ceiling lets it lie flat inside 1U racks. The only caveat—keep ribbon bend radius gentle—but that’s basic cable hygiene anyway.

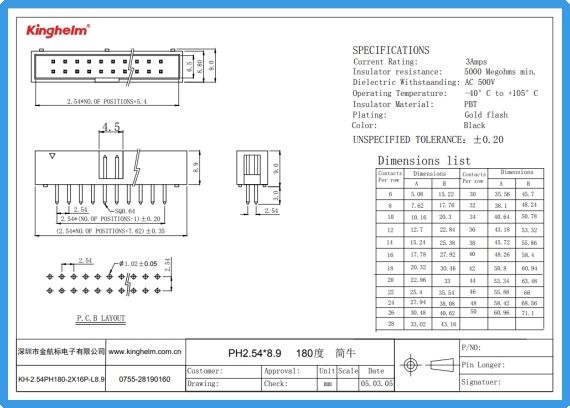

Kinghelm KH-2.54PH180-2X16P-L8.9 Specification

Tomorrow’s Niche: Micro-Hubs for the Edge Era

As 5G small cells, cobots, and last-mile delivery bots multiply, edge nodes will crave exactly this profile: 32 reliable lines in a thumbnail-sized envelope. The Kinghelm part won’t headline any keynote, yet it will lurk inside thousands of weatherproof enclosures, keeping data flowing from –40 °C blizzards to +105 °C desert heat.
