Kinghelm SMA RF Connector KH-SMA18G-KE: Unleashing Faster, More Accurate, and Stable Signals

In the world of 5G base stations, satellite communications, phased-array radar, aerospace electronics, and high-end test instruments, a truly excellent RF coaxial connector is never just a “small part.” It determines whether a signal can reach its destination with minimal loss, minimal reflection, and rock-solid stability. Kinghelm’s latest KH-SMA18G-KE – an 18 GHz SMA female vertical PCB-mount connector – was born for exactly these demanding applications. With outstanding electrical performance and rock-solid mechanical reliability, it has become the new choice for engineers pursuing extreme high-frequency performance.

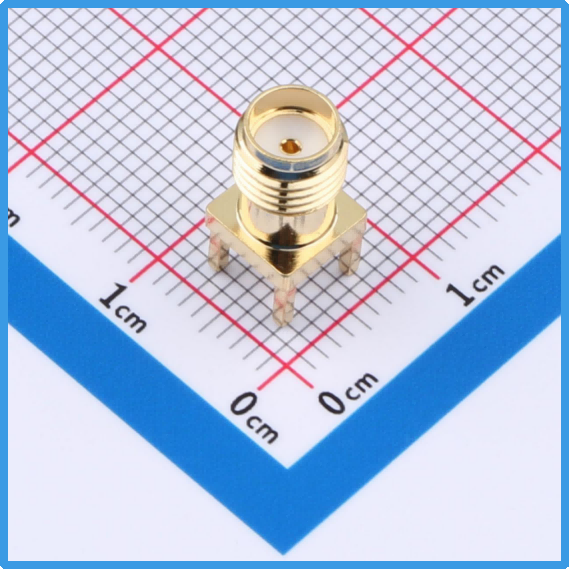

Kinghelm KH-SMA18G-KE Product Image

True 18 GHz Bandwidth: Real High-Frequency Muscle

The Kinghelm KH-SMA18G-KE operates seamlessly from DC to 18 GHz, effortlessly covering Sub-6 GHz 5G bands, Ku-band satellite links, X-band radar, and most millimeter-wave test scenarios. Compared to ordinary SMA connectors limited to 6 GHz or 12.4 GHz, the KH-SMA18G-KE maintains ultra-low insertion loss (typically ≤0.15 dB @ 18 GHz) and excellent return loss (≥20 dB) even at the top end of its range – delivering true “the higher the frequency, the steadier the performance.”

Behind this capability lies Kinghelm’s obsessive attention to materials and craftsmanship:

• Center conductor: gold-plated beryllium copper – excellent elasticity and hardness, keeping contact resistance ≤5 mΩ even after hundreds of mating cycles.

• Outer conductor: gold-plated brass for superior conductivity and corrosion resistance.

• Dielectric: high-performance PTFE with stable dielectric constant and extremely low loss tangent, ensuring almost zero signal attenuation at 18 GHz.

“Fast”: Ultra-Low Latency and Phase Stability

In phased-array radar, 5G Massive MIMO, and high-speed data acquisition systems, even a few degrees of phase jitter introduced by a connector can cause beam-pointing errors or bit errors. Thanks to precision coaxial geometry and tight tolerance control, the KH-SMA18G-KE achieves industry-leading phase consistency. Across the full -40 °C to +125 °C temperature range, phase drift remains minimal – engineers can literally “plug it in and forget about it.”

“Accurate”: Ultra-Low Contact Resistance and High Isolation

Key electrical specifications:

• Center contact resistance ≤5 mΩ, shell ≤2.5 mΩ

• Insulation resistance ≥1000 MΩ

• Voltage standing ≥750 V AC

These numbers translate directly into real-world benefits: even when handling 30 W+ of RF power, the KH-SMA18G-KE exhibits almost no temperature rise, virtually eliminating arcing, signal dropouts, or component damage caused by poor contact. The 1000 MΩ insulation resistance also gives it outstanding immunity in harsh electromagnetic environments.

“Stable”: Mechanical Durability + Extreme Environment Readiness

• Rated for 500 mating cycles with negligible change in contact resistance

• Operating temperature: -40 °C to +125 °C – covers aerospace, vehicular, and outdoor base-station requirements

• RoHS compliant, excellent salt-spray, mold, and humidity resistance

• Weighs only 1.9 g – ideal for weight-sensitive applications like drones

The vertical PCB-mount design makes installation exceptionally easy in space-constrained modular equipment, achieving perfect 50 Ω matching on 0.8 mm or 1.0 mm PCBs while avoiding the extra loss and assembly complexity of right-angle versions.

Typical Applications at a Glance

1. 5G AAU/RRU RF units – fully covers n78/n79 and other mainstream bands

2. Phased-array T/R modules – ultra-low phase noise and high channel consistency

3. Satellite ground terminals – rock-solid Ku-band uplink connections

4. Vector network analyzers & spectrum analyzer calibration kits – laboratory-grade precision

5. UAV video/data links – lightweight yet high-frequency capable

Why Choose KH-SMA18G-KE Over Imported Big-Name Brands?

Simple: it matches or exceeds the 18 GHz performance of top-tier international brands, yet benefits from a domestic supply chain that delivers highly competitive pricing and lead times. Kinghelm also provides one-stop support from design selection and sampling to volume production – zero communication lag with engineers who truly understand RF.

When your system demands full 18 GHz bandwidth without breaking the budget on connectors, the Kinghelm KH-SMA18G-KE is the pragmatic, high-performance answer. It doesn’t rely on marketing hype; it speaks through hard electrical specifications and proven reliability.

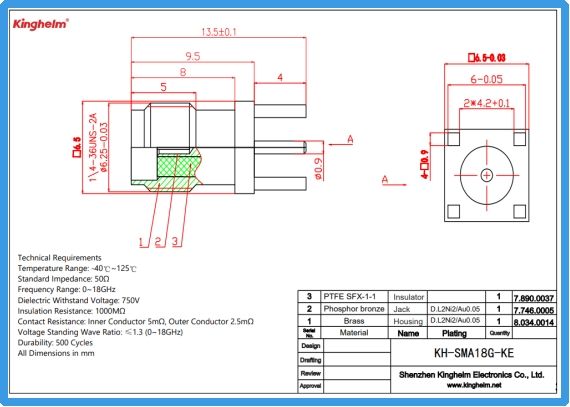

Kinghelm KH-SMA18G-KE Specification

In the world of RF signal transmission, “close enough” is never enough. Only connectors that deliver genuine speed, precision, and stability deserve a place in systems chasing ultimate performance. The Kinghelm KH-SMA18G-KE is exactly that kind of connector – small in size, but huge in making your signals faster, more accurate, and rock-steady.

Next time you need an SMA female that still performs flawlessly at 18 GHz, give the Kinghelm KH-SMA18G-KE a try. It’s tiny, but it lets your signals fly.
