Modern electronic devices continue to evolve toward higher functionality, greater integration, and more compact designs. As products become increasingly sophisticated, engineers often face challenges when implementing multiple operating modes, signal routing options, and circuit selection functions within limited PCB space. Traditional switching solutions may require multiple components, increasing circuit complexity, assembly costs, and potential failure points.

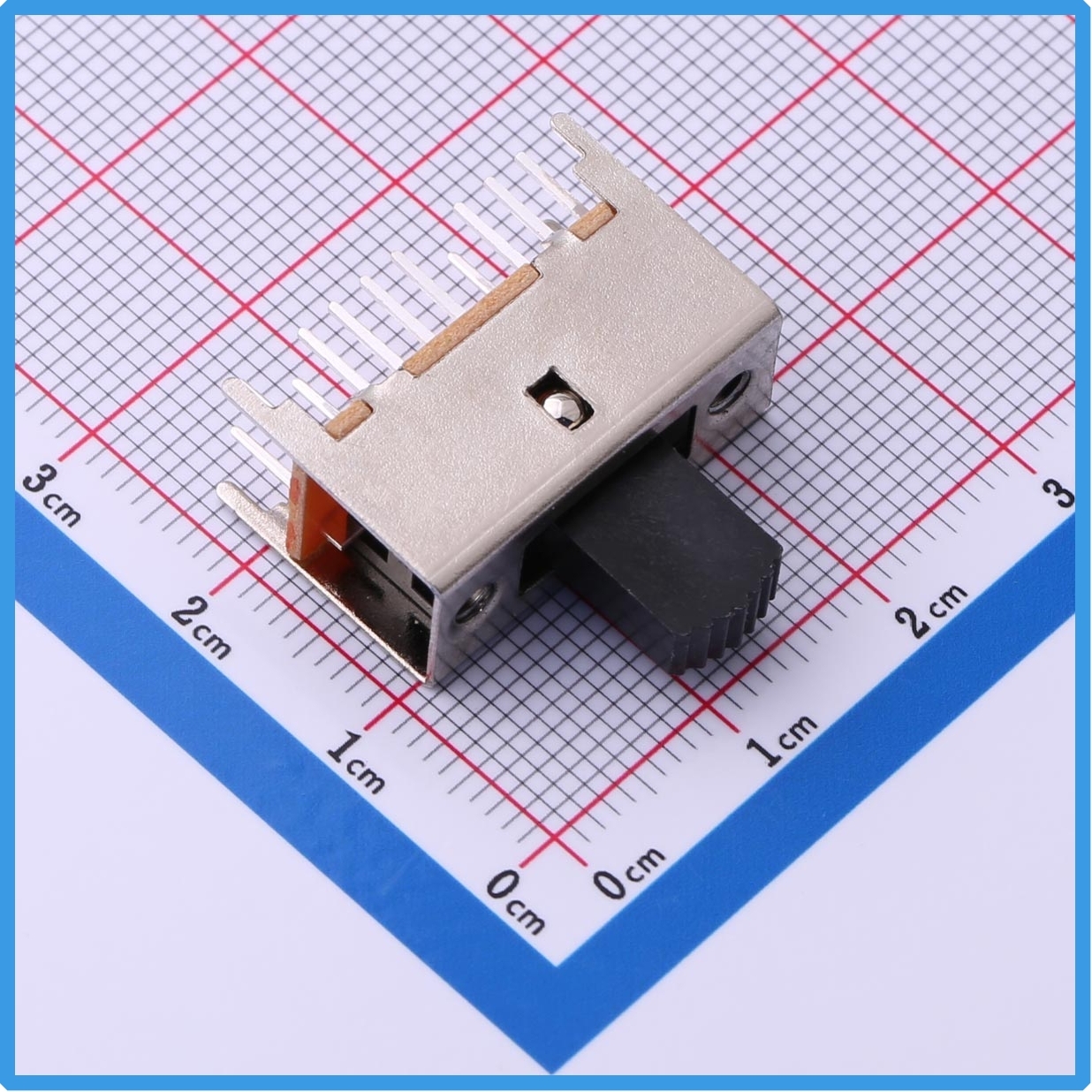

To address these challenges, the Kinghelm KH-SS43D01-G9 Slide Switch provides a practical and efficient solution. Featuring a 4P3T (Four-Pole Triple-Throw) configuration, compact dimensions, and a reliable through-hole mounting structure, this switch enables flexible multi-circuit control while maintaining ease of installation and long-term operational stability. It is widely suitable for audio equipment, industrial control systems, smart home devices, communication terminals, test instruments, and various consumer electronics applications.

Simplifying Complex Circuit Switching Requirements

As electronic products become more feature-rich, the demand for multi-mode operation continues to increase. Devices often require switching between different operating states, signal paths, or control functions. In many designs, engineers must manage multiple independent circuits simultaneously while keeping system architecture simple and reliable.

The KH-SS43D01-G9 addresses this need with its four-pole triple-throw switching mechanism. Unlike conventional single-pole switches, this design allows multiple circuits to be switched together through a single component. By consolidating several switching functions into one device, engineers can reduce the number of required components, simplify PCB routing, and improve overall design efficiency.

This capability is particularly valuable in industrial control panels, testing equipment, and communication systems where synchronized circuit switching is critical. The result is a cleaner design with fewer interconnection points and improved system reliability.

Solving Space Constraints in Modern Electronic Devices

One of the biggest challenges in electronic product development today is limited installation space. Whether designing portable devices, smart home products, or compact communication equipment, engineers must carefully optimize every millimeter of PCB real estate.

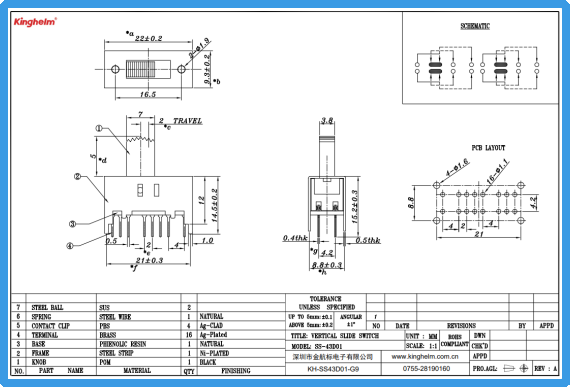

The Kinghelm KH-SS43D01-G9 features a compact structure with an overall switch length of 22 mm and a width of only 3 mm. Its slim profile helps maximize available board space while still providing convenient manual operation.

The rectangular actuator design offers a comfortable switching experience and clear position recognition, helping users quickly select the desired operating mode. This combination of compact dimensions and user-friendly operation makes the switch particularly suitable for applications where both functionality and space efficiency are important.

For designers seeking to reduce product size without sacrificing performance, the KH-SS43D01-G9 provides an effective solution.

Reliable Installation and Long-Term Mechanical Stability

In mass production environments, component installation efficiency is just as important as electrical performance. Products that are difficult to assemble can increase manufacturing costs and reduce production consistency.

The KH-SS43D01-G9 utilizes a PC pin through-hole mounting design that is compatible with standard PCB soldering processes. This mature installation method simplifies assembly procedures and supports efficient large-scale manufacturing.

Beyond installation convenience, mechanical reliability remains a critical factor for any switch used in frequent operation. The switch is designed with a stable sliding mechanism that delivers smooth movement and clear tactile feedback during operation. This helps minimize accidental switching and enhances the overall user experience.

Its robust mechanical structure also contributes to long service life, making it suitable for equipment that requires repeated mode changes throughout its operational lifespan.

Versatile Applications Across Multiple Industries

Thanks to its multi-circuit switching capability and compact design, the KH-SS43D01-G9 can be integrated into a wide variety of electronic systems.

In audio equipment, it can be used for source selection and function switching. In industrial control systems, it supports operating mode changes and signal routing functions. Smart home devices benefit from its ability to manage different control modes within limited space. Communication terminals can utilize the switch for network mode selection and signal management, while testing and measurement instruments can implement channel selection and operational control functions.

Consumer electronics manufacturers also appreciate its balance between size, functionality, and installation convenience. These characteristics make the switch a practical choice across numerous product categories.

As electronic systems continue to demand greater flexibility and higher integration levels, reliable switching components become increasingly important. The Kinghelm KH-SS43D01-G9 provides engineers with an efficient, space-saving, and dependable solution for multi-circuit control applications.

Conclusion

The Kinghelm KH-SS43D01-G9 4P3T Slide Switch combines flexible circuit switching, compact dimensions, straightforward installation, and dependable mechanical performance in a single component. Whether used in industrial equipment, smart home systems, communication devices, audio products, or testing instruments, it helps simplify circuit design while improving operational reliability.

For engineers seeking a compact and efficient switching solution capable of handling multiple circuit paths and operating modes, the KH-SS43D01-G9 represents a practical choice that supports both design flexibility and long-term performance. As part of Kinghelm's growing portfolio of electronic components, this slide switch continues to provide reliable support for modern electronic product development.
