KH-SSMB-JWE SSMB Right Angle Male Connector: A Reliable RF Connection Solution for Compact Applications

With the rapid development of wireless communication, RF modules, smart devices, and high-frequency electronic systems, modern electronic equipment is becoming increasingly compact and highly integrated. As a result, RF connectors are required to provide not only excellent electrical performance but also smaller size, flexible installation, and reliable connection capability.

The SSMB Right Angle Male Connector KH-SSMB-JWE, developed by Kinghelm, is a compact RF coaxial connector designed for space-limited applications. It adopts a plug-in mounting structure, features an SSMB right angle male interface, provides a 50Ω impedance, and supports a wide operating frequency range from 0 to 6GHz. With its compact design and stable RF performance, the KH-SSMB-JWE offers an effective connection solution for RF modules, communication equipment, and high-frequency electronic systems.

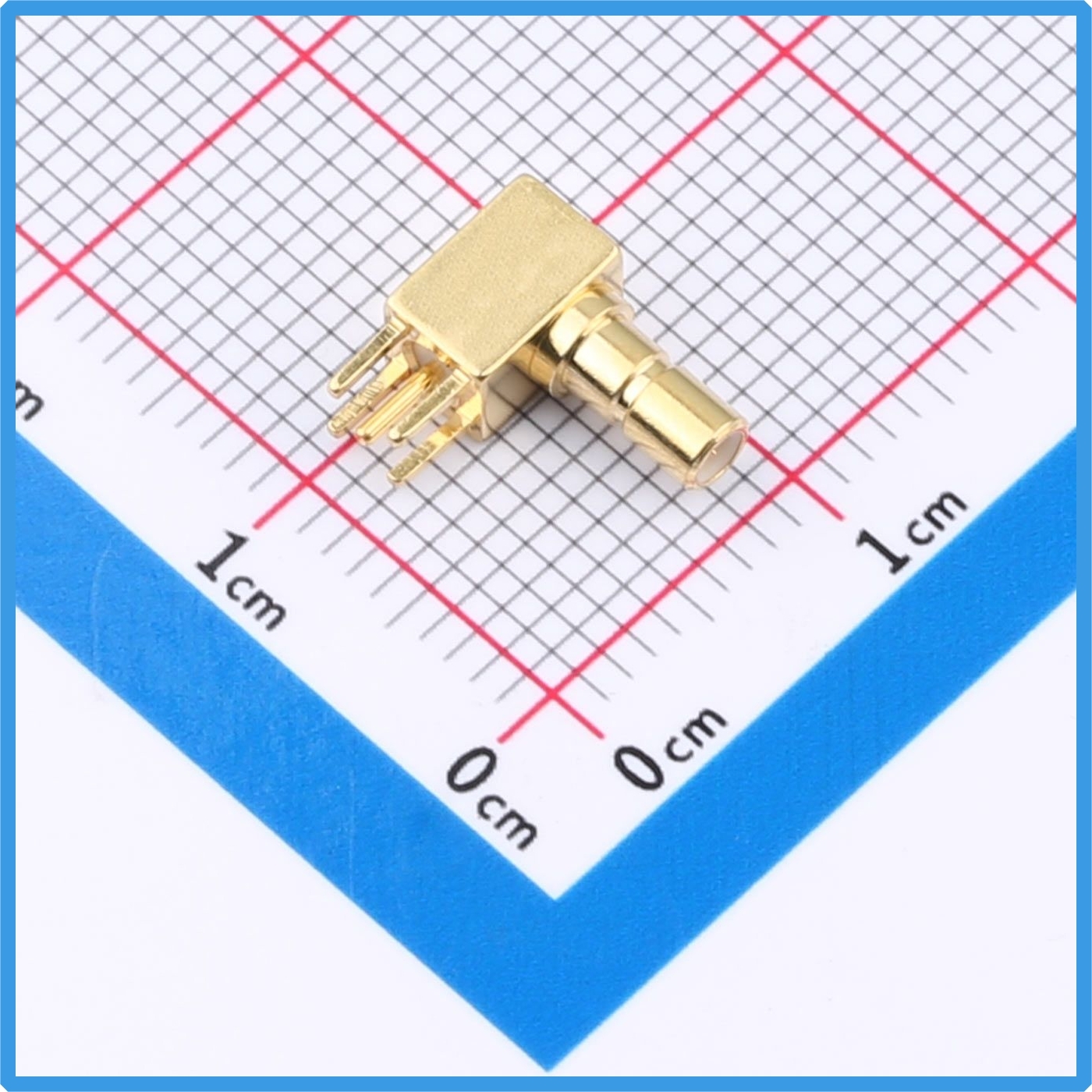

Kinghelm KH-SSMB-JWE Product Image

Product Features of SSMB Right Angle Male Connector KH-SSMB-JWE

The KH-SSMB-JWE combines miniaturized structure design with reliable RF transmission performance, making it suitable for applications where PCB space and signal integrity are critical.

1. Right Angle SSMB Male Design for Space Optimization

The KH-SSMB-JWE adopts a right angle male connector structure, allowing RF signals to be routed horizontally and significantly reducing vertical space requirements on the PCB.

Compared with traditional straight connectors, the right angle design provides greater flexibility for PCB layout and is especially suitable for compact RF modules, communication devices, and integrated electronic systems where installation space is limited.

2. 50Ω Impedance for Stable RF Signal Transmission

Impedance matching is essential in high-frequency signal applications. The KH-SSMB-JWE features a 50Ω characteristic impedance design, helping minimize signal reflection and transmission loss while maintaining excellent RF performance.

This makes it suitable for applications requiring stable and accurate signal transmission, including wireless communication systems, RF testing equipment, and antenna connection systems.

3. Wide Frequency Range up to 6GHz

The KH-SSMB-JWE supports an operating frequency range of 0 to 6GHz, covering various high-frequency applications.

Its wide frequency capability enables reliable signal transmission in wireless communication equipment, navigation systems, RF modules, and industrial electronic devices, providing engineers with a flexible connector option for different RF designs.

4. Plug-In Mounting Structure for Easy Assembly

The plug-in mounting method simplifies PCB installation and improves manufacturing efficiency. The KH-SSMB-JWE can be easily integrated into electronic assemblies, making it suitable for both prototype development and mass production applications.

Its practical installation design helps reduce assembly complexity while improving overall product reliability.

Advantages of KH-SSMB-JWE in RF Applications

As electronic products continue to evolve toward higher integration and smaller form factors, RF connectors must meet increasingly demanding requirements. The KH-SSMB-JWE provides several advantages for modern RF system designs.

Compact Design for High-Density Electronic Equipment

The miniaturized structure of the KH-SSMB-JWE helps engineers optimize PCB layouts in space-constrained environments. With an interface diameter of 2.69mm, it is ideal for compact RF modules and small electronic devices.

The right angle configuration improves space utilization and allows more efficient internal signal routing.

Reliable Mechanical Connection Performance

In addition to electrical characteristics, mechanical stability is also important for RF connectors. The KH-SSMB-JWE is designed to provide secure connection performance, helping maintain stable signal transmission under normal operating conditions.

Its reliable structure makes it suitable for applications requiring long-term operational stability.

Wide Range of Applications

Thanks to its compact size, 50Ω impedance, and 0–6GHz frequency support, the KH-SSMB-JWE can be widely used in various industries, including:

• Wireless communication equipment

• RF modules

• Antenna connection systems

• GPS and navigation devices

• Test and measurement instruments

• Industrial electronic equipment

These applications require high-quality RF connections with excellent signal integrity and mechanical reliability.

Why Choose a High-Quality RF Connector?

Although RF connectors are small components, they play an important role in maintaining the performance of the entire RF system. Factors such as impedance matching, manufacturing precision, connector structure, and material quality can directly affect signal transmission performance.

When selecting an RF connector, engineers should consider:

• Interface compatibility and connector specifications

• Operating frequency range

• Impedance matching performance

• Installation method

• Long-term reliability

As a professional connector brand, Kinghelm focuses on providing high-quality electronic connection solutions for communication, industrial electronics, and intelligent hardware applications. The company continues to develop reliable connector products to meet the growing demands of modern electronic systems.

Installation and Usage Considerations

To ensure stable performance and long service life, the following points should be considered when using the KH-SSMB-JWE:

1. Confirm that the equipment interface matches the SSMB connector specification before installation.

2. Follow PCB layout and soldering requirements according to product specifications.

3. Avoid operating beyond the rated frequency range.

4. Prevent excessive lateral force during connector mating and unmating.

5. Ensure the operating environment meets product requirements.

Proper installation and handling can maximize connector performance and improve the reliability of the overall electronic system.

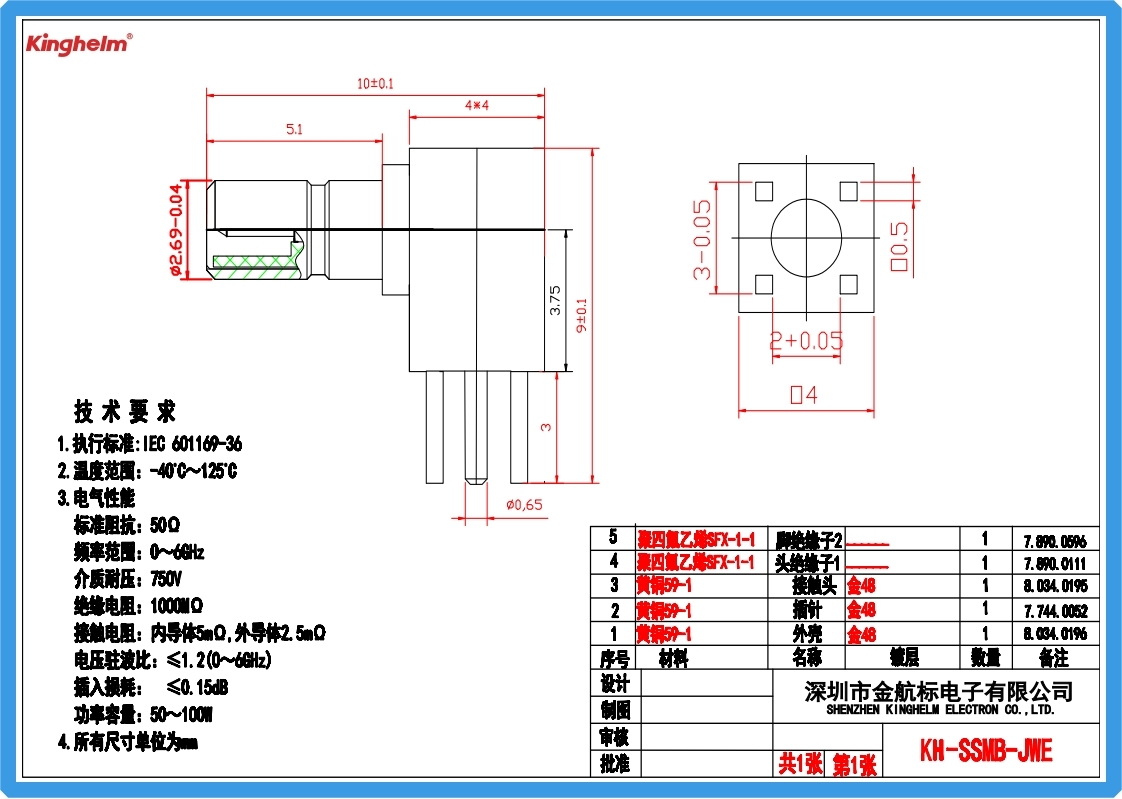

Kinghelm KH-SSMB-JWE Specification

Conclusion

The SSMB Right Angle Male Connector KH-SSMB-JWE is a compact and reliable RF coaxial connector featuring a 50Ω impedance design, 0–6GHz frequency support, and plug-in mounting structure. Its right angle configuration helps optimize PCB space while maintaining stable high-frequency signal transmission performance.

Designed for wireless communication equipment, RF modules, GPS systems, testing instruments, and industrial electronics, the KH-SSMB-JWE provides engineers with a dependable solution for compact RF connection requirements.

With continuous innovation in RF and electronic connection technologies, Kinghelm remains committed to delivering high-performance connector products and supporting customers with reliable connection solutions for next-generation electronic applications.
