KH-EC561V10T302 Incremental Rotary Encoder: A Reliable Choice for Precision Motion Control

I. Product Overview

The KH-EC561V10T302 is a 56 mm, low-profile, slim rotary encoder launched by Kinghelm. The product uses an SMD package, is supplied in bag packaging, and has a gross weight of approximately 14.8 g per unit. As an incremental rotary encoder, the KH-EC561V10T302 generates pulse signals or position-change information through rotational movement. It is widely used in audio equipment, home appliances, industrial control systems, instrumentation, automotive electronics, and smart terminals.

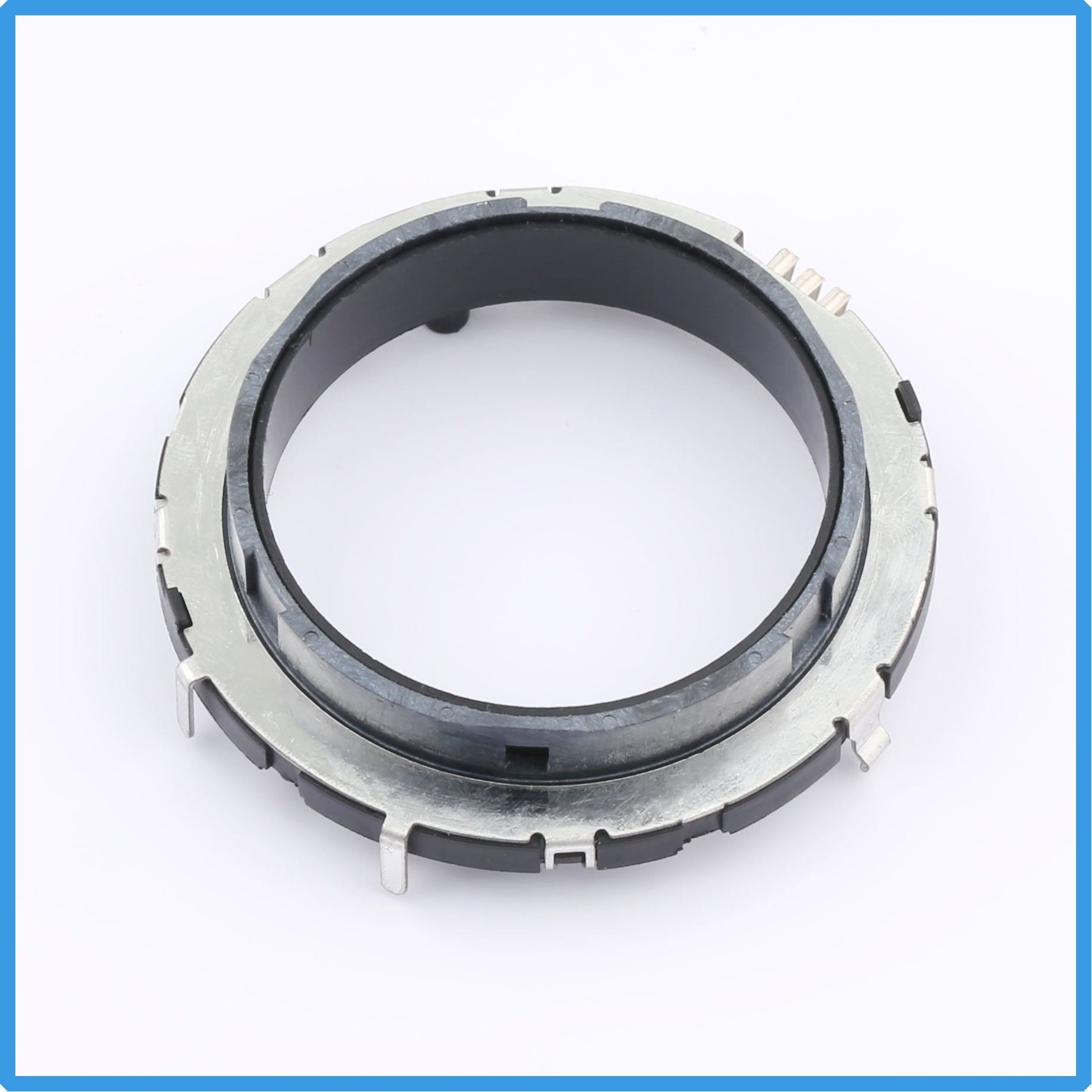

Kinghelm KH-EC561V10T302 Product Image

II. Key Technical Specifications

The core specifications of the KH-EC561V10T302 are as follows:

• Encoder type: Incremental

• Number of detents / pulses: 30 / 15

• Output type: Dual-phase output

• Rated voltage: 5 V

• Rated current: 10 mA

• Mounting method: Through-hole

• Operating temperature: -20°C to +80°C

• Insulation resistance: ≥100 MΩ

The combination of 30 detents and 15 pulses means that the encoder can generate 15 pulse signals per rotation while providing 30 tactile positioning points. This detent design gives the operator a clear stepped or tactile feel during rotation, enabling precise adjustment.

The dual-phase output (Phase A and Phase B) can determine the direction of rotation through the phase difference between the two signals, typically 90 degrees, providing the control system with both speed and direction information.

III. Operating Principle

Incremental rotary encoders convert the timing and phase relationships generated by a rotating code wheel into information about increases or decreases in angular displacement. Taking a photoelectric incremental encoder as an example, its fundamental operating principle is based on optical grating interruption. As the code wheel rotates, the interaction between the grating and the photosensitive components generates alternating high- and low-level pulse signals.

Unlike absolute encoders, which measure absolute position, incremental encoders generate relative pulse signals during rotation to indicate the speed and direction of the rotating object. An incremental encoder can provide changes in position rather than absolute position. Therefore, the system generally requires a reference point or zeroing operation to determine the absolute position.

However, because of their simple structure and relatively low cost, incremental encoders are particularly suitable for applications that require basic position feedback and are sensitive to cost.

IV. Application Scenarios

Typical applications of the KH-EC561V10T302 include:

1. Consumer Electronics:
   Used for volume control, menu navigation, parameter adjustment, and other human-machine interface functions in audio equipment. Incremental encoders are also widely used in devices such as computer mouse scroll wheels.

2. Industrial Control:
   Used as an adjustment knob on control panels for functions such as speed setting and position control. Incremental encoders are commonly used for position control and motor speed feedback.

3. Automotive Electronics:
   Suitable for in-vehicle entertainment system controls, air-conditioning adjustment, and other applications. Incremental encoders can also be used for position sensing in automotive windows, sunroofs, seats, and rear-view mirrors.

4. Instrumentation:
   Used for parameter adjustment and data input in precision measurement equipment.



V. Product Advantages

As part of Kinghelm's rotary encoder product line, the KH-EC561V10T302 offers the following advantages:

• Compact structure: The 56 mm design combined with a low-profile, slim structure makes it suitable for space-constrained applications.

• Precise positioning: Thirty detents provide clear tactile feedback, helping ensure accurate operation.

• Smooth operation: An optimized mechanical structure provides a smooth rotational feel.

• Long service life and high reliability: As a national high-tech enterprise, Kinghelm has a technical team with expertise from Tsinghua University and the University of Electronic Science and Technology of China, providing
  strong R&D capabilities for highly reliable products.



VI. Convenient Procurement Channels

The KH-EC561V10T302 is now available on the LCSC online marketplace, allowing engineers and procurement professionals to conveniently obtain samples or place bulk orders.

LCSC provides detailed technical documentation for the product, including datasheets, pin diagrams, and PCB footprint drawings. These resources help users with component selection and design integration, effectively shortening product development cycles.

VII. Brand Strength

Kinghelm, established in 2007, is a national high-tech enterprise and a member of the China Satellite Navigation and Positioning Association, the China Information Industry Chamber of Commerce, and the Guangdong Connector Association.

The company focuses on the R&D and sales of microwave and RF signal transmission and reception products, miniature electronic connectors, and interconnection systems. Its product portfolio includes BeiDou/GPS antennas, RF adapters, connectors, and rotary encoders.

Kinghelm holds multiple invention patents and software copyrights. Its manufacturing base in Luzhai County, Guangxi, is equipped with intelligent and flexible production lines. Its products are widely used in new energy vehicles, smart terminals, smart cities, the Industrial Internet, medical equipment, and commercial aerospace.

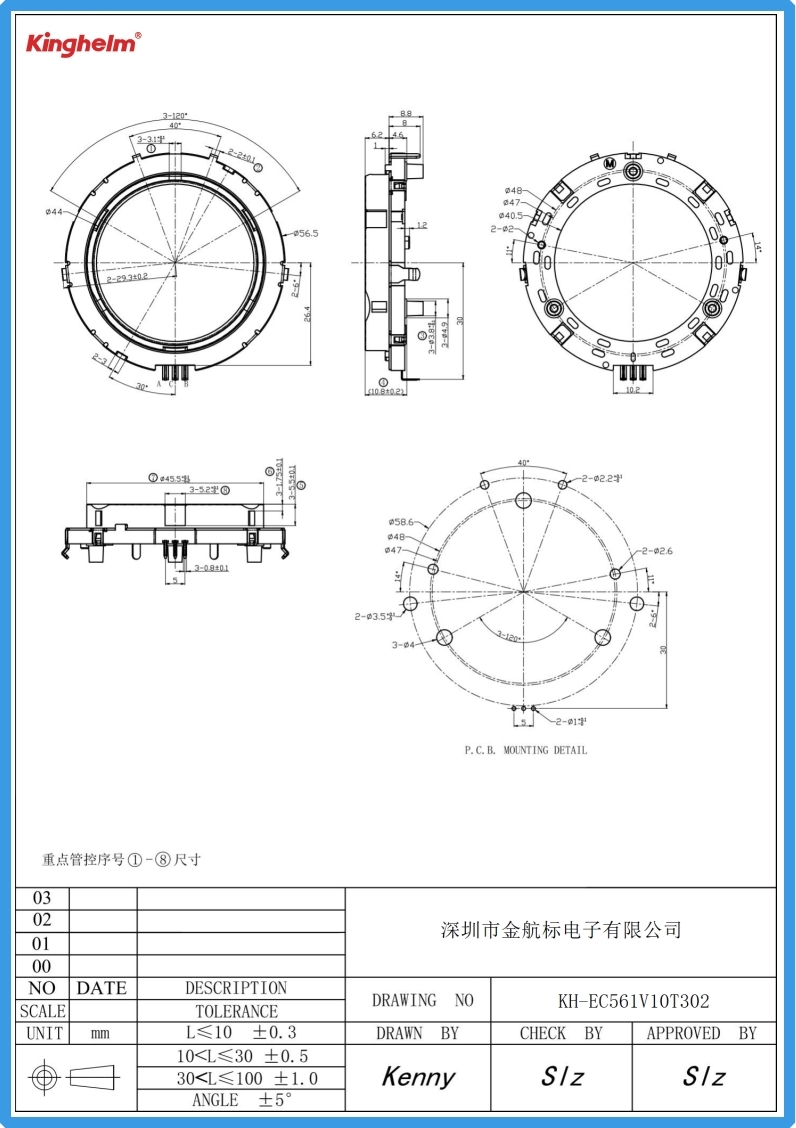

Kinghelm KH-EC561V10T302 Specification

VIII. Conclusion

The KH-EC561V10T302 is a well-balanced, highly reliable incremental rotary encoder. Its 56 mm low-profile, slim design, 30/15 detent-to-pulse configuration, dual-phase output, and wide operating temperature range enable it to meet the requirements of human-machine interaction and parameter adjustment applications across consumer electronics, industrial control, automotive electronics, and other fields.

Supported by Kinghelm's technical expertise and quality control capabilities in the microwave, RF, and electronic connector industries, the KH-EC561V10T302 provides a reliable component solution for precision control and intelligent upgrades in a wide range of electronic devices. Now officially available on LCSC, the product can be conveniently purchased for sampling and volume production, helping engineers accelerate R&D and mass-production processes.
