KH-6X6X8H-STM Tactile Switch: Ideal for Low-Voltage, Low-Current Consumer Electronics and Smart Home Applications

I. Product Overview

The KH-6X6X8H-STM is a 6 × 6 mm vertical-mount tactile switch introduced by Kinghelm. It is specifically designed for low-voltage DC (12V) and low-current (50mA) control applications. As consumer electronics and smart home devices continue to become more compact and intelligent, human-machine interface buttons must not only occupy minimal space but also deliver reliable electrical performance, a comfortable tactile feel, and long-term durability.

The KH-6X6X8H-STM was developed to meet these requirements. With three key advantages—compact size, easy installation, and comfortable operation—it is an ideal button solution for devices such as TV remote controls, smart control panels, thermostats, and portable instruments.

Kinghelm, a national high-tech enterprise founded in 2007, holds Beidou-related invention patents and multiple software copyrights. The company is a member of the China Satellite Navigation Association, the China Information Industry Association, and the Guangdong Connector Association. Its product portfolio extends from Beidou/GPS antennas and RF connectors to precision connectors, USB Type-C products, HDMI products, pin headers, and female headers. Tactile switches represent an important part of Kinghelm's expansion into the human-machine interface sector.

Supported by stringent quality control and advanced manufacturing processes, Kinghelm switches have been widely used in consumer electronics, smart homes, automotive electronics, and industrial control applications.

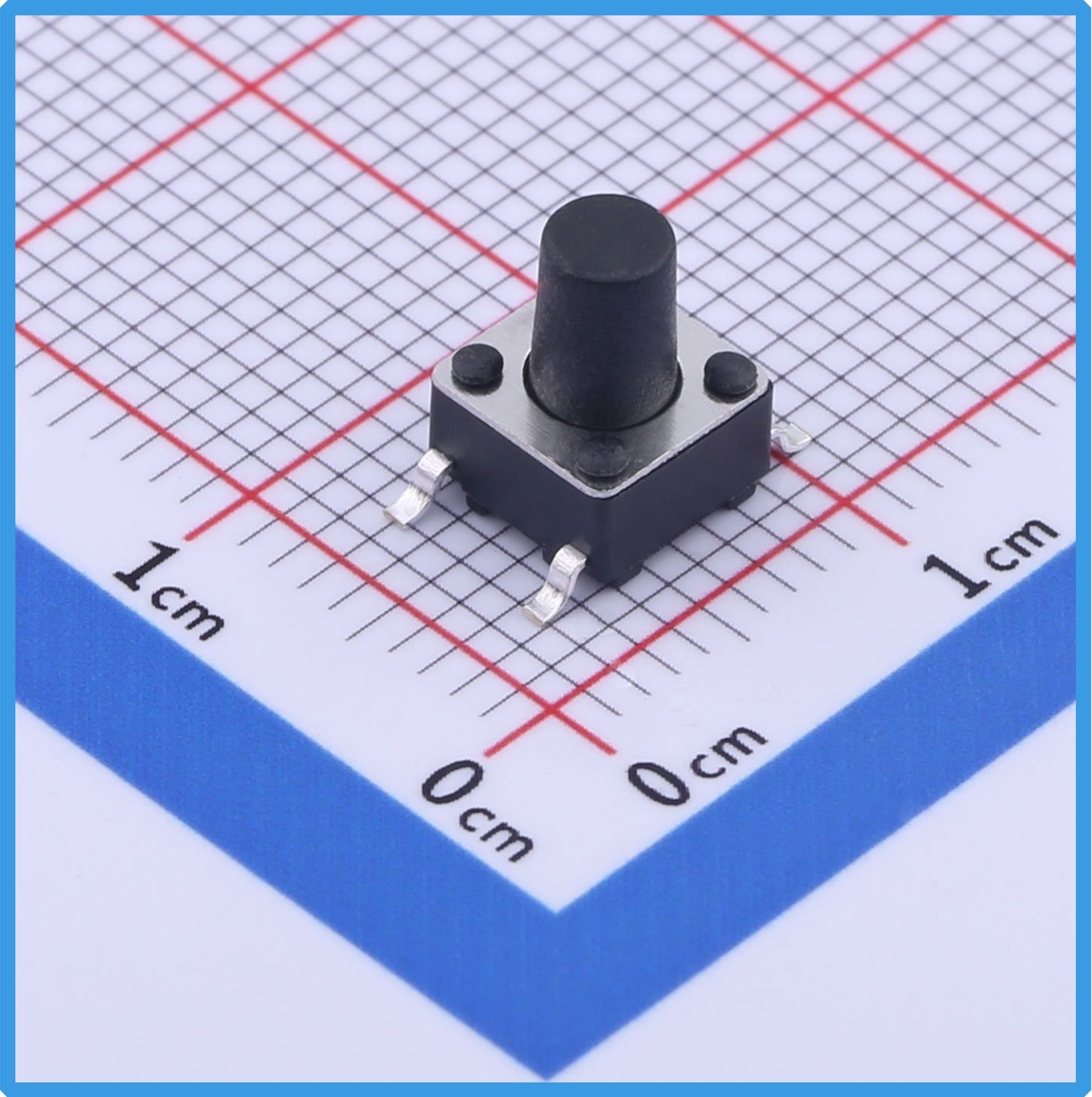

Kinghelm KH-6X6X8H-STM Product Image

II. Key Specifications and Performance Advantages

The technical specifications of the KH-6X6X8H-STM can be divided into four categories: electrical performance, mechanical performance, structural dimensions, and packaging and logistics. Each category directly translates technical parameters into practical application value.

2.1 Electrical Performance Parameters — Designed for Low-Voltage, Low-Current Applications

1. Circuit configuration: Single-pole, single-throw (SPST), normally open; closed when pressed and open when released.

2. Rated voltage: 12V DC.

3. Contact current: 50mA.

4. Insulation resistance: ≥100MΩ (tested at 500V DC).

5. Contact resistance: ≤50mΩ (initial value).

6. Dielectric strength: 250V AC for 1 minute, with no breakdown or flashover.

Advantages for low-voltage and low-current applications:

The 12V/50mA rating is well suited to the control circuits used in most consumer electronics and smart home devices, including MCU GPIO button scanning, power-enable signals, and mode switching. It avoids the unnecessary safety risks associated with high-voltage, high-current designs while still being suitable for LED indicator control and small relays.

An insulation resistance of 100MΩ helps prevent leakage between adjacent circuits, while the low 50mΩ contact resistance supports reliable transmission of low-level control signals. The dielectric strength test also provides an additional safety margin during power fluctuations, contributing to reliable long-term operation.

2.2 Mechanical Performance Parameters — Tactile Experience and Durability

1. Operating force: 2.5N (approximately 250gf).

2. Travel: 0.3mm ± 0.1mm.

3. Mechanical life: ≥80,000 cycles.

4. Return time: ≤5ms.

Advantages in tactile feel and service life:

The 2.5N operating force provides clear tactile feedback and helps reduce accidental activation when a device is placed in a pocket or bag, while remaining comfortable for children and elderly users. The 0.3mm short travel produces a crisp tactile response, allowing users to clearly confirm each press.

A mechanical life of 80,000 cycles means that even with more than 100 presses per day, the switch can provide stable service for more than two years, making it particularly suitable for frequently used devices such as household appliance remote controls and smart panels. The ≤5ms return time also supports rapid repeated operation without missed responses.

2.3 Dimensions and Structural Parameters — Installation Compatibility

1. Overall dimensions: 6mm × 6mm × 8mm (excluding leads).

2. Actuator shape: Round with a flat surface.

3. Actuator color: Black (standard version).

4. Terminal style: Gull-wing, with four symmetrical terminals.

5. Mounting method: Vertical surface mount.

6. Bracket/illumination: No bracket and no illumination.

7. Operating temperature: -25°C to +85°C.

Structural and manufacturing advantages:

The 6 × 6 mm footprint offers an excellent balance between PCB space efficiency and a sufficiently large pressing area for users. Gull-wing terminals are well suited to SMT manufacturing: their exposed solder joints facilitate automated optical inspection (AOI), while their elasticity helps accommodate thermal expansion and contraction stresses. They are also convenient for manual soldering.

The vertical surface-mount design is compatible with high-speed pick-and-place machines, helping reduce labor costs. The wide operating temperature range of -25°C to +85°C enables reliable operation in both cold northern winters and hot southern summers, making the switch suitable for smart home applications such as outdoor sensor panels and simple automotive control devices.

The simplified design without a bracket or illumination helps reduce cost and potential failure points, making it suitable for applications that prioritize reliability.

2.4 Packaging and Logistics Parameters — Supply Chain Efficiency

1. Packaging: Tape and reel, 700 pieces per reel.

2. Minimum order quantity: 20 pieces (samples supported).

3. Gross weight per unit: 0.634g.

4. Storage conditions: 10°C to 30°C, humidity ≤70% RH.

Supply chain advantages:

Tape-and-reel packaging integrates seamlessly with automated SMT feeders, reducing material-change downtime and improving production efficiency. With a weight of only 0.634g per unit, the switch can also help reduce logistics costs. Flexible minimum order quantities support both R&D prototyping and volume production, providing customers with greater supply chain flexibility.

III. Design Highlights and Engineering Value

• Ergonomics of the round actuator: The round structure allows relatively even force distribution from different pressing angles. Combined with the 2.5N operating force, it provides clear tactile feedback even when users are wearing gloves, such as in kitchens or workshops.

• Vibration resistance of gull-wing terminals: The curved terminal structure provides elastic compliance that can help absorb mechanical stress in vibration environments and reduce the risk of solder-joint cracking. This is particularly beneficial for portable consumer electronics such as handheld vacuum cleaners and Bluetooth speakers.

• Optimized contact materials: The internal contacts use oxidation-resistant alloy materials to help resist sulfuration and oxidation, maintaining stable contact resistance during long-term use and extending the practical service life of the switch.



IV. Typical Applications: Consumer Electronics and Smart Homes

The KH-6X6X8H-STM is designed primarily for consumer electronics and smart home applications, including:

• Consumer electronics: Function and menu buttons for televisions and audio equipment, channel-selection buttons for set-top boxes, auxiliary buttons for computer peripherals such as mice and keyboards, and operation buttons for portable medical instruments such as blood pressure monitors and thermometers. Its low-voltage, low-current characteristics are naturally compatible with battery-powered devices and can help minimize standby power consumption.

• Smart homes: Smart switch panels, thermostat adjustment buttons, curtain controllers, password input buttons for smart door locks, and reset buttons on robotic vacuum cleaners. Its comfortable tactile feel and long service life meet the demands of frequent household use, while the -25°C to +85°C operating temperature range supports reliable operation in environments with significant temperature variation, such as balconies and garages.

• Other applications: Handheld industrial control terminals, non-safety-related automotive infotainment buttons, and similar applications.



V. Quality Assurance and Overall Cost Performance

Kinghelm implements comprehensive quality control for the KH-6X6X8H-STM, covering incoming material inspection, SPC process monitoring, and finished-product sampling inspection to help ensure batch-to-batch consistency.

Compared with similar imported products, this model offers competitive pricing and shorter lead times while maintaining comparable performance. Kinghelm's professional technical team can also provide FAE support, including soldering process recommendations and PCB layout guidance, helping customers accelerate product development and implementation.

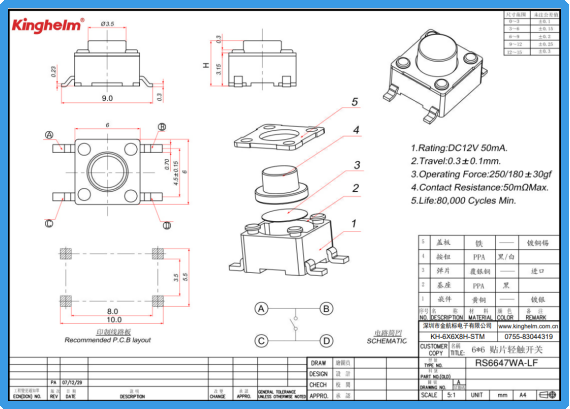

Kinghelm KH-6X6X8H-STM Datasheet

VI. Conclusion

The KH-6X6X8H-STM tactile switch is specifically designed for low-voltage, low-current applications rated at 12V/50mA. Its electrical characteristics are well matched to the control requirements of consumer electronics and smart home devices. With a comfortable 2.5N operating force, a mechanical life of 80,000 cycles, SMT-friendly gull-wing terminals, and a wide operating temperature range, it transforms technical specifications into tangible improvements in user experience and manufacturing efficiency.

Whether you are developing a new generation of smart speakers or designing the next generation of smart control panels, the KH-6X6X8H-STM is a reliable and cost-effective option for tactile switch selection. Kinghelm remains committed to balancing innovation and quality while providing reliable human-machine interface components for the global electronics industry.
