In modern electronic systems, reliable and efficient interconnection solutions are essential for ensuring stable signal and power transmission. Among various connection technologies, IDC (Insulation Displacement Connector) has become a widely adopted solution due to its simplicity, consistency, and cost-effectiveness. IDC connectors allow wires to be connected without stripping insulation, as the internal metal contacts pierce through the insulation layer to establish a secure electrical connection. This design significantly reduces assembly time and minimizes human error, making it ideal for mass production environments.

Compared with traditional soldering or crimping methods, IDC connectors offer several advantages. They simplify the wiring process, improve connection consistency, and provide stable electrical performance over time. In addition, their compact structure supports high-density PCB layouts, which is increasingly important as electronic devices continue to shrink in size while increasing in functionality. As a result, IDC connectors are widely used in industrial control systems, communication equipment, consumer electronics, and automotive electronics.

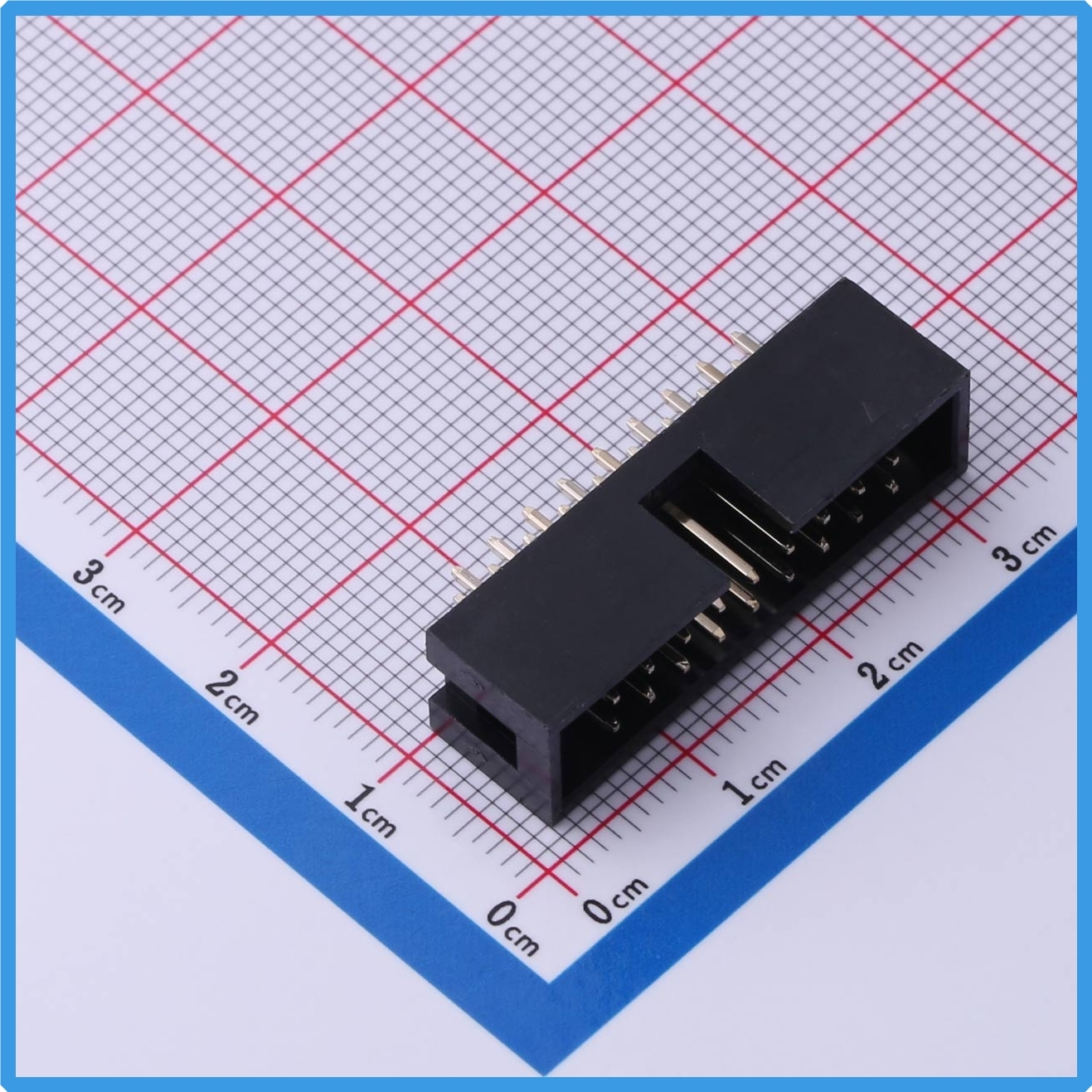

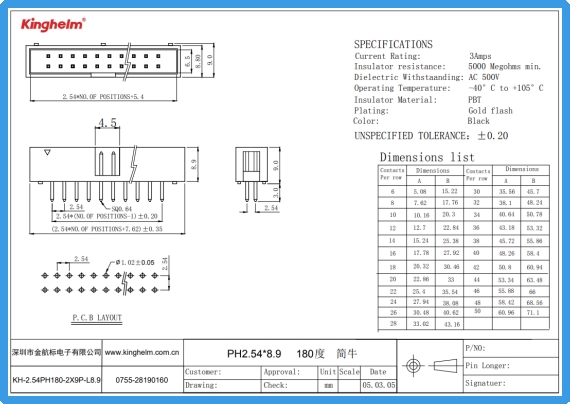

Against this backdrop, Kinghelm introduces the IDC connector KH-2.54PH180-2X9P-L8.9, a product specifically designed for high-density and high-reliability applications. This model features a standard 2.54mm pitch with a 2×9 pin configuration (18 positions total), enabling efficient signal transmission within limited space while maintaining excellent mechanical and electrical performance.

One of the key highlights of the KH-2.54PH180-2X9P-L8.9 is its superior electrical performance. The contacts are gold-plated, which enhances conductivity and provides strong resistance to oxidation and corrosion. This ensures stable and accurate signal transmission, making it suitable for applications where signal integrity is critical. Additionally, the connector offers an insulation resistance of up to 5000MΩ minimum, effectively reducing leakage risks and improving overall system safety.

From a mechanical perspective, the connector housing is made of high-quality PBT material. PBT is known for its excellent thermal stability, mechanical strength, and durability. This allows the connector to operate reliably within a wide temperature range of -40°C to +105°C, making it suitable for both consumer-grade and industrial-grade environments. Whether used in indoor electronics or harsher operating conditions, the connector maintains consistent performance.

The KH-2.54PH180-2X9P-L8.9 adopts a through-hole mounting method, ensuring strong solder joints and enhanced mechanical stability on the PCB. This design is particularly beneficial in environments subject to vibration or mechanical stress, as it helps maintain a secure connection over time. Furthermore, the standardized 2.54mm pitch ensures compatibility with common pin headers and sockets, simplifying system integration and design.

In terms of applications, this IDC connector is highly versatile. It can be used in industrial automation systems such as PLC modules, enabling efficient signal connections between control units and peripheral devices. In consumer electronics, it is suitable for products like printers, scanners, and smart home devices, where reliable internal connections are required. In communication equipment, it supports stable data transmission, while in automotive electronics, it can be applied in internal module interconnections.

Looking ahead, the IDC connector market is evolving alongside broader trends in the electronics industry. Future developments are expected to focus on higher density designs, improved high-speed signal performance, enhanced environmental resistance (such as heat, moisture, and vibration), and better compatibility with automated assembly processes. These advancements will further expand the application scope of IDC connectors in next-generation electronic systems.

As a trusted brand in the connector industry, Kinghelm continues to invest in research and development, optimizing product design and manufacturing processes to meet the changing needs of global customers. The KH-2.54PH180-2X9P-L8.9 IDC connector reflects Kinghelm’s commitment to delivering reliable, high-performance interconnection solutions.

In conclusion, IDC connectors play a crucial role in modern electronics by enabling efficient, reliable, and high-density connections. The Kinghelm KH-2.54PH180-2X9P-L8.9 stands out as a dependable choice for engineers and designers seeking a balance of performance, durability, and ease of use in their applications.
