『Product Highlight』Kinghelm USB Type-A Female Through-Hole Connector KH-3.0AF180WJ-15JB

USB interfaces continue to evolve, yet the USB Type-A format remains widely used across many types of equipment. From industrial systems to consumer electronics, the USB Type-A female connector is still a common interface due to its compatibility and stable physical design. This article focuses on the KH-3.0AF180WJ-15JB model, explaining its structure, specifications, and typical use cases to support engineers and buyers in making informed decisions.

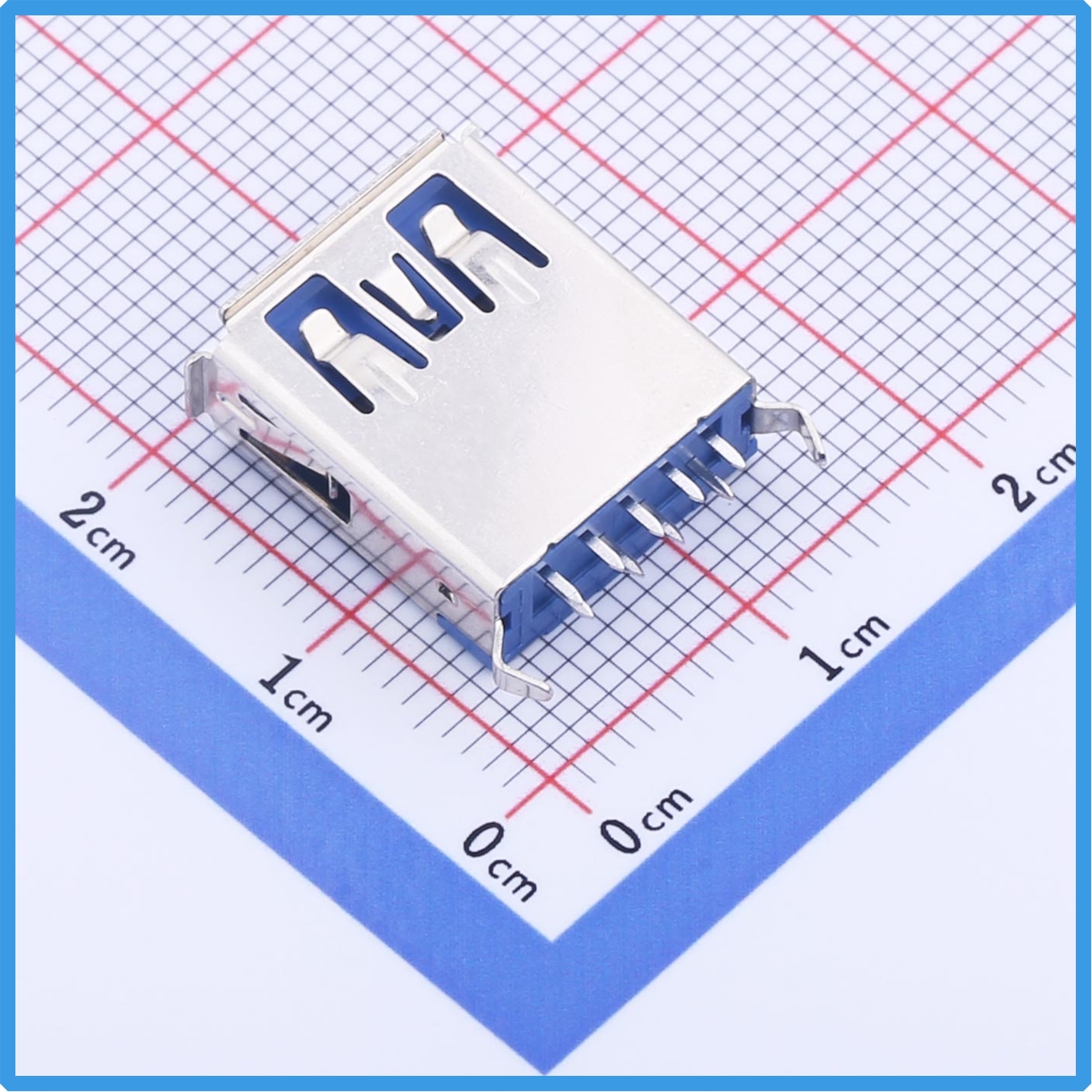

Kinghelm KH-3.0AF180WJ-15JB Product Image

1. Product Overview of KH-3.0AF180WJ-15JB

The KH-3.0AF180WJ-15JB is a USB Type-A female connector designed for through-hole (DIP) mounting. It complies with USB 3.0 standards and supports high-speed data transmission along with stable power delivery. Manufactured by Kinghelm, this connector is intended for applications where mechanical stability and reliable connectivity are required.

The connector features 9 contact pins (9P), which align with USB 3.0 signal requirements, allowing both backward compatibility and enhanced data bandwidth. With a body length of 15mm, it offers a balanced design that supports both structural strength and flexible PCB layout.

2. Structural Features of USB Type-A Female Through-Hole Connectors

2.1 Through-Hole Mounting Design

The KH-3.0AF180WJ-15JB uses a through-hole mounting structure, which provides stronger solder joints compared to surface-mount alternatives. This makes it suitable for environments where connectors may experience frequent insertion cycles or mechanical stress, such as industrial control boards or automotive electronics.

2.2 9-Pin Contact Configuration

USB 3.0 requires additional signal lines compared to USB 2.0. The 9-pin layout in this connector supports both legacy USB signals and high-speed differential pairs, enabling faster data transfer while maintaining compatibility with older devices.

2.3 Shielded Housing Structure

The connector is typically equipped with a metal shielding shell that helps reduce electromagnetic interference (EMI). This contributes to more stable signal transmission, especially in electrically noisy environments such as industrial systems.

3. Key Specifications and Their Implications

3.1 Rated Current and Voltage

This connector supports a rated current of 1.5A and a rated voltage of 30V. These values are suitable for standard USB power delivery scenarios, including peripheral devices and embedded modules. Designers should still consider safety margins based on actual load conditions.

3.2 Operating Temperature Range

With a working temperature range of -25℃ to +70℃, the KH-3.0AF180WJ-15JB can be used in typical indoor and moderate industrial environments. This range ensures stable performance under varying thermal conditions.

3.3 Data Transmission Capability

As a USB 3.0 connector, it supports high-speed data transfer, making it suitable for applications that handle large data volumes, such as storage devices, data acquisition systems, and embedded computing platforms.

4. Typical Application Scenarios

4.1 Industrial Control Equipment

In industrial automation systems such as PLCs and control modules, USB ports are often used for programming, debugging, and data exchange. A through-hole USB Type-A connector provides better mechanical stability in such environments.

4.2 Embedded Systems and Development Boards

Embedded platforms and development boards frequently use USB interfaces for communication and peripheral connectivity. The KH-3.0AF180WJ-15JB can serve as a standard interface for connecting keyboards, flash drives, or debugging tools.

4.3 Consumer Electronics

Devices like routers, TV boxes, and smart home hubs still rely on USB Type-A ports. This connector supports consistent performance in these products while maintaining compatibility with existing USB devices.

4.4 Automotive Electronics

In vehicle systems, USB interfaces are used for charging and data transfer. The through-hole design helps maintain a stable connection under vibration conditions, which is important in automotive environments.

5. Key Considerations for Selection

5.1 Mounting Compatibility

Ensure that the PCB layout supports through-hole connectors, including proper hole dimensions and pad design.

5.2 Protocol Requirements

If high-speed data transfer is required, selecting a USB 3.0-compatible connector like KH-3.0AF180WJ-15JB is necessary.

5.3 Application Environment

Different environments require different connector characteristics. Industrial settings prioritize durability, while consumer products may focus more on size and cost.

5.4 Mating Cycle Durability

USB connectors are subject to repeated use. Choosing a connector with a robust structure helps extend its service life.

6. The Ongoing Role of USB Type-A Interfaces

Although USB Type-C is becoming more common, USB Type-A remains widely used due to its established ecosystem and broad compatibility. Many existing systems continue to rely on Type-A ports for connectivity.

Products like the KH-3.0AF180WJ-15JB reflect this ongoing demand, offering a practical solution for systems that require stable USB connections without changing interface standards.

7. Conclusion

The KH-3.0AF180WJ-15JB USB Type-A female through-hole connector combines structural stability, USB 3.0 compatibility, and practical design features. It is suitable for a wide range of applications, including industrial, embedded, and consumer electronics.

By aligning connector selection with specific application requirements, designers can improve system reliability and ensure consistent performance in real-world use.
