1. RF Coaxial Connector: KH-SMA-K513-G

Kinghelm (www.kinghelm.net) model KH-SMA-K513-G is a high-reliability RF coaxial connector. It is designed as a board-end connector with a female interface and adopts a right-angle structure, enabling bent connections for space-constrained applications. It also supports multiple connection types including RF SMA-KE/KWE/KHD/IPEX/IPX interfaces and antenna sockets.

The connector features a characteristic impedance of 50Ω and supports frequencies up to 6GHz, meeting the requirements of high-frequency signal transmission. Its operating temperature range is from -55℃ to +155℃, allowing stable performance across diverse environments. During use, it is recommended to operate in dry, non-corrosive gas environments, and to avoid mechanical shock, vibration, excessive temperature, and humidity.

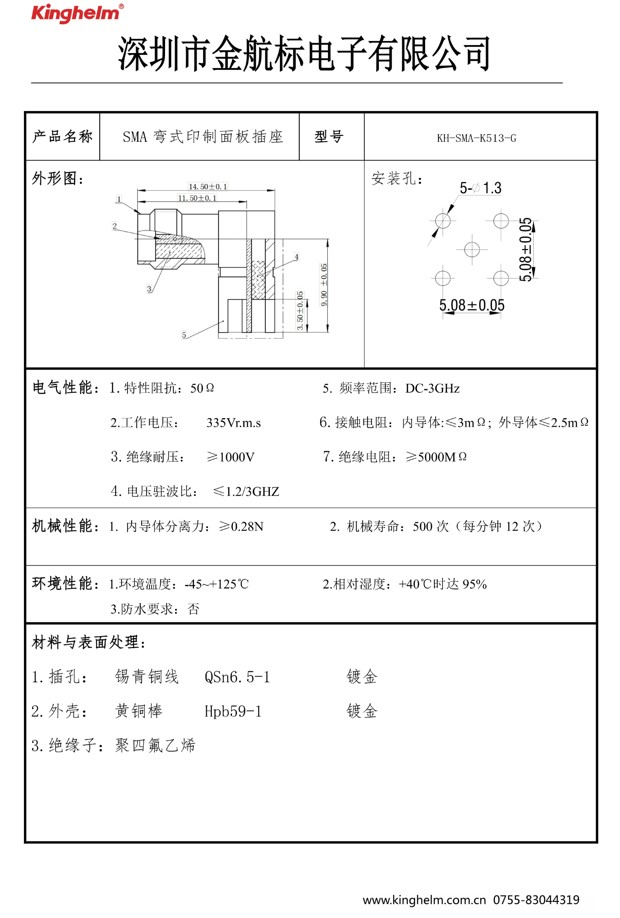

kinghelm RF board-end connector KH-SMA-K513-G datasheet 1

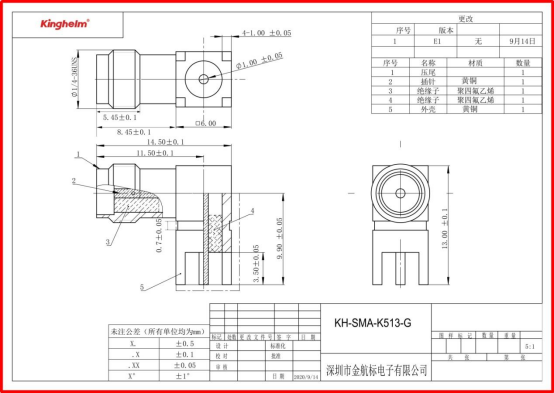

kinghelm RF board-end connector KH-SMA-K513-G datasheet 2

The KH-SMA-K513-G effectively addresses signal instability challenges in high-frequency, high-temperature, and high-voltage environments. It is widely used in wireless communication, broadcasting, radar, and satellite communication systems, including antennas, transceivers, power amplifiers, and filters.

2. Product Application: KH-SMA-K513-G48

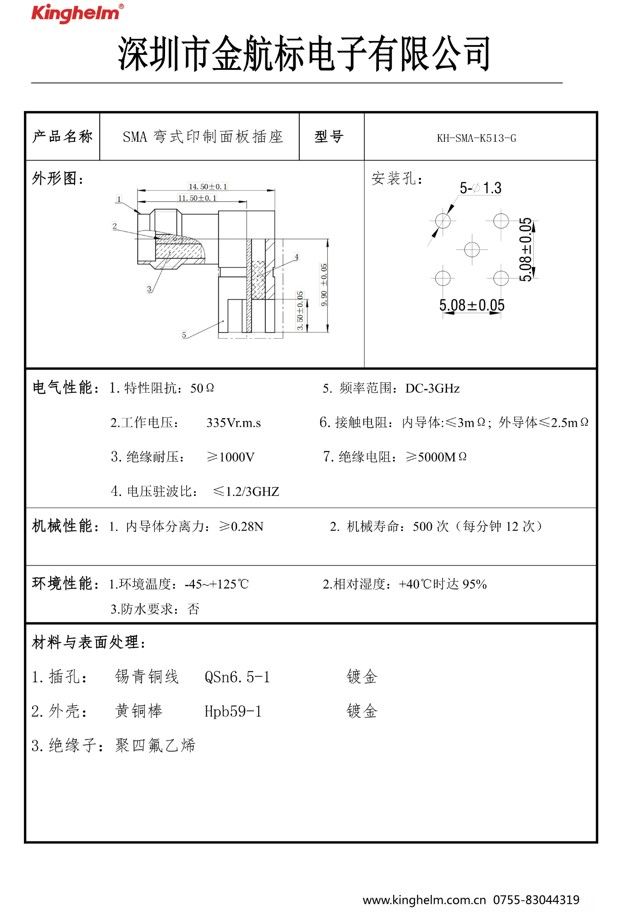

KH-SMA-K513-G48 product dimension drawing

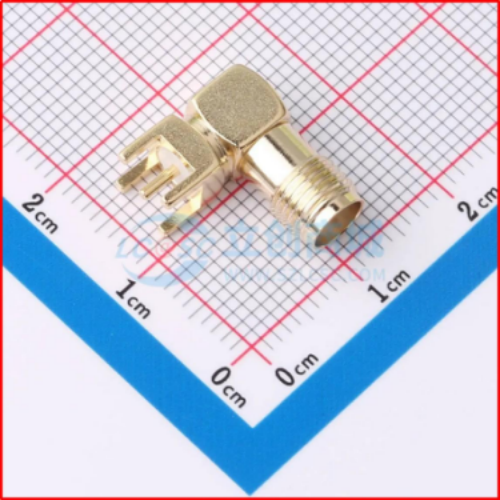

This product, kinghelm semi-thread right-angle SMA female board-end connector (KH-SMA-K513-G48), adopts a right-angle plug-in design and is packaged in trays. It is suitable for board-end connection scenarios requiring SMA interfaces and is widely used in wireless communication equipment, radar systems, and test & measurement instruments.

Product advantages include:

High-quality materials: Made of brass and PTFE (polytetrafluoroethylene), ensuring stable and reliable performance.
Strong corrosion resistance: Passed 48-hour salt spray testing, suitable for harsh environments.
Easy assembly: Right-angle plug-in structure for convenient installation and removal.
