Kinghelm Antennas KH-3216-A35 and KH-3216-A27: Safeguarding Wireless Communications Featured on LCSC Homepage!

The article 《Kinghelm Antennas KH-3216-A35 and KH-3216-A27: Safeguarding Wireless Communications》 has been featured on the LCSC homepage. The content is as follows:

Kinghelm (www.kinghelm.com.cn) microwave multi-layer ceramic antenna LA series products KH-3216-A35 and KH-3216-A27 are designed for WLAN, WiFi, Bluetooth, PHS, mobile multi-band antennas, FM, and other small-form-factor SMD chip-type components. They are ideal choices for achieving high-quality wireless communications.

Kinghelm KH-3216-A35

The KH-3216-A35 is an ultra-compact Bluetooth SMD antenna with dimensions of 3.2x1.6mm, specifically designed for Bluetooth devices to achieve efficient wireless connectivity. It weighs 0.04g, is packaged in tape and reel, has an impedance of 50Ω, and features a wide frequency bandwidth and excellent gain to ensure stable signal transmission and reception, making it suitable for various communication systems.

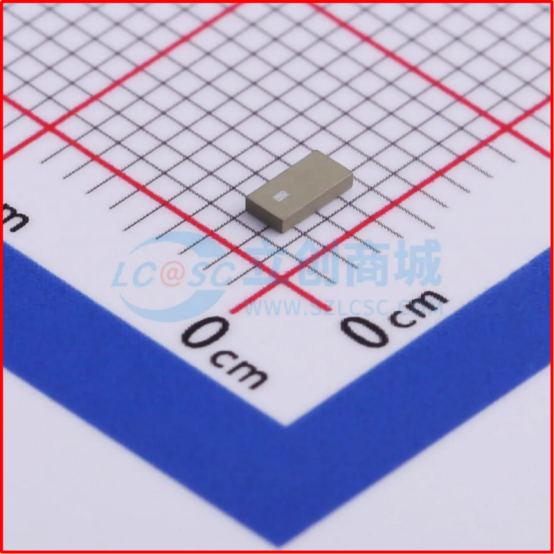

Kinghelm KH-3216-A35 Product Image

The Kinghelm (www.kinghelm.net) Chip Bluetooth SMD Antenna KH-3216-A35 utilizes advanced microwave multi-layer ceramic technology to ensure outstanding electrical performance at high frequencies. It also employs linear polarization and an omnidirectional design, which enhances signal reception and transmission in specific directions while ensuring uniform coverage in all directions, providing greater flexibility and convenience for wireless communications.

Product Features:

Wideband design supporting multiple communication frequency bands;

High gain for improved signal reception and transmission performance;

Rugged construction suitable for harsh environments.

Product Advantages:

1. Its compact size (3.2x1.6mm) and surface-mount design allow easy integration into various miniaturized devices.
2. Combines a low-profile design with high-performance Bluetooth band coverage, ensuring stable signal transmission and reception while minimizing space usage.
3. Peak gain up to 5.19dBi effectively enhances signal strength, maintaining stable communication quality even in complex environments.
4. Low VSWR design ensures stable signal transmission and reduces signal reflection and loss.
5. Standard 50Ω impedance design allows easy matching with various wireless communication devices.

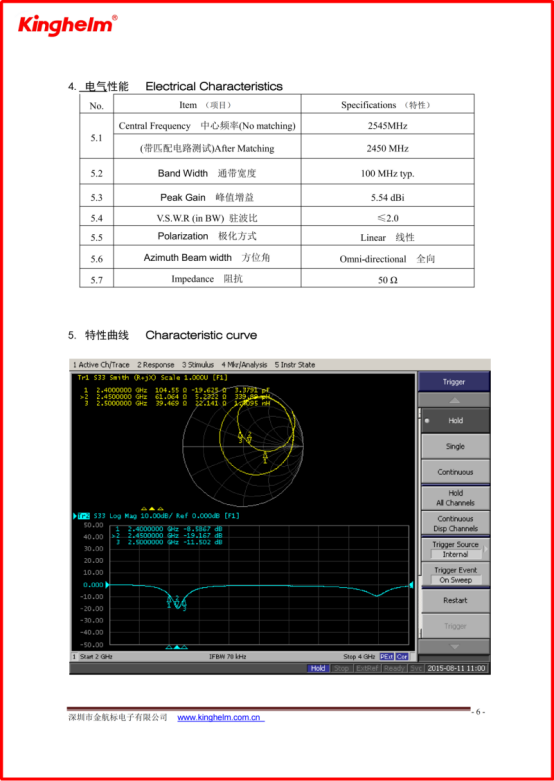

Kinghelm KH-3216-A35 Datasheet

Application Solutions:

With its compact size, strong performance, and broad compatibility, the KH-3216-A35 antenna is widely used in various portable Bluetooth devices such as smartwatches, wireless earphones, health monitoring equipment, and smart home controllers. It is also commonly used in automotive communication systems and high-frequency data transmission scenarios, and can serve as a drop-in replacement for the YAGEO ANT3216LLO0R2400A.

Precautions:

During installation, ensure there are no metal obstructions around the antenna to avoid affecting signal quality. Avoid applying mechanical stress to the antenna to maintain its structural integrity.

Kinghelm KH-3216-A27

The KH-3216-A27 is an ultra-compact (3.2x1.6mm) Bluetooth SMD module designed specifically for space-constrained IoT devices. It weighs 0.027g, is packaged in tape and reel, has an impedance of 50Ω, and integrates Bluetooth 5.0 technology for low power consumption, extended battery life, and high-speed data transmission. It supports multiple communication protocols, enabling easy device interconnection.

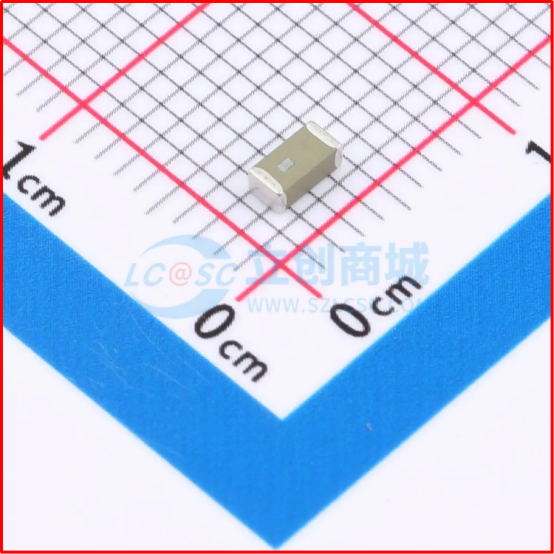

Kinghelm KH-3216-A27 Product Image

The Kinghelm (www.kinghelm.com.cn) Chip Bluetooth SMD Antenna KH-3216-A27 adopts advanced microwave multi-layer ceramic technology to ensure reliable and efficient signal transmission. Its compact design allows easy integration into various communication devices, whether smartphones, tablets, or IoT devices.

Product Features:

Excellent signal stability;

Suitable for automotive and mobile communications;

Compact structure for easy installation.

Product Advantages:

1. Compact size, plug-and-play capability, simplifying the design process;
2. High efficiency and stability, enhancing product competitiveness;
3. Broad compatibility for rapid integration into various smart systems.

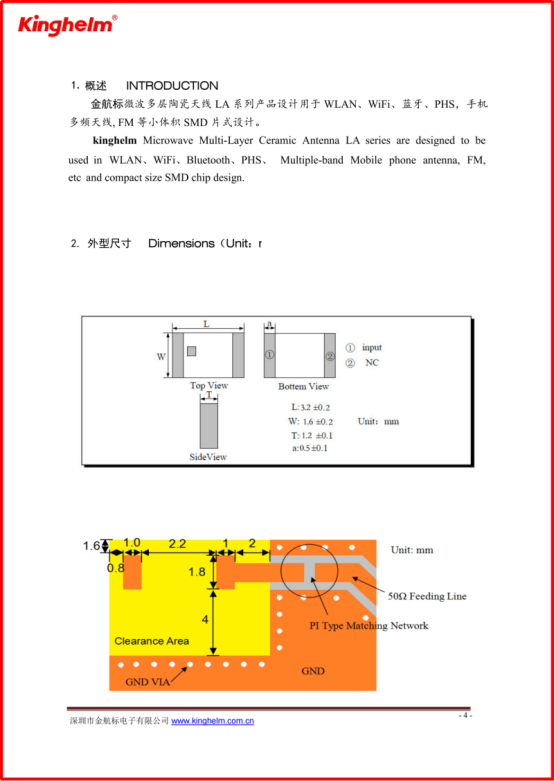

Kinghelm KH-3216-A27 Datasheet

Product Applications:

The KH-3216-A27 antenna is suitable for wireless connectivity applications in IoT devices and is widely used in wearable devices, smart homes, medical equipment, industrial monitoring, and other scenarios requiring compact Bluetooth connections.

Precautions:

During installation, ensure proper pin alignment to avoid electrostatic damage. Pay attention to the operating temperature range and keep the environment dry to prevent short circuits.
