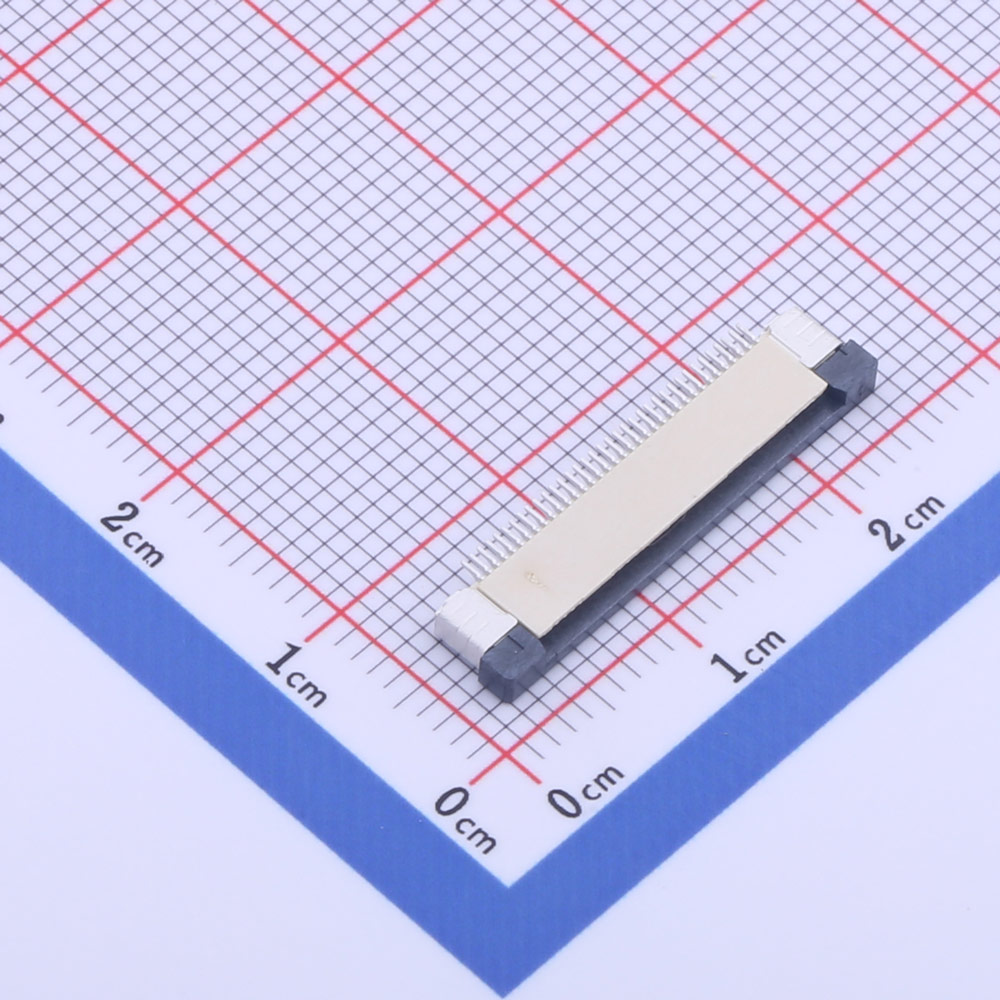

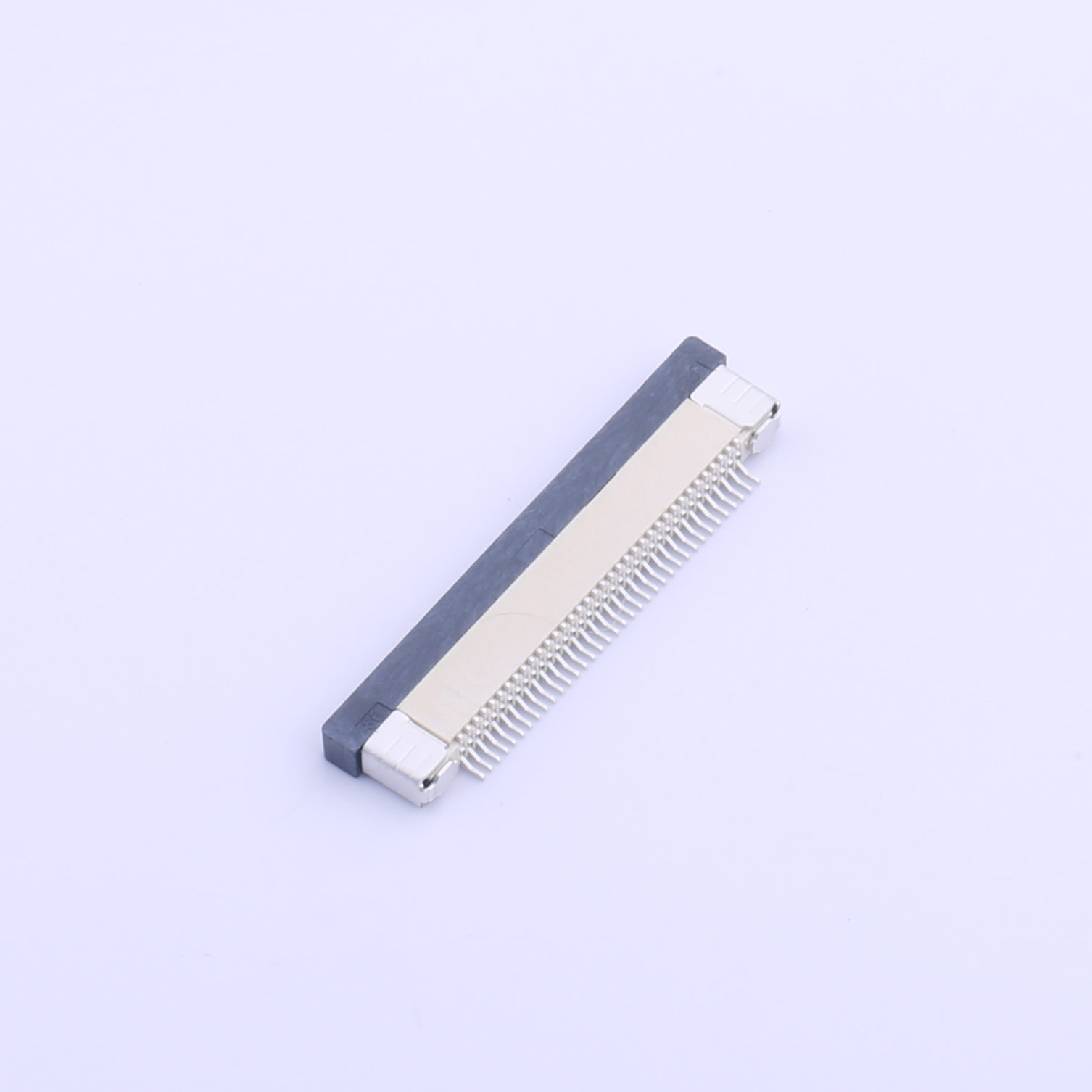

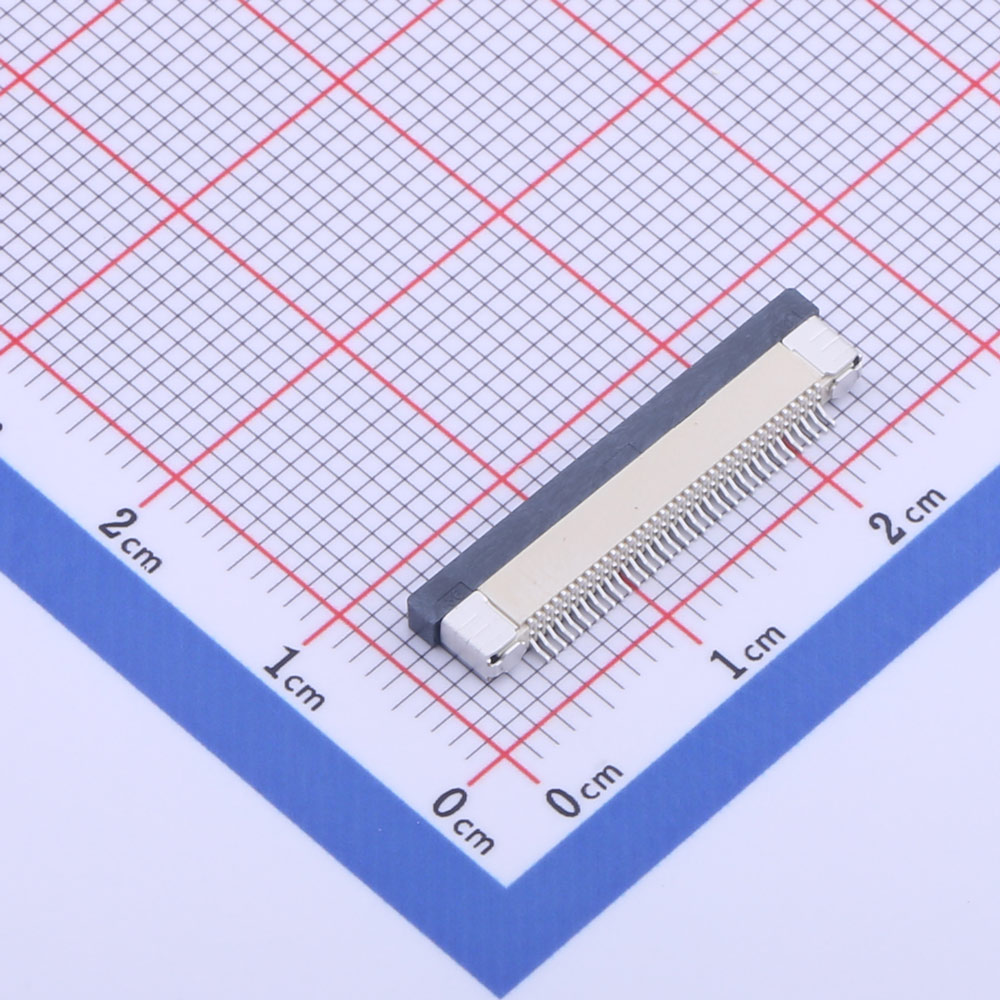

FFC/FPC Connector, 0.5mm Pitch, 36p, KH-CL0.5-H2.0-36PIN
Temperature Range: -25°C ~ +85°C
Rated Voltage: 50V, AC/DC (Equivalent)
Contact Resistance: ≤0.03Ω
Insulation Resistance: ≥500MΩ
Product Features
● 36 contacts with 0.5mm pitch for high density
● SMD package for surface mount applications
● Drawer-style latch for secure cable retention
● Supports flexible flat cables (FFC) and flexible printed circuits (FPC)
Product Benefits
● Provides reliable electrical connections
● Enhances space utilization on PCBs
● Facilitates automated assembly processes
● Suitable for high-vibration environments
Product Application
● Used in smartphones, tablets, and notebooks
● Ideal for data centers and high-performance computing
● Suitable for industrial automation and robotics
● Applied in medical equipment for precision connections
Name
Title
Description
Datasheet
Support
Support
If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.
Longevity
The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.
