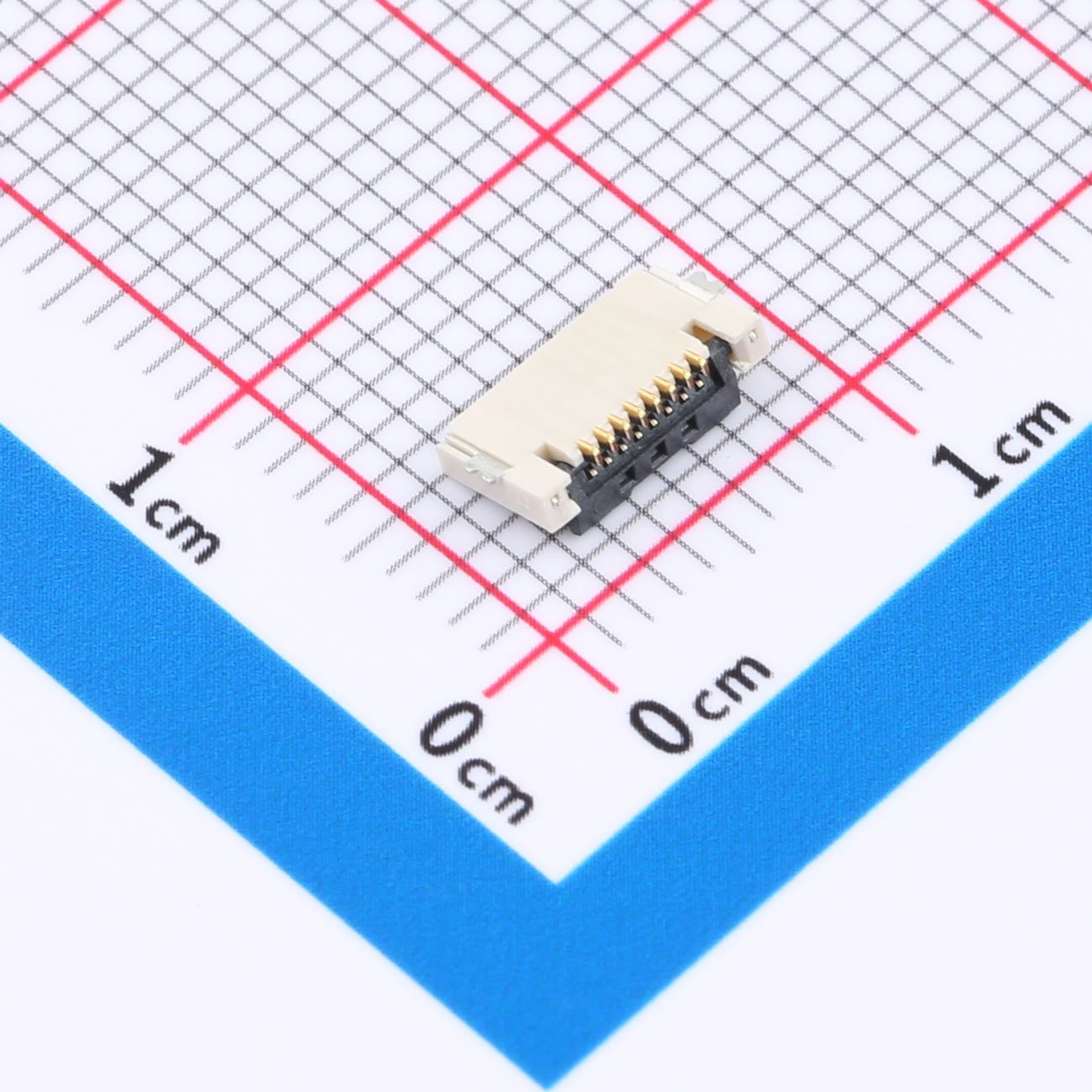

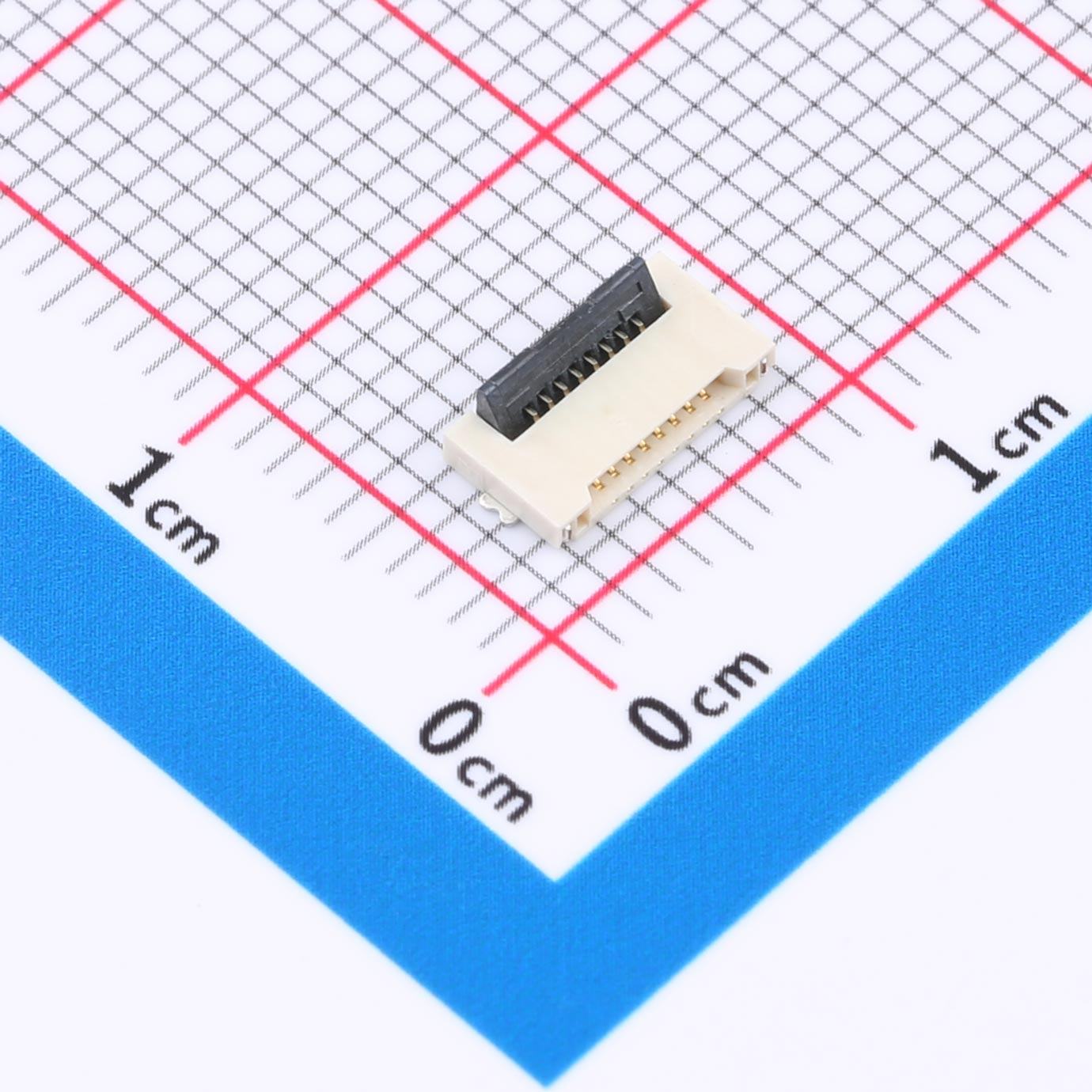

KH-FPC0.5-H1.2SMT-8P-QCHF
Brand Name: Kinghelm
Product Model: KH-FPC0.5-H1.2SMT-8P-QCHF
Package Type: SMD, P=0.5 mm, horizontal mount
Packaging Method: Tape and reel
Net Weight: 0.42 g
Features
- 5mm ultra-fine pitch FPC/FFC connector, 8-pin configuration
- Flip-lock structure (front-in, back-flip) for secure and stable cable retention
- Dual-contact design (top and bottom contact) ensures reliable electrical connection
- SMT (surface-mount) right-angle low-profile structure with 1.2mm board height
- Compatible with 0.3mm thick flexible flat cables
- Phosphor bronze contacts for stable conductivity and long service life
- Tape-and-reel packaging suitable for high-speed SMT assembly
- Compact design optimized for high-density PCB layouts
- Operating temperature range: -25°C to +85°C
- Rated voltage: 50V AC/DC equivalent
Advantages
- High connection reliability: dual-side contact structure improves signal stability and reduces intermittent contact risk
- Space-saving design: 1.2mm ultra-low profile ideal for compact electronic devices
- Strong mechanical locking: flip-lock mechanism enhances FPC retention force and prevents cable pull-out
- Excellent electrical performance: low contact resistance (≤0.03Ω) ensures efficient signal transmission
- High insulation safety: insulation resistance ≥500MΩ supports stable operation in complex environments
- Mass production ready: SMT + tape-and-reel packaging enables automated assembly and cost efficiency
- Wide application compatibility: supports various FPC cable interconnect designs in consumer and industrial electronics
Applications
- Smartphones and mobile devices
- Wearable devices (smart watches, fitness trackers)
- Tablets and portable consumer electronics
- Industrial control modules
- Automotive electronics (dashboard, control panels, sensors)
- Medical electronic devices
- Compact IoT and embedded systems
Name
Title
Description
Datasheet
Support
Related Products
KH-FPC0.5-H1.2SMT-6P-QCHF
Brand： kinghelm， Locking Feature： Flip-lock type (front-in, back-flip) Contact Type： Dual-side contact / top and bottom contact Number of Contacts： 8 pins Pitch： 0.5 mm Mounting Type： Horizontal SMT (low-profile, right-angle mount) Operating Temperature： -25°C ~ +85°C Rated Voltage： 50V Board Height： 1.2 mm
KH-FPC0.5-H1.2SMT-10P-QCHF
Brand： kinghelm， Locking Feature： Flip-lock type (front-in, back-flip) Contact Type： Dual-side contact / top and bottom contact Number of Contacts： 8 pins Pitch： 0.5 mm Mounting Type： Horizontal SMT (low-profile, right-angle mount) Operating Temperature： -25°C ~ +85°C Rated Voltage： 50V Board Height： 1.2 mm
KH-FPC0.5-H1.2SMT-12P-QCHF
Brand： kinghelm， Locking Feature： Flip-lock type (front-in, back-flip) Contact Type： Dual-side contact / top and bottom contact Number of Contacts： 8 pins Pitch： 0.5 mm Mounting Type： Horizontal SMT (low-profile, right-angle mount) Operating Temperature： -25°C ~ +85°C Rated Voltage： 50V Board Height： 1.2 mm
KH-FPC0.5-H1.2SMT-20P-QCHF
Brand： kinghelm， Locking Feature： Flip-lock type (front-in, back-flip) Contact Type： Dual-side contact / top and bottom contact Number of Contacts： 8 pins Pitch： 0.5 mm Mounting Type： Horizontal SMT (low-profile, right-angle mount) Operating Temperature： -25°C ~ +85°C Rated Voltage： 50V Board Height： 1.2 mm
KH-FPC0.5-H1.2SMT-30P-QCHF
Brand： kinghelm， Locking Feature： Flip-lock type (front-in, back-flip) Contact Type： Dual-side contact / top and bottom contact Number of Contacts： 8 pins Pitch： 0.5 mm Mounting Type： Horizontal SMT (low-profile, right-angle mount) Operating Temperature： -25°C ~ +85°C Rated Voltage： 50V Board Height： 1.2 mm
KH-FPC0.5-H1.2SMT-40P-QCHF
Brand： kinghelm， Locking Feature： Flip-lock type (front-in, back-flip) Contact Type： Dual-side contact / top and bottom contact Number of Contacts： 8 pins Pitch： 0.5 mm Mounting Type： Horizontal SMT (low-profile, right-angle mount) Operating Temperature： -25°C ~ +85°C Rated Voltage： 50V Board Height： 1.2 mm
KH-FPC0.5-H1.2SMT-50P-QCHF
Brand： kinghelm， Locking Feature： Flip-lock type (front-in, back-flip) Contact Type： Dual-side contact / top and bottom contact Number of Contacts： 8 pins Pitch： 0.5 mm Mounting Type： Horizontal SMT (low-profile, right-angle mount) Operating Temperature： -25°C ~ +85°C Rated Voltage： 50V Board Height： 1.2 mm
KH-FPC0.5-H1.2SMT-60P-QCHF
Brand： kinghelm， Locking Feature： Flip-lock type (front-in, back-flip) Contact Type： Dual-side contact / top and bottom contact Number of Contacts： 8 pins Pitch： 0.5 mm Mounting Type： Horizontal SMT (low-profile, right-angle mount) Operating Temperature： -25°C ~ +85°C Rated Voltage： 50V Board Height： 1.2 mm
KH-CL0.5-H1.2-14PIN-SMT
Brand： kinghelm， Locking Feature： Flip-lock type (front-in, back-flip) Contact Type： Dual-side contact / top and bottom contact Number of Contacts： 8 pins Pitch： 0.5 mm Mounting Type： Horizontal SMT (low-profile, right-angle mount) Operating Temperature： -25°C ~ +85°C Rated Voltage： 50V Board Height： 1.2 mm
KH-CL0.5-H1.2-38PIN-SMT
Brand： kinghelm， Locking Feature： Flip-lock type (front-in, back-flip) Contact Type： Dual-side contact / top and bottom contact Number of Contacts： 8 pins Pitch： 0.5 mm Mounting Type： Horizontal SMT (low-profile, right-angle mount) Operating Temperature： -25°C ~ +85°C Rated Voltage： 50V Board Height： 1.2 mm
