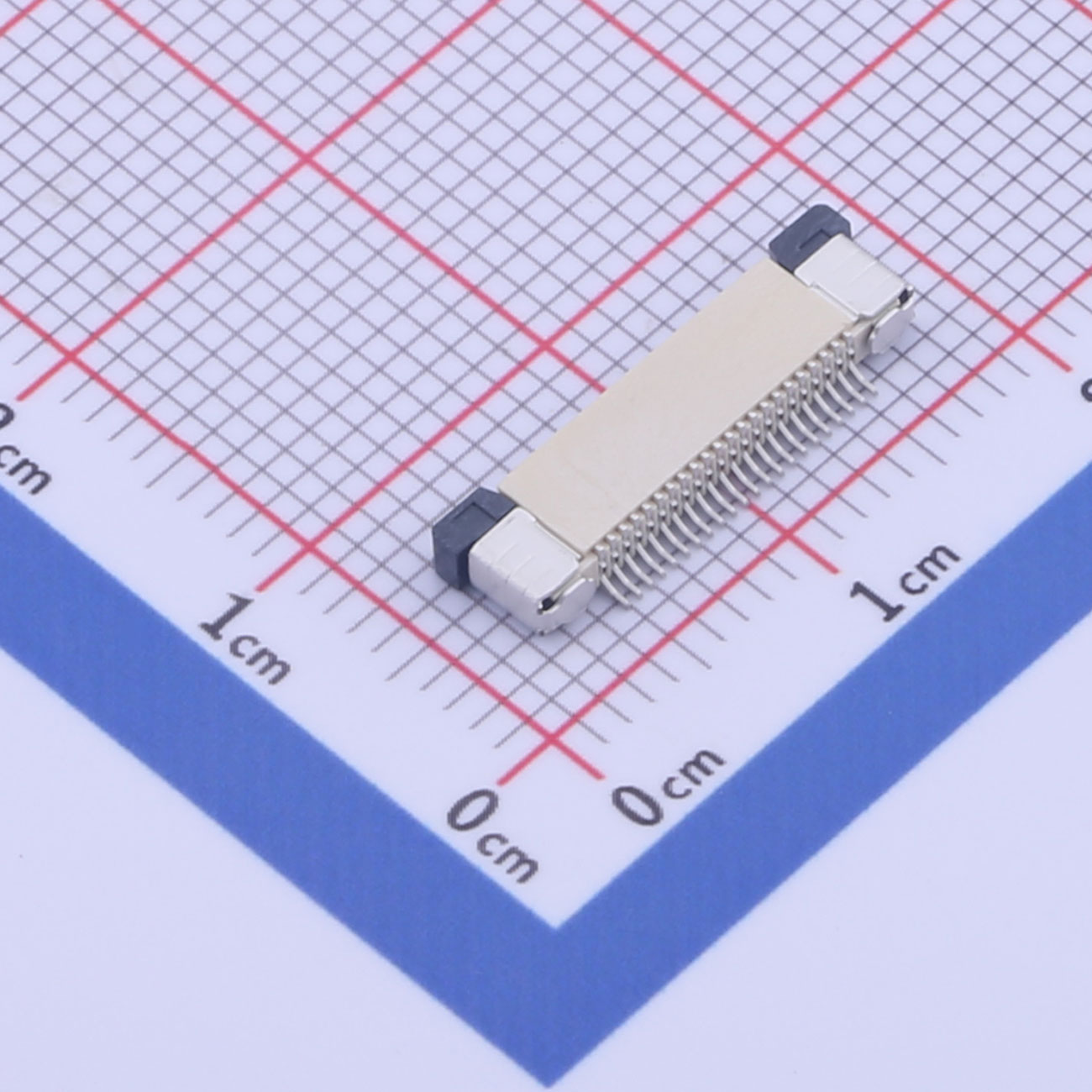

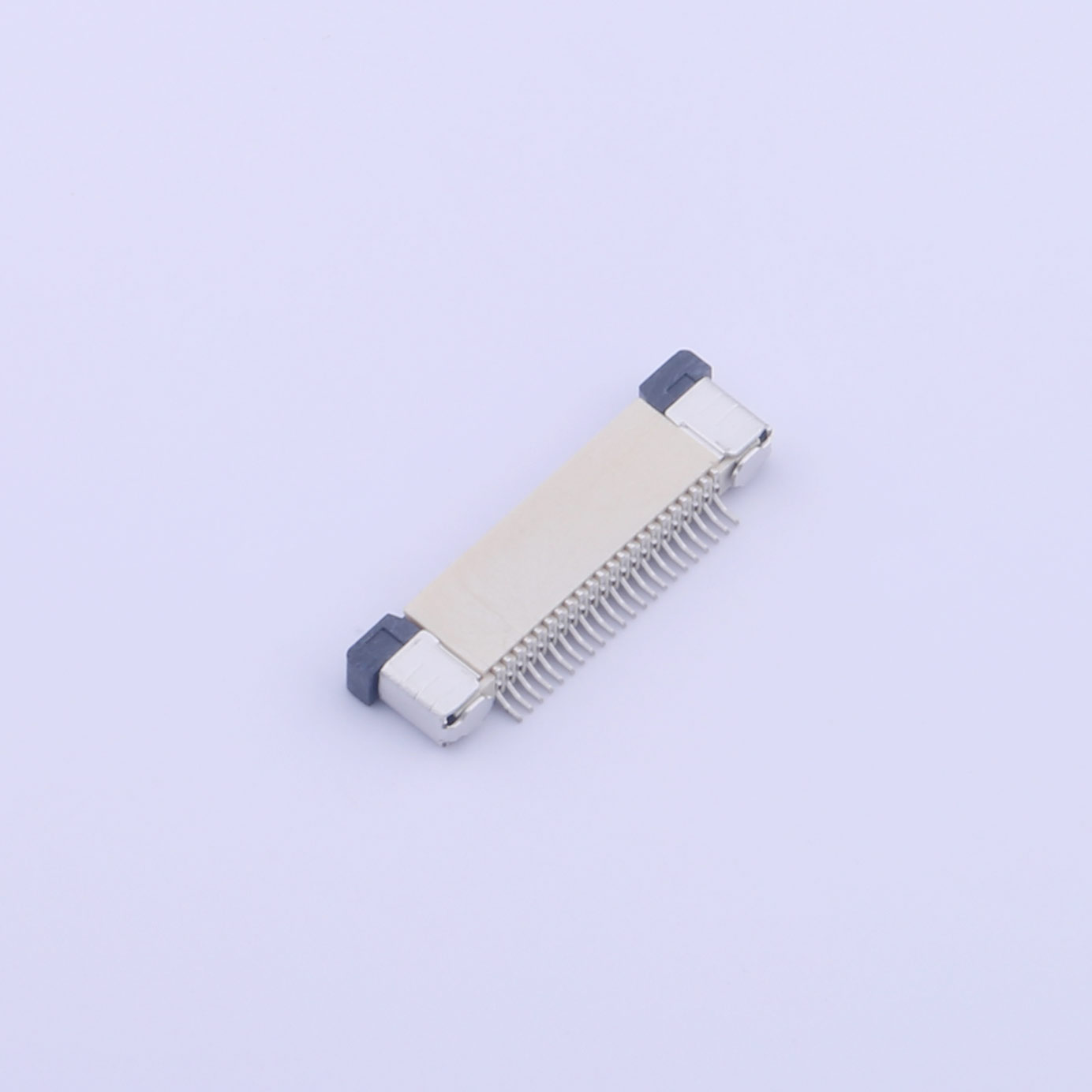

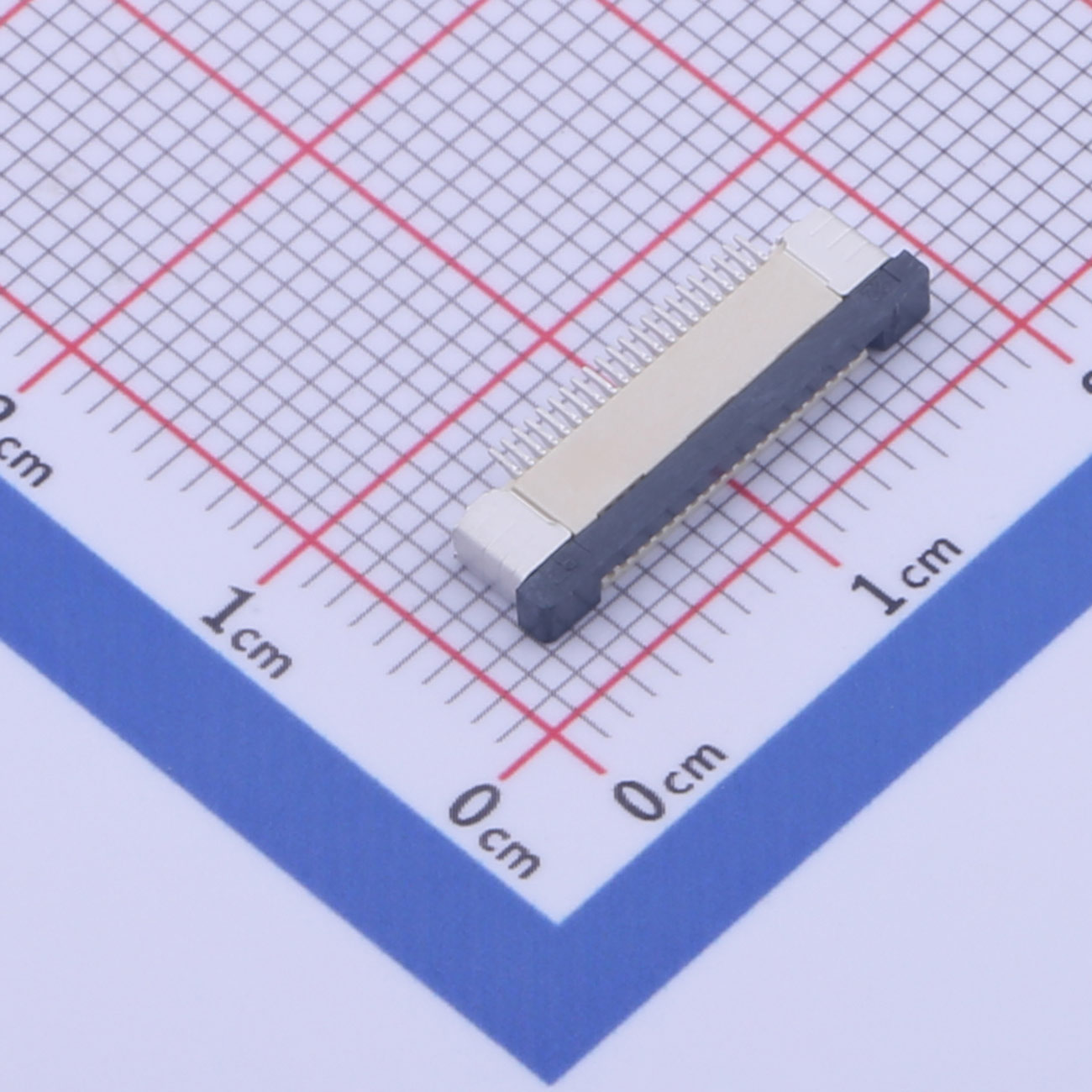

FFC/FPC Connector, 0.5mm Pitch, 22p, KH-CL0.5-H2.0-22ps
Temperature Range: -25°C ~ +85°C
Rated Voltage: 50V, AC/DC (Equivalent)
Contact Resistance: ≤0.03Ω
Insulation Resistance: ≥500MΩ
Product Features
● 22 pins, 0.5mm pitch
● Compact, high-density layout
● Secure latch design
● FFC/FPC cable compatible
● Snap-fit installation
Product Benefits
● Maximizes PCB real estate
● Ensures robust, stable connections
● Supports high-speed data transmission
● Simplifies manufacturing processes
● Offers long-term reliability
Product Application
● Internal circuitry in consumer electronics
● High-speed data links in data centers
● Industrial automation and robotics
● Precision medical equipment
● Automotive electronics systems
Name
Title
Description
Datasheet
Support
Support
If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.
Longevity
The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.
