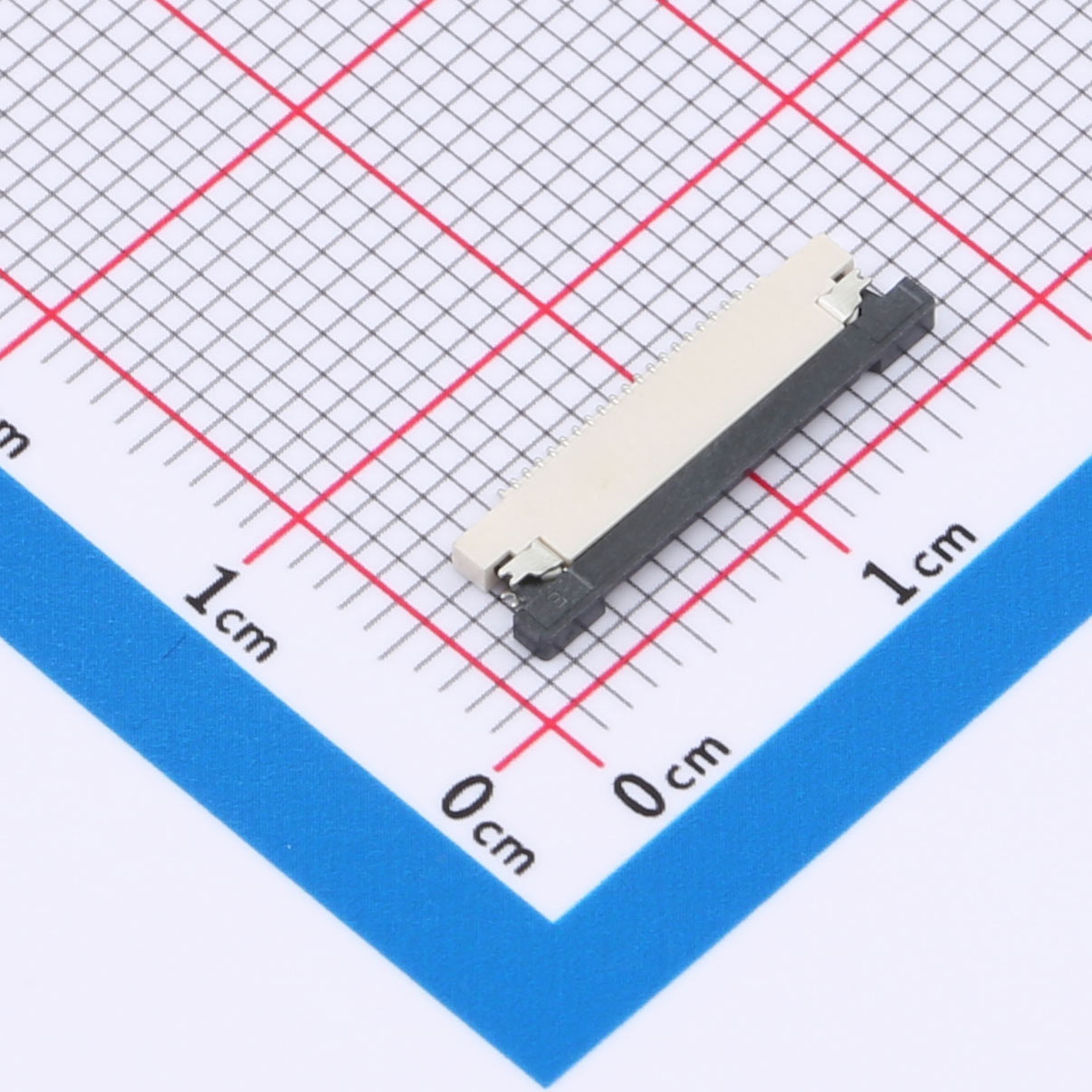

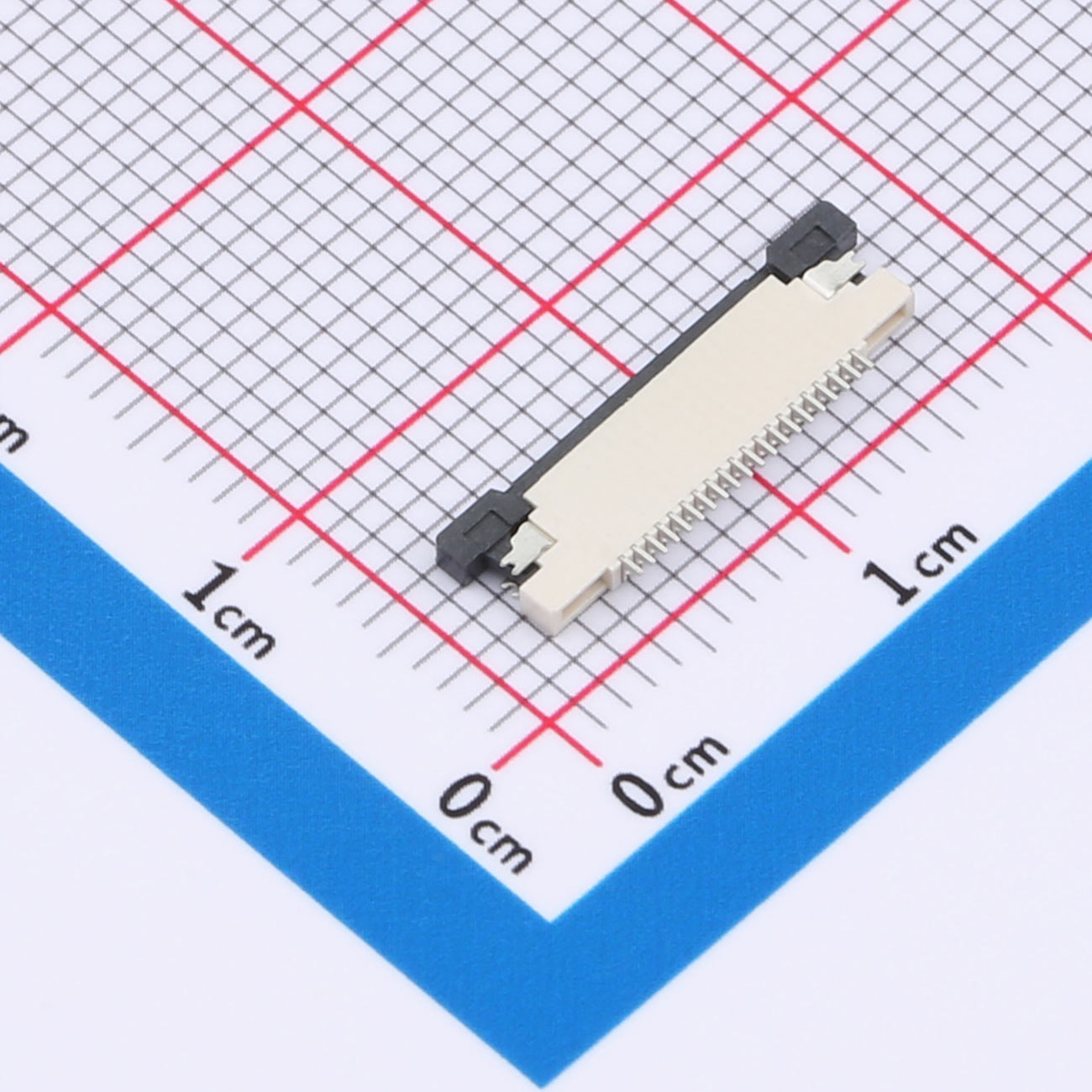

FFC/FPC Connector, 0.5mm Pitch, 20P,?KH-CL0.5-H1.2-20PIN-SMT
Temperature Range: -25℃ to 85℃
Rated Voltage: 50V AC/DC (equivalent)
Contact Resistance: ≤0.03Ω
Insulation Resistance: ≥500MΩ
Plating: Full Matte Tin on Terminals
Product Benefits
● Low profile connector designed for high-density applications
● Excellent thermal stability across a wide temperature range
● Reliable contact performance minimizes signal loss
● High insulation resistance enhances circuit safety
● Full matte tin plating for consistent quality in soldering
● Packaged in tape for easy handling in production
Product Applications
● Robotics and automation technology for flexible designs
● Home appliances with limited space for connections
● Audio and video devices requiring compact connectors
● Point-of-sale systems for efficient data transfer
● Wearable technology for enhanced user experience
● Gaming consoles and peripherals for optimal performance
Name
Title
Description
Datasheet
Support
Support
If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.
Longevity
The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.
