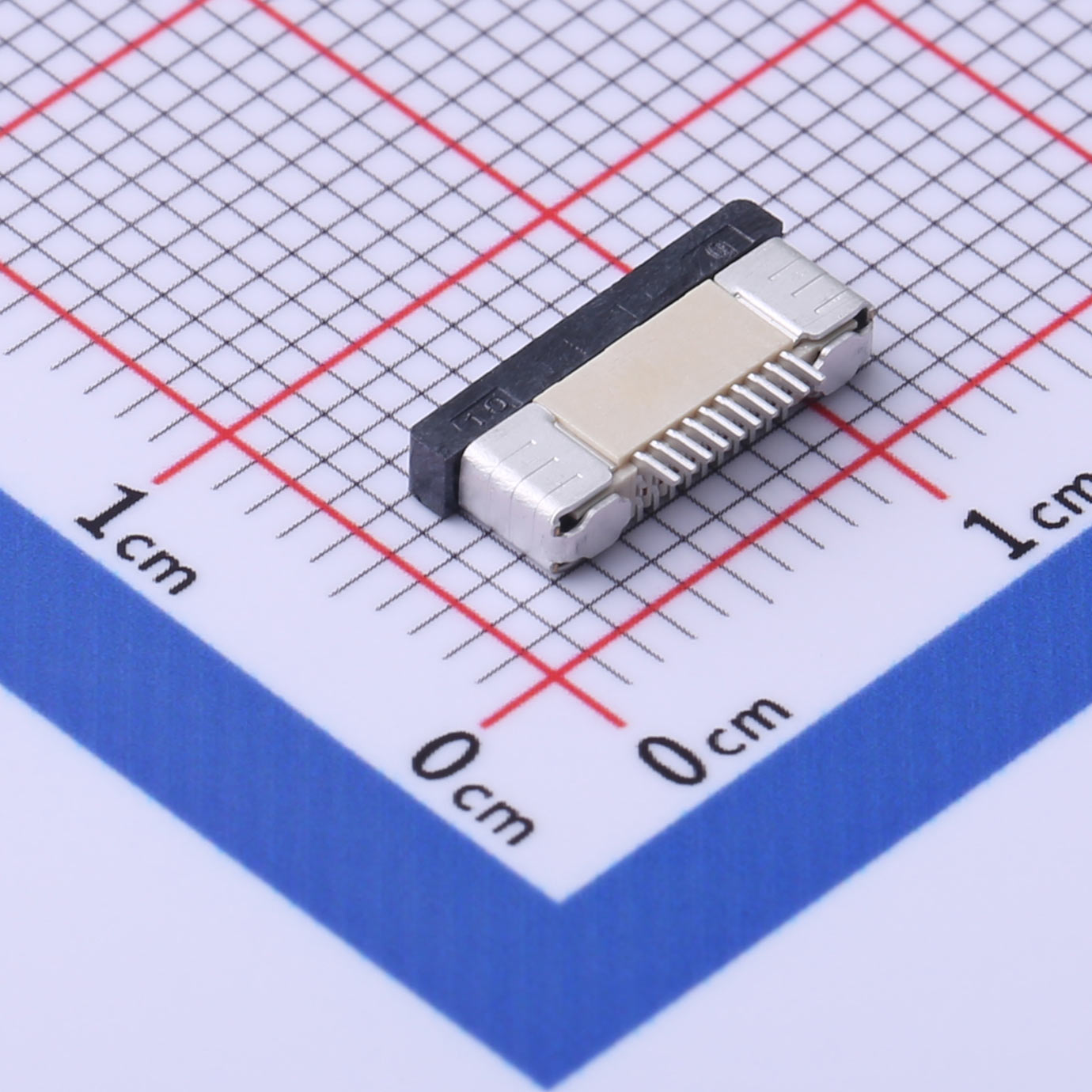

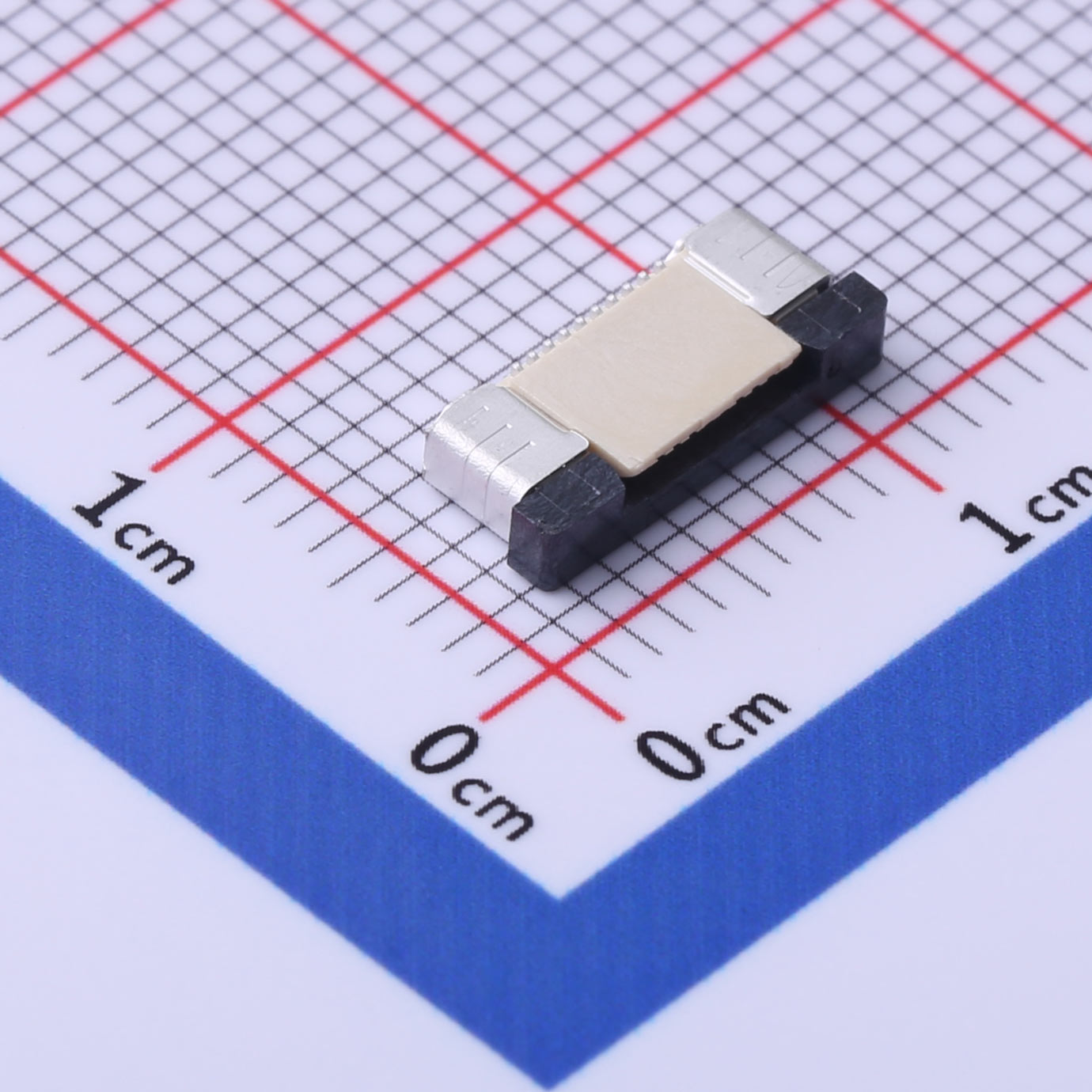

FFC/FPC connector, 0.5mm Pitch, 10P, KH-CL0.5-H2.0-10ps
Temperature Range: -25°C ~ +85°C
Rated Voltage: 50V, AC/DC (Equivalent)
Contact Resistance: ≤0.03Ω
Insulation Resistance: ≥500MΩ
Product Features
● Designed for high-density, small-size FFC/FPC connections
● Pitch of 0.5mm saves space for compact designs
● Offers 10 pins for efficient data transmission
● Height of H2.0mm fits into tight installation environments
● Made of high-quality metal and plastic for durability
Product Benefits
● Enhanced connectivity in limited spaces with 0.5mm pitch
● Reliable performance with reduced fault rates
● Streamlined installation process
● Cost-effective solution maintaining high performance
● Precision manufacturing ensures low contact resistance
Product Application
● Ideal for internal connections in portable devices
● Used in small sensors and actuators in industrial systems
● Suitable for automotive electronics
● Applied in medical devices
● Perfect for tablets and wearable tech
Name
Title
Description
Datasheet
Support
Support
If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.
Longevity
The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.
