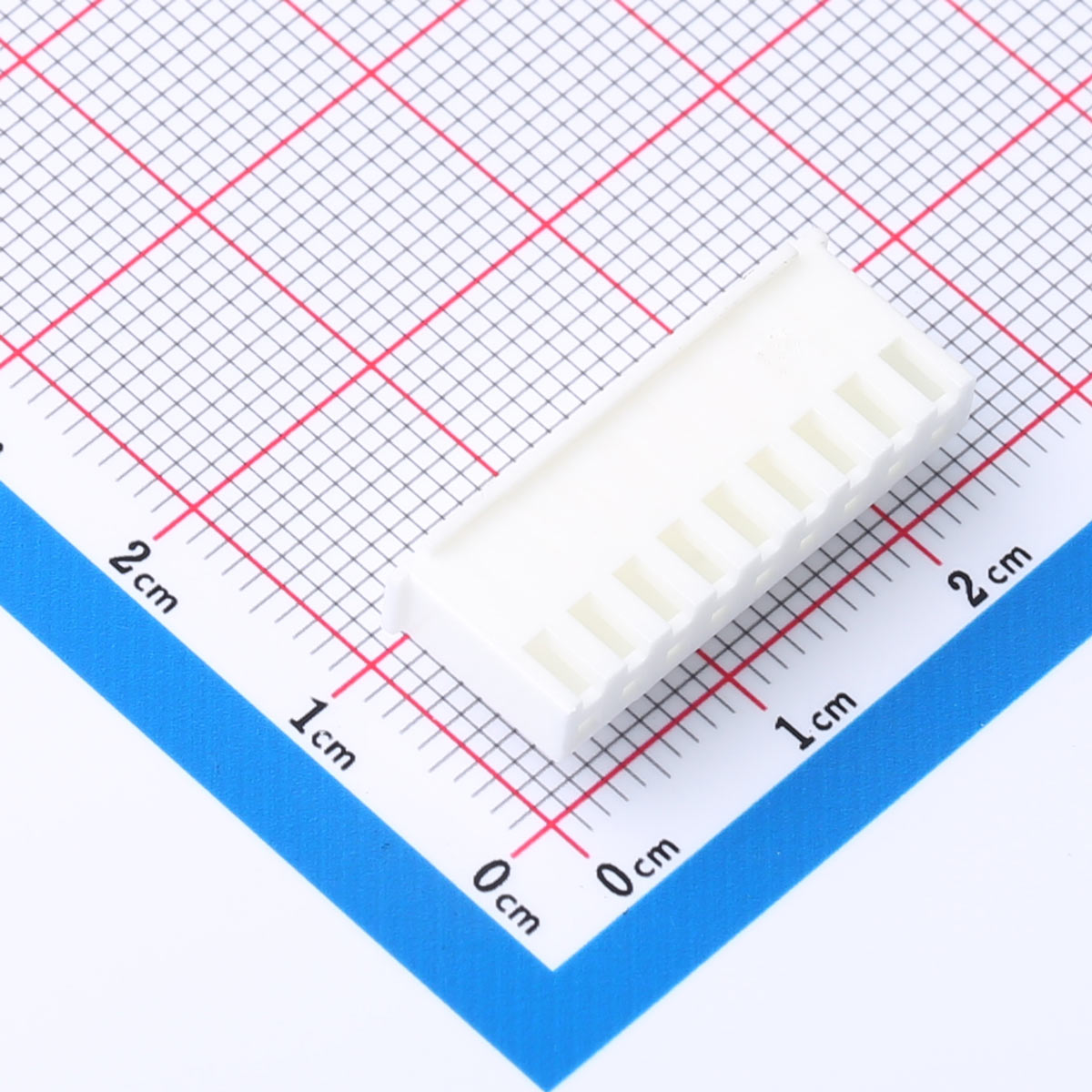

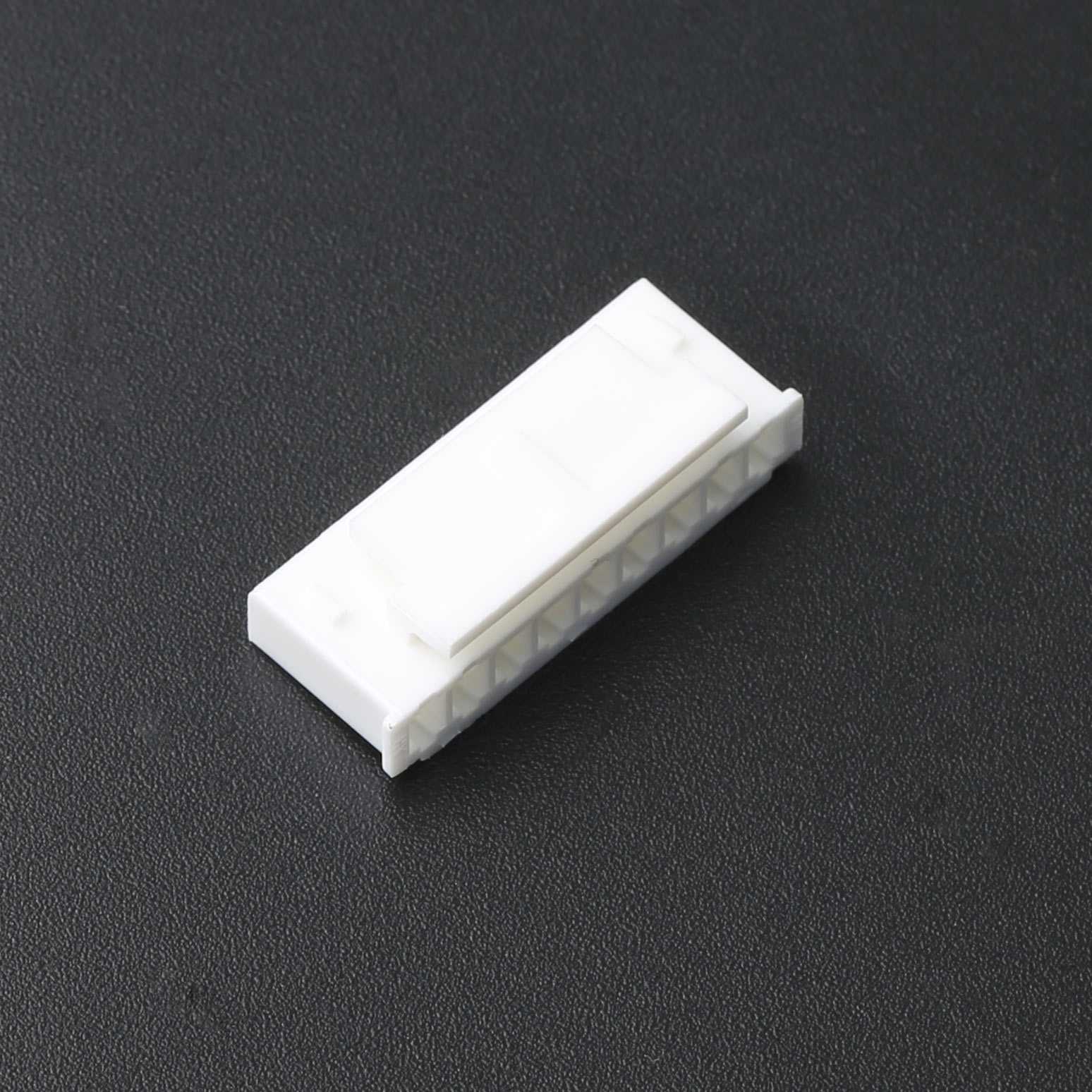

Crimp Terminal Shell, 2.5mm Pitch, 1x9P, with Locking Buckle, KH-A2504-09Y
Current Rating: 3A (AC, DC)
Voltage Rating: 250V (AC, DC)
Temperature Range: -25°C to +85°C
Contact Resistance: ≤ 20mΩ
Insulation Resistance: ≥ 1000MΩ
Withstanding Voltage: 1000V AC/minute
Product Benefits
● 2.5mm pitch for compact design
● 9 pins per row for space efficiency
● Locking buckle for secure connection
● Made from durable Nylon 66 material
● UL94V-0 rated for fire resistance
● Easy crimping for quick installation
● Ensures stable electrical performance
Product Application
● Electrical panel connections
● Sensor wiring
● Home automation systems
● Lighting control circuits
● Battery management systems
● Medical equipment wiring
Name
Title
Description
Datasheet
Support
Support
If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.
Longevity
The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.
