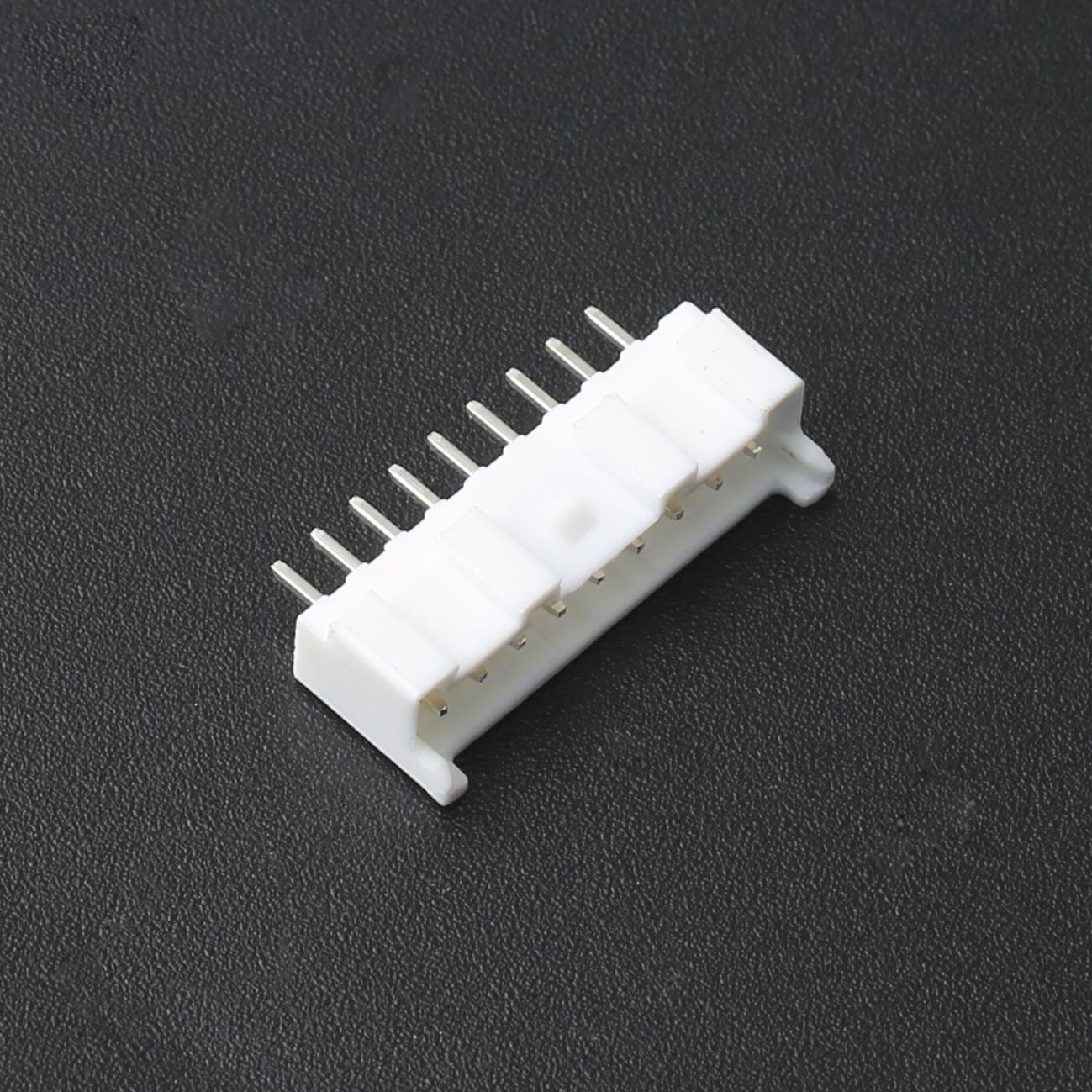

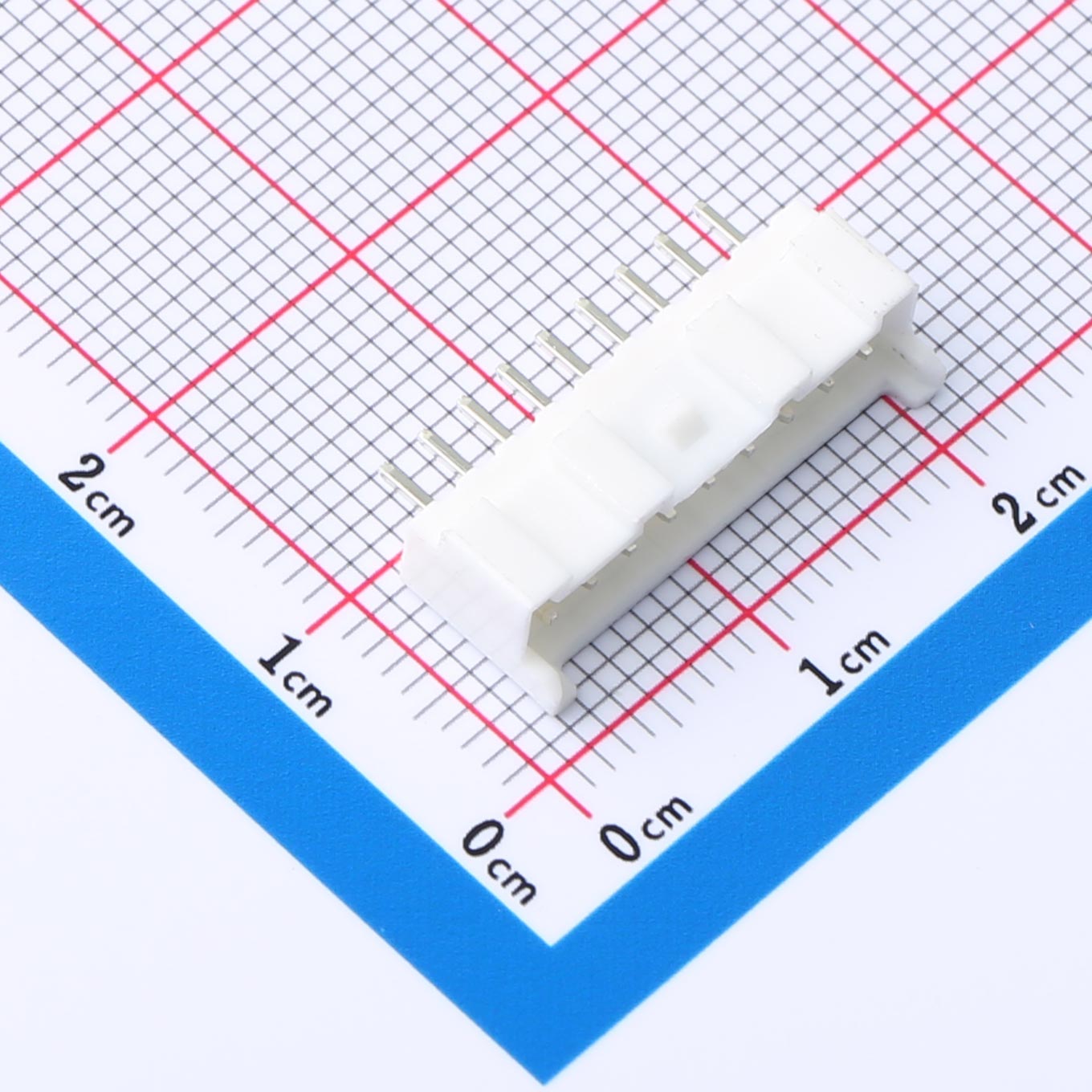

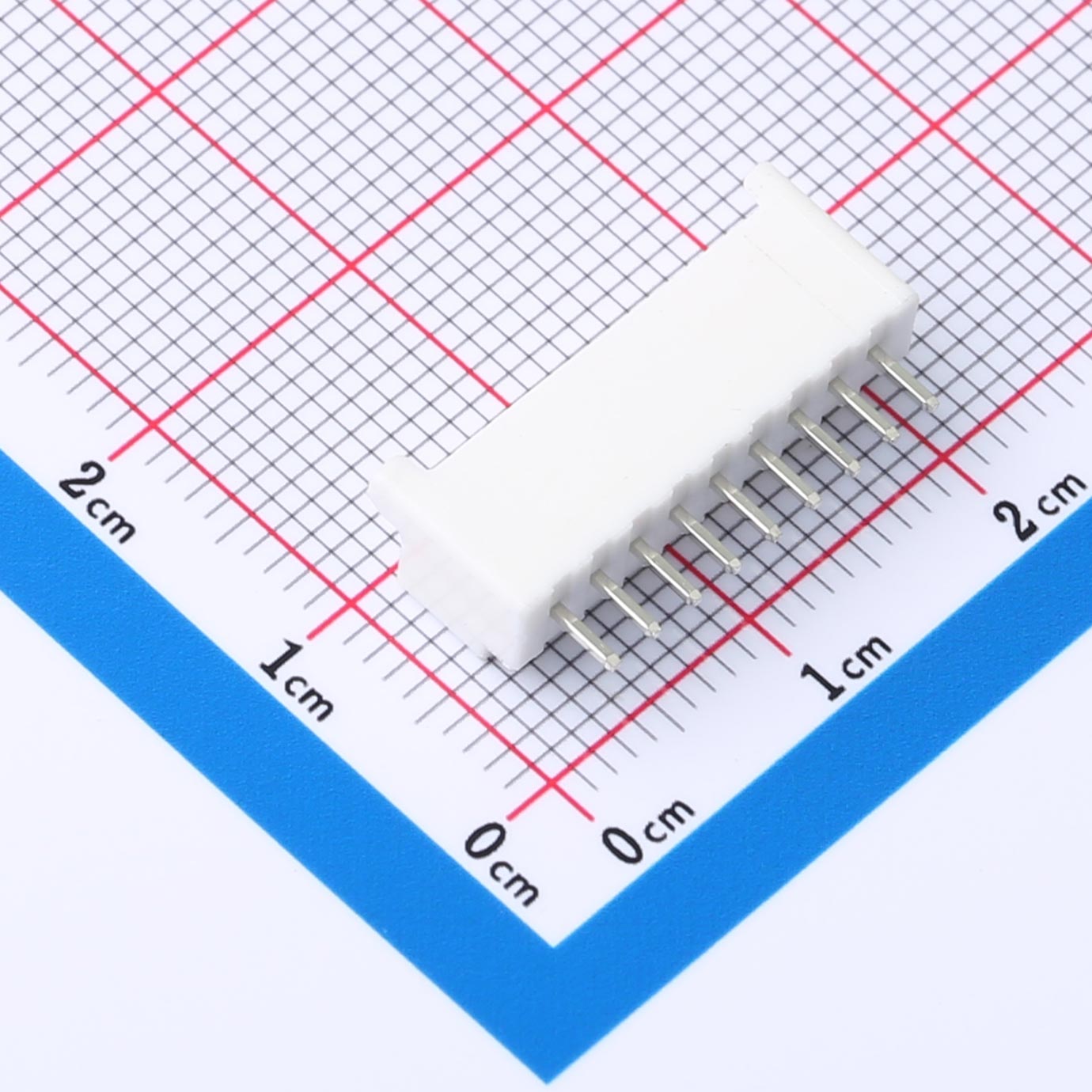

2mm Pitch Wire-to-Board Connector, 1x9P, Straight Pin, KH-A2026-09A
Current Rating: 3A AC/DC
Voltage Rating: 100V AC/DC
Temperature Range: -25℃ to +85℃
Contact Resistance: 20mΩ Max
Insulation Resistance: 1000MΩ Min
Product Features
● 2.00mm pitch, 1x9P configuration
● Through-hole vertical pin header
● Straight pin style for upright connections
● Anti-corrosive tin plating on brass pins
● Matches PA series connectors
Product Benefits
● Saves horizontal PCB space
● Durable contact under frequent use
● Ideal for vertical jumper configurations
● Easy to solder with strong mechanical hold
● Compact, lightweight footprint
Product Applications
● Interface connections in embedded boards
● Low-profile control units
● Compact signal distribution boards
● Sensor modules
● DIY electronics kits
Name
Title
Description
Datasheet
Support
Support
If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.
Longevity
The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.
